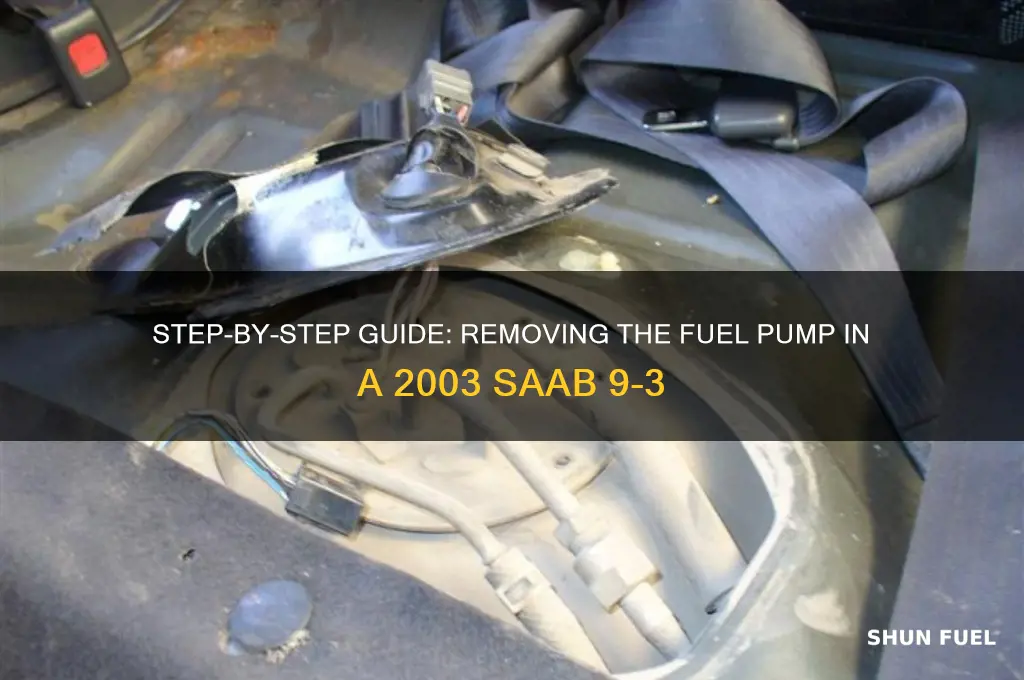

Removing the fuel pump from a 2003 Saab 9-3 requires careful preparation and attention to detail due to the vehicle's fuel system complexity. Begin by ensuring the fuel tank is nearly empty to minimize spillage and fire hazards. Disconnect the negative battery terminal to prevent electrical accidents, then locate the fuel pump assembly, which is typically accessed through the rear seat or trunk area. Relieve the fuel system pressure using the Schrader valve, and disconnect the fuel lines and electrical connectors. Remove the retaining bolts securing the fuel pump module, carefully lowering it out of the tank. Always work in a well-ventilated area and use appropriate safety gear to avoid fuel exposure or ignition risks.
| Characteristics | Values |
|---|---|
| Vehicle Model | Saab 9-3 (2003) |
| Fuel Pump Location | Inside the fuel tank |
| Tools Required | Jack, Jack Stands, Wrenches, Screwdrivers, Pliers, Fuel Line Disconnect Tool |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Steps to Access Fuel Pump | 1. Lift vehicle and secure on jack stands 2. Remove rear seat cushion 3. Locate fuel pump access panel 4. Disconnect electrical connectors 5. Remove fuel lines 6. Unbolt and remove fuel pump assembly |
| Fuel Pump Locking Mechanism | Secured with bolts or locking ring |
| Fuel Pump Replacement | Replace with OEM or compatible fuel pump |
| Reinstallation Steps | Reverse removal steps, ensure all connections are secure |
| Post-Installation Check | Check for leaks, reconnect battery, test fuel pump operation |
| Difficulty Level | Intermediate to Advanced (requires mechanical knowledge) |
| Estimated Time | 2-4 hours depending on experience |
| Common Issues | Fuel pump failure, clogged fuel filter, electrical connector corrosion |
| Recommended Maintenance | Replace fuel filter when replacing fuel pump |
| Reference Sources | Saab service manual, online repair forums, YouTube tutorials |
