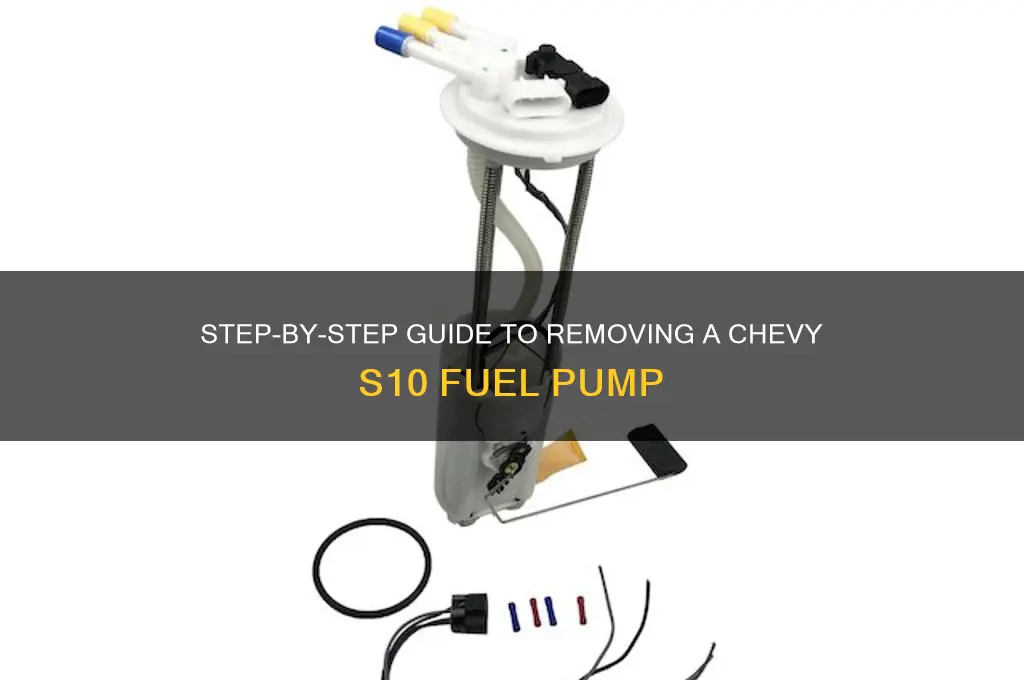

Replacing or removing the fuel pump on a Chevy S10 requires careful preparation and attention to detail. Before starting, ensure the vehicle is on a level surface, the engine is cool, and the fuel system pressure is relieved to prevent accidents. Begin by disconnecting the battery to avoid electrical hazards, then locate the fuel tank and remove the protective skid plate if equipped. Next, disconnect the fuel lines and electrical connector from the pump assembly, taking note of their positions for reassembly. Finally, lower the fuel tank or access the pump from the top, depending on the model year, and carefully remove the retaining ring or bolts to extract the fuel pump module. Always refer to the vehicle’s manual for specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Vehicle Model | Chevrolet S10 |
| Fuel Pump Location | Inside the fuel tank |
| Tools Required | Socket set, wrenches, screwdriver, jack, jack stands, safety goggles |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Steps to Remove | 1. Relieve fuel pressure 2. Disconnect battery 3. Raise vehicle and secure on stands 4. Remove fuel tank shield 5. Disconnect fuel lines and electrical connectors 6. Lower tank and remove pump assembly 7. Replace pump if necessary |
| Fuel Pump Assembly Components | Pump, sending unit, float, filter sock |
| Difficulty Level | Moderate to difficult (requires mechanical skill) |
| Estimated Time | 2-4 hours depending on experience |
| Common Issues | Fuel line corrosion, electrical connector damage, tank strap wear |
| Replacement Parts | New fuel pump, fuel filter, O-rings, gasket |
| Post-Installation Steps | Reconnect battery, check for leaks, test fuel pump operation |
| Safety Note | Gasoline is flammable; avoid open flames or sparks during removal/install |
