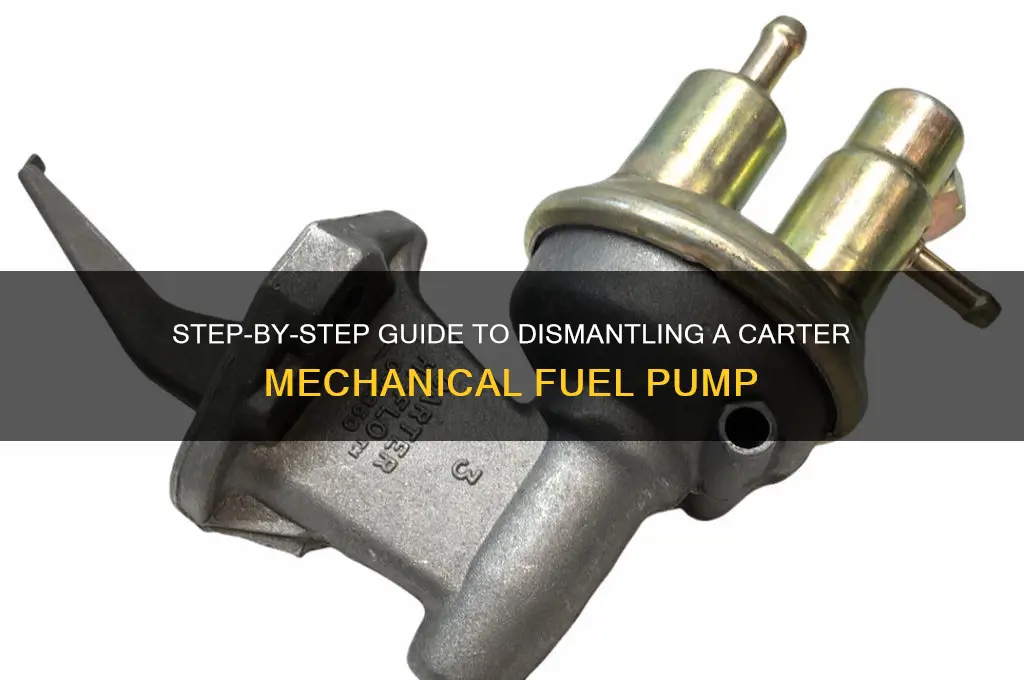

Tearing down a Carter mechanical fuel pump is a precise process that requires careful attention to detail to ensure the pump’s internal components are inspected, cleaned, or replaced correctly. This task is often necessary for troubleshooting fuel delivery issues, addressing leaks, or performing routine maintenance on older vehicles equipped with this type of pump. The process involves removing the pump from the engine, disassembling its housing, and inspecting critical parts such as the diaphragm, valves, and plunger for wear or damage. Proper tools, such as wrenches, screwdrivers, and a pump puller, are essential to avoid damaging the pump or its mounting surface. Understanding the pump’s design and function is key to reassembling it correctly and restoring reliable fuel delivery to the engine.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdrivers, wrenches, pliers, gasket scraper, new gasket, cleaning solvent |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Pump Removal Steps | 1. Disconnect fuel lines 2. Remove mounting bolts 3. Lift pump from engine block |
| Disassembly Steps | 1. Remove pump cover 2. Extract diaphragm and valve assembly 3. Clean internal components |
| Inspection Points | Check diaphragm for tears, inspect valves for wear, ensure plunger moves freely |
| Common Issues | Leaking diaphragm, worn valves, clogged inlet/outlet ports |
| Reassembly Tips | Replace gasket, lubricate O-rings, ensure proper alignment of components |
| Testing Procedure | Reinstall pump, check for leaks, verify proper fuel flow under pressure |
| Replacement Parts | Diaphragm kit, valves, gaskets, O-rings |
| Compatibility | Fits Carter mechanical fuel pumps used in carbureted engines |
| Difficulty Level | Moderate (requires basic mechanical skills) |
| Estimated Time | 1-2 hours (depending on experience and condition of pump) |
Explore related products
What You'll Learn
Gather Tools and Safety Gear
Before disassembling a Carter mechanical fuel pump, ensure you have the right tools and safety gear to avoid mishaps and ensure efficiency. Start with a set of metric wrenches or sockets, typically ranging from 8mm to 14mm, to handle the pump’s mounting bolts and internal components. A flathead and Phillips screwdriver will be essential for prying and removing screws, while a pair of needle-nose pliers can help extract small parts like gaskets or springs. A clean workbench or mat is crucial to keep track of removed parts and prevent contamination. For safety, wear nitrile gloves to protect your hands from fuel residue and sharp edges, and safety goggles to shield your eyes from debris or accidental splashes. A parts cleaner or solvent will be handy for degreasing components, but always use it in a well-ventilated area or outdoors to avoid inhaling fumes.
Analyzing the tools needed reveals a balance between precision and practicality. For instance, a magnetic parts tray is a small investment that pays off by keeping screws, washers, and springs organized, reducing the risk of losing critical components. Similarly, a torque wrench, while not strictly necessary, ensures the pump is reassembled to factory specifications, preventing leaks or damage. Safety gear, on the other hand, is non-negotiable. Fuel is flammable and can irritate skin, so a fire extinguisher should be nearby, and flammable materials should be cleared from the workspace. If working indoors, ensure proper ventilation to disperse fuel vapors, which can be hazardous in confined spaces.
Persuasively, investing in quality tools and safety gear is not just about completing the task—it’s about doing it right and safely. A cheap wrench might slip and damage the pump’s housing, while inadequate gloves could expose you to harmful chemicals. Consider this: the cost of a single mistake, like losing a spring or causing a fuel leak, far outweighs the expense of proper equipment. Additionally, reusable items like safety goggles and a parts tray are long-term investments that will serve you in future projects. Think of it as a small price for peace of mind and professional results.
Comparatively, tearing down a Carter mechanical fuel pump is simpler than working on modern electronic fuel systems, but it still demands respect for the process. Unlike electronic pumps, mechanical ones don’t require specialized diagnostic tools or software, but they do require meticulous attention to detail. For example, while a modern fuel pump might need a scan tool to test its operation, a Carter pump relies on physical inspection of diaphragms, valves, and springs. This makes the right tools even more critical, as you’re working with components that are both delicate and essential to the pump’s function. Safety gear, however, remains universally important, regardless of the system’s complexity.
Descriptively, imagine your workspace as a surgeon’s operating table—clean, organized, and equipped with everything you need within arm’s reach. Lay out your tools in the order you’ll use them: wrenches for dismounting, screwdrivers for prying, and pliers for extracting. Position the parts tray to catch components as they’re removed, and keep the solvent and rags nearby for cleaning. Your safety gear should be the first thing you put on: goggles snug on your face, gloves fitted to your hands, and the workspace cleared of hazards. This setup not only streamlines the teardown but also transforms a potentially messy, dangerous task into a controlled, methodical process. With the right tools and precautions, disassembling a Carter mechanical fuel pump becomes less of a chore and more of a satisfying, skill-building experience.
Troubleshooting Fuel Pump Issues: Why Can't You Hear It Kick On?
You may want to see also
Explore related products
Locate and Disconnect Fuel Lines
Before disassembling a Carter mechanical fuel pump, locating and disconnecting the fuel lines is a critical step that demands precision and caution. The fuel lines are typically connected to the pump via barbed fittings or threaded connections, depending on the model and vehicle. Start by identifying the inlet and outlet lines: the inlet line supplies fuel from the tank, while the outlet line delivers it to the carburetor. Use a flashlight if necessary, as these components are often tucked away in tight engine compartments.
Once identified, the next step is to safely disconnect the fuel lines. For barbed fittings, a pair of fuel line disconnect tools is ideal. These tools compress the line’s retaining clip, allowing it to slide off the barb without damaging the line. If threaded connections are present, use an appropriate wrench or pliers, taking care not to overtighten or strip the threads. Always work with clean hands and tools to avoid contaminating the fuel system. If the lines are stubborn, apply a small amount of penetrating oil and allow it to sit for 10–15 minutes before attempting again.
Safety is paramount during this process. Fuel is flammable, so ensure the engine is cool and the ignition is off. Keep a fire extinguisher nearby as a precaution. If fuel spills occur, clean them immediately with a rag and dispose of it properly. For older vehicles, consider wearing safety goggles to protect against accidental fuel splashes. Additionally, relieve fuel system pressure by loosening the gas cap or using a pressure relief tool before beginning.
After disconnecting the lines, inspect them for cracks, brittleness, or signs of deterioration, especially in vehicles over 10 years old. If the lines are compromised, replace them to prevent leaks or performance issues. Cap or plug the open ends of the fuel lines to keep debris out and fuel in. This step not only safeguards the system but also makes reassembly easier. Properly labeling the lines (e.g., "inlet" and "outlet") with tape or markers can prevent confusion later.
In summary, locating and disconnecting fuel lines is a meticulous task that requires the right tools, safety precautions, and attention to detail. By following these steps, you’ll minimize risks and ensure a smooth teardown of the Carter mechanical fuel pump. This process not only protects the vehicle but also sets the stage for efficient repairs or maintenance.
Optimal Fuel Pump Replacement Frequency: A Comprehensive Maintenance Guide
You may want to see also
Explore related products
Remove Mounting Bolts and Pump
The first step in dismantling a Carter mechanical fuel pump is to locate and remove the mounting bolts that secure it to the engine block. Typically, these bolts are 1/4-inch or 5/16-inch in size, depending on the model. Use a socket wrench with the appropriate socket size to loosen and remove them. Ensure the wrench is securely fitted to avoid stripping the bolt heads, a common issue when dealing with older, corroded components. Once the bolts are removed, gently pry the pump away from the engine block using a flathead screwdriver or a pry bar, being careful not to damage the mating surfaces.
Analyzing the process reveals that the mounting bolts often resist removal due to years of exposure to heat, vibration, and fuel residue. Applying a penetrating oil like PB Blaster or WD-40 10–15 minutes before attempting removal can significantly ease this step. If the bolts are severely rusted, consider using a torque wrench to apply measured force, gradually increasing pressure to avoid breakage. For stubborn bolts, heating the surrounding area with a propane torch (exercising extreme caution to avoid fuel lines or plastic components) can expand the metal and facilitate removal.
A comparative approach highlights the difference between removing a fuel pump on a carbureted engine versus a fuel-injected system. On carbureted engines, the pump is often mounted directly to the block with minimal surrounding components, simplifying access. In contrast, fuel-injected systems may require additional disassembly of fuel lines or brackets, making bolt removal more intricate. Always consult the vehicle’s service manual for model-specific nuances, such as bolt torque specifications or unique mounting configurations.
From a practical standpoint, once the bolts are removed, inspect the pump’s mounting gasket for wear or damage. A deteriorated gasket can lead to fuel leaks post-reassembly. Replace it with a new one, ensuring it aligns properly with the pump’s ports. When prying the pump free, work evenly around its perimeter to avoid warping the housing. If the pump sticks, lightly tapping it with a rubber mallet can help break the seal without causing damage. Always clean the mounting surface on the engine block before reinstallation to ensure a secure fit.
In conclusion, removing the mounting bolts and pump requires a blend of precision and patience. By using the right tools, applying appropriate techniques, and addressing potential challenges proactively, this step can be completed efficiently. Whether you’re rebuilding the pump or replacing it, mastering this phase ensures a smoother overall teardown process, setting the stage for subsequent repairs or maintenance tasks.
Is 12V Required for Fuel Pump Operation? Expert Insights
You may want to see also
Explore related products
Clean and Inspect Components
Disassembly reveals a fuel pump's internal components, but their condition determines the next steps. Before reassembly or replacement, cleaning and inspection are critical to ensure optimal performance and longevity. This process involves more than a cursory wipe-down; it requires a systematic approach to remove contaminants and identify potential issues.
The Cleaning Process: A Delicate Balance
Fuel pumps operate in a harsh environment, accumulating dirt, debris, and varnish over time. Cleaning these components demands a balance between effectiveness and gentleness. Harsh chemicals or aggressive techniques can damage delicate parts, particularly the diaphragm and valves. A recommended cleaning solution is a mixture of mineral spirits and a small amount of carburetor cleaner (approximately 10:1 ratio). This solution effectively dissolves varnish and grime without causing harm. Submerge the components for 15-20 minutes, then use a soft-bristled brush to gently dislodge any remaining residue. Avoid wire brushes or abrasive materials that can scratch surfaces.
Inspection: A Critical Eye for Detail
Post-cleaning, a thorough inspection is essential. Examine the diaphragm for cracks, tears, or signs of deterioration. Even minor damage can compromise the pump's efficiency. Check the valves for wear, ensuring they seat properly and show no signs of warping. Inspect the plunger and cam follower for excessive wear or scoring, which can lead to erratic fuel delivery. Look for any signs of corrosion or pitting on metal components, particularly in areas exposed to fuel. A magnifying glass can aid in identifying subtle imperfections.
Comparative Analysis: New vs. Old
When in doubt, compare the cleaned components to new replacements. This side-by-side analysis provides a clear reference point for assessing wear and damage. For instance, a new diaphragm should exhibit a consistent thickness and flexibility, while an old one may appear thinner or brittle. Similarly, the smooth surface of a new plunger contrasts with the potential scoring or wear marks on a used one. This comparative approach helps in making informed decisions about which parts require replacement.
The Takeaway: Precision and Patience
Cleaning and inspecting fuel pump components is a meticulous task requiring precision and patience. It's a process that demands attention to detail, ensuring that every part is thoroughly cleaned and scrutinized. By following these steps, you can identify potential issues, prevent future problems, and ensure the fuel pump operates at its best. This stage is crucial, as it sets the foundation for a successful reassembly or informs the need for specific replacements, ultimately contributing to the overall reliability of the vehicle's fuel system.
Volkswagen Jetta 2001 Alarm System and Fuel Pump Connection Explained
You may want to see also
Explore related products
Reinstall or Replace the Pump
After disassembling a Carter mechanical fuel pump, the decision to reinstall or replace it hinges on the condition of its internal components. Inspect the diaphragm, valves, and plunger for wear, cracks, or deformation. If these parts show minimal wear and the pump body is intact, reinstallation is feasible. However, if the diaphragm is brittle, the valves are warped, or the plunger is scored, replacement is the safer and more efficient choice. Always compare the cost of replacement parts to the price of a new pump to make an informed decision.
Reinstalling the pump requires meticulous reassembly to ensure proper function. Begin by cleaning all components with carburetor cleaner to remove debris. Lubricate the diaphragm and plunger with a light coat of engine oil to prevent dry friction during operation. Reassemble the pump in reverse order of disassembly, ensuring all gaskets are correctly seated and bolts are tightened to manufacturer specifications. Improper reassembly can lead to leaks or inadequate fuel delivery, so double-check alignment and torque values before reinstalling the pump on the engine.
Replacing the pump is a straightforward process but demands attention to compatibility. Ensure the new pump matches the original in terms of inlet/outlet size, mounting configuration, and pressure rating. Disconnect the fuel lines and mounting bolts, then install the new pump, reusing the original gaskets if they are in good condition. Prime the pump by manually cycling the lever or cranking the engine to ensure proper fuel flow. This step is critical to prevent airlocks that could starve the carburetor.
A comparative analysis reveals that reinstallation is cost-effective for pumps with minor wear, while replacement offers reliability and peace of mind. For classic vehicles, preserving originality may favor reinstallation, but modern drivers often prioritize convenience and performance. Practical tips include keeping a spare pump on hand for emergencies and testing fuel pressure post-installation to confirm correct operation. Whether reinstalling or replacing, the goal is to restore consistent fuel delivery, ensuring the engine runs smoothly under all conditions.
DIY Guide: Replacing the Fuel Pump on a 2001 VW Beetle
You may want to see also
Frequently asked questions
You will need a socket set, wrenches, screwdrivers, a pry bar, and possibly a fuel pump removal tool, depending on the vehicle.
Relieve fuel system pressure, then use wrenches or line wrenches to loosen the fittings and disconnect the fuel lines. Have a catch pan ready for any residual fuel.
First, disconnect the fuel lines and linkage. Then, remove the mounting bolts securing the pump to the engine block. Gently pry the pump free if it’s stuck.
Remove the pump cover or diaphragm plate, then take out the diaphragm, valves, and internal components. Inspect for wear, damage, or debris before reassembly or replacement.
