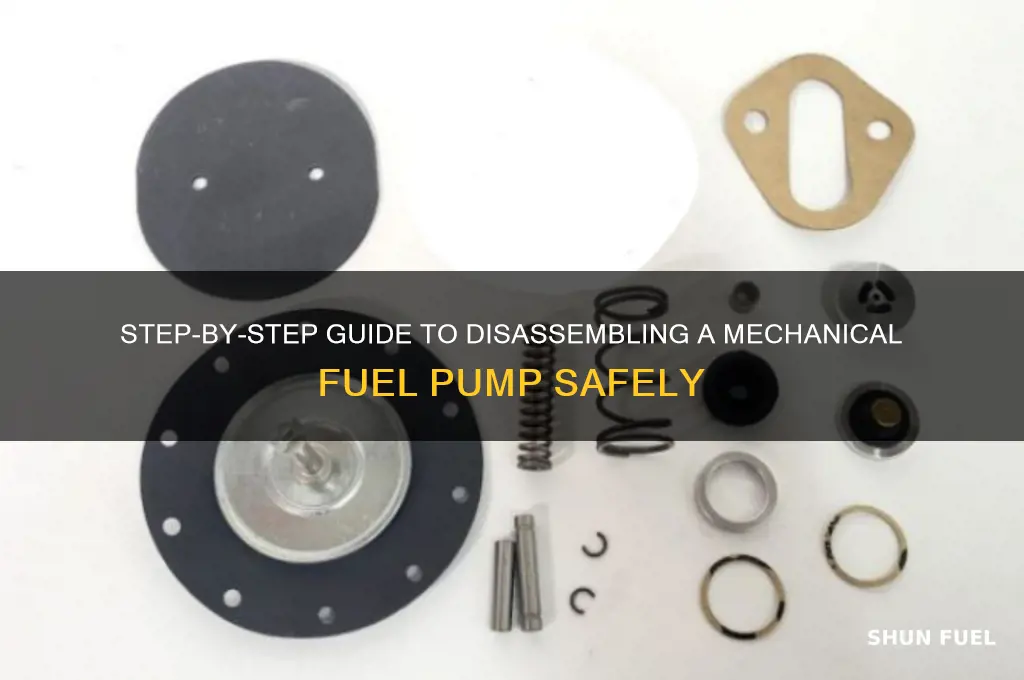

Taking apart a mechanical fuel pump requires careful preparation and attention to detail to ensure safety and avoid damage to the component. Before beginning, it is essential to disconnect the fuel lines and relieve any residual pressure in the system, typically by loosening the fuel line fittings or using a pressure relief tool. With the pump safely depressurized, remove any mounting bolts or clamps securing it to the engine, taking note of their positions for reassembly. Once detached, carefully disassemble the pump by removing the retaining clips or screws that hold the housing together, exposing the internal components such as the diaphragm, valves, and plunger. Throughout the process, keep track of the order in which parts are removed and inspect each component for wear or damage, as this will guide whether the pump can be repaired or needs replacement. Always work in a well-ventilated area and avoid open flames or sparks due to the flammable nature of fuel.
| Characteristics | Values |
|---|---|
| Tools Required | Wrenches, screwdrivers, pliers, safety gloves, safety goggles, drain pan. |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area. |
| Fuel Pump Location | Typically inside the fuel tank or mounted externally near the tank. |
| Disassembly Steps | 1. Relieve fuel pressure. 2. Disconnect battery. 3. Remove fuel lines. 4. Remove mounting bolts. 5. Extract pump from tank (if in-tank). |
| Components to Inspect | Fuel pump motor, impeller, filter, electrical connections, seals. |
| Cleaning Requirements | Clean all components with carburetor cleaner or fuel system cleaner. |
| Reassembly Tips | Replace worn seals, ensure proper alignment, reconnect electrical and fuel lines securely. |
| Testing After Reassembly | Check for leaks, ensure proper fuel flow, test pump operation before reinstalling. |
| Common Issues | Clogged filters, worn impellers, electrical failures, fuel leaks. |
| Professional Assistance | Recommended for in-tank fuel pumps or complex systems. |
| Environmental Considerations | Dispose of fuel and old parts according to local regulations. |
| Time Required | 1-3 hours depending on pump type and vehicle model. |
| Difficulty Level | Moderate to difficult, especially for in-tank pumps. |
