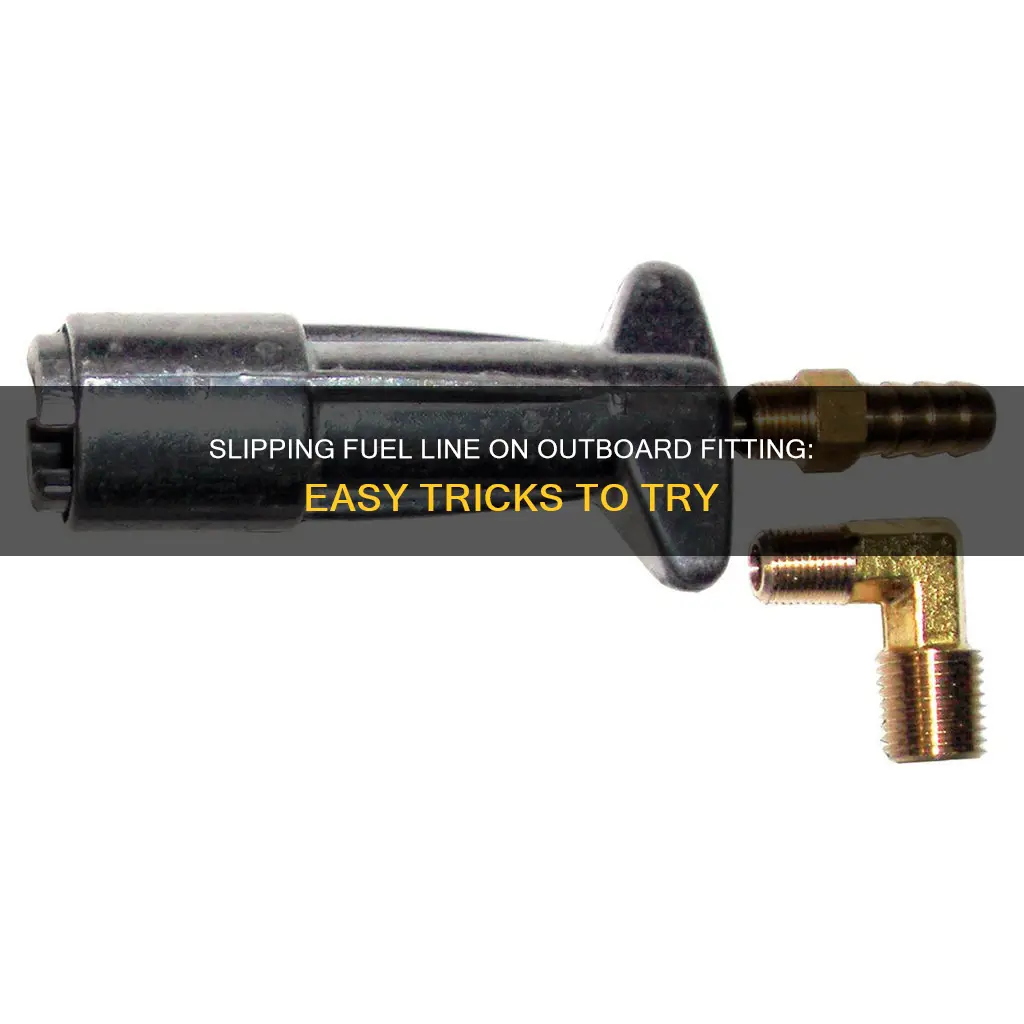

Mastering Fuel Line Installation: A Guide To Slipping On Outboard Fittings

Slipping a fuel line onto an outboard fitting requires careful preparation and technique to ensure a secure and leak-free connection. This process involves cleaning the fitting, inserting the fuel line, and using the appropriate tools to tighten the connection. By following these steps and using the right materials, you can effectively install a fuel line, ensuring your outboard engine receives the necessary fuel for optimal performance.

Prepare Tools: Gather necessary tools like fuel line, pliers, and cleaning supplies

To ensure a smooth and efficient process, it's crucial to gather the right tools and materials before attempting to slip a fuel line onto an outboard fitting. Here's a detailed guide on preparing the necessary tools:

Fuel Line and Fitting: Start by acquiring the appropriate fuel line that matches the specifications of your outboard engine. Ensure it is the correct size and length to fit seamlessly onto the fitting. Having the right fuel line is essential for a secure connection and optimal fuel delivery.

Pliers: Invest in a good pair of pliers, preferably with adjustable jaws, which will allow you to grip the fuel line and fitting securely. Pliers are indispensable for tightening connections and ensuring a tight seal. Look for pliers with a comfortable grip and a smooth surface to avoid damaging the fuel line.

Cleaning Supplies: Cleaning is a critical step often overlooked. Gather cleaning supplies such as a mild detergent, a soft brush, and a clean cloth. These items will help remove any dirt, grime, or old fuel residue from the fitting and fuel line. A thorough cleaning ensures a proper connection and prevents potential issues caused by contaminants.

Additionally, consider having a fuel line slip gauge or a similar tool to ensure the fuel line is slipped onto the fitting correctly. This tool will guide you in achieving the proper tension and alignment. Remember, taking the time to prepare and gather these tools will make the fuel line installation process much more manageable and successful.

Clean Fitting: Ensure fitting is clean and free of debris

When preparing to connect a fuel line to an outboard engine fitting, it is crucial to ensure that the fitting is clean and free of any debris. This step is often overlooked but can significantly impact the success and longevity of the fuel line installation. Here's a detailed guide on how to ensure a clean fitting:

• Inspect the Fitting: Begin by carefully examining the outboard engine fitting. Look for any visible dirt, rust, or corrosion. Use a magnifying glass if necessary to identify small particles that might be present. This initial inspection will give you an idea of the cleaning required.
• Remove Debris: If you find any debris or contaminants, it's essential to remove them. You can use a small brush or a soft-bristled toothbrush to gently scrub the fitting. Ensure that you clean every nook and cranny, including the threads and the interior of the fitting. For stubborn dirt, you might need to use a thin tool to carefully pry it out without damaging the fitting.
• Cleaning Solutions: Consider using a mild detergent or a specialized cleaning agent designed for marine applications. These solutions can help dissolve any stubborn grime. Apply the cleaner to the fitting and let it sit for a few minutes before scrubbing again. Rinse the fitting thoroughly with clean water to remove any residue.
• Dry the Fitting: After cleaning, it is crucial to dry the fitting completely. Moisture can lead to corrosion and affect the fuel line's performance. Use a clean cloth or a soft paper towel to wipe the fitting dry. Ensure there is no water left on the surface, especially in the threads and interior.
• Final Inspection: Once the fitting is clean and dry, perform a final inspection. Check for any remaining debris or signs of damage. A clean and debris-free fitting will ensure a proper seal and connection when you slip the fuel line on. This step is vital to prevent any fuel leaks and ensure the engine's optimal performance.

By following these steps, you can guarantee that the outboard engine fitting is in pristine condition, ready for a secure and leak-free fuel line connection. It is a simple yet essential process that contributes to the overall reliability of your marine engine.

Slide Fuel Line: Carefully slide fuel line onto fitting, ensuring proper alignment

Sliding a fuel line onto an outboard fitting requires precision and attention to detail to ensure a secure and leak-free connection. Here's a step-by-step guide to help you through the process:

Start by ensuring you have the correct fuel line and fitting for your outboard engine. Check the manufacturer's specifications to confirm the size and type of fuel line required. Having the right components is crucial for a successful installation. Gather the necessary tools, including a fuel line slip joint or a fitting with a built-in slip joint, a fuel line, and any required seals or gaskets.

Hold the fuel line in one hand and the fitting in the other. Position the fuel line so that the end is aligned with the fitting's inlet port. Take note of the direction of the fuel flow to ensure proper orientation. Carefully slide the fuel line onto the fitting, applying gentle but firm pressure. As you slide it on, ensure that the fuel line is properly aligned with the fitting's threads or slip joint. The goal is to create a smooth, continuous connection without any kinks or twists.

Pay close attention to the alignment. The fuel line should be centered and seated correctly within the fitting. If you encounter resistance or feel the fuel line is not fully seated, carefully adjust your grip and apply more pressure, but be cautious not to force it. Proper alignment is essential to prevent damage to the fuel line and ensure a tight seal.

Once the fuel line is in place, inspect the connection. Ensure there are no gaps or spaces between the fuel line and the fitting. You should feel a secure, snug fit. If you notice any play or movement, carefully tighten the fitting using the appropriate tool, being careful not to overtighten, as this can damage the fuel line.

After installation, test the fuel line by starting the engine and checking for any leaks. Ensure that the fuel flows smoothly and that there are no signs of fuel escaping at the connection point. If any issues arise, carefully inspect the connection and make the necessary adjustments or replacements to ensure a secure and reliable fuel supply to your outboard engine.

Secure Connection: Tighten fitting securely, using pliers if needed

When connecting a fuel line to an outboard engine fitting, ensuring a secure and tight connection is crucial to prevent fuel leaks and maintain optimal engine performance. Here's a step-by-step guide on how to achieve a reliable and tight connection:

Start by ensuring you have the right tools for the job. You'll typically need a set of adjustable pliers or fuel line wrenches, which are specifically designed to grip and tighten fuel line fittings. These tools provide the necessary grip and leverage to secure the connection without damaging the fuel line.

Next, prepare the fuel line and fitting by cleaning them. Remove any dirt, corrosion, or debris from the threads and the interior of the fitting. This step is essential to ensure a tight seal and prevent any contaminants from affecting the connection's integrity. Use a wire brush or a small wire brush attachment on your tool to carefully clean the surfaces.

Now, it's time to slip the fuel line onto the fitting. Take the fuel line and align it with the fitting, ensuring that the threads on the fitting are facing the correct direction. Start threading the fuel line onto the fitting by hand, using a firm and steady motion. Apply gentle force, but be careful not to overtighten, as this can damage the fuel line or the fitting.

Once the fuel line is partially threaded onto the fitting, use the pliers or fuel line wrench to tighten it further. Grasp the fuel line with the pliers, ensuring you have a firm grip on the fitting. Apply counterclockwise pressure to tighten the connection. You should feel resistance as the fitting tightens onto the fuel line. Continue tightening until the connection is secure, but be mindful not to over-tighten, as this can cause damage.

After tightening the fitting, inspect the connection to ensure it is secure. Check for any signs of fuel leakage around the connection point. If you notice any leaks, carefully tighten the fitting further or adjust the positioning of the fuel line. It's important to double-check the tightness and security of the connection to ensure the engine operates efficiently and safely.

Test Fuel Flow: Check for fuel flow and ensure no leaks

When you've successfully slipped the fuel line onto the fitting for your outboard engine, it's crucial to test the fuel flow to ensure there are no leaks and that the system is functioning correctly. This step is essential to prevent any potential issues or damage to your engine. Here's a detailed guide on how to test the fuel flow:

Step 1: Prepare the Environment

Before you begin, make sure you have a safe and well-ventilated area to work in. It's important to avoid any potential hazards associated with fuel, such as sparks or open flames. Ensure you have all the necessary tools and equipment, including a fuel flow meter or gauge, which can be purchased from most marine supply stores.

Step 2: Start the Engine

If your outboard engine is already installed, start it and let it run for a few minutes to ensure it's warm. If you're testing a fuel line that hasn't been used before, you might want to prime the system by running the engine for a short period with the fuel line disconnected. This will ensure that any air bubbles are expelled.

Step 3: Connect the Fuel Flow Meter

Locate the fuel line that you've just installed and connect the fuel flow meter securely. Make sure it is positioned where it can accurately measure the fuel flow rate. The meter should be placed in a location that is easily accessible for reading during the test.

Step 4: Set the Engine Speed

For optimal results, set your engine speed to a moderate level, typically around 2000-2500 RPM. This speed range will provide a good indication of the fuel flow rate under typical operating conditions. Adjust the throttle gradually to maintain this speed.

Step 5: Monitor Fuel Flow

With the engine running at the desired speed, carefully observe the fuel flow meter. You should see a steady flow of fuel passing through the line. Make sure there are no fluctuations or drops in the flow rate. If you notice any leaks or inconsistent flow, it indicates a potential issue with the installation or a faulty component.

Step 6: Check for Leaks

While monitoring the fuel flow, inspect the entire fuel line system for any signs of leaks. Check all connections, fittings, and hoses for any fuel escaping. Even a small leak can lead to significant issues over time, so it's crucial to identify and address any problems immediately.

Step 7: Record and Analyze

Record the fuel flow rate and any other relevant data, such as engine speed and load. This information can be valuable for future reference and troubleshooting. If everything is functioning as expected, you've successfully tested the fuel flow and ensured a proper installation.

Remember, proper fuel flow is critical to the efficient operation of your outboard engine. By following these steps, you can ensure that your fuel system is reliable and ready for the water.
