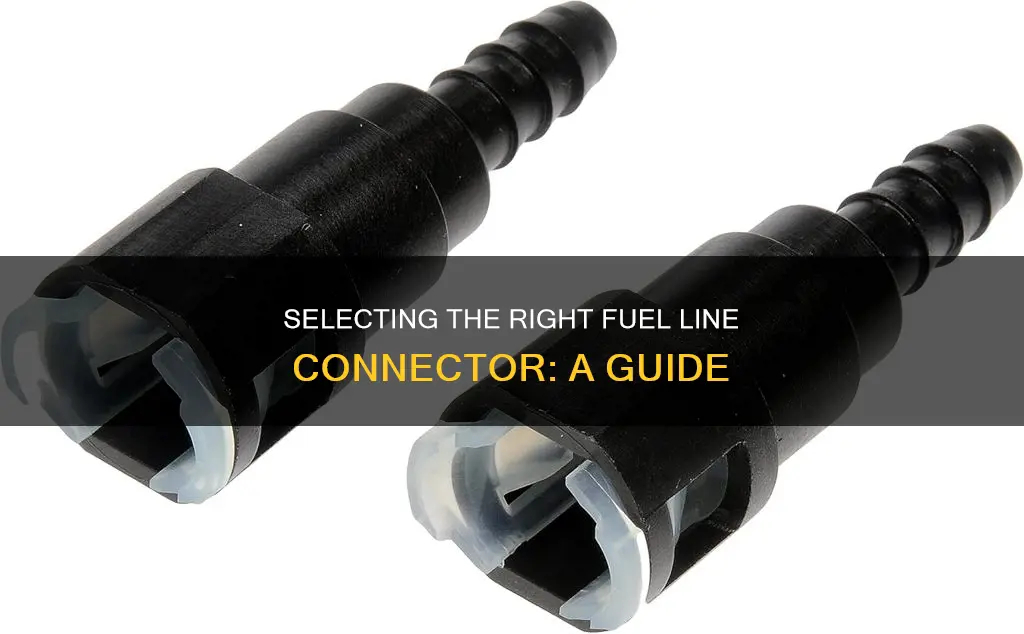

Fuel line connectors are essential components of a vehicle's fuel system, designed to ensure a secure and leak-free flow of fuel. There are several types of fuel line connectors, each serving a unique purpose. When selecting a fuel line connector, it is crucial to consider factors such as the type of fuel line, the specific application, and the requirements of your vehicle's fuel system. The size of the fuel line, typically specified by its inner diameter, is an important factor, with common sizes including 5/16-inch, 3/8-inch, and 1/2-inch. The choice of connector also depends on the fuel flow requirements of your engine and the pressure levels in your fuel system. Quick-connect fittings offer convenience and ease of use, while basic fittings like barbed or compression fittings are more affordable. It is recommended to invest in high-quality connectors that match your fuel line specifications to ensure reliability and safety.
| Characteristics | Values |
|---|---|
| Type | Quick-connect, bulkhead, barbed, compression, AN |
| Compatibility | Must be compatible with the fuel line material and the specific needs of the vehicle's fuel system |
| Size | 5/16-inch (8mm), 3/8-inch (10mm), 1/2-inch (12mm), 5/8-inch (16mm) and larger |
| Application | Smaller engines, low-pressure fuel systems, passenger vehicles, larger engines, high-performance vehicles, heavy-duty applications |
| Installation | Must be easy to install, with a precise fit for the vehicle |
| Cost | Basic fittings ($2-$5), quick-connect fittings ($5-$20+), AN fittings ($10+) |
Explore related products
What You'll Learn
- Quick-connect fittings: O-rings, casing, disconnect tool, retainer, and tabs
- Fuel line size: Choose based on engine fuel flow, pressure, and fitting compatibility
- Compression fittings: Used for rigid fuel lines
- Bulkhead fittings: Used to pass a fuel line through a panel or firewall
- Fuel line material: Choose based on your vehicle's fuel system
Quick-connect fittings: O-rings, casing, disconnect tool, retainer, and tabs
When it comes to quick-connect fittings, there are several components to consider, each playing a crucial role in ensuring secure and efficient fuel line connections. Here's a detailed guide focusing on O-rings, casing, disconnect tools, retainers, and tabs:
O-rings
O-rings are essential sealing elements in quick-connect fittings. They are designed to sit between the male and female components of the fitting, creating a leak-tight seal. When selecting O-rings, it is important to consider the size, thickness, and material. The inner diameter (ID), outer diameter (OD), and cross-sectional diameter of the O-ring need to match the dimensions of your fuel line components. Materials like synthetic rubber, nylon, or Teflon are commonly used for O-rings due to their flexibility and resistance to fuels and lubricants.
Casing
The casing, or outer body, of a quick-connect fitting plays a protective role, enclosing the internal components and providing structural integrity. It is typically made of durable materials such as steel or aluminium alloys, ensuring resistance to corrosion and mechanical damage. When selecting a casing, consider the operating environment and choose a material that can withstand the specific conditions, such as temperature extremes, moisture, or chemical exposure.
Disconnect Tool
A disconnect tool is used to easily separate the male and female components of a quick-connect fitting. This tool is designed to engage with the fitting's tabs or collars, allowing for quick and safe disconnection without damaging the assembly. When selecting a disconnect tool, ensure it is specifically designed for fuel line quick-connect fittings and is compatible with the size and type of fitting you are working with.
Retainer
The retainer, also known as a lock ring or snap ring, is a critical component that secures the connection between the male and female ends of the fitting. It is typically made of metal and features a circular or semi-circular design that fits into a corresponding groove. When selecting a retainer, consider the material, size, and ease of installation and removal. The retainer should be durable and provide a secure hold while also allowing for intentional disconnection when needed.
Tabs
Tabs, or collars, are protruding features on the quick-connect fitting that engage with the disconnect tool. They are designed to provide a secure grip for the tool, enabling the controlled release of the fitting. Tabs can vary in number, shape, and size, depending on the fitting design. When selecting a quick-connect fitting, ensure the tabs are robust, providing a solid anchor point for the disconnect tool to prevent slippage or accidental disconnection.
By carefully considering these components and their specific requirements, you can make informed selections when choosing quick-connect fittings for fuel lines, ensuring reliable and leak-free connections.
Fuel Line Fix: Routing Tips for Your 64 Impala
You may want to see also
Explore related products
Fuel line size: Choose based on engine fuel flow, pressure, and fitting compatibility
The size of a fuel line is typically specified by its inner diameter (ID). The choice of fuel line size depends on the fuel flow requirements of your engine, the pressure levels in your fuel system, and the compatibility with your chosen fittings.
For instance, 1/4" and 5/16" line sizes are commonly used for low-flow systems and plumbing between the regulator and intake manifold. These lines do not require larger sizes as they do not involve significant amounts of flow. On the other hand, 3/8" (10mm) is a common size for many automotive applications, including most passenger vehicles.
If you have a larger engine or a high-performance vehicle, you may need a 1/2" (12mm) line to ensure an adequate fuel supply. For heavy-duty and high-performance applications, consider using 5/8" (16mm) or larger fuel lines.
It is essential to select the right size to ensure proper fuel delivery and performance. Additionally, it is advisable to invest in high-quality fittings that match your fuel line and system requirements to ensure reliability and safety.
The Best Pipe Thread Sealant for Aviation Fuel Lines
You may want to see also
Explore related products
Compression fittings: Used for rigid fuel lines
Compression fittings are used to join new fuel lines with existing lines. They are often used as a replacement for sections of hard lines for fuel supply and return lines under the car due to rust.
When using compression fittings, it is important to ensure that the mating steel line is rust-free to guarantee a long-lasting, leak-free connection. Compression fittings can handle the pressure of fuel lines, typically around 50-60 psi, but they are not suitable for brake lines, which have much higher pressures of 1500+ psi.
Some people prefer to avoid compression fittings due to their poor resistance to vibration, which can cause the compression sleeve to lose its "tightness" on the tube. This can lead to nuisance leaks and the need for retightening. Additionally, compression fittings may not seal properly if the line is cut off-square or if the fitting is reoriented, even slightly.
Despite these potential drawbacks, compression fittings are still commonly used and can be an effective solution for fuel line repairs or replacements. They are also used in modern aircraft. When using compression fittings, it is recommended to use nylon for a replacement line and to avoid using Teflon tape, as it can cause blockages.
Fuel Line Options for LS Swap: Exploring the Best Choices
You may want to see also
Explore related products
Bulkhead fittings: Used to pass a fuel line through a panel or firewall
When installing a fuel line through a panel or firewall, bulkhead fittings are essential. These fittings are designed to create a sealed and secure passage for the fuel line, ensuring the safety and performance of the fuel system. They are typically used in fuel cell installations and racing applications where precise fuel delivery and containment are critical.
The bulkhead fitting consists of two main components: an outer threaded sleeve and an inner fitting. The outer sleeve is installed through a hole in the fuel cell or tank wall, and the inner fitting connects to the outer sleeve on both sides of the wall. This design allows for the secure attachment of fuel lines, hoses, or other components. It is important to note that you may need multiple bulkhead fittings for your fuel system setup, so calculating the total cost based on your requirements is essential.
To ensure a proper fit and seal, sizing the bulkhead fitting correctly is crucial. The first step is to measure the diameter of the fuel line or hose that will be connected to the bulkhead fitting. Then, choose a bulkhead fitting with threads that match the size of the fuel line or hose. The fitting should have the same inner diameter to create a snug fit and prevent fuel leaks.
When selecting a bulkhead fitting, it is important to consider the material. They are commonly available in materials such as aluminum, steel, or brass. Choose a material that is suitable for your specific application and fuel type. Additionally, ensure that the bulkhead fitting is compatible with the thickness of the fuel cell or tank wall where it will be installed. Some fittings are designed for specific wall thicknesses, so checking the product specifications is essential.
The cost of bulkhead fittings can vary depending on factors such as size, material, and brand. Basic bulkhead fittings typically start at around $10 to $20 each for smaller sizes and can go up to $50 or more for larger sizes. If you require specialized bulkhead fittings for racing or performance applications, prices can range from $30 to $100 or more per fitting.
Fuel Line Sizing: Understanding Your Vehicle's Specifications
You may want to see also
Explore related products
Fuel line material: Choose based on your vehicle's fuel system
The fuel line is a crucial safety component in every vehicle, and selecting the right material is essential to ensure optimal performance and safety. The choice of fuel line material depends on various factors, including the vehicle's age, fuel type, and specific fuel system requirements. Here are some common fuel line materials and considerations to help you choose the most suitable option for your vehicle:
Metal Fuel Lines:
Metal, including stainless steel, aluminum, or coated steel tube, is commonly used in factory-made cars due to its durability. Metal fuel lines hold up better than soft materials and are generally more reliable. However, they can be challenging to fabricate and are prone to rust and corrosion over time. Metal lines are often used in rigid fuel line setups, which directly connect the fuel tank to the pump or run along the chassis to the engine bay.
Rubber Fuel Lines:
Rubber, specifically neoprene rubber, was once the standard material for fuel lines. While it offered excellent durability, the introduction of reformulated gasoline and ethanol blends has led to issues with rubber degradation. Rubber fuel lines are now less common in late-model cars due to emission concerns. Rubber allows fuel vapors to escape through the line, contributing to air pollution and a strong gasoline smell. However, rubber fuel hoses are still used in some vehicles, offering flexibility and ease of installation, but they require proper securing to prevent wear and tear over time.
PTFE (Polytetrafluoroethylene) Fuel Lines:
PTFE, also known by its trademarked name Teflon, is a popular choice for modern fuel lines. PTFE fuel lines are non-reactive to common fuels, including methanol and nitromethane. They create a fuel vapor barrier, preventing fuel vapors from escaping into the atmosphere. PTFE fuel lines are expected to last the lifetime of the vehicle, making them a wise investment for those planning to keep their cars for the long term.
Synthetic Hoses:
Synthetic hoses are commonly used in fuel systems where flexibility is required. They offer the advantage of being lightweight and easy to install, but they may not be as durable as metal or PTFE lines. Synthetic hoses are typically made from materials like nylon, which has the benefit of being rust-resistant but may melt at low temperatures and be challenging to repair.
Braided Steel and Copper Hoses:
Braided steel rubber hoses, sometimes with a chlorinated polyethylene (CPE) base, have been used as an aftermarket solution to resist degradation from fuel and oil blends. Copper hoses are another option, known for their ease of installation and servicing, but they tend to be bulkier and more expensive than other materials.
When choosing a fuel line material, it's important to consider your vehicle's specific fuel system, the type of fuel used, and the environmental conditions it will be exposed to. Additionally, always follow safety regulations and consult reliable sources or professionals for guidance in selecting the most appropriate fuel line for your needs.
Small Engine, Big Impact: Choosing the Right Fuel Line
You may want to see also
Frequently asked questions
The choice of fuel line connector depends on factors such as the type of fuel line, the application, and personal preference. It is important to select connectors that are compatible with the fuel line material and the specific needs of your vehicle's fuel system.
There are several types of fuel line connectors available, each serving a specific purpose. Some common types include compression fittings, bulkhead fittings, and quick-connect fittings. Compression fittings are commonly used for rigid fuel lines, while bulkhead fittings are used to pass a fuel line through a panel or firewall. Quick-connect fittings offer convenience and ease of use.
The size of a fuel line connector is typically specified by its inner diameter (ID). Common sizes include 5/16-inch (8mm) for smaller engines, 3/8-inch (10mm) for most passenger vehicles, and 1/2-inch (12mm) for larger engines and high-performance vehicles. The choice of size depends on the fuel flow requirements of your engine and the pressure levels in your fuel system.
Fuel line connectors can be purchased from various automotive parts stores, both online and offline. Some popular retailers include AutoZone, NAPA Auto Parts, and JEGS High Performance. Online retailers often provide detailed product descriptions and customer reviews to help you make an informed decision.
