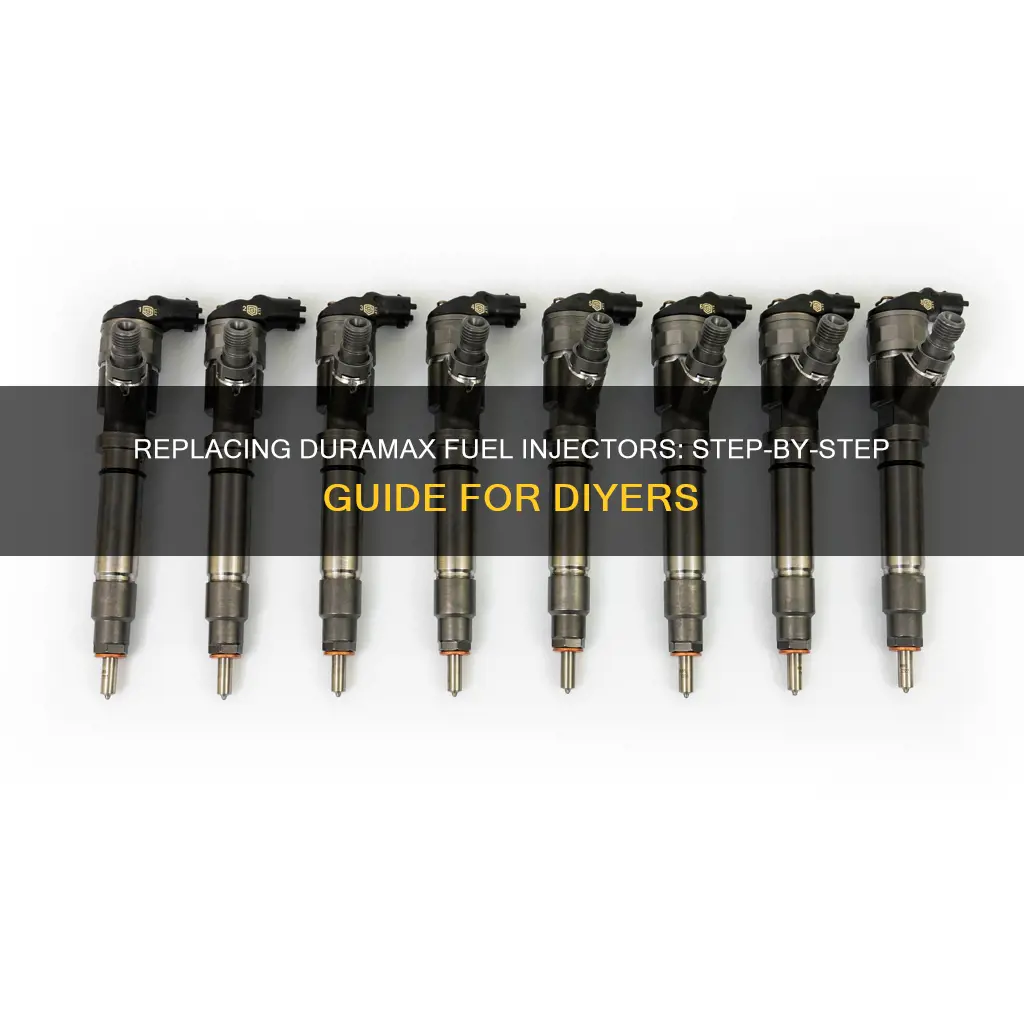

Replacing Duramax Fuel Injectors: Step-By-Step Guide

Replacing the fuel injectors on a Duramax LLY engine is a relatively straightforward process that can be done at home with the right tools and some careful planning. The LLY injectors are externally mounted and can be accessed by disconnecting the HP fuel lines and wiring harnesses. The process involves removing the injector hold-down bolt and carefully prying the injector out, being mindful of the O-ring and copper sealing washer. While it may take some time to access the injectors due to their location, the replacement process itself is not overly complex and can be a DIY project for those with mechanical aptitude.

Disconnect HP fuel lines

Disconnecting the HP fuel lines is a crucial step in replacing the fuel injectors on a Duramax LLY engine. Here is a detailed guide on how to do it:

First, locate the HP fuel lines. These are the lines that carry high-pressure fuel to the injectors. They are usually visible and easily accessible. Before you begin, make sure you have the necessary tools, including a 17mm flare fitting crows foot, which will make it easier to remove the injector lines without rounding the nut.

Next, loosen the fuel line by turning it counterclockwise with a suitable wrench. Be careful not to round off the nut, as this can make it difficult to remove. Once loosened, use your hand to turn and pull the fuel line off the injector. Place a container or rag underneath to catch any fuel that may spill. Repeat this process for each injector, ensuring that you only work on one injector at a time to avoid confusion.

After removing the fuel lines, you will need to disconnect the wiring connectors and remove the hold-down bolt that secures the injector in place. With the bolt removed, gently wiggle and pull the injector out. Be cautious, as the hold-down bolt can fall off, and ensure you don't lose the small pad that the bolt tightens against.

It is important to note that there are two seals you need to be aware of when removing the injectors: a copper sealing washer and an O-ring. Make sure these come out along with the injector. Additionally, always clean the injector holes and ensure they are free of debris before installing new injectors.

By following these steps, you can successfully disconnect the HP fuel lines and replace the fuel injectors on your Duramax LLY engine.

Disconnect wiring harnesses

Disconnecting the wiring harnesses is a crucial step in replacing the fuel injectors on a Duramax LLY engine. This process can be completed in a few simple steps, but it is important to work carefully and methodically to avoid any damage to the engine or its components. Here is a detailed guide on how to disconnect the wiring harnesses:

First, locate the wiring harnesses. They should be visible and easily accessible. Before disconnecting anything, make sure you have a plan for organising and keeping track of the wires. Label each wire and its corresponding connector to ensure proper reassembly. This will make it easier to reconnect everything correctly later on.

Once you are organised and ready, start by disconnecting the electrical connection. This will be a plug-and-socket type connection, so gently pull the connector out of its socket. Be careful not to force it, as this could damage the connector or the wiring. Set the connector aside, ensuring it is kept separate from the other wires and components.

Next, you will need to remove the wire clip that holds the return line in place. This clip secures the return line to the injector, so by removing it, you will be able to access and remove the return line more easily. Set the clip aside and carefully move it out of the way.

With the wire clip removed, you can now focus on the return line. Pull the return line straight out of the top of the injector. It may require some force, but be careful not to damage any surrounding components. Inspect the O-ring and copper sealing washer, ensuring that they are in good condition and have not been damaged during the removal process.

At this point, the wiring harnesses should be completely disconnected from the injector. Take the time to inspect the injector and its surrounding area for any signs of damage or wear. It is important to address any issues before reassembling the engine. Ensure that all disconnected components are kept organised and safely stored to facilitate a smooth reassembly process.

By following these steps, you can successfully and safely disconnect the wiring harnesses during the replacement of Duramax LLY fuel injectors.

Remove the bolt holding the injectors in place

To remove the bolt holding the injectors in place, you will first need to disconnect the HP fuel lines and wiring harnesses. You will then need to remove the wiring connector and the wire clip holding the return line. Next, take out the fuel line and then the bolt. With the bolt removed, you can then turn the injector back and forth to wiggle it loose.

It is important to make sure the O-ring and copper sealing washer come out as well. You can use a fine-tipped nozzle for your shop-vac to suck out any debris from the injector hole. You can also use various-sized brushes to clean the hole. When you are putting the new injector in, you can apply a little oil or Vaseline to the O-ring to help it slide in smoothly.

Remove the copper and rubber O-ring seals

To remove the copper and rubber O-ring seals, you will need to first disconnect the electrical connection from the injector. Next, remove the wire clip that is holding the return line in place and pull the return line straight out of the top of the injector. Now, loosen the fuel line and remove the retainer bolt. Turn the injector back and forth to wiggle it loose and remove it. Make sure that the O-ring and copper sealing washer come out as well.

A tip to make the process smoother is to use a 17mm flare fitting crows foot to remove the injector lines. This will ensure that you do not accidentally round the nut on the line, which can be very hard to break loose.

Another tip is to use a fine-tipped nozzle for your shop-vac to suck out all the debris from the injector hole. You can also use various-sized brushes to clean the hole. This step is important to ensure that the new injector is not damaged during installation.

When removing the seals, be careful not to lose the little pad that the seals sit on. It is just sitting in the injector hole, so it can easily fall out when you remove the seals.

When reinstalling the new injector, a trick to make it slide in smoothly is to wipe a little Vaseline on the O-ring. This will help it slip past anything that might nick it.

Use a 17mm flare fitting crows foot to remove the injector lines

When replacing the fuel injectors on a Duramax LLY engine, one of the steps you'll need to take is to remove the injector lines. This can be done using a 17mm flare fitting crows foot tool.

The flare fitting crows foot is ideal for this task as it will prevent you from rounding the nut on the line. The nuts on the injector lines can be very tight and hard to break loose, so using the correct tool for this job is important.

To remove the injector lines, first loosen the fuel line using the 17mm flare fitting crows foot. Next, disconnect the electrical connection and remove the wire clip holding the return line. Then, pull the return line straight out of the top of the injector. Finally, remove the fuel line and retainer bolt, and turn back and forth to wiggle the injector loose.

Make sure that the O-ring and copper sealing washer come out along with the injector. You can use a screwdriver or pry bar to help get between the landing pad and the injector hold down. Be careful not to lose the little pad that the injector tightens against, as it is only sitting in the injector hole.
