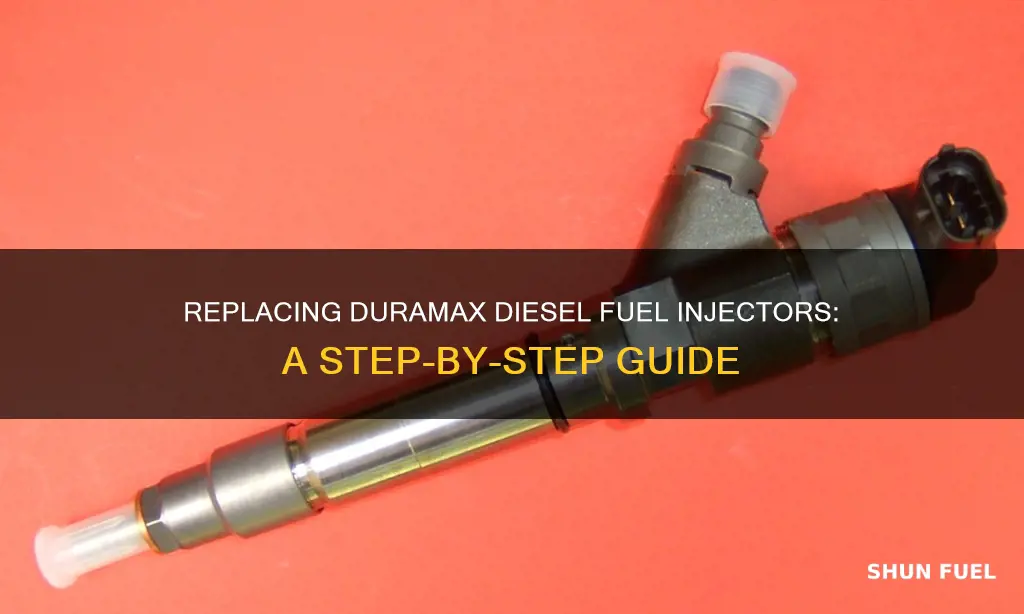

Replacing Duramax Diesel Fuel Injectors: A Step-By-Step Guide

Replacing the fuel injectors on a Duramax diesel engine is a complex task that varies depending on the model. The LB7 Duramax, built from 2001 to 2004, is known for injector failure, with replacement injectors costing around $3500 to $4500 CAD for a full set of eight. Fuel injectors can fail due to clogging, poor flow rate, faulty spray pattern, leaking, or electrical issues. While it is possible to replace them yourself, it is recommended to consult a service manual or seek the help of a certified professional diesel shop.

Fuel injectors can fail due to clogging, poor flow rate, faulty spray pattern, leaking, or electrical issues

Fuel injectors are an essential component of modern engines, delivering fuel to the engine so it can run. However, they can fail for various reasons, including clogging, poor flow rate, faulty spray patterns, leaking, and electrical issues.

Clogging is a common issue with fuel injectors, often caused by a buildup of contaminants such as carbon. This can lead to a partial or complete blockage, resulting in a fuel drip that causes the engine to misfire. Restricted injectors can also lead to an incorrect fuel-air mixture, causing the engine to struggle to start or stall.

Poor flow rate in fuel injectors can be caused by internal restrictions, such as contamination or a faulty internal o-ring. This results in reduced fuel flow, leading to high emissions, poor fuel economy, and poor engine performance.

Faulty spray patterns in fuel injectors can be caused by restrictions or improper atomization of the fuel. This can lead to high emissions, poor fuel economy, and poor engine performance, especially in multi-port fuel injection systems.

Leaking fuel injectors can be caused by dry, cracked rubber seals or cracks in the injector itself. External leaks can cause fuel odour and, in some cases, a visible fuel drip. Internal leaks, caused by faulty o-rings, can be intermittent and may only occur under certain temperatures or driving conditions.

Electrical issues with fuel injectors can arise due to age, heat, or moisture damage. Electrical failures can cause the engine to misfire, run roughly, or fail to start.

In all cases, it is important to have a qualified technician inspect and diagnose the issue to determine the appropriate course of action, whether it be cleaning or replacing the fuel injectors.

Fuel injectors should be replaced by an experienced professional

Fuel injectors are an essential component of a diesel engine's fuel delivery system. When they fail, it can cause significant issues with engine performance, including hard starting, rough idling, and poor acceleration. While it is possible to replace fuel injectors yourself, it is a complex and challenging task that requires a high level of technical expertise and specialised tools. Therefore, it is highly recommended that fuel injectors be replaced by an experienced professional.

Attempting to replace fuel injectors without the proper knowledge and equipment can lead to further damage to the engine and fuel system, resulting in costly repairs. Professional mechanics have the training and experience to correctly diagnose and address fuel injector issues. They will also have access to service manuals and specialised tools that may be required for the job. By working with a certified professional, you can ensure that the replacement is done correctly and safely, reducing the risk of additional problems down the line.

One of the critical steps in replacing fuel injectors is properly diagnosing the issue. Professional mechanics have the necessary tools and equipment to test and detect problems with fuel injectors. They can also advise on whether the injectors need to be cleaned, repaired, or replaced entirely. In some cases, issues with fuel injectors may be covered under warranty, and a professional mechanic will be able to guide you through the process of claiming warranty service.

Another advantage of working with a professional is that they can help you choose the right type of fuel injectors for your vehicle. There are different types of fuel injectors available, such as new, remanufactured, or refurbished, and a professional can help you select the most suitable option based on your vehicle's specific needs and your budget. They will also be able to source high-quality parts and ensure that the replacement injectors are properly installed and calibrated for optimal performance.

Finally, replacing fuel injectors can be a time-consuming process, especially for those who are not familiar with the procedure. An experienced professional will be able to complete the job more efficiently, saving you time and minimising the inconvenience of having your vehicle out of commission. They will also be able to identify and address any other related issues that may be contributing to the problem, ensuring that your vehicle is running at its best when it is returned to you.

Fuel injectors can be expensive to replace, ranging from $3500 to $4500

Fuel injectors are an essential component of a vehicle's engine fuel delivery system. They are responsible for delivering fuel to the engine in a precise spray pattern and at a specific pressure. This process of delivering fuel to the engine is known as fuel injection, which helps to provide maximum power while minimising fuel consumption and reducing pollution.

Fuel injectors are electrical components and most modern vehicles use multiple injectors placed at different locations in the engine. Each injector is controlled by the car's computer, which sends electrical signals to it, instructing it on when to release fuel to the engine. Over time, fuel injectors can become clogged, resulting in decreased engine performance, higher fuel consumption, and increased emissions.

The cost of replacing fuel injectors can vary depending on several factors, such as the make and model of the vehicle, the severity of the issue, and your location. The price per injector and the number of injectors that need replacing will also impact the overall cost. Basic vehicles may only need injectors that cost several hundred dollars each, while high-end and performance vehicles that require high fuel delivery rates may need injectors that cost over $1,000 each.

In addition to the cost of the injectors themselves, there is also the cost of labour to consider. The task of replacing fuel injectors can be complex and time-consuming, and improper installation can lead to bigger and more expensive problems down the road. It is recommended to get multiple quotes from mechanics before committing to any work. While it can be tempting to go with the lowest price, it is important to remember that cutting corners on parts or labour can lead to issues in the future.

For example, the total cost to have a mechanic replace eight injectors on an LLY Duramax can range from $3500 to $4500 CAD, depending on what other work is performed at the same time. This price range reflects the complexity and labour-intensive nature of replacing multiple fuel injectors, as well as the potential for additional repairs or maintenance to be identified and addressed during the process.

While it may be costly, replacing faulty fuel injectors is crucial to ensuring optimal engine performance, improved fuel efficiency, and longevity. A poorly performing fuel injector can cause further damage to the engine, leading to even more expensive repairs. Therefore, it is important to address any issues with fuel injectors in a timely manner and to invest in high-quality parts and professional labour when needed.

Fuel injectors may need to be replaced every 60,000 miles

Fuel injectors are an essential component of your Duramax diesel engine, and like any other component, they can wear out over time and may need to be replaced. While there is no definitive answer to how often you should replace your fuel injectors, it is recommended to keep an eye on their performance and be prepared for replacement every 60,000 miles.

The lifespan of fuel injectors can vary significantly, with some lasting only 10,000 miles, while others can go up to 200,000 miles or more. This discrepancy is often due to factors such as the quality of fuel used, regular maintenance, and driving conditions. Poor quality fuel, lack of proper maintenance, and heavy-duty driving can lead to premature injector failure.

To ensure the longevity of your fuel injectors, it is crucial to prioritize good fuel quality and regular maintenance. Using low-quality fuel can cause premature injector failure, especially in LLY Duramax injectors that operate at very high pressure. Regular maintenance, such as changing fuel filters and using fuel additives, can help prevent injector issues and extend their lifespan.

Additionally, keeping an eye on common signs of injector failure can help you identify potential issues early on. Hard starting, rough running, especially at idle, and high fuel return rates are all indicators that your injectors may need attention. If you notice any of these problems, it is recommended to consult a mechanic or refer to a service manual for guidance on replacement.

While replacing fuel injectors can be a complex task, depending on the model year of your Duramax engine, taking proactive measures and staying informed can help you make informed decisions when it comes to maintaining and replacing this crucial component. Remember, fuel injectors play a vital role in the performance and longevity of your Duramax diesel engine, so investing in their care and replacement when necessary is always a wise choice.

Fuel injectors can be purchased new, remanufactured, or refurbished

When it comes to purchasing fuel injectors, you have several options: buying new, remanufactured, or refurbished. Each option has its own pros and cons, so it's important to understand the differences before making a decision.

New fuel injectors are exactly that—brand new and never been used. They typically come from reputable manufacturers like Bosch, Delphi, Cummins, CAT, or GM, and often include a dealer warranty of 2-3 years, as well as a certificate of authentication. This option gives you peace of mind, but it may also be the most expensive.

Remanufactured fuel injectors, on the other hand, have been previously used but have gone through a rigorous process of disassembly, inspection, and remanufacturing. All worn or defective parts are replaced with brand new components, ensuring that the injector meets OEM specifications. While remanufactured injectors may be slightly more expensive than refurbished ones, they offer a more comprehensive approach to ensuring the injector's performance and durability.

Refurbished fuel injectors are the most cost-effective option. These injectors are cleaned externally and internally, and inspected to ensure they meet the original manufacturer's specifications. However, none of the internal components are replaced, so it's primarily an aesthetic maintenance option. Refurbished injectors typically come with a shorter warranty period, usually one year, as their long-term performance cannot be fully guaranteed.

When deciding between new, remanufactured, or refurbished fuel injectors, it's important to consider your budget, the level of performance you require, and the warranty options available. While new injectors offer the highest level of assurance, remanufactured and refurbished options can also be reliable choices, especially if you choose a reputable supplier who stands behind their work.

Additionally, it's worth noting that some injector suppliers may use terms like "rebuilt," "reconditioned," or "remanufactured" interchangeably, which can be misleading. It's always a good idea to clarify exactly what process the injectors have undergone and what warranty is offered before making your final decision.
