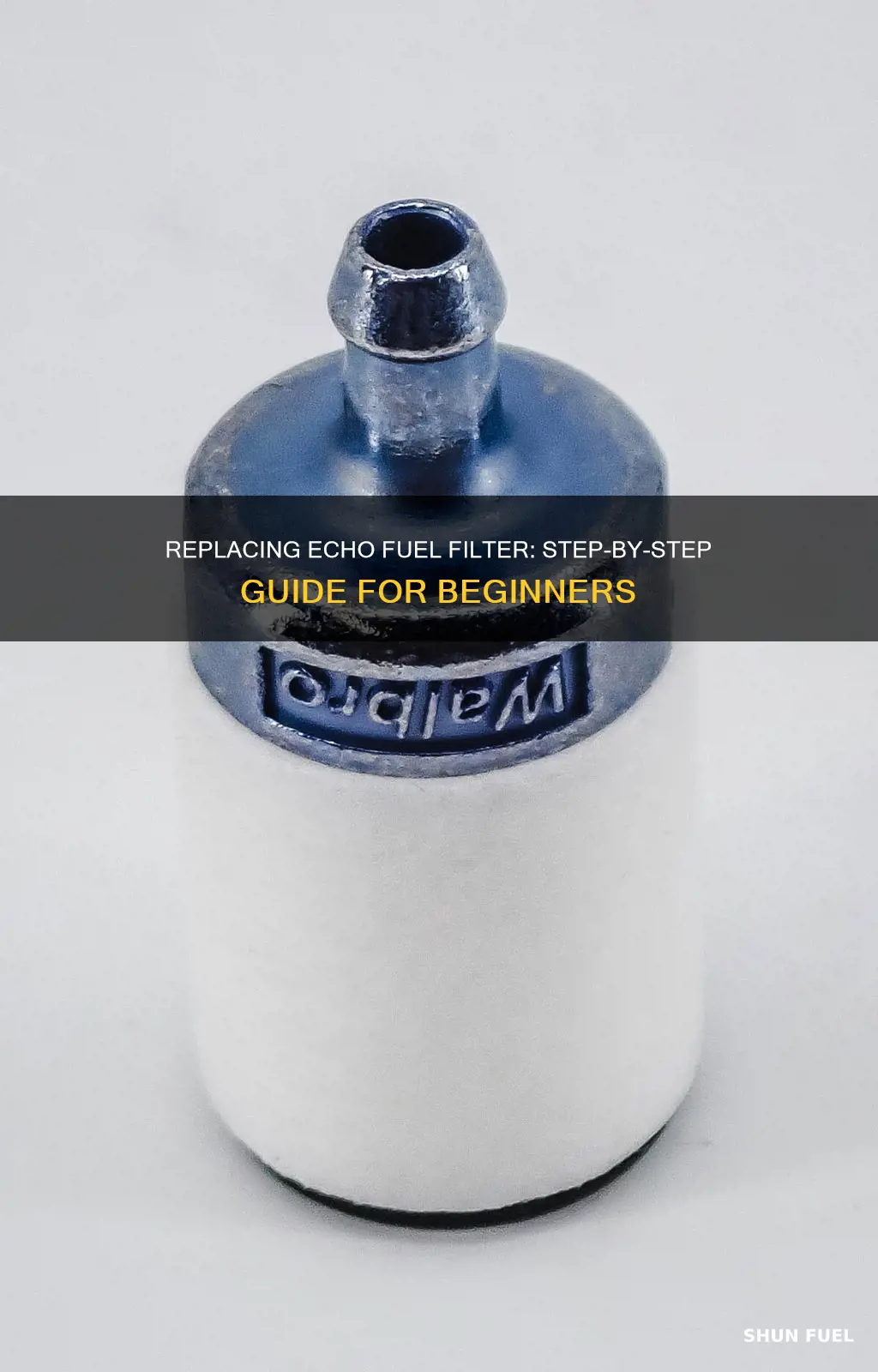

Replacing Echo Fuel Filter: Step-By-Step Guide For Beginners

The fuel filter in an Echo Trimmer plays a crucial role in maintaining the equipment's overall performance by preventing tiny particles from clogging the carburetor. While it is easy to replace, knowing how to do so is essential for the machine's functionality. This is a step-by-step guide on how to replace the fuel filter in an Echo Trimmer.

Remove the air filter

To remove the air filter from your Echo Trimmer, first make sure to empty any gas in the tank into a suitable container. Then, twist the knob on the air filter counter-clockwise and remove it.

Now, you can disconnect and remove the fuel lines from the carburetor by pulling them firmly. If they are stuck, you can gently pry them off with a flat-head screwdriver.

Next, you will need to pry the grommet from the gas tank using a flat-head screwdriver or a pair of pliers. This will help to create space for the new fuel filter.

At this point, you can move on to inserting the new fuel filter and reattaching the fuel lines. However, before reassembling the unit, ensure that you have drained any excess fuel from the tank and removed the fuel cap.

Disconnect and remove fuel lines

Disconnecting and removing the fuel lines is a crucial step in replacing the fuel filter on your Echo equipment. Here is a detailed guide to help you through the process:

Firstly, ensure that you have drained any excess fuel from the tank before beginning this process. It is important to work with safety and caution. Now, let's get started:

• Disconnect the Fuel Lines: Firmly pull the fuel lines away from the carburetor. If the lines are stuck, gently pry them off using an appropriate tool. Be cautious and gentle to avoid damaging any components.
• Remove the Grommet: After the lines are disconnected, focus on the grommet. Use a flat-head screwdriver or a pair of pliers to carefully pry the grommet out from the gas tank. This step will allow you to access the fuel filter.
• Prepare for New Grommet Installation: Before inserting the new grommet, it is recommended to oil or grease its perimeter. This will make the installation process smoother and help prevent any damage to the grommet.
• Insert the Fuel Filter: Through the small hole in the gas tank, insert the new fuel filter. This step ensures that the fuel filter is securely positioned for proper functioning.
• Reattach the Grommet: Using your fingers, carefully reset the grommet into the fuel tank. This may require some effort and gentle maneuvering to ensure a tight fit.
• Reattach the Fuel Lines: Now, reconnect the fuel lines. Attach the black line to the inner hose attachment and the yellow line to the outer hose attachment. Ensure that the vent hose is not kinked to maintain proper ventilation.

By following these steps, you will have successfully disconnected and removed the old fuel lines, and replaced them with new ones. Remember to work cautiously and refer to the specific model's repair manual for additional information if needed.

Insert the new fuel filter

To install the new fuel filter, first, slide the fuel line clip over the fuel tube and hold it about a quarter of an inch from the end of the tube. The clip should be able to accommodate the flared connection of the new fuel filter, which you should install at the end of the fuel tube. Ensure you perform this step in one continuous motion. If the clip slides backward, simply reposition it and start again.

Next, insert the fuel filter (along with the fuel line) into the fuel tank.

Now, reinstall the fuel cap onto the fuel tank.

Finally, reinstall the air filter into the air cleaner lid and secure the air filter lid with the thumbscrew.

Reattach the fuel lines

Now that you have inserted the new grommet with the fuel lines, it is time to reattach the fuel lines.

First, attach the black line firmly to the hose attachment towards the inside. Then, attach the yellow line firmly to the outer hose attachment. The black hose with the white attachment slides right into the area circled in the picture. As this is just a vent cap, it is not imperative that it be placed in this spot if you are not able to. Just be sure that the vent hose is not kinked.

Now that the fuel lines are reattached, you can move on to replacing the purge bulb. Loosen the two screws holding the carburetor with a T27 Torx bit, turning it counter-clockwise. Be sure not to lose or tear the gasket between the carburetor and the intake manifold. It will need to be replaced if either occurs.

Remove the four screws holding the old purge bulb by turning them counter-clockwise. Remove the plate holding the purge bulb. The old purge bulb should come right out, and you can replace it with the new one. Be sure the rim of the new purge valve is properly seated when reinstalling. Reinstall the purge bulb plate and securely tighten the four screws. Be sure not to overtighten these screws as they can easily strip.

Now, reinstall the air filter housing, carburetor, and gasket in the same manner that they were removed. Finally, reinstall the air filter and air housing cover.

Reassemble the unit

Now that you've installed the new fuel filter, it's time to reassemble the unit.

First, insert the fuel filter (and fuel line) into the fuel tank. Ensure that the fuel filter is securely in place. Next, reinstall the fuel cap onto the fuel tank. Tighten it securely, but be careful not to overtighten.

Now, it's time to turn our attention to the air filter. Install the air filter into the air cleaner lid, ensuring it is properly seated and secure. Once that's done, install the air filter lid onto the air cleaner case. Secure the lid with the thumbscrew, again being careful not to overtighten.

With these steps completed, you've successfully replaced the fuel filter and reassembled your Echo Trimmer.
