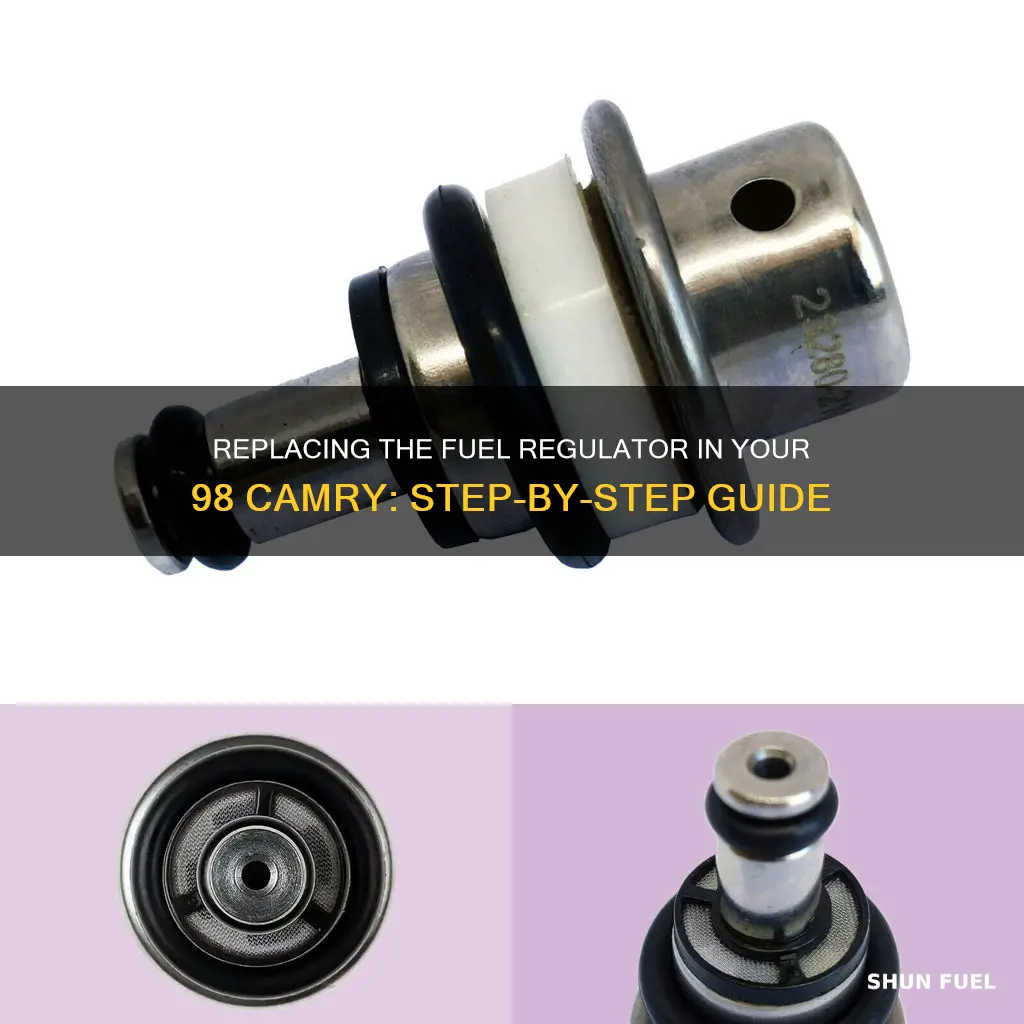

Replacing The Fuel Regulator In Your 98 Camry: Step-By-Step Guide

The fuel pressure regulator is an important component of a vehicle's fuel system, and it is responsible for maintaining the correct pressure of fuel in the fuel line. If you own a 98 Toyota Camry, the fuel pressure regulator is located on the fuel pump, which is located in the fuel tank. Replacing a fuel pressure regulator is not a difficult task, but it is important to follow the proper procedure to ensure that the new regulator is installed correctly. This will involve removing the wheel chocks from the rear wheels, plugging the vacuum hose into the fuel pressure regulator, and turning the ignition key on to listen to the fuel pump as it begins to fill.

Location of the fuel pressure regulator

The fuel pressure regulator in a 98 Toyota Camry is located in the fuel tank, on the fuel pump. To replace it, you will need to remove the back seat to access the fuel pump housing assembly. Once you have located the fuel pump, the regulator can be found attached to it.

The fuel pressure regulator is usually located at one end of the fuel rail, near the intake manifold or under the fuel rail. However, depending on the model, it may be stored in the fuel tank.

To replace the fuel pressure regulator, first remove the screw attaching it to the fuel pump, and then pull out the regulator.

Removing the rear seats

To remove the rear seats of a 1998 Camry, you'll need to first locate the two clips at the front on the sides of the seat. Grab the front of the cushion and pull it up to release it from the clips. You may need to use some force, but be careful not to use too much force if there are bolts securing the seat.

For good measure, you can also remove the 12mm bolts behind the plastic at the back of the seat. These bolts are located behind plastic covers, so you will need to remove the covers to access them.

If you are only looking to remove the rear seat back assembly (the top part of the folding seat), then note that it is bolted to the hinge. You can unbolt the seat from the chassis for complete removal. However, keep in mind that in the event of a head-on crash, the seat will propel forward.

• Grab and yank on the front left and right corners of the seat. It's just held on by clips.
• Wear heavy gloves as it can be hard on your hands to pull the seat up with enough force.
• Get into a position where you can get your knee against the front of the cushion and push hard, then lift the side to release the clip.

Remember to always consult a qualified mechanic or refer to your vehicle's owner's manual if you are unsure about any steps or procedures.

Depressurising the fuel system

Step 1: Safety First

Before beginning any work on the fuel system, it is important to take the necessary safety precautions. Put on safety goggles and gloves to protect your eyes and hands from any fuel spray or spillage. Working in a well-ventilated area or outdoors is also recommended to avoid inhaling fumes.

Step 2: Locate the Fuel Pressure Regulator

The fuel pressure regulator in a Toyota Camry is typically located on the fuel pump, which is inside the fuel tank. You may need to refer to the vehicle's repair manual or consult a qualified mechanic if you are unsure about its exact location.

Step 3: Disconnect the Battery

Before proceeding, disconnect the negative battery terminal to avoid any accidental sparks or electrical issues. This is an important safety precaution when working on any part of the fuel system.

Step 4: Relieve Fuel Pressure

To depressurise the fuel system, you will need to relieve the pressure in the lines. Locate the Schrader valve on the fuel rail, which is usually found near the fuel injectors. Place paper towels around the valve to absorb any spilled fuel. Then, use a flat-blade screwdriver to press the top pin and release the pressure.

Step 5: Remove Fuel Line Connections

Once the pressure is relieved, you can proceed to remove the fuel lines connected to the fuel pressure regulator. Loosen the fuel fittings using a 16mm flare nut wrench. Be cautious, as there may still be some residual pressure in the lines. Have a fuel catch can or container ready to collect any spilled fuel.

Step 6: Remove the Fuel Pressure Regulator

With the fuel lines disconnected, you can now remove the fuel pressure regulator itself. Carefully lift and release the tabs on the retainer ring of the regulator and wiggle it out. Make sure to also remove the O-ring and screen attached to the regulator.

By following these steps, you will have successfully depressurised the fuel system and can proceed to install the new fuel pressure regulator. Remember to work cautiously and refer to repair manuals or seek professional assistance if needed.

Disconnecting the fuel pump

Prepare the Vehicle:

• Park your Camry on a level surface and engage the parking brake.
• Open the hood and locate the fuse panel.
• Remove the fuel pump fuse or relay to relieve pressure from the fuel line.
• Turn the engine over several times until it no longer starts. This step ensures that there is no pressure left in the fuel line.

Accessing the Fuel Pump:

• Remove the rear seat of the vehicle. This is typically done by lifting the front edge of the cushions, disconnecting any mounting bolts, and then lifting and removing the cushions.
• Pull back the carpet to expose the fuel pump panel.
• Pry up the metal access cover and remove the latch assembly.
• Remove the fasteners holding the protective plate in place.

Disconnecting the Fuel Line:

• Once the pressure is released from the fuel line, you can proceed to disconnect it from the fuel pump.
• Ensure that there is no fuel leakage during this step.
• Remove the remaining bolts around the perimeter of the fuel pump.

Removing the Fuel Pump:

• At this point, you should be able to grab hold of the fuel pump and remove it from its opening.
• Be cautious and gentle during this step to avoid damaging any nearby components.

It is important to note that working with fuel systems can be dangerous, and it is always recommended to wear protective gear and take appropriate safety measures. Additionally, it is advisable to refer to a repair manual specific to your vehicle for more detailed instructions and illustrations.

Reattaching the new fuel pump

To reattach the new fuel pump to your 1998 Toyota Camry, follow these steps:

Firstly, ensure that your vehicle is on a flat, hard surface, with the front tires securely blocked and the rear wheels chocked. Leave the tailgate open. Remove any brackets that may obstruct the fuel pressure regulator and fuel pump. It is recommended to wear protective gloves when handling car parts.

Next, plug the vacuum hose into the fuel pressure regulator. Turn the ignition key on and listen for the fuel pump to start filling. Check for any leaks using a combustible gas detector. Ensure all connections are secure and leak-free.

Now, you can proceed to attach the new fuel pump. The fuel pump is located in the fuel tank of your 1998 Camry. Refer to your vehicle's manual for the exact location and instructions for accessing the fuel tank and pump. Ensure the fuel pump is securely attached and connected to the fuel lines and electrical connectors.

Finally, refill the fuel tank and start the engine to test the new fuel pump. Ensure there are no leaks and that the fuel pressure is within the normal range. If the fuel pressure is too low, check for debris or contamination in the regulator and clean it if necessary.

If you encounter any issues or are unsure about any steps, it is recommended to consult a qualified mechanic or refer to your vehicle's repair manual for detailed instructions.
