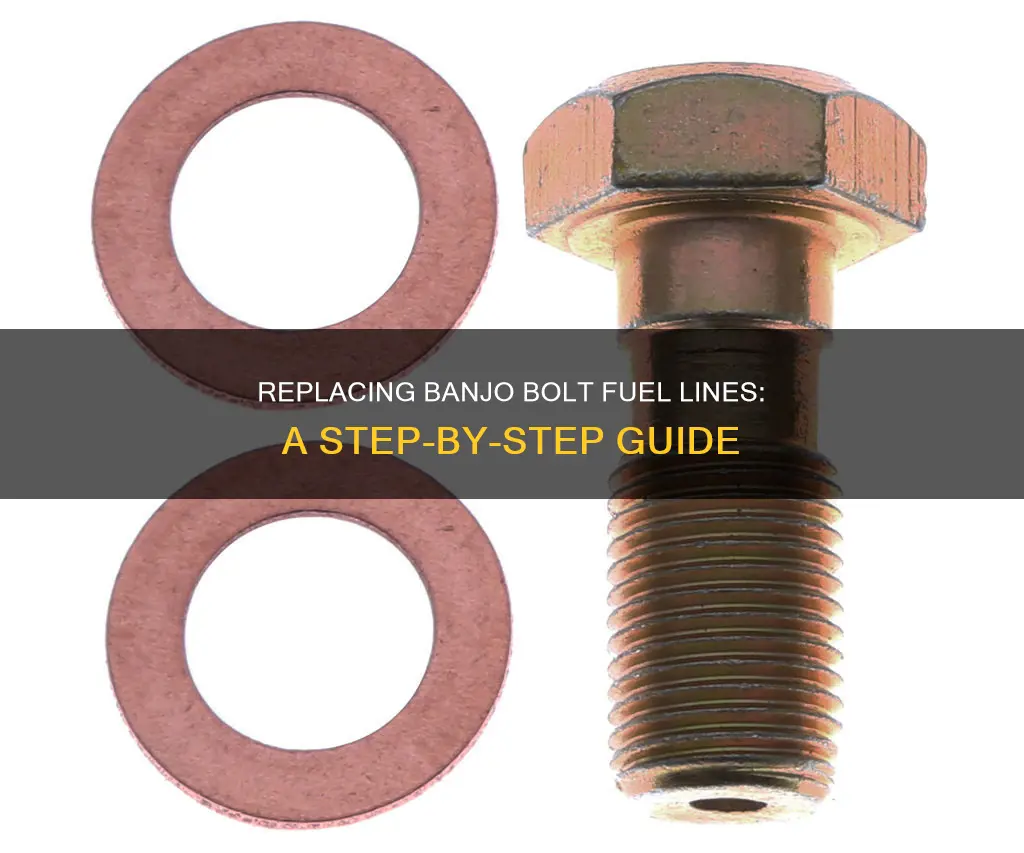

Replacing Banjo Bolt Fuel Lines: A Step-By-Step Guide

Replacing banjo bolt fuel lines can be a challenging task, but with the right tools and knowledge, it is certainly achievable. Banjo fittings are crucial components in brake and fuel systems, allowing for easier connections in tight spaces. When replacing banjo bolt fuel lines, it is important to ensure that the mating surfaces are clean and free of debris. New copper washers should be used, or if reusing old washers, they should be annealed by heating and plunging into water to remove any scale. It is also crucial to avoid over-tightening the bolts, as this can lead to a broken banjo bolt. Additionally, when repairing hard fuel lines, it is recommended to use fuel injector hose and hose clamps instead of standard fuel hose and JB Weld.

Ensure the banjo bolt is lined up with the fuel line

To ensure the banjo bolt is lined up with the fuel line, you can try the following:

Firstly, make a mark on the top of the bolt where the hole is, so you know which side it is on. This way, you can line up the hose with the mark when you are tightening the bolt. This method was suggested by a user on DSMtuners.com, who was repairing a broken fuel line from the fuel pump assembly to the fuel filter.

Another user on the same forum suggested that, while it is good to have a straight shot, the inside of the nut on the banjo bolt is grooved all the way around, so fluid will flow no matter where it is tightened.

A user on YBW Forum, when discussing replacing flexible fuel lines with banjo fittings, suggested that the orientation of the banjos relative to each other could be a problem when trying to install new pipes. The user advised that the banjo bodies need to sit fairly flat against their mating surfaces when installed, and that if the ends are badly misaligned, it could cause the pipe to twist. Therefore, it is important to check the orientation of the banjos and ensure they are aligned correctly with the fuel line.

Use rubber fuel hose to connect the two ends of the broken line

To replace a banjo bolt fuel line, you can use rubber fuel hose to connect the two ends of the broken line. This is a temporary solution, and it is recommended to replace the entire fuel line if possible. Here is a step-by-step guide on how to do it:

• Purchase the correct type of rubber fuel hose. Get a fuel injector hose (usually around $4 a foot), not a standard fuel hose, as it is only rated for about 40 psi. Make sure to get fuel injection-rated hose, as regular fuel hose may not be able to handle the pressure of fuel injection systems.
• Prepare the broken ends of the metal line. It is recommended to flare both sides of the broken metal line to provide a better surface for the clamps to grip onto.
• Connect the rubber fuel hose to one end of the broken line. Use fuel injector hose clamps (which look like rings, not the worm style) to secure the hose. Make sure the hose is pushed on as far as possible, and use two clamps on each end for added security.
• Connect the other end of the rubber fuel hose to the other broken end of the line, again using fuel injector hose clamps. Ensure that the hose is securely attached and that the clamps are tight.
• Test the repair by turning on the ignition and checking for any leaks. It may be necessary to cycle the ignition on and off a few times to ensure that the fuel lines are full. Use a combustible gas detector or sniff for any fuel odours to check for leaks.

This method can be used as a temporary fix to get your car running again, but for a more permanent solution, it is recommended to replace the entire fuel line with a new one. Rubber fuel hose with clamps can hold more than 80 psi without leaks, but it is still a temporary solution, and a new fuel line should be installed as soon as possible.

Use fuel injector hose clamps to secure the rubber fuel hose

When replacing banjo bolt fuel lines, it is important to use the correct type of hose and clamps to ensure a secure and reliable connection. In this case, fuel injector hose clamps are specifically designed to secure rubber fuel hose in high-pressure applications. Here are some detailed instructions and considerations for using fuel injector hose clamps:

Firstly, ensure you have the correct type of hose. Fuel injector hose is designed to handle higher pressures compared to standard fuel hose. It is essential to use fuel injector hose when dealing with fuel lines to prevent leaks and potential safety hazards.

When clamping the rubber fuel hose, it is recommended to use fuel injector hose clamps, which are designed specifically for this purpose. These clamps provide an even and consistent clamping force, which is crucial for sealing the hose and preventing leaks. Avoid using worm-style hose clamps, as they can be unreliable and tend to cut into the hose.

Fuel injector hose clamps are typically made of stainless steel or zinc-coated steel, offering better corrosion resistance than standard zinc-plated clamps. The smooth interior of the clamps also helps prevent the hose from being cut or damaged.

When tightening the clamps, it is important not to overtighten them. Refer to the manufacturer's instructions for the recommended torque specifications to ensure an adequate seal without damaging the hose.

Additionally, consider flaring the ends of the broken metal line to provide a better surface for the clamps to press against. This helps to reinforce the connection and prevent separation under pressure.

Finally, when working with fuel lines, it is essential to take the necessary safety precautions. Ensure the work area is well-ventilated, and avoid any open flames or sparks that could ignite the fuel. It is also recommended to wear protective gear, such as gloves and eye protection, when handling fuel lines and hoses.

Flare both sides of the broken metal line to provide a surface for the clamps to press against

Flaring both sides of a broken metal line is a crucial step in repairing fuel lines, as it provides a secure surface for clamps to press against, preventing leaks and ensuring the safety of the vehicle's fuel system. Here's a detailed guide on how to approach this process:

Understand the Purpose:

By flaring the ends of the broken metal line, you create a wider surface area for the clamps to grip onto. This helps to distribute the clamping force more evenly, reducing the risk of leakage and ensuring a secure connection.

Select the Appropriate Flaring Tool:

There are several types of flaring tools available, including wingnut-type, on-car type, lever type, and hydraulic type. Choose a tool that best suits your budget and the complexity of your project. For a one-time repair, a wingnut-type tool might suffice, while for more professional and long-lasting results, consider investing in a lever or hydraulic type tool.

Prepare the Metal Line:

Before flaring, ensure the broken metal line is cut to the appropriate length and deburr both the inside and outside of the tube. Clean the outside of the tube with a wire brush, fine sandpaper, or a Scotch-Brite pad to ensure a smooth sealing surface for the flare. Don't forget to slide the nut onto the line before flaring!

Lubricate and Measure:

Lubricate the end of the metal line to allow the die to slide easily during the flaring process. You can use grease, brake fluid, or another type of oil, ensuring you clean it thoroughly afterward. Measure and position the hard line in the clamp according to the instructions for your chosen flaring tool.

Perform the Flaring:

Follow the specific instructions for your chosen flaring tool. For a wingnut-type tool, insert the adapter into the end of the line and tighten the wingnut. Lever-type and hydraulic tools will have different mechanisms for performing the flare, so refer to their respective instructions. Remember to create a double flare, which is stronger and better suited for high-pressure applications like brake fluid.

Clean and Inspect:

Once the flaring is complete, clean any grease or oil from the end of the metal line to prevent contamination of the brake fluid. Inspect your work for any cracks or misshapen areas. If necessary, use a lapping tool to ensure the flare is perfectly shaped for a proper seal.

By following these steps and paying attention to detail, you can successfully flare both sides of the broken metal line, providing an ideal surface for clamps to press against when repairing fuel lines.

Make sure the mating surfaces are as clean as possible

When replacing banjo bolts, it is crucial to ensure that the mating surfaces are as clean as possible. This means removing any dirt, debris, or grit that could potentially get trapped between the sealing surface and the copper washers. Contamination can lead to clogs, wear, and potential system failures, so it is important to work in a clean, dust-free environment. Before beginning the replacement process, lay down clean rags or protective mats to keep parts off dirty surfaces.

To clean the mating surfaces, use a suitable solvent such as brake cleaner, and a clean, lint-free cloth. Wipe the surfaces dry with another clean cloth to ensure no residue is left behind. Additionally, it is recommended to clean the banjo bolt itself with the same solvent and allow it to dry before installation.

For the washers, always use new ones, preferably made of copper, as these provide excellent sealing properties. Check the washers for any deformities, such as burrs, that may have occurred during the manufacturing process. If necessary, carefully rub them on some 800-grit wet-or-dry paper with a small amount of WD40 or thin oil to smooth out any imperfections.
