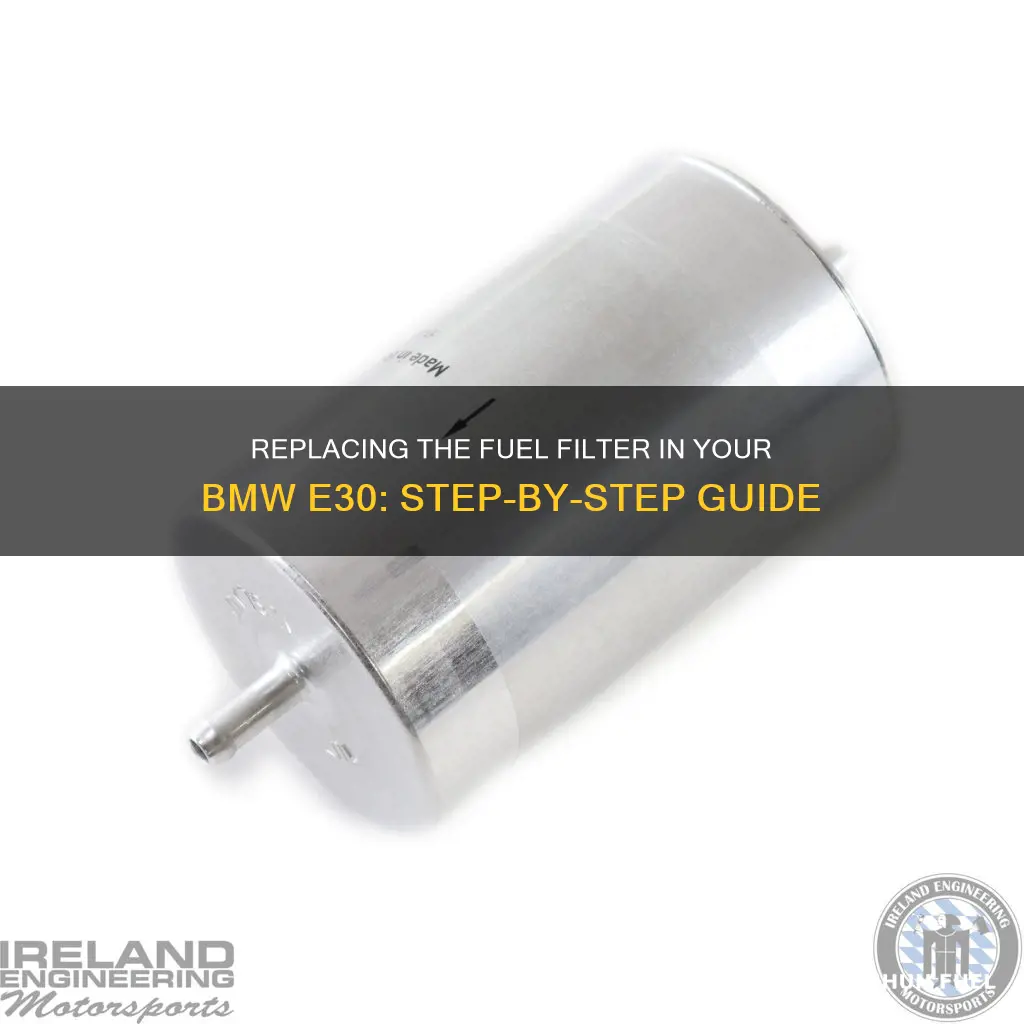

Replacing The Fuel Filter In Your Bmw E30: Step-By-Step Guide

Replacing the fuel filter on a BMW E30 is a relatively simple task that can be completed in a few hours with the right tools and parts. The fuel filter is responsible for filtering out impurities such as dirt and rust from the fuel tank, and when clogged, can cause the car to run sluggishly or not at all. To replace the fuel filter, first run the car until the fuel tank is less than a quarter full to decrease the pressure in the fuel lines. Then, disconnect the battery and jack up the rear driver's side of the car, placing it on a jack stand for support. Next, locate the fuel filter by removing the plastic panel in front of the fuel tank and unscrewing the clamp holding the filter in place. By clamping the fuel lines shut and loosening the hose clamps, the old fuel filter can be removed and replaced with a new one, ensuring the arrow on the filter is pointing towards the engine. Finally, the fuel lines can be reconnected, the plastic panel reinstalled, and the car lowered and restarted.

Disconnect the battery

Disconnecting the battery is an important step when replacing the fuel filter on your BMW E30. This is a safety precaution to reduce the chance of a random spark igniting any raw fuel in the area.

To disconnect the battery, locate the negative battery terminal. This is usually a black cable with a minus (-) sign. Loosen the nut or bolt that secures the cable to the battery terminal using an appropriate-sized wrench or socket. Be careful not to let the wrench or socket touch any other metal parts of the car, as this could create a spark. Once the connection is loose, carefully remove the cable from the battery terminal.

It is good practice to clean the battery terminal and cable with a wire brush to remove any corrosion or dirt. You can also apply a thin layer of grease or petroleum jelly to the terminal to help prevent future corrosion.

After disconnecting the battery, be sure to move the cable away from the battery to avoid any accidental contact. You may also want to cover the terminal with a piece of electrical tape or a plastic bag to provide additional protection against sparks.

Remember to reconnect the battery once you have completed the fuel filter replacement.

Jack up the car and use jack stands

Jacking up your car is an essential step in replacing the fuel filter of your BMW E30. This step is necessary to access the underside of the car and locate the fuel filter. Here is a detailed guide on how to jack up the car and use jack stands:

First, ensure you have the necessary tools, including a floor jack and two jack stands. It is crucial to use jack stands for safety reasons, as relying solely on a jack to support the car can be dangerous. Place wheel chocks around the tyres to prevent the car from rolling.

Next, locate a reinforced part of the vehicle's frame. Position the jack at this point and slowly raise the car until the tyres are off the ground. Once the car is securely lifted, place the jack stands firmly underneath. Double-check that they are locked and supporting the vehicle's weight.

Now that the car is safely jacked up, you can proceed to crawl under the car to locate the fuel filter. Remember always to exercise extreme caution when working under a car, and ensure the vehicle is securely supported.

After completing the fuel filter replacement, be sure to lower the car from the jack stands carefully. Remove the jack stands and slowly lower the car back to the ground using the jack. Ensure the tyres are securely on the ground, then remove the jack.

By following these steps, you can safely jack up your BMW E30 and use jack stands to access the underside of the vehicle and perform maintenance tasks such as replacing the fuel filter.

Locate the fuel filter

To locate the fuel filter of a BMW E30, jack up the rear driver's side of the car and support it using a jack stand. Be sure to jack up the car using a reinforced part of the vehicle's frame. Never rely on just a jack to hold the car up. Always use jack stands when you are under the car. Now crawl under the car. Directly in front of the fuel tank, you will see a plastic panel. Remove the screws that hold this panel to the chassis using a 10mm socket and a Phillips screwdriver. You will now see the fuel filter.

The fuel filter is located underneath the plastic panel. The fuel filter is responsible for filtering out small impurities such as dirt and rust that over time accumulate in the fuel tank. When the filter gets clogged, it can cause the car to run sluggishly or even not run at all.

Remove the old fuel filter

To remove the old fuel filter from your BMW E30, follow these steps:

First, ensure you have run the car until you have less than a quarter tank of fuel left. This will decrease the pressure in the fuel lines when you disconnect them. Disconnect the negative battery terminal to reduce the chance of a spark igniting any raw fuel. Jack up the rear driver's side of the car and support it with a jack stand. Never rely solely on the jack to hold the car up.

Now, crawl under the car and locate the plastic panel directly in front of the fuel tank. Remove the screws holding this panel to the chassis with a Phillips-head screwdriver. You will then see the fuel filter. Look for the hose clamp that holds the filter onto its mounting bracket. Pull the filter off the mounting bracket and let it hang free.

At this point, you should see an arrow on the filter. This arrow indicates the correct position for the new filter. Make a note of the orientation of the fuel filter so that you can install the new one correctly. If there is no arrow, find the fuel line that goes towards the engine. The new filter will need to be connected so that the arrow is oriented towards the engine.

Use two pairs of vise-grips to clamp the fuel lines shut on both sides of the filter. Take care not to rip or damage the fuel lines. Loosen the hose clamps on either side of the filter and pull the fuel lines off. Be prepared for some fuel to come out of the filter.

Now, remove the old fuel filter and collect any excess fuel that drains from it into a waste container. It is important to dispose of this fuel safely.

Install the new fuel filter

Now that you've disconnected the battery, jacked up the car, and located the fuel filter, it's time to install the new one.

First, make sure you have the correct orientation for the new filter. There should be an arrow on the side of the filter, which should be pointing towards the engine. If you can't see an arrow, you need to connect the filter so that fuel can flow from the tank to the engine.

Now, use two pairs of vise-grips to clamp the fuel lines shut on both sides of the old filter. You don't need to use a lot of pressure, just enough to stop the flow of fuel. Be careful not to rip or damage the fuel lines. Put on some safety goggles, then loosen the hose clamps on either side of the old filter and pull the fuel lines off. Some fuel will come out of the filter, which is why you need the safety goggles.

Take your new filter and make sure the arrow is facing the correct way, then push the fuel line from the fuel pump/tank onto the new filter and tighten the hose clamp. Repeat this process for the other fuel line, pushing it onto the new filter and tightening the hose clamp.

Now, remove the vise-grips that are clamping the fuel lines. This will allow the fuel to flow from the tank, through the filter, and towards the engine. Push the new filter back into the mounting bracket and tighten the hose clamp to hold it in place. Tuck the fuel lines back inside, then re-attach the plastic panel that covers the filter and screw it into place.

Now you can lower the car, reconnect the battery, and fill up the tank. When you restart the car, it may take a few attempts for it to run. This is normal, as you've just introduced air into the fuel lines and it will take a little time for the fuel pump to deliver fuel to the injectors.
