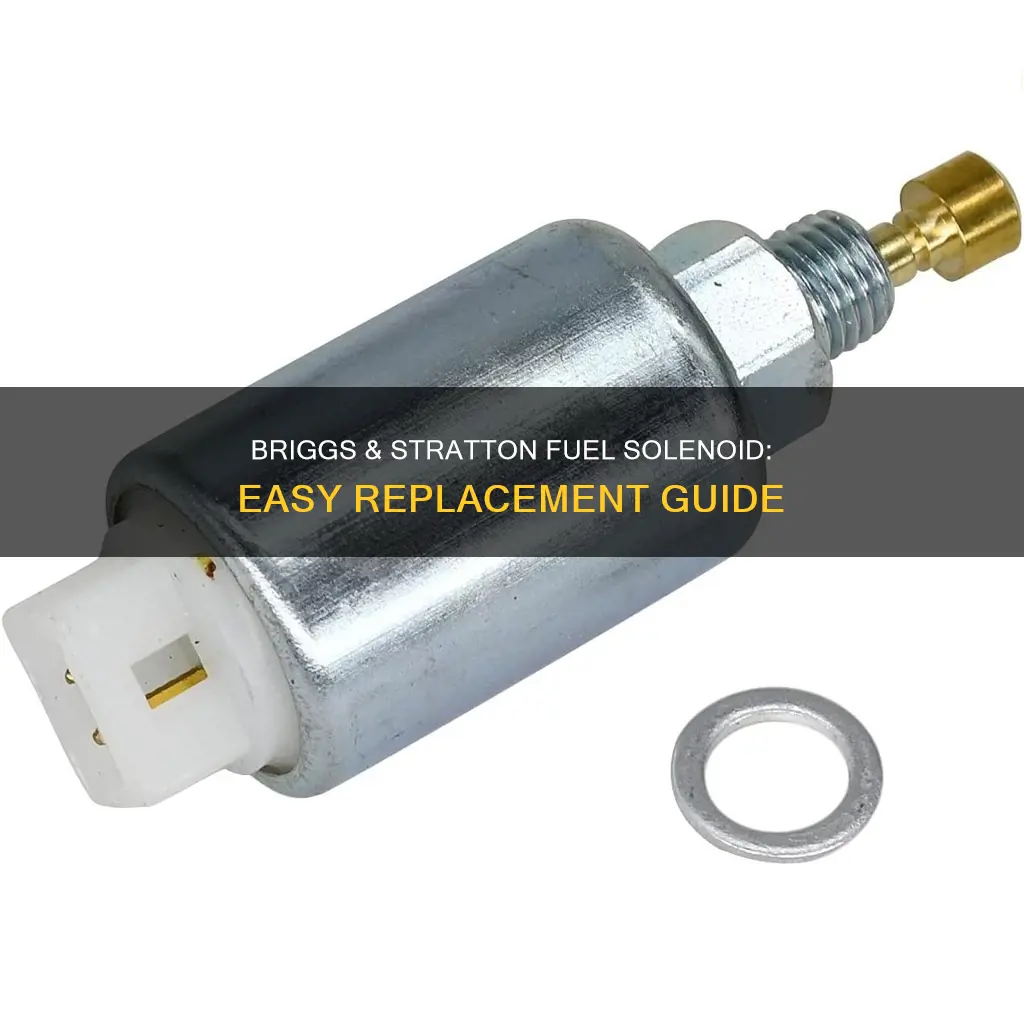

Briggs And Stratton Fuel Solenoid: Easy Replacement Guide

Briggs and Stratton fuel solenoids are essential components in Briggs and Stratton engines, controlling the flow of fuel to the engine. They are crucial for maintaining engine efficiency and reducing the risk of flooding or stalling. Replacing a faulty fuel solenoid is important to ensure your equipment runs smoothly.

In this guide, we will take you through the process of replacing the fuel solenoid on a Briggs and Stratton engine, covering the tools and parts you will need, step-by-step instructions, and some tips and tricks to make the process easier. By following this guide, you will be able to replace your fuel solenoid confidently and ensure your engine is running at its best.

How to remove a Briggs and Stratton fuel solenoid with a wrench

To remove a Briggs and Stratton fuel solenoid with a wrench, follow these steps:

Firstly, identify the correct size wrench for the job. A 1/2-inch thin wrench is commonly used to remove fuel solenoids. If you don't have one available, you can grind down a standard 1/2-inch wrench to make it thin enough to fit. Alternatively, you can use a tappet wrench, which is specifically designed for this purpose.

Once you have the correct tool, locate the fuel solenoid on your Briggs and Stratton engine. It is usually found on the bottom of the carburetor. Place the wrench on the solenoid and turn it counterclockwise to loosen it. If the solenoid is too tight, you may need to strike the wrench with a hammer to break it loose. Be careful not to use excessive force, as you can damage the solenoid or the surrounding components.

If the solenoid is stripped and continues to spin without loosening, you may need to access it from the inside. To do this, remove the fuel bowl and hold the nut inside to gain better leverage. In some cases, you may need to remove the carburetor from the engine to access the solenoid properly.

Once the solenoid is loose, unscrew it by hand and remove it from the engine. Be sure to clean any corrosion or debris from the area before installing the replacement solenoid.

Remember to exercise caution when working with tools and equipment, and always refer to the specific instructions and guidelines provided by the manufacturer.

How to replace a Briggs and Stratton fuel solenoid with a bolt and gasket

To replace a Briggs and Stratton fuel solenoid with a bolt and gasket, follow these steps:

First, disconnect the red positive battery cable from the battery using the properly sized socket. This will prevent any accidental electric shocks while you work. Next, pull the two electrode wires off the solenoid prongs.

Now, you need to remove the two wires tightened onto bolts protruding from the solenoid. Use the correct-sized socket to unscrew them. Then, unscrew the four bolts that hold the solenoid onto the frame of the machine. With the old solenoid removed, you can now place the bolt and gasket in the same location.

Tighten the two wires back onto the bolts protruding from the bolt and gasket. Push the two electrode wires back onto the prongs. Finally, reconnect the positive battery cable to the battery.

This is a general guide, and some steps may vary depending on your specific Briggs and Stratton model.

How to identify a faulty Briggs and Stratton fuel solenoid

Fuel solenoids are essential in Briggs & Stratton engines as they control the flow of fuel to the engine. They open and close based on electrical signals, ensuring the right amount of fuel is delivered for optimal performance. A properly functioning fuel solenoid is crucial for reliable engine operation. Here are some signs that indicate a faulty Briggs & Stratton fuel solenoid:

Engine Stalling or Starting Issues

The engine may stall or be challenging to start when the solenoid valve fails to function correctly. When the engine is inactive or in an emergency, the solenoid valve's role is to cut off the fuel supply. If the solenoid sticks or malfunctions, the engine may not receive fuel, leading to stalling or failure to start.

Sudden Engine Shutdown

A faulty fuel solenoid can cause the engine to shut down unexpectedly while the vehicle is in motion. This erratic behaviour could be due to a loose connection or electrical issues with the solenoid's internal circuitry. If the solenoid cannot operate properly, it may obstruct the fuel flow, resulting in an abrupt engine shutdown.

Fuel Leakage

If the solenoid is damaged or cracked, fuel may leak from it, creating a potential fire hazard. It is essential to get the solenoid inspected and repaired immediately if you smell fuel or notice any signs of leakage to prevent safety risks.

Unusual Engine Performance

A malfunctioning fuel solenoid can cause erratic engine behaviour, such as rough idling, uneven acceleration, or power loss during operation. This is due to an inadequate or inconsistent fuel supply reaching the engine. Additionally, the engine may perform poorly under certain conditions, such as when the vehicle is loaded or travelling at high speeds.

Buzzing Noise

A buzzing noise during engine ignition could indicate a faulty solenoid. While this issue may not impact the engine's performance, it is crucial to address it promptly to maintain smooth engine operation.

Difficulty with Acceleration

If you experience difficulty with acceleration, the solenoid may be transitioning between the on/off position or getting stuck midway. As a result, the engine may struggle to receive an adequate fuel supply, leading to hesitation during acceleration.

Valve Malfunction

If the valve fails to open or close properly, it could be due to corrosion, rust, power failure, or dirt in the solenoid system. These issues can impede the smooth operation of the valve mechanism, and it may be necessary to install a new solenoid for optimal functionality.

How to buy a Briggs and Stratton fuel solenoid

When looking to buy a fuel solenoid for a Briggs and Stratton engine, it is important to understand the role of this component and the benefits of choosing original replacement parts. Fuel solenoids are essential for controlling the flow of fuel to the engine, ensuring optimal performance, efficiency, and reliability. By opening and closing based on electrical signals, they ensure the precise delivery of fuel, reducing the risk of flooding or stalling.

To buy a Briggs and Stratton fuel solenoid, you can explore the range of options available on the Briggs & Stratton website or through authorised retailers. Here are some key considerations and steps to guide your purchase:

• Identify Your Engine Model: Before purchasing a fuel solenoid, it is crucial to identify the specific model of your Briggs and Stratton engine. This information will help you select the correct solenoid designed for your engine, ensuring compatibility and optimal performance.
• Refer to the Parts Manual: If you are unsure about which fuel solenoid to choose, refer to the parts manual of your engine model. This manual will provide detailed information about the compatible solenoid for your engine, making it easier to find the right replacement part.
• Consider Original Replacement Parts: When maintaining your Briggs and Stratton engine, it is highly recommended to choose original replacement parts. These components are designed for compatibility, reliability, and longevity. By selecting original parts, you can trust that your engine will operate efficiently and effectively while reducing the likelihood of breakdowns.
• Compare SKU Numbers: When browsing for fuel solenoids, pay attention to the SKU (stock-keeping unit) numbers. These unique codes help identify each solenoid and ensure you are selecting the correct part for your engine. Compare the SKU numbers from the parts manual or the existing solenoid with those listed on the Briggs & Stratton website or authorised retailer websites.
• Assess Compatibility: Ensure that the fuel solenoid you choose is compatible with your specific Briggs and Stratton engine model. Check the product descriptions and compatibility information provided by the manufacturer or retailer to confirm that the solenoid will fit seamlessly into your engine.
• Evaluate Reliability and Durability: Opt for fuel solenoids that offer both reliability and durability. Look for parts crafted with high-quality materials and precision engineering, as these will enhance the overall functionality of your engine and contribute to better fuel efficiency and smoother operation.
• Authorised Retailers: When purchasing a fuel solenoid, consider buying from authorised Briggs & Stratton dealers or trusted online retailers like Amazon. These sources can provide genuine replacement parts, ensuring authenticity and optimal performance for your equipment.
• Check Reviews and Feedback: If you're purchasing from online retailers, take the time to read reviews and feedback from other buyers. This can give you valuable insights into the quality, compatibility, and performance of the fuel solenoid you're considering.
• Delivery and Returns: Consider the delivery options and return policies offered by the retailer. Ensure that they provide prompt delivery services and have a flexible return or exchange policy in case the solenoid you receive is not the correct fit or is defective.
• Price and Availability: Compare prices between different retailers to find the best value. Additionally, check the availability of the fuel solenoid you need, especially if you require it urgently.

By following these steps and considerations, you can make an informed decision when purchasing a Briggs and Stratton fuel solenoid, ensuring you select a compatible, reliable, and durable part for your engine. Remember to refer to the parts manual or seek assistance from authorised dealers if you have any doubts about compatibility or specific requirements for your engine model.

How to install a Briggs and Stratton fuel solenoid

To install a Briggs and Stratton fuel solenoid, you will first need to identify the correct replacement part for your specific engine model. Briggs and Stratton fuel solenoids are designed to fit seamlessly into your engine, so it is important to choose an original replacement part to ensure optimal performance, compatibility, and reliability. You can refer to the parts manual of your model or check the Fast Moving Parts or Parts Lookup section on the Briggs and Stratton website to find the correct fuel solenoid for your engine.

Once you have the correct replacement fuel solenoid, follow these steps for installation:

• Park your lawnmower or equipment on a level surface and engage the parking brake.
• Disconnect the spark plug wire to prevent accidental starting of the engine during the installation process.
• Locate the fuel solenoid on your engine. It is usually found near the carburetor or fuel pump.
• Disconnect the electrical connector from the fuel solenoid.
• Using a suitable wrench, carefully loosen and remove the fuel solenoid from the engine. You may need to apply some force or carefully tap the wrench with a hammer if the solenoid is tight.
• Clean the mounting area to remove any dirt or debris.
• Take the new fuel solenoid and ensure that it comes with the necessary gasket or washer for installation. If not, you may need to source the correct gasket separately.
• Install the new fuel solenoid by threading it into the mounting area by hand first, then tightening it securely with a wrench.
• Reconnect the electrical connector to the new fuel solenoid.
• Reattach the spark plug wire.
• Open the fuel shut-off valve, if present, and check for any fuel leaks around the new solenoid.
• Start the engine and observe if the fuel solenoid is functioning correctly.

It is important to note that fuel solenoids are essential components in Briggs and Stratton engines, controlling the flow of fuel to the engine. They help maintain engine efficiency and reduce the risk of flooding or stalling. Therefore, it is crucial to install the correct replacement part and ensure that it is functioning properly to ensure the optimal performance of your equipment.
