Removing yellow fuel line clips can be a challenging task, especially when dealing with older vehicles or stubborn connections. In this guide, we will explore effective techniques for safely detaching yellow fuel line clips without causing damage. We will discuss the importance of identifying the correct release mechanism, such as the magic button, and provide step-by-step instructions for different vehicle models. Additionally, we will offer tips for dealing with broken clips and share insights from experienced mechanics and enthusiasts to make the process smoother and less intimidating.

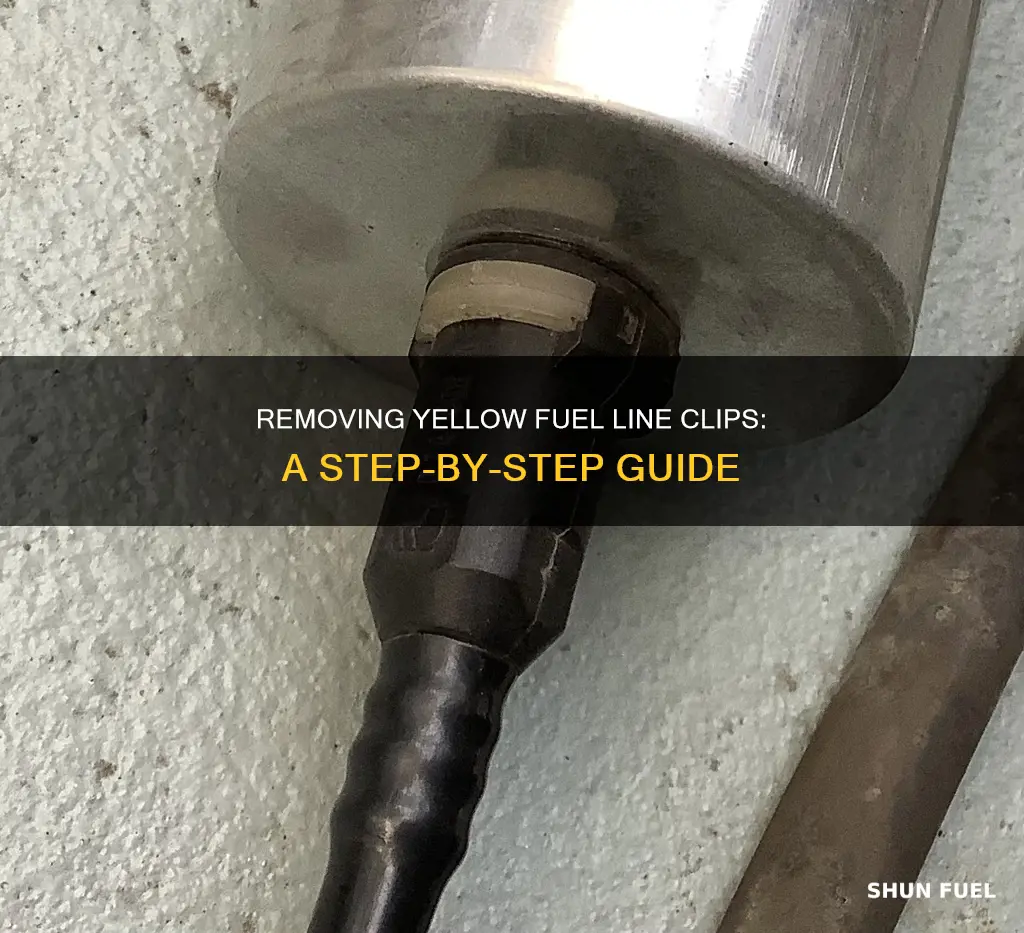

How to remove yellow fuel line clips
| Characteristics | Values |
|---|---|
| Tools required | Needle-nose pliers, pick tools, penetrating fluid, a removal tool, a screwdriver, a fuel line disconnect tool |
| Steps | 1. Push the line towards the pump before pressing the tab to relieve tension on the coupler. 2. Flush out the entire lift system. 3. Spray some penetrating fluid into the fitting, try twisting it, push the line towards the pipe, then push in the release tool and pull. 4. Depress the "magic" button on the connector to remove the clips without pulling on them. 5. Slide a ring over the fuel line coming out of the pump, then push it into the fuel line fitting to release the barbs. |
| Tips | It is recommended to not pry too hard on the clips to avoid breaking the two vertically oriented connection tubes on the top of the tank sender/pick-up housing top. |
Explore related products
What You'll Learn
Using a screwdriver to pry the connection off
Removing yellow fuel line clips can be challenging, especially if they are tightly secured or impacted with salt dust. While there are various methods to remove them, using a screwdriver is a common approach. Here is a detailed guide on how to use a screwdriver to pry the connection off:
Locate the Fuel Line Clip:
Start by identifying the fuel line clip, which is typically made of metal or plastic and has a small tab or lever. It is usually attached to the connector, and you will need to remove the fuel line connector from the fuel line to access it.
Insert the Screwdriver:
Once you have located the clip, insert a flathead screwdriver into the slot or gap on the clip. Be cautious and gentle during this step to avoid damaging the clip or any other components.
Gently Pry the Clip Open:
With the screwdriver in place, gently apply force to pry the clip open. You can use the screwdriver as a lever to slowly lift or pry the clip. Be careful not to use excessive force, as this can lead to breakage. If the clip is stubborn, you can gently tap the screwdriver handle with a small hammer to create more leverage and help loosen the clip.
Release the Lever or Tab:
As you gently pry, you should feel the lever or tab releasing. This will allow you to detach the fuel line. Make sure to hold the clip with a pair of pliers while prying to have more control over the process and avoid accidental damage.
Reinstallation:
When reinstalling the fuel line clip, ensure that it is properly seated and secure before reconnecting the fuel line. It should fit tightly onto the connector.
Understanding the Fuel Return Line: Its Function and Importance
You may want to see also
Explore related products
Depressing the magic button
Depressing the "magic button" is a crucial step in removing fuel line clips, especially if you want to avoid breaking them. This button is often indicated by a yellow arrow. By depressing this button, you can release the tension on the coupler and make it easier to slide the clip off the filter.
When removing fuel line clips, it's essential to be gentle and avoid yanking or pulling on the clip with excessive force. Instead of pulling, try pushing the line towards the pump before pressing the tab to relieve any tension on the coupler. This will help you avoid damaging the clips or any other components.
In some cases, you may need to use a tool to remove the fuel line clips. For example, a removal tool can be positioned firmly between the pipe/hose and the fitting, allowing you to separate them more easily. Needle-nose pliers can also be useful for sliding a ring over the fuel line and pushing it into the fuel line fitting to release the barbs.
If your clips are brittle or stuck, you might consider using a screwdriver to gently pry the connection off. This method can help prevent broken fuel lines. Additionally, spraying some penetrating fluid into the fitting and giving it a little twist before pushing the line towards the pipe can help loosen things up.
Remember, taking your time and being cautious when removing fuel line clips can help prevent damage and ensure a smoother process. Depressing the "magic button" is just one part of the process, and understanding the entire procedure is essential for a successful outcome.
Fuel Line Folly: Eugene's Glass Gambit
You may want to see also
Explore related products
Using a removal tool to separate the hose and fitting
To separate the hose and fitting using a removal tool, you can follow these steps:
First, ensure you have the correct removal tool for the job. Fuel line disconnect tool sets are available online and from auto parts stores. It is important to determine whether you require a metric or SAE tool. These tools are generally inexpensive and can save you time and money in the long run.
Next, prepare the area by spraying some penetrating fluid into the fitting. This will help to loosen any dirt or corrosion, making the removal process easier. It is also important to clean the area to prevent any dirt from entering the lines or tank.
Now, you can begin to separate the hose and fitting. One method is to slide a ring over the fuel line coming out of the pump and push it into the fuel line fitting to release the barbs. You can use the cap of a black sharpie marker for this, trimming it to the correct length and cutting it lengthwise. You may need to wiggle it a bit to get it in place. Alternatively, you can use a screwdriver to push the "magic" button on the clip and then use another screwdriver behind the shaft for leverage to slide the clip off.
Once the removal tool is in position, press it firmly between the pipe/hose and the fitting. Be careful not to use excessive force, as this could damage the clip or the fuel line. Gently rock the tool back and forth or tap it with a small hammer to help loosen the clip if necessary.
Finally, once the tool is seated, you should be able to pull the fitting and hose apart.
Fuel Line Size for 500HP EFI: The Definitive Guide
You may want to see also
Explore related products
Flushing out the lift system
First, it is important to relieve any tension on the coupler. Push the fuel line towards the pump, and then press the tab on the coupler. This step is crucial for safety and to make the subsequent steps easier.
Next, you will need to spray some penetrating fluid into the fitting. This will help loosen any dirt or debris that may be causing the clips to get stuck. After spraying, try twisting the fitting a little to work the fluid into the mechanism.
Now, we will focus on the fuel line release. Push the fuel line towards the pipe, and then use a release tool to push in and pull the line out. This step may require some force, but be careful not to use too much force, as you don't want to break the fuel line. If needed, use a removal tool to help with this process.
In some cases, you may need to use a collar that slides over the gap between the fitting and the pipe. Pull the collar back, and then position the removal tool firmly between the pipe/hose and the fitting. Once the tool is seated correctly, you should be able to pull the fitting and hose apart.
Finally, it is recommended to clean the fuel tank, lines, and fittings thoroughly. You can use commercial fungicides or diesel algaecides to ensure that any contaminants are killed and don't grow back. Additionally, consider replacing the fuel filter and checking for any rust on the lines, as it may be advisable to replace them as well.
Chevy HHR Fuel Supply Line: Where Is It?
You may want to see also
Explore related products
Using a fuel line disconnect tool
Before you start, it's important to prioritise safety. Fuel is highly flammable, and any leaks can be dangerous. Take the following precautions: Park your vehicle on a level surface, engage the parking brake, turn off the engine, and wait for the fuel system to cool down. Disconnect the battery terminals to prevent electrical hazards. Work in a well-ventilated area, away from any open flames or sparks. Wear appropriate safety gear, including gloves and eye protection. Keep a fire extinguisher nearby in case of emergencies.
Now, let's discuss using a fuel line disconnect tool. These tools are available at auto parts stores or online at affordable prices. They are typically made of metal or plastic, with metal tools being more durable and effective. When using a fuel line disconnect tool, follow these steps:
- Clean the area: Remove any dirt or debris from the fuel line and the tool to ensure a proper connection and prevent contamination.
- Prepare the tool: Choose the appropriately sized tool for your fuel line. Some tools come in sets with various sizes to accommodate different lines.
- Locate the fuel line clip: It is usually a metal or plastic clip with a small tab or lever.
- Depress the "magic" button: Before attempting to remove the clip, locate and press the "magic" button indicated by a yellow arrow. This step is crucial to unlocking the connection and preventing damage.
- Insert the tool: Position the tool firmly between the pipe/hose and the fitting. Ensure it is seated correctly.
- Apply pressure: Gently push the line towards the pump or connector. This helps relieve any tension on the coupler.
- Disconnect the line: Once the tool is in place and any tension is released, carefully pull apart the fitting and the hose.
- Reinstallation: If you need to reinstall the fuel line, ensure the clip is properly seated and secure before reconnecting the line.
Winterizing Outboard: Disconnecting Fuel Lines, Necessary?
You may want to see also
Frequently asked questions
Removing yellow fuel line clips without breaking them is pretty simple. First, you need to depress the "magic" button, which is indicated by a yellow arrow. Then, instead of pulling the clip, push it. It's very difficult to break it this way.
You can use a screwdriver to pry the connection off instead of yanking it off. You can also use needle-nose pliers to help you remove the clips.
Before removing the clips, push the line toward the pump to relieve any tension on the coupler. You can also spray some penetrating fluid into the fitting and try twisting it a little.
If the yellow fuel line clips break, you can use baling wire to secure the fuel filter and fuel lines. Bend the baling wire into a U-shape, put the fuel line onto the fuel filter, and work the wire up through the clip and around the fuel filter fitting. Pull some extra wire through and twist it together to create a secure connection.
