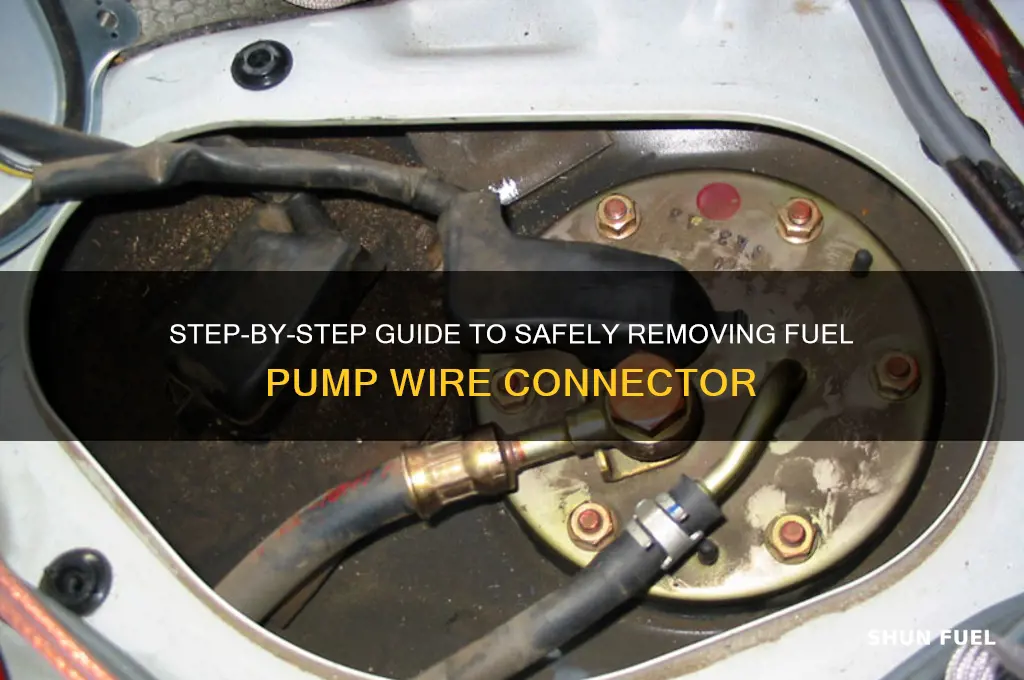

Removing the fuel pump wire connector, often referred to as the C connector, requires careful attention to avoid damaging the wiring harness or fuel pump assembly. Start by locating the connector near the fuel tank, typically secured with a clip or retaining tab. Use a flathead screwdriver or a trim removal tool to gently release the clip, ensuring not to pry too forcefully to prevent breakage. Once the clip is disengaged, pull the connector straight out, avoiding any twisting or tugging that could damage the wires. If the connector is stubborn, inspect for additional retaining mechanisms or consult the vehicle’s manual for specific instructions. Always disconnect the battery before working on the fuel system to prevent electrical hazards. After removal, inspect the connector for corrosion or damage and address any issues before reinstalling or replacing it.
| Characteristics | Values |
|---|---|
| Tool Required | Flathead screwdriver or pry tool |
| Location of Wire C | Typically connected to the fuel pump connector, often near the fuel tank |
| Connector Type | Usually a snap-lock or clip-type connector |
| Removal Method | Gently pry the connector release tab (if present) or carefully separate the connector halves |
| Precaution | Ensure vehicle is turned off and fuel system pressure is relieved |
| Common Issues | Connector may be stubborn due to corrosion or age; avoid excessive force to prevent damage |
| Reinstallation | Ensure proper alignment and secure connection when reattaching |
| Safety Tip | Work in a well-ventilated area and avoid open flames or sparks |
| Additional Tool | Pliers (optional, for stubborn connectors) |
| Reference | Vehicle-specific repair manual or online resources for exact location and connector type |
