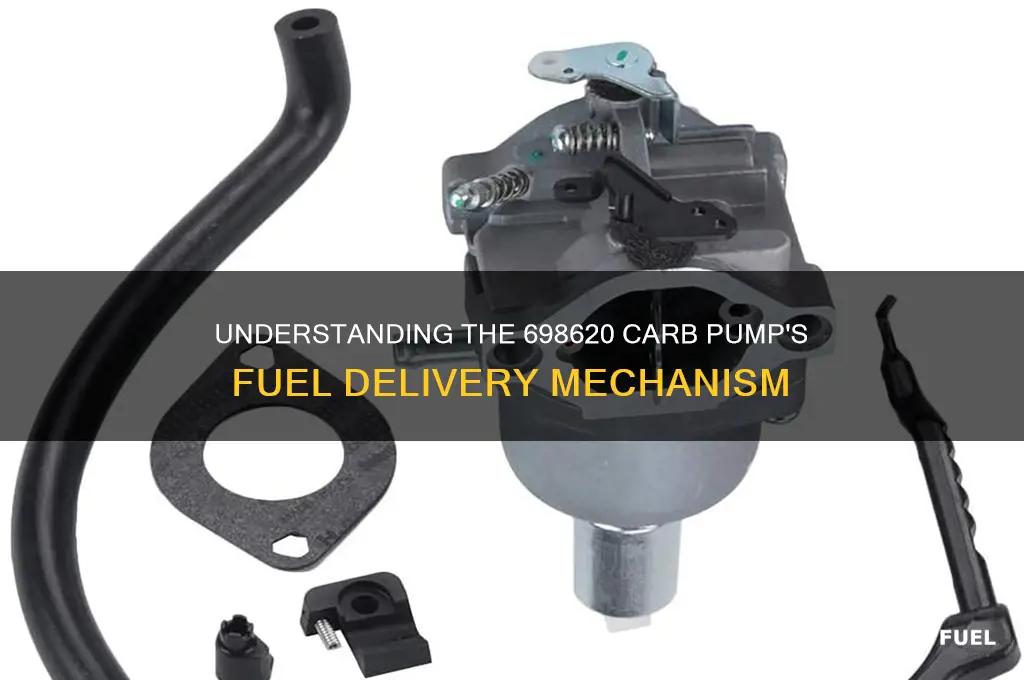

The 698620 carb pump, a crucial component in carbureted engines, operates by drawing fuel from the tank and delivering it to the carburetor for proper air-fuel mixture formation. This mechanical fuel pump is typically driven by the engine's camshaft or a dedicated eccentric lobe, creating a reciprocating motion that generates a vacuum. As the pump's diaphragm moves, it opens an inlet valve, allowing fuel to enter the pump chamber. Upon the diaphragm's return stroke, the inlet valve closes, and an outlet valve opens, forcing fuel through the line and into the carburetor's float bowl. This process ensures a consistent fuel supply, maintaining optimal engine performance and efficiency. Understanding the mechanics of the 698620 carb pump is essential for troubleshooting fuel delivery issues and ensuring reliable operation in carbureted systems.
Explore related products
What You'll Learn
- Pump Mechanism: Understand the internal workings of the 698620 carb pump's fuel delivery system
- Fuel Flow Process: Trace the step-by-step movement of fuel through the pump
- Pressure Regulation: Explore how the pump maintains optimal fuel pressure for engine performance
- Common Issues: Identify and troubleshoot frequent problems with the 698620 carb pump
- Maintenance Tips: Learn essential care practices to ensure longevity and efficiency of the pump
Pump Mechanism: Understand the internal workings of the 698620 carb pump's fuel delivery system
The 698620 carburetor's fuel pump operates on a diaphragm-based mechanism, a design favored for its simplicity and reliability in small engines. At its core, the pump uses a flexible diaphragm that moves up and down within a sealed chamber. This movement creates a vacuum, drawing fuel from the tank into the pump, and then pressurizes it for delivery to the carburetor. The diaphragm is actuated by a rocker arm connected to the engine’s camshaft, ensuring the pump cycles in sync with the engine’s operation. This synchronization is critical for maintaining consistent fuel flow under varying engine loads.
To understand the pump’s internal workings, consider the following steps: First, the diaphragm is pulled downward by the rocker arm, increasing the chamber’s volume and creating a vacuum. This vacuum opens the inlet valve, allowing fuel to enter the pump from the tank. Next, the diaphragm is pushed upward, reducing the chamber’s volume and pressurizing the fuel. This pressure forces the outlet valve open, delivering fuel to the carburetor. The process repeats with each engine cycle, ensuring a steady supply of fuel. Proper maintenance, such as checking for diaphragm cracks or valve leaks, is essential to prevent fuel starvation or overflow.
A key advantage of this diaphragm-based system is its ability to operate without electricity, making it ideal for small engines like those found in lawnmowers, generators, or motorcycles. However, its performance is directly tied to engine speed; at idle or low RPMs, fuel delivery may be insufficient, while at high RPMs, it can exceed the carburetor’s needs. To mitigate this, some designs incorporate a pulsation dampener, a small chamber that smooths out fuel flow fluctuations. This ensures the carburetor receives a consistent fuel supply, optimizing combustion efficiency.
Comparatively, diaphragm pumps differ from electric or mechanical fuel pumps in their dependency on engine motion. While electric pumps offer precise control and are common in modern vehicles, diaphragm pumps excel in simplicity and cost-effectiveness. Mechanical pumps, often driven by the camshaft, share similarities but may lack the compact design of diaphragm pumps. For the 698620 carburetor, the diaphragm pump strikes a balance, providing reliable fuel delivery without adding complexity to the engine system.
In practice, troubleshooting a diaphragm pump involves inspecting the diaphragm for wear, ensuring the rocker arm is properly connected, and checking fuel lines for clogs. If the engine hesitates or stalls, these are common indicators of pump failure. Replacing the diaphragm or cleaning the valves can often restore functionality. For optimal performance, use fuel stabilizers to prevent varnish buildup, especially during storage, and avoid running the engine on low fuel to minimize pump strain. Understanding these mechanics empowers users to maintain their equipment effectively, ensuring longevity and consistent operation.
