Removing the locking ring on a fuel pump in a Hummer H3 requires careful attention to detail and the right tools. Start by ensuring the vehicle is safely parked, the engine is off, and the fuel system is depressurized to prevent accidents. Locate the fuel pump module, typically found in the fuel tank, and disconnect the negative battery terminal to avoid electrical hazards. Using a specialized fuel pump locking ring tool, engage the tool with the locking ring and turn it counterclockwise to loosen and remove it. Be cautious not to damage the fuel pump or surrounding components during the process. Once the locking ring is removed, you can access and replace the fuel pump as needed, ensuring a proper seal upon reassembly. Always refer to the vehicle’s service manual for specific instructions and safety guidelines.
| Characteristics | Values |
|---|---|
| Vehicle Model | Hummer H3 |
| Component | Fuel Pump Locking Ring |
| Tools Required | Locking Ring Tool (or Strap Wrench), Flathead Screwdriver, Pliers |
| Location of Fuel Pump | Inside the fuel tank (access through the rear of the vehicle) |
| Access Panel | Located under the rear seat or cargo area |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Removal Steps | 1. Access fuel pump module 2. Use locking ring tool to turn ring counterclockwise 3. Remove ring carefully |
| Common Issues | Locking ring may be tight or corroded, requiring extra force or lubricant |
| Replacement | Ensure new locking ring is properly aligned and tightened |
| Difficulty Level | Moderate (requires mechanical skill and proper tools) |
| Estimated Time | 1-2 hours depending on experience and accessibility |
| Additional Tips | Use penetrating oil if the ring is stuck, avoid damaging the fuel pump |
Explore related products
What You'll Learn
Tools Needed for Locking Ring Removal

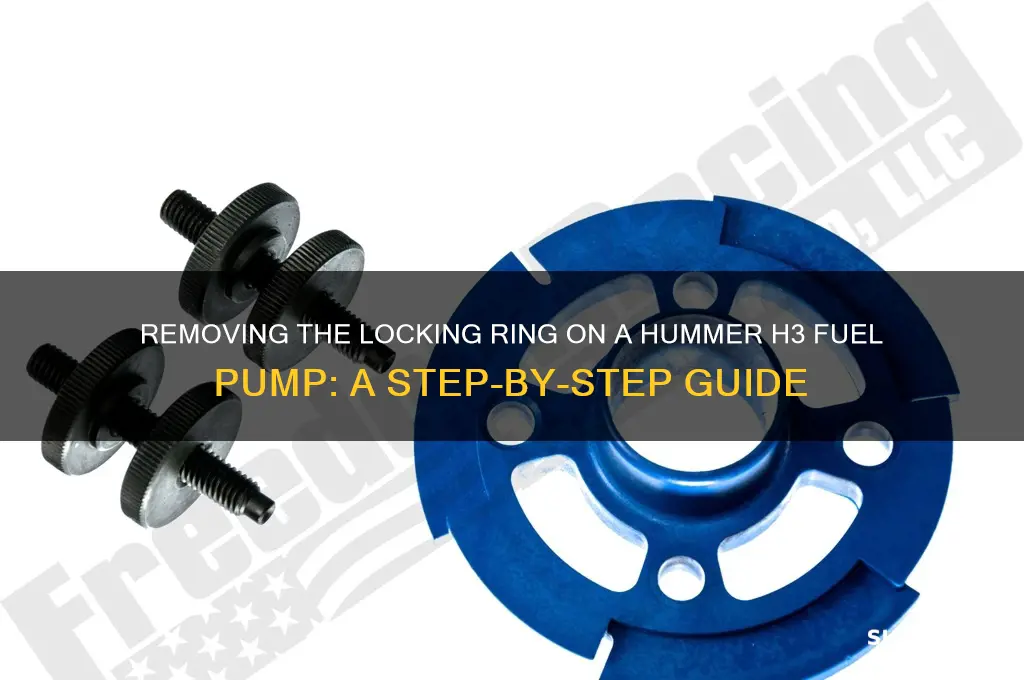

Removing the locking ring on a Hummer H3's fuel pump requires precision and the right tools. The locking ring is a critical component that secures the fuel pump module, and its removal demands a specialized approach. Among the essential tools, a locking ring removal tool stands out as the most crucial. This tool is designed to engage with the notches on the locking ring, allowing you to apply the necessary torque without damaging the ring or the fuel pump assembly. Without this tool, attempting removal can lead to stripped threads or a broken ring, complicating the repair process.
While the locking ring removal tool is indispensable, it’s not the only tool you’ll need. A torque wrench is equally important to ensure the locking ring is removed and reinstalled with the correct force. Over-tightening can damage the fuel pump, while under-tightening can lead to leaks. A torque wrench calibrated to the manufacturer’s specifications (typically around 50-70 ft-lbs for the Hummer H3) ensures precision. Additionally, a flathead screwdriver or pry bar may be necessary to gently loosen the locking ring if it’s stubborn or corroded, but use these tools cautiously to avoid bending or damaging the ring.
For those without access to a specialized locking ring tool, a strap wrench can serve as a temporary alternative. This tool grips the locking ring securely, allowing you to apply force without slipping. However, it lacks the precision of a dedicated removal tool and may not fit as snugly, increasing the risk of damage. If using a strap wrench, pair it with a rubber mallet to gently tap the ring loose, but avoid excessive force that could harm the fuel pump module.
Lastly, safety and preparation tools are often overlooked but critical. Safety goggles and nitrile gloves protect against fuel spills and debris, while a drain pan catches any residual fuel when the tank is lowered. A ratchet and socket set is also necessary for removing bolts securing the fuel tank or access panel. These tools, while not directly involved in locking ring removal, ensure the process is safe and efficient, minimizing the risk of accidents or additional damage. With the right tools in hand, removing the locking ring becomes a manageable task rather than a daunting challenge.
Step-by-Step Guide to Safely Removing Your Fuel Pump Module
You may want to see also
Explore related products
Safety Precautions Before Starting
Working on a vehicle’s fuel system demands respect for its inherent dangers. Gasoline is flammable, and even small amounts of fuel vapor can ignite under the right conditions. Before attempting to remove the locking ring on a Hummer H3’s fuel pump, ensure the vehicle is parked in a well-ventilated area, away from open flames, sparks, or hot surfaces. Turn off the engine and allow it to cool for at least 30 minutes to reduce the risk of fuel vapor ignition. This simple step significantly lowers the likelihood of a fire or explosion during the repair process.
Analyzing the risks further, static electricity poses a lesser-known but equally serious threat. As you move around the vehicle, especially in dry conditions, your body can accumulate a static charge. Discharging this electricity near the fuel tank could ignite vapors. To mitigate this, wear rubber-soled shoes and avoid synthetic clothing, which can increase static buildup. Grounding yourself by touching a metal part of the vehicle away from the fuel system before starting work is another effective precaution.
Persuasion plays a role here: investing in proper safety equipment is not optional—it’s essential. Safety goggles protect your eyes from fuel splashes, while nitrile gloves shield your skin from prolonged exposure to gasoline, which can cause irritation or absorption of harmful chemicals. A fire extinguencerated for Class B fires (flammable liquids) should be within arm’s reach at all times. These tools are not just accessories; they are your first line of defense against accidents.
Comparing this task to other automotive repairs highlights its unique hazards. Unlike changing a tire or replacing a battery, working on the fuel system involves direct contact with a highly volatile substance. Even experienced mechanics must approach this task with heightened caution. For instance, while a battery replacement requires insulation from acid, fuel pump work demands vigilance against ignition sources. This comparison underscores the need for tailored safety measures specific to fuel system repairs.
Finally, a descriptive approach to preparation can save time and prevent errors. Before starting, gather all necessary tools—a fuel pump locking ring tool, wrenches, and a drain pan—and lay them out within easy reach. Inspect the work area for potential hazards, such as loose debris or nearby power tools that could create sparks. By creating a clean, organized workspace, you minimize distractions and focus on the task at hand. This methodical approach ensures safety and efficiency, turning a potentially dangerous job into a manageable one.
