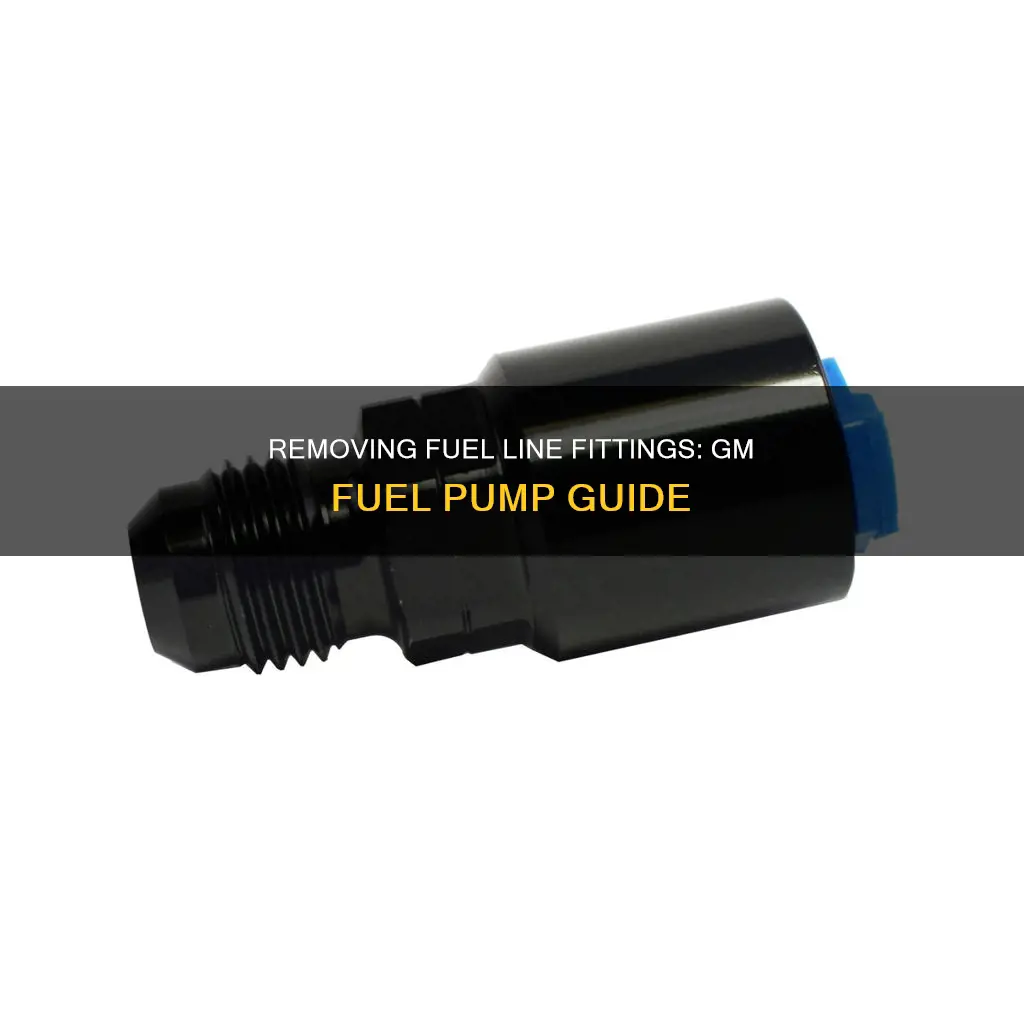

Disconnecting the fuel line from GM fuel pump
| Characteristics | Values |
|---|---|
| Push-type connector | Push from both directions to release; push down and pull off; push until you hear a click to reinstall |
| Push-and-lock style connector | Push onto fitting, then push the locking tab through; release the safety latch and push the connector back through to remove |
| Pinch-type connector | Pinch retainers on each side to disconnect; to reinstall, either leave the retainer on the male end and slide the female fitting over it, or remove the retainer once it’s in place, and then slide |
| Horseshoe-type fitting | Use a screwdriver to pull the horseshoe up and out to remove; to install, insert a new horseshoe clip into the fitting, then slide it onto the line until it clicks |
| Metal quick connect | Release four little clips inside to separate the lines |
| Fuel line with green tab | Press and hold pressure on the green tab with a small screwdriver; push the line toward the pump and remove while still holding pressure; rotate the line slightly; spray some plastic-safe lube to loosen |
Explore related products
What You'll Learn
- Push-type connectors: Push from both sides or down from one side, then pull off
- Push-and-lock connectors: Push onto fitting, push locking tab through, release safety latch, and push back
- Pinch-type connectors: Squeeze retainers on each side to disconnect
- Horseshoe-type fitting: Use a screwdriver to pull the horseshoe up and out
- Metal quick-connect: Release four little clips inside to separate the lines
Push-type connectors: Push from both sides or down from one side, then pull off
Disconnecting the fuel line from a GM fuel pump can be challenging, especially with the different types of line styles available. This description will focus on the push-type connector, which typically has two versions.
The first type has push points on both sides, requiring you to push from both directions to release it. The second type has a push point on only one side, and you can disconnect it by pushing it down and pulling it off. To reinstall this type of push-type connector, simply push it back on until you hear a clicking sound. This clicking sound indicates that the connector is securely in place.
Push-pull connectors, including the push-type connector found in GM fuel pumps, are widely used in various applications due to their ease of use and durability. They are commonly found in medical devices, factory automation, instrumentation, sensors, military equipment, and communications. The circular design of push-pull connectors is space-efficient, allowing for multiple connectors to be mounted closely together. Additionally, these connectors are lightweight and can be made from plastic or metal, providing a rugged and durable solution for critical applications.
The LEMO B Series is an example of a push-pull connector designed for indoor or vacuum-tight applications. It offers a wide range of electrical contacts and shell styles, making it adaptable to different requirements. The SOURIAU JBX Series is another line of metal push-pull connectors used in medical instruments, robotics, building automation control, and telecommunications. These connectors provide EMI shielding to ensure proper transmission and signal integrity.
