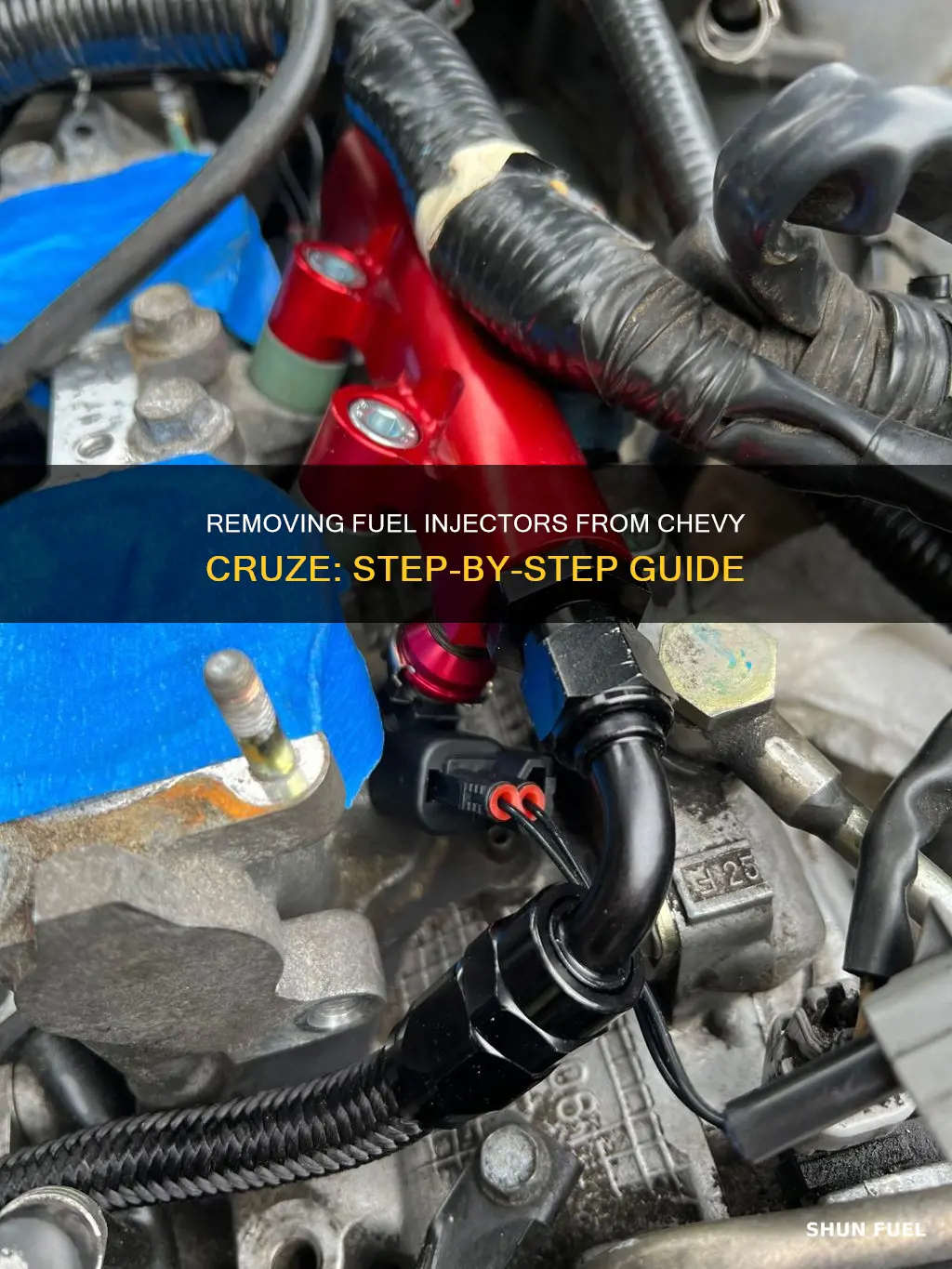

Fuel injectors rarely fail, but if you're experiencing issues with your Chevy Cruze, it's important to do a full diagnosis before replacing any parts. If you do need to remove the fuel injectors, it's recommended that you remove and service all of the injectors at the same time to ensure they are balanced in terms of flow rates and the engine runs smoothly. This guide will take you through the process of removing fuel injectors from a Chevy Cruze, including the tools you'll need and the steps to take.
| Characteristics | Values |
|---|---|
| Fuel injector problems | Requires removal of one injector |
| Fuel injector service | Removal and servicing of all injectors |
| Injector service procedure | Off-the-car cleaning, replacement of electrically failed injector |
| Fuel system cleaning compounds | Not recommended unless specified by manufacturer |
| Fuel injector deposits | Develop over time and cause imbalance in performance |
| Injector service facility | Ultrasonic cleaning, replacement of internal filters |
| Injector repair/replace | Depends on customer preference and issue |
| Fuel injector replacement procedure | Remove supply and return lines, unlock and remove electrical connectors, unbolt fuel rail, remove injector(s) from rail, re-insert serviced/replaced injector with new O-ring, re-install fuel rail and supply/return lines, re-install plenum and cables/hoses/wiring, run engine and check for leaks |
| Fuel injector function | Spray atomized fuel droplets into engine's intake manifold or combustion chamber |
| Fuel injector connection | Connected to fuel rail on top of the engine |
Explore related products
What You'll Learn
- Fuel injectors rarely fail, so ensure you've diagnosed the problem properly
- If you're replacing the injectors, remove and service all of them at the same time
- Disconnect the left and centre connectors and undo the eight Allen bolts
- Number the connectors with masking tape so you know which order to put them back in
- Reinsert the serviced or replaced injector using a new O-ring
Fuel injectors rarely fail, so ensure you've diagnosed the problem properly
Fuel injectors rarely fail, so it is important to ensure that you have correctly diagnosed the problem before removing or replacing any parts. Faulty wiring or damaged electrical components can cause the injector to send an incorrect signal to the engine control module (ECM), leading to a poor fuel-to-air ratio. This can result in engine misfires, decreased power, and reduced fuel efficiency.
To diagnose a bad fuel injector in your Chevy Cruze, start by performing a fuel pressure test. This will help you determine if the issue is related to the fuel injectors, a fuel pump, or a fuel filter. Some common symptoms of bad fuel injectors include misfiring cylinders, a check engine warning light on your dashboard, a vibrating engine, and a bad fuel odor at idle. These issues can lead to decreased performance and potential engine damage if left unaddressed.
It is important to correctly diagnose the problem, as many symptoms of bad fuel injectors can be similar to those of a failing fuel pump or clogged fuel filter. For example, if you notice dark gray smoke upon starting your Chevy Cruze, unusually high oil levels, or a strong gasoline smell in the oil, these could also be indications of fuel injector issues. However, it might be an issue with the fuel pump or fuel filter.
If you have confirmed that the fuel injector is the issue, you can then proceed with removing and replacing it. This can be done by using a screwdriver to pry on the retainer, sliding it off to the side, and then removing the injector from the rail. Ensure that you have the necessary tools and safety equipment before beginning any work.
Fuel Injectors in Chevy Traverse: How Many Are There?
You may want to see also
Explore related products
If you're replacing the injectors, remove and service all of them at the same time
If you're replacing the injectors on your Chevy Cruze, it's best to remove and service all of them at the same time. This is because all injectors have tiny internal filter baskets that can get clogged, and these should be replaced as part of the process of servicing a fuel injector. On-car cleaning is not as effective as off-the-car cleaning, so it's best to remove all the injectors and service them together.
To remove the injectors, start by relieving the pressure within the fuel rail. Do this by briefly running the engine with the fuel pump fuse out. Then, remove the upper plenum on the intake manifold, along with any cables, hoses, or wiring that restricts access. Disconnect the electrical connectors to each fuel injector and then remove the fuel rail by unbolting it from the intake manifold.
Next, take out the injectors from the fuel rail, being careful not to let any debris enter the exposed openings. An O-ring seal usually holds the injector in place, so you'll need a new O-ring to re-insert the serviced or replaced injector. Use engine oil on the O-ring to prevent damaging it.
Finally, re-install the fuel rail and connect the supply and return lines. Put back the plenum, cables, hoses, and wiring. Run the engine and carefully check for leaks before road-testing the vehicle.
Testing Fuel Injectors: A Step-by-Step Guide to Bench Testing
You may want to see also
Explore related products
Disconnect the left and centre connectors and undo the eight Allen bolts
Disconnecting the left and centre connectors and undoing the eight Allen bolts are crucial steps in removing the fuel injectors from a Chevy Cruze. This process can be challenging, but with careful attention to detail, it can be completed successfully.
Firstly, locate the left and centre connectors. These connectors are attached to the fuel injectors, which are usually connected to the fuel rail on top of the engine. Once you have identified the connectors, carefully disconnect them. It is important to be gentle during this step to avoid causing any damage.
Next, focus on the eight Allen bolts. These bolts secure the fuel injectors in place, and they need to be undone to release the injectors. Using the appropriate Allen key, carefully loosen and remove each of the eight bolts. Again, gentleness is key to avoid stripping the bolts or causing damage to the surrounding components.
In some cases, you may also need to remove the connectors on each individual injector. This can be done by carefully prying or unclipping them. It is recommended to number these connectors with masking tape or similar before removal to ensure proper reassembly.
By following these steps, you will have successfully disconnected the left and centre connectors and undone the eight Allen bolts, bringing you one step closer to removing the fuel injectors from your Chevy Cruze. Remember to work carefully and methodically, and always refer to a qualified mechanic if you are unsure about any part of the process.
Fuel Injector Cleaner: Quick Fix or Slow Burn?
You may want to see also
Explore related products
Number the connectors with masking tape so you know which order to put them back in
Numbering the connectors with masking tape is a great way to ensure you know the correct order to put them back in when you're reassembling your Chevy Cruze's fuel injectors. This is important because the order of the connectors can impact the performance of the injectors.
First, you need to identify the connectors. These are the electrical connectors that attach to each fuel injector. Once you've located them, you can begin the process of numbering them.
Cut small pieces of masking tape and write numbers on them in the order that the connectors are currently in. Make sure the tape is small enough so it doesn't cover any other components or get in the way of your work. Stick the numbered tape pieces onto the connectors, making sure the numbers are visible.
It's important to be organised and methodical when doing this, to avoid confusion later on. You may also want to take photos at each stage of the process, so you can refer back to them if needed.
Once all the connectors are numbered, you can safely remove them, knowing that you'll be able to put them back in the correct order. This simple step can save you a lot of time and hassle during the reassembly process.
Fuel Injectors: Open or Closed? Understanding the Basics
You may want to see also
Explore related products
Reinsert the serviced or replaced injector using a new O-ring
When reinserting the serviced or replaced injector, it is important to use a new O-ring. The O-ring seal typically holds the injector in place within the fuel rail, and a new O-ring will ensure a tight fit, preventing fuel leaks. Firstly, apply engine oil to the new O-ring to prevent damaging it. Next, insert the injector into the finely polished bore in the fuel rail. The O-ring should fit very tightly. Once the injector is in place, you can reinstall the fuel rail.
Before reinstalling the fuel rail, ensure that the supply and return lines are reconnected to the fuel rail. These lines were previously removed to access the injectors. Once the fuel rail is secured back in place, the plenum can be reinstalled, along with all cables, hoses, and wiring.
After the injector and fuel rail are reinstalled, the engine can be started. It is important to carefully check for leaks and perform a road test to ensure the vehicle is operating smoothly. This process of reinstalling the injector and fuel rail is a critical step in maintaining the proper functioning of the fuel injection system, which is responsible for spraying atomized fuel into the engine's intake manifold or combustion chamber.
It is worth noting that some sources suggest that when servicing or replacing fuel injectors, it is best to work on all of them simultaneously. This ensures that the injector set remains balanced in terms of flow rates, promoting smooth engine operation. Additionally, it is recommended to have a professional injector service facility clean and service the injectors, as they have specialised equipment for this task.
Fuel Injector Cleaner: GM's Recommendation for Optimum Performance
You may want to see also
Frequently asked questions
Fuel injectors rarely fail, so you should do a full diagnosis before replacing parts. If your engine has rough idle, loss of power, or is misfiring, it could be due to faults in the fuel injection system.
Opinions vary on this, but many sources suggest that cleaning is not necessary until around 30,000 miles.
First, the supply and return lines are removed from the fuel rail. Next, the electrical connectors to each fuel injector are unlocked and removed, and the fuel rail is unbolted and removed from the intake manifold. Then, the injector(s) requiring replacement are removed from the fuel rail, being careful to not let any debris enter the exposed openings. Finally, the serviced or replaced injector is re-inserted into the fuel rail, the fuel rail is re-installed, and the supply and return lines are re-connected.
