Removing fuel injectors from a CAT 3208 engine is not a very difficult task, but it does require careful handling. The process involves first removing the valve cover and rocker arm assembly, followed by disconnecting the external fuel line and the fuel line connected to the injector. To remove the injector, one must use a suitable tool to pry it up slowly, being cautious not to damage the nozzle tips. There are specialized tools available for this purpose, such as the 6V6976 puller group, or Cat's fork-shaped tool, but alternatives like J bars or pry bars can also be used with caution. Cleaning the injector nozzles with an ultrasonic bath or light sandpaper is also recommended.

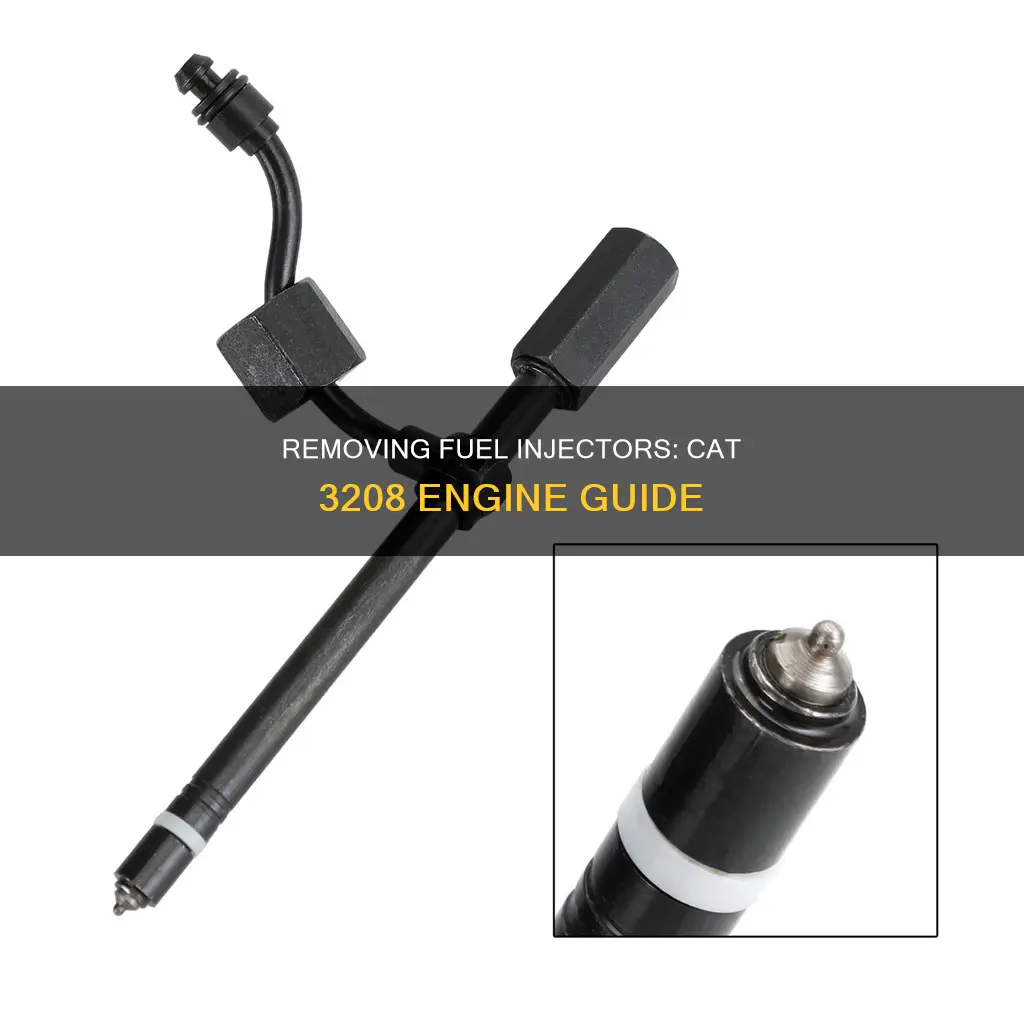

How to remove fuel injectors on a CAT 3208
| Characteristics | Values |
|---|---|
| Difficulty level | Not very hard |
| First step | Remove the valve cover and rocker arm assembly |
| Second step | Disconnect the external fuel line |
| Third step | Disconnect the fuel line that connects to the injector |
| Fourth step | Push the through-head adapter up to get the injector out |
| Fifth step | Remove the hold-down bolt for the injector |
| Sixth step | Use a lady's foot or heel bar to pull the injector out |
| Additional tools | Two small J-shaped pry bars |
Explore related products
What You'll Learn
Remove the valve cover and rocker arm assembly
Removing the valve cover and rocker arm assembly is the first step in removing the fuel injectors on a CAT 3208 engine. This process can be completed by following these steps:
- First, locate the valve cover, which is usually found on the top of the engine, and the rocker arm assembly, which is attached to the valve cover.
- Next, you will need to remove the bolts or fasteners that secure the valve cover and rocker arm assembly in place. Place these bolts or fasteners in a safe location, as you will need to reuse them when reassembling the engine.
- Carefully lift the valve cover and rocker arm assembly off the engine. You may need to wiggle it gently to loosen it from the engine block. Be cautious not to damage any other components or gasket surfaces during this process.
- Set the valve cover and rocker arm assembly aside in a clean and safe place, ensuring that it is properly supported and cannot be accidentally knocked over.
It is important to note that working on an engine can be dangerous, and it is always recommended to consult a qualified mechanic or technician if you are unsure about any part of the process. Additionally, ensure that you are wearing appropriate safety gear, including eye protection and gloves, and that you are working in a well-ventilated area when removing the valve cover and rocker arm assembly.
The Easy Guide to Installing Fuel Injectors
You may want to see also
Explore related products
Disconnect the external fuel line
Disconnecting the external fuel line is a crucial step in removing fuel injectors from a CAT 3208 engine. This process can be completed by following a series of careful steps to ensure a safe and effective outcome. Here is a detailed guide to assist you in this task:
To begin disconnecting the external fuel line, it is important to have the necessary tools and safety equipment. Make sure you are wearing appropriate protective gear, such as gloves and eye protection, to safeguard against any potential hazards. Additionally, gather the required tools, which may include wrenches, screwdrivers, and any specialized tools recommended for fuel injector removal.
Locate the external fuel line: Start by identifying the external fuel line that supplies fuel to the injectors. This line typically runs from the fuel tank or pump to the injectors and may be visible or hidden behind other engine components. It is important to consult a manual or a mechanic with experience in CAT 3208 engines to ensure you can accurately identify the fuel line.
Safely relieve fuel pressure: Before disconnecting any fuel lines, it is crucial to relieve the fuel pressure in the system. This step is essential for safety and can be done by following the standard procedure for your specific engine. Typically, this involves turning off the fuel supply and allowing the engine to run until it shuts down due to fuel depletion. This process ensures that there is no residual pressure that could cause fuel to spray out when you disconnect the line.
Disconnect the fuel line: Once the pressure is relieved, you can proceed to disconnect the external fuel line. Use the appropriate tool, such as a wrench, to loosen the fitting that secures the fuel line to the injector. Be cautious when performing this step to avoid any damage to the fitting or the fuel line itself. Place a container or rag underneath the connection to catch any residual fuel that may drip out.
Secure the disconnected fuel line: After successfully disconnecting the fuel line, securely fasten or cap the end of the line to prevent any leakage or contamination. This will also ensure that no debris or foreign objects enter the fuel line, which could cause issues when you reinstall the injectors or perform other maintenance tasks.
Dispose of residual fuel properly: It is important to handle any spilled or collected fuel responsibly and in accordance with local regulations. Fuel can be highly flammable and hazardous, so ensure you have the necessary permits and disposal methods available before beginning this project.
By carefully following these steps, you can successfully disconnect the external fuel line from your CAT 3208 engine, setting the stage for further maintenance or repairs. Remember to prioritize safety and always refer to reliable sources or seek professional guidance if you have any concerns or questions during the process.
Using Gumout Fuel Injector Cleaner: A Step-by-Step Guide
You may want to see also
Explore related products
Remove the adapter from the cylinder head
Removing the adapter from the cylinder head is a crucial step in the process of extracting the fuel injectors from a CAT 3208 engine. This procedure requires careful attention to detail and a systematic approach to ensure a successful outcome. Here is a comprehensive guide to assist you in completing this task effectively.
Firstly, it is imperative to gather the necessary tools for the job. While there are specialised injector removal tools available, such as the 6V6976 puller group, these can be costly and may not be easily accessible. As an alternative, experienced mechanics recommend using a pair of suitable pry bars, also known as J bars. These pry bars will be instrumental in gently prying up the injectors without causing any damage.
The next step is to locate the adapter on the cylinder head. The adapter is a component that facilitates the connection between the injector and the cylinder head. It is typically positioned near the injector and can be identified by its distinct shape and location. Once you have identified the adapter, it's important to take note of its orientation and any securing mechanisms, such as bolts or clamps, that hold it in place.
Before initiating the removal process, ensure that you have adequately loosened or removed any fuel lines, valves, or other components connected to the injector, as mentioned in previous steps for removing fuel injectors. This will provide you with better access and ensure that there are no obstructions during the adapter removal process.
Now, you can begin the removal of the adapter from the cylinder head. Using the pry bars, carefully apply force to gently pry the adapter away from the cylinder head. It is crucial to use equal force on both sides of the adapter to avoid bending or damaging any parts. Take your time with this step and work slowly and steadily to prevent any accidental damage.
In some cases, the adapter may be secured with bolts or other fasteners. If this is the case, make sure you have the appropriate tools to loosen and remove these fasteners before attempting to remove the adapter. Always refer to the CAT 3208 engine manual or seek advice from experienced mechanics if you are unsure about any steps during the removal process.
Bosch Fuel Injectors: Engineering Power and Efficiency
You may want to see also
Explore related products
Remove the hold-down bolt
Removing the hold-down bolt is a crucial step in the process of taking out the fuel injectors from a CAT 3208 engine. This step ensures that the injector is no longer secured in place and can be safely extracted. Here is a detailed guide on how to remove the hold-down bolt:
First, locate the hold-down bolt. It is typically found near the injector and holds it securely in place. The bolt plays a vital role in keeping the injector stable and preventing it from moving or vibrating during engine operation. Once you have identified the hold-down bolt, gather the necessary tools, such as a suitable wrench or socket, to loosen and remove it.
When you are ready to begin, make sure you have a stable and secure work area. Place a drip pan or absorbent material underneath the injector to catch any fuel or oil that may leak during the process. It is important to work slowly and carefully to avoid damaging the injector or any surrounding components. Before removing the hold-down bolt, it is essential to relieve the fuel system pressure and disconnect the battery to prevent any accidental engine startups. Mark the injector and the cylinder head to ensure proper alignment during reinstallation.
To remove the hold-down bolt, use the appropriate tool to loosen it gradually. Turn the bolt counterclockwise, applying firm but controlled force. If the bolt is tight, you may need to use a breaker bar or a similar tool to gain additional leverage. Once the bolt is loose, remove it by hand or with a tool, such as a socket or a wrench, ensuring it is placed securely to avoid dropping it into the engine compartment. Place the removed bolt in a safe location, as you will need it for reassembly.
In some cases, the hold-down bolt may be difficult to remove due to corrosion or damage. If the bolt is stubborn, apply penetrating oil or a similar product to help loosen it. Allow the oil to soak for a few minutes before attempting to remove the bolt again. If the bolt is severely damaged or corroded, you may need to use a bolt extractor or seek professional assistance.
After successfully removing the hold-down bolt, set it aside in a secure location, keeping it with other removed components for easy access during reassembly. With the bolt removed, the injector will no longer be secured in place, and you can proceed to the next steps of the fuel injector removal process. Remember to work carefully and follow all safety precautions to ensure a successful and safe procedure.
Fuel Injector Cleaner: Half-Tank Treatment?
You may want to see also
Explore related products
Pry up the injectors with J bars
Pry bars are a commonly used tool for removing fuel injectors. It is important to be careful when using pry bars, as you do not want to bend the injector stem. This can be avoided by applying equal force when prying.
When using J bars to remove fuel injectors on a Cat 3208 engine, it is recommended to use two small J bars. Take it slow and use them to gently pry up the injectors. Caterpillar (Cat) has a tool that looks like a fork that fits under the nozzle housing where the lock is located, but it is not cheap.
Before using the J bars, it is important to remove the valve cover and rocker arm assembly and disconnect the external fuel line and the fuel line that connects to the injector. You will then need to push the through-head adapter up to get the injector out and remove the hold-down bolt for the injector.
It is also recommended to place a sheet of cardboard on the workbench to cushion the tips and soak up any dripping gunk. Additionally, protruding nozzle tips can be easily damaged, so it is advised not to lay the heads down on a flat surface until the nozzles are removed.
Carbon's Impact: Clogged Fuel Injectors?
You may want to see also
Frequently asked questions
First, remove the valve cover and rocker arm assembly. Then, disconnect the external fuel line and the fuel line that connects to the injector. Push through the head adapter to get the injector out and remove the hold-down bolt. Finally, use a lady's foot or heel bar to pull the injector out.
There is a special tool for the pencil injectors that can be purchased, but it is expensive. Alternatively, two small J-shaped pry bars can be used to carefully pry up the injectors.
To clean the nozzle tips, hang them in an ultrasonic bath to remove any carbon from the cavity and orifices. Piano wires can also be used to prick out the orifices.
