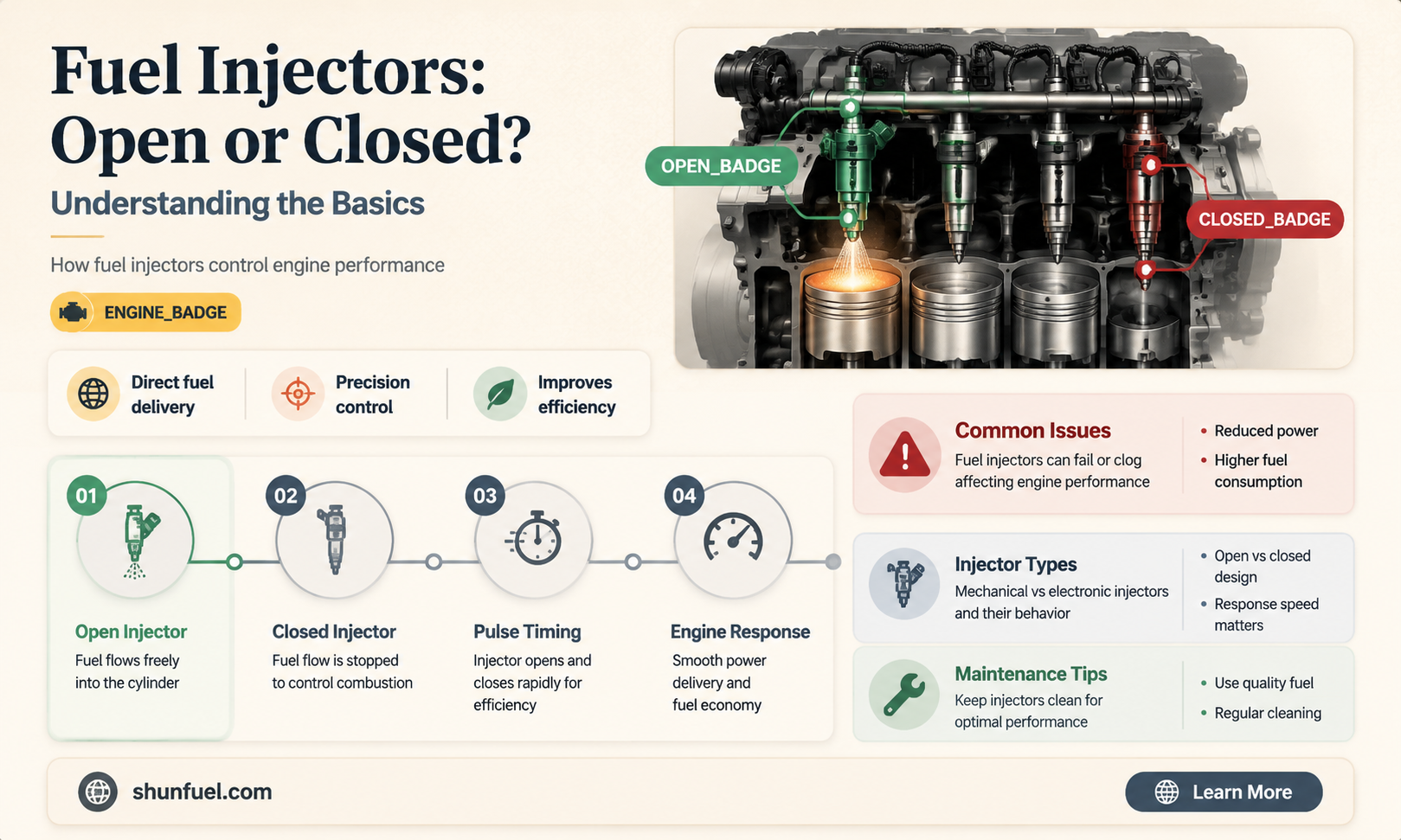

Fuel injectors are small devices that are essential for the operation of a vehicle. They inject fuel through the use of electronically controlled valves, which open and close many times per second. There are two main types of fuel injectors: mechanical and electronic. In a mechanical system, the injector is spring-loaded into the closed position and is opened by fuel pressure. An electronic injector, on the other hand, is also held closed by a spring but is opened by an electromagnet built into the injector body. This leads to the question: are fuel injectors normally open or closed?
| Characteristics | Values |
|---|---|
| Types of fuel injectors | Mechanical injector, Electronic injector |
| Mechanical injector position | Closed |
| What opens a mechanical injector | Fuel pressure |
| Electronic injector position | Closed |
| What opens an electronic injector | Electromagnet |
| Who determines how long the injector stays open | Electronic control unit |
| Injector lifespan | 50,000 to 100,000 miles |
| Injector cleaning | Every 30,000 miles |
| Injector maintenance frequency | Every 80,000 to 160,000 kilometers |
Explore related products
What You'll Learn
Fuel injectors are normally closed
There are two main types of fuel injectors: mechanical and electronic. In a mechanical system, the injector is spring-loaded into the closed position and is opened by fuel pressure. An electronic injector is also held closed by a spring but is opened by an electromagnet built into the injector body. The electronic control unit determines how long the injector stays open.
Fuel injectors have an atomizing nozzle that distributes fuel evenly for optimal combustion and efficiency. A vehicle will typically have one fuel injector per cylinder, with a lifespan of between 50,000 and 100,000 miles or about 80,000 to 160,000 kilometers. It is important to note that the length of time an injector can last depends on various factors such as the type of fuel used, fuel quality, and the frequency of maintenance.
Dirty and clogged fuel injectors can cause engine problems such as lean misfire, rough idle, hesitation, loss of power, and higher emission levels of unburned fuel and carbon monoxide. Therefore, it is important to clean and maintain fuel injectors regularly to ensure optimal performance and fuel efficiency.
Cleaning Honda CR-V Fuel Injectors: DIY Guide
You may want to see also
Explore related products
Mechanical fuel injectors
Mechanical fuel injection (MFI) is a system that was developed in the early days of automotive racing and is still in use today. MFI has been used in various racing formats, including drag racing, circle track racing, boat racing, and top-speed events. The first driver to eclipse the 150-mile-per-hour mark at El Mirage Dry Lake in 1948, Stuart Hilborn, used a self-designed constant-flow mechanical fuel injector.
MFI works by using a plunger actuated by the intake manifold pressure to control the fuel flow to the injectors. The plunger in the pump has a helical groove, and the fuel rack is able to rotate the plunger. The cylinder has a hole in it, and the groove intersects this spill port at different heights depending on the plunger's position. The plunger always makes a full stroke, and the start of injection always begins at the same crankshaft position. The end of the injection occurs when the helix meets the spill port.
A simple mechanical fuel injection system starts with a mechanical linkage that connects the butterflies to the barrel valve. When the butterflies are opened, providing more air to the engine, the barrel valve is opened, providing more fuel to the engine. Additional components can be added for air and throttle control, such as additional injectors to provide fuel to each cylinder of a multi-cylinder engine.
In the 20th century, most petrol engines used either a carburettor or indirect fuel injection. However, direct injection in petrol engines has become increasingly common in the 21st century. The most common system in modern automotive engines is the common-rail injection system, where fuel from the fuel tank is supplied to a common header (the accumulator) and then sent through tubing to the injectors, which inject it into the combustion chambers.
Cleaning Fuel Injectors on a 2001 Toyota Camry: DIY Guide
You may want to see also
Explore related products
Electronic fuel injectors
Fuel injectors are electronically controlled valves. They are supplied with pressurised fuel by the fuel pump in a car and can open and close many times per second. When the injector is energised, an electromagnet moves a plunger that opens the valve, allowing the pressurised fuel to squirt out through a tiny nozzle. The nozzle is designed to atomise the fuel, creating a fine mist that can be easily burned.
The amount of fuel supplied to the engine is determined by how long the fuel injector stays open, known as the pulse width. The longer the injector stays open, the more fuel is supplied. This is controlled by the engine control unit (ECU), which uses various sensors to gather information about the engine's performance and adjust the fuel rate accordingly. For example, when the gas pedal is pressed, the throttle valve opens wider to let in more air, and the ECU increases the fuel rate to match.
There are two main types of control for multi-port systems: either all the fuel injectors open at the same time, or each one opens just before the intake valve for its cylinder (sequential multi-port fuel injection). Sequential fuel injection allows the system to respond more quickly to sudden changes made by the driver.
Fuel Injectors: How They Work and Why They're Essential
You may want to see also
Explore related products
Injector maintenance
Fuel injectors deliver fuel to a car's combustion chamber, spraying just enough fuel into the chamber for the engine to burn effectively. If an injector becomes clogged, it can cause the engine to idle roughly, stall, or not run at all. Clogged injectors can also cause a decline in fuel economy, a lack of power, and sluggish acceleration.
To maintain fuel injectors, it is important to keep them clean and free of clogs. Fuel injectors can become clogged with carbon deposits, gunk in the fuel supply, rust from the vehicle's gas tank, or a bad fuel filter. While fuel contains detergent additives to prevent clogging, these are not always effective.
There are a few ways to clean fuel injectors:
- Using a fuel injection cleaning kit or fuel system additives
- Taking the injectors to a shop for an ultrasonic cleaning service or a pressurized canister cleaning
- Removing the injectors from the engine and manually cleaning them
It is recommended to clean fuel injectors after every 60,000 to 90,000 miles. However, some shops may recommend cleaning more frequently, so it is important to refer to the car maker's maintenance guide. Before taking your car in for a cleaning, you can try adding a fuel injector cleaning product to your gas tank, such as Chevron Techron or Gummout fuel system cleaner.
When testing an injector, never apply 12 volts directly to it, as this can cause permanent damage. Additionally, for long-term storage, it is important to lubricate injectors with a lightweight machine oil and store them in a sealed container in a cool, dry place.
Cleaning Fuel Injectors in a 2010 Hyundai Santa Fe
You may want to see also
Explore related products
Injector cleaning
Fuel injectors are normally closed.
Dirty and clogged fuel injectors can cause classic engine problems, such as lean misfire, rough idling, hesitation, loss of power, and higher emission levels of unburned fuel and carbon monoxide. It is important to keep your fuel injectors clean to keep your vehicle running optimally.
There are a few different ways to clean your fuel injectors. One way is to remove them from your vehicle's engine, which will allow you to thoroughly remove any gunk that has built up. This will require you to disconnect the fuel supply and remove the fuel rails. You will also need to remove the rubber o-ring from the fuel rail side of the injector. Be sure to buy replacement o-rings before starting this project, as you generally cannot reuse fuel injector rings.
Once the injectors are removed, attach a rubber hose to the opening using hose clamps to prevent any spills during the cleaning process. Connect one side of an electrical lead to the injectors and the other side to the positive terminal of your vehicle's battery. Only connect the lead when you are ready for a spark. To ensure a complete clean, disconnect the rubber hose from the rail side and attach it to the outflow side. Then, allow the cleaner to flow through the injectors in the opposite direction to remove any deposits or buildup.
Alternatively, you can clean your fuel injectors without removing them from your vehicle's engine. This method involves attaching a pressurized canister to the fuel line and using a high-powered cleaner in place of the fuel. You will need to pour the cleaning solvent into the pressure canister and then attach a compressed air line. Set the air pressure to what the fuel pump would normally provide, then remove the fuel pump relay and start the engine using only the cleaner as the fuel. Run about one or two pints of the cleaner, then put everything back together.
It is important to note that simply pouring a bottle of fuel injector cleaner into your gas tank is not effective at cleaning baked-on carbon, gum, and varnish from your fuel injectors. Additionally, be sure to consult your vehicle's service manual or an aftermarket maintenance manual for detailed instructions on how to remove and clean your specific fuel injectors.
Fuel Injector Cleaner: Gumout's Effectiveness Reviewed
You may want to see also
Frequently asked questions
Fuel injectors are normally closed. They open and close many times per second to inject fuel into the engine.
Fuel injectors are spring-loaded into the closed position and are opened by fuel pressure. The amount of fuel injected is controlled by a flap valve located in the engine's air intake.
Fuel injectors are essential for the operation of a vehicle. They inject fuel into the engine, ensuring that it is distributed evenly for optimal combustion and efficiency.
Fuel injectors typically have a lifespan of between 50,000 and 100,000 miles or about 80,000 and 160,000 kilometers. It is recommended to clean them every 30,000 miles or 48,000 kilometers to ensure optimal performance.
Dirty and clogged fuel injectors can cause engine problems such as lean misfire, rough idle, hesitation, loss of power, and increased emissions of unburned fuel and carbon monoxide. It is important to clean and maintain fuel injectors regularly to prevent these issues.
