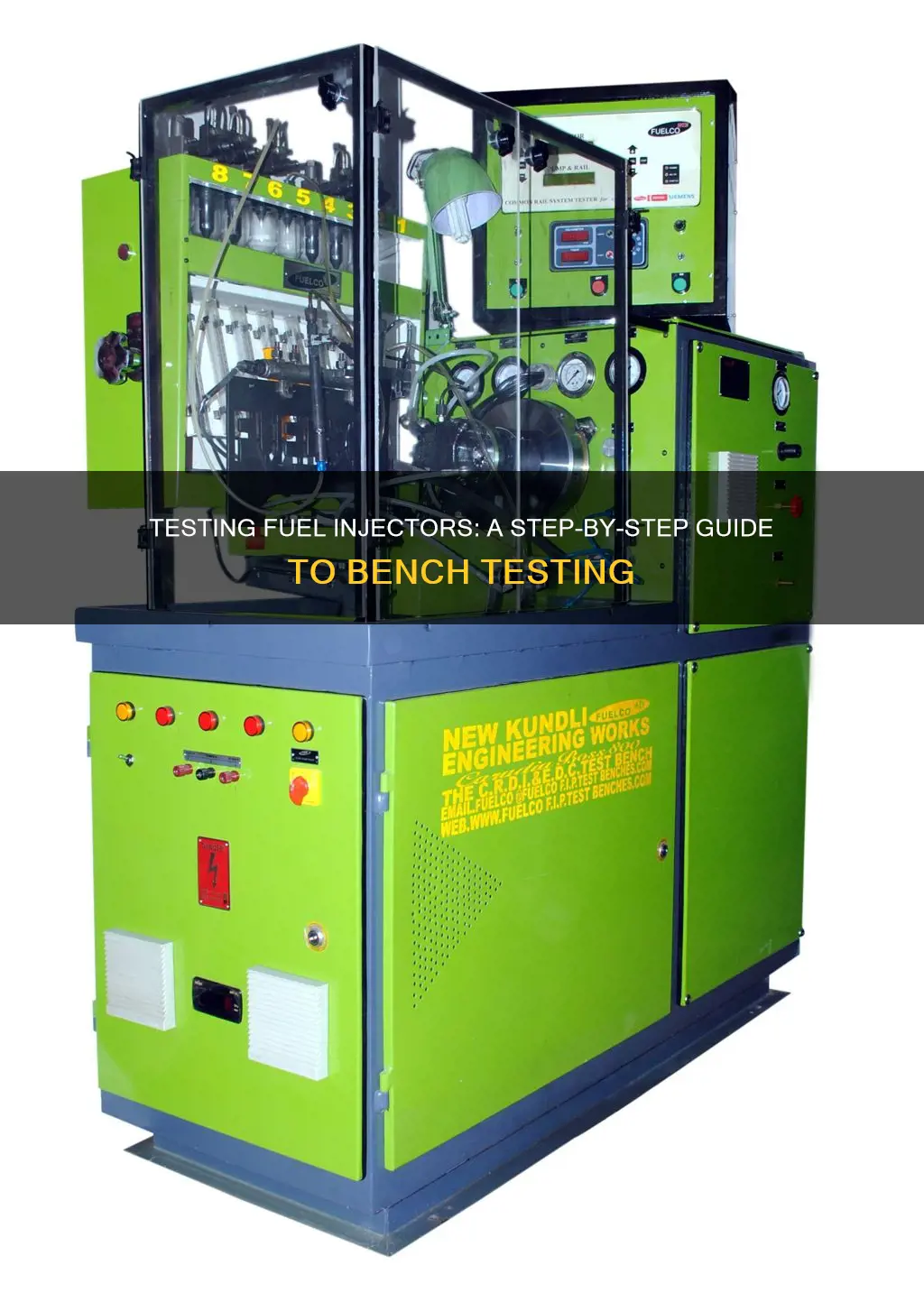

Fuel injectors are an essential component of modern engines, and bench testing them can be a complex process. While some prefer to use specialised equipment to measure fuel flow, others opt for more improvised methods. This process can range from simply checking if the injectors work to conducting a detailed analysis of flow and pattern. Various tools and techniques are available, such as using a 9V battery, a voltage regulator, or even a vacuum pump, to determine the spray pattern and strength of the injector.
| Characteristics | Values |
|---|---|
| Equipment | Noid light, pressure source, 9V battery, on/off switch, hose, air compressor, alligator clips, injector tester, vacuum pump, voltmeter |
| Process | Leave injectors on the rail, apply pulsed voltage, observe spray pattern, check for leaks, clean injectors |
| Precautions | Do not apply continuous voltage, use correct voltage, avoid using mouth as pressure, ensure no fuel leaks |
Explore related products
What You'll Learn
Using a noid light to test for pulses
Using a noid light is a straightforward way to test for pulses in a fuel injector. The process involves connecting the light's leads to a specific circuit and observing its behaviour. A flashing light indicates a pulsed signal, while a consistently lit lamp shows a continuous voltage.
To begin the test, focus on the fuel injector you want to examine and disconnect it from its electrical connector. There may be a metal clip or plastic locking tab securing the connector to the fuel injector. Once the connector is removed, insert the noid light into the fuel injector. The noid light should fit in easily, and if you encounter resistance, try another noid light from the kit.
Step away to a safe distance from the engine, and ask someone else to crank the engine. The noid light should flash on and off while the engine is cranking and running. If the noid light does not flash, it indicates that electrical power is not reaching the fuel injector, and the problem may lie in the electrical part of the circuit.
If the noid light flashes on and off and performs identically on all connectors, the results indicate that the fuel injector is receiving power and pulse signals from the fuel injection computer. This eliminates the fuel injector circuit as the cause of any problems.
Understanding the Quick Workings of Lucas Fuel Injectors
You may want to see also
Explore related products
Using a voltage regulator to test injector
To test a fuel injector, you'll first need to locate it. Refer to your vehicle's service manual to find its exact location. Most cars have one fuel injector for each cylinder, usually located on the intake manifold. Once you've found the injector, follow these steps to test it using a voltage regulator:
Prepare the Voltage Regulator
- Ensure the power supply is turned off and disconnected from the electrical source.
- Connect the voltage regulator to the variable power supply, following the manufacturer's instructions.
- Pay attention to the correct wiring and polarity to avoid any damage or incorrect readings.
- Double-check all connections before proceeding.
- Set the power supply voltage to the desired level, ensuring it is within the voltage regulator's specified range. Start with a lower voltage and gradually increase it.
Test the Fuel Injector
- Locate the two wires going into the injector. Each fuel injector will have a metal clip with two wires, typically grey and black, but they can be other colours.
- Test each wire for voltage. Use a test light and press it into the rubber coating around each wire until it contacts the metal wiring. One wire should illuminate the test light, indicating it is receiving constant voltage.
- Set up a DVOM to measure DC voltage. Touch the negative lead of the DVOM to a ground source, such as an unpainted piece of the car's frame under the hood.
- Place the positive lead on the wiring harness terminal, which will have two terminals that connect to the injector. One will be grounded and read 0 volts.
- Repeat this process for all injector wiring harnesses. They should measure around 12 volts. A lower reading indicates excess resistance in the wire.
- If the resistance is normal, remove the injector and test the spray pattern it produces on an injector tester.
Additional Testing Considerations
- You can also use a metal rod or screwdriver to listen for a clicking sound from the injector as the engine runs. This indicates the injector is being activated.
- If your injector is not functioning correctly, it may need to be cleaned. There are various methods for cleaning injectors, including using a battery or applying pressure in the reverse flow direction to remove dirt.
- If you encounter difficulties, consider seeking assistance from a certified technician.
By following these steps and using a voltage regulator, you can effectively test the fuel injector's voltage and overall functionality.
Flushing Fuel Injectors: DIY Guide for Optimal Engine Performance
You may want to see also
Explore related products
Using a vacuum pump to test for leaks
Firstly, it is important to prepare for testing to ensure safety throughout the process. Put on work gloves, eye protection, and coveralls or long sleeves to protect yourself from debris, fuel, and scrapes or scratches. If possible, work outside. If you have to be in the garage, open the doors and consider using fans to increase airflow.
Next, you will need to locate the fuel injectors. They are positioned on the engine manifold on top of the engine. Once located, start the engine and let it idle. Inspect the fuel injectors individually for leaks. If there are any external leaks, your fuel injector O-ring is likely the cause. If the O-ring is damaged, it will need to be replaced.
To test for leaks using a vacuum pump, you can try the following method: with several sizes of vacuum hose and some zip ties, stuff a small size vacuum hose inside a 5/16 fuel hose and double wrap zip tie it to a spray can straw. With the fuel injector O-ring removed, carefully wedge the 5/16 hose over the injector inlet. Sometimes, you will need a small worm drive hose clamp. Away from your car, push the spray can nozzle and pulse the injector. Not only will you be able to test the injector, but you can also clean it.
Some other ways to test for leaks include:
- Using a diagnostic scanner or on-board diagnostics (OBD) reader to identify bad fuel injectors.
- Checking fuel trims.
- Pulling out the injectors and letting them sit overnight to see if there are any leaks.
- Checking for the smell of gasoline when the engine is idling.
- Shining a flashlight or work light under the hood to look for leaking gas.
- Pouring fuel system cleaner into a full tank of gas and driving, as the cleaning fluid will move throughout the fuel injection system and break up residue.
- Purchasing an adapter to measure the fuel pressure.
Fuel Injector Cleaner: Top-up for a Full Tank
You may want to see also
Explore related products
Using a pressure source to test spray pattern
To test the spray pattern of a fuel injector using a pressure source, you will need to set up a testing rig. This can be done by mounting the fuel injector in a test rig and connecting the oil supply. Ensure that you do not place your hands under the injector spray, as the high-velocity oil jet can be dangerous.
You can then operate the hand pump to prime the injector. Once the fuel starts flowing from the priming valve, close the valve. Operate the pump rapidly for several strokes, and the injector should open with a high-pitched chatter, emitting fuel in a fine cloud. After the injector opens, check that the pressure does not decrease too rapidly.
To test the spray pattern, you can use mineral spirits or kerosene as a test medium. Observe the spray pattern and atomization to determine if the injector is functioning correctly. The spray pattern should be robust, and if it appears muted, the injector should be replaced.
Additionally, you can perform a pressure test to assess the spray pattern. This involves checking the injector setting pressure, formation of trumpets, carbon accumulation, and corrosion at the nozzle. Ensure that there is no droplet formation at a pressure of 10 bar below the set pressure, both when held steady and upon closing. The spray pattern can also be evaluated during ultrasonic cleaning and flow testing.
When to Clean Fuel Injectors for Optimal Performance
You may want to see also
Explore related products
Using a battery to open injectors for cleaning
To clean fuel injectors, it is recommended to remove them from the vehicle's engine. This is because it allows for a thorough cleaning, ensuring that any carbon deposits and buildup are effectively removed.
Before cleaning, it is important to carefully remove the rubber O-rings from the side of the injector that connects to the fuel rail. These O-rings cannot be reused, so make sure to buy new ones before starting the cleaning process.
To open the injectors for cleaning using a battery, follow these steps:
- Attach a rubber hose to the injector opening and secure it with hose clamps. This will help prevent any cleaning solution from spilling.
- Connect one side of an electrical lead to the injectors.
- Connect the other side of the electrical lead to the positive terminal of your vehicle's battery.
- Only connect the lead to the battery when you are ready to start cleaning, as it will create a spark.
- To clean the injectors thoroughly, you can disconnect the rubber hose from the fuel rail side and attach it to the outflow side. This allows the cleaner to flow through the injectors in the opposite direction, helping to remove any deposits or buildup that may have been missed when cleaning from the rail side.
It is important to note that you should not energize the injector continuously. You can use a 9V battery to pulse the injector, but 5V is recommended. Using a battery to open the injectors for cleaning can be an effective method, but it is crucial to take the necessary precautions and follow the correct procedure to ensure safety and effectiveness.
Additionally, there are other methods for cleaning fuel injectors, such as using a fuel injector cleaning additive that can be poured directly into the gas tank. However, this method may not remove all carbon deposits and buildup as effectively.
Adjusting Fuel Flow Rates: Duramax Injector Guide
You may want to see also
Frequently asked questions
You can use a 9V battery, the correct harness for the injector, an on/off switch, and wire to test a fuel injector. You can also use a voltage regulator to step down the voltage to a steady 5V.
You can use a noid light to test if the injector pulses. You can also test for fuel flow, but this requires specialized equipment to measure against the specification and other injectors.
You can use a vacuum pump to test for leaks. You can also use a droplet test, but this requires you to have the injectors out of the car, which can be dangerous as you are working with an explosive liquid.
