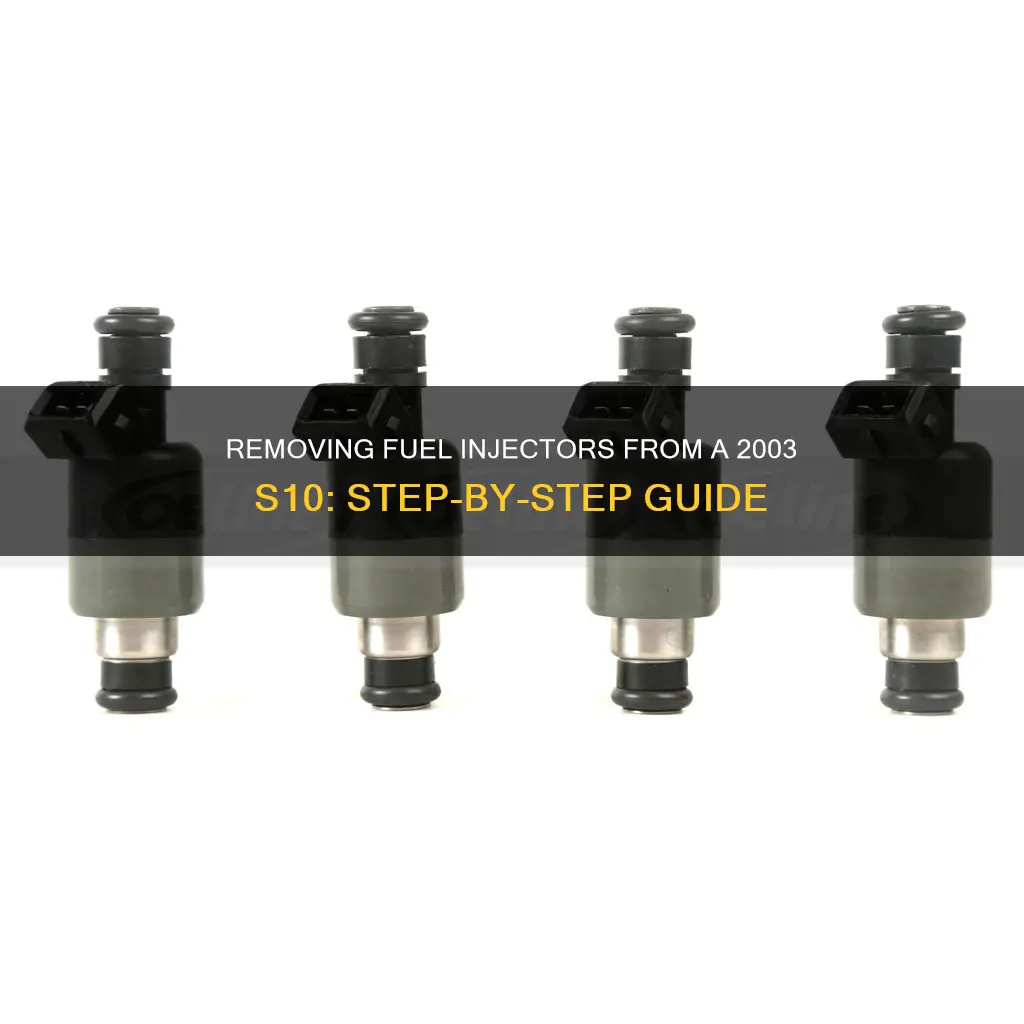

2003 S10 Fuel Injector Removal
| Characteristics | Values |
|---|---|
| Engine Type | 4.3L |
| Injector Type | Spider |
| Removal Process | Disconnect battery, remove fuel meter body, remove injector retainer lock nuts and retainer, carefully pull injector out |
| Tools Required | Small flat-head screwdriver, small-diameter steel tube brush, socket, clip release tool, fuel line removal tools |
| Additional Information | Use caution to prevent damage to electrical connector terminals, lubricate new injector O-rings with clean engine oil, ensure correct fasteners are used |
Explore related products
What You'll Learn
Disconnect the negative battery cable
Disconnecting the negative battery cable is one of the most important steps when removing fuel injectors from a 2003 S10. Before you begin, ensure the car's ignition is off. It is recommended to wear eye protection when working around batteries.
The positive terminal is marked with a "+" and the negative with a "-". Some batteries have plastic caps covering the terminals that will need to be removed to access the battery cables. The battery cables are the wires connecting the battery to the rest of the vehicle.
To disconnect the negative battery cable, first, unbolt the cable. It might take some wiggling and twisting to pull it off. Be sure never to let the wrench touch both the negative and positive terminals at the same time. Even though the battery is technically dead, there might be enough residual electricity to short it out and create a spark. You don't want any sparks around the battery or the engine compartment. There's also a small chance that shorting out the battery could damage your vehicle's electrical system or engine-control computer.
After you've removed the negative cable, push it far out of the way. If there's any chance that it might spring back into place and touch either battery terminal, use zip ties to hold it in place. Alternatively, buy a battery-disconnect switch, which attaches to the negative terminal.
