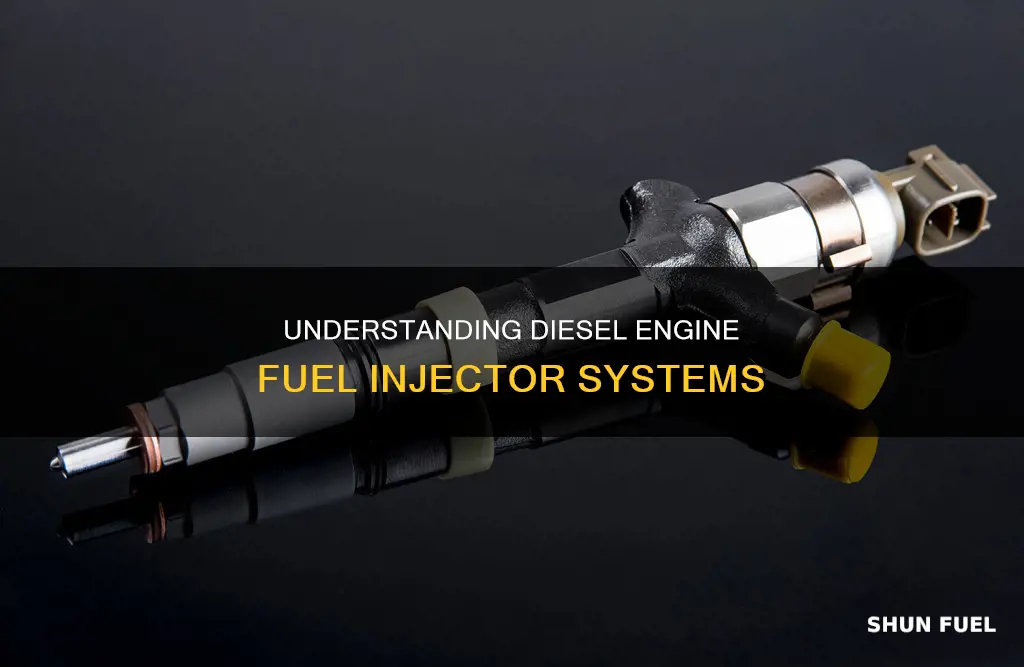

Diesel fuel injectors are a critical component of a diesel engine's fuel system. The purpose of the fuel injection system is to deliver fuel into the engine cylinders while precisely controlling the timing, fuel atomization, and other parameters. The basic principle of fuel injection is that the right amount of fuel must be injected at the right time to meet the engine's horsepower demands. Diesel fuel injectors are small electrical components that deliver fuel via a spray directly into the intake manifold in front of the intake valve in a diesel engine. The injector in a diesel engine is crucial, as it must handle high pressure and heat while distributing fuel evenly in a fine mist.
| Characteristics | Values |
|---|---|
| Purpose | To deliver fuel into the engine cylinders |
| Main types of injection systems | Pump-line-nozzle, unit injector, and common rail |
| Fuel injection principle | The right amount of fuel must be injected at the right time to satisfy horsepower demands |
| Fuel injection timing | During the compression stroke before the piston reaches top dead center (TDC) |
| Fuel injection process | Fuel is metered and pressurized by the fuel injection pump and passed to the high-pressure injectors via pipes before being sprayed into the combustion chamber |
| Injector types | Throttle body injection, individual port type fuel injector |
| Injector cycle firing | On average completed in 1.5 to 5 milliseconds |
| Fuel injector shapes and sizes | Vary depending on the engine make and model as well as power demand |
| Fuel injector components | Filter, guide ring, core spring, seat spring, seat, pole piece, stop, solenoid coil, solenoid body, core ring, core, spray tip housing, director, and spray tip |
| Fuel tank characteristics | Capable of storing enough fuel, closed to prevent contamination, vented to allow air to enter |
| Fuel line types | Heavyweight, medium weight, and lightweight |
| Fuel filtration | Filtered multiple times in most systems |
| Fuel system enemies | Water, which can cause injection component seizure and governor/metering component failure |
Explore related products
What You'll Learn
Injector types
There are several types of diesel fuel injectors, including mechanical, common rail, and unit injector systems. The main types of injection systems include pump-line-nozzle, unit injector, and common rail.
Mechanical fuel injectors use a mechanical linkage to open and close the injector valve. They contain a low-pressure circuit and a high-pressure circuit. The fuel is accurately metered and pressurised by the fuel injection pump and passed to the high-pressure injectors via pipes before being sprayed into the combustion chamber. The injection pump can be a rotary plunger-type unit with an individual piston for each cylinder of the engine, or a single chamber pump that meters fuel to each cylinder using a sleeve or scroll system.
Common rail systems use high-pressure fuel pumps to deliver fuel to a central rail, which is then distributed to the individual injectors. The fuel injection pump supplies fuel to the manifold and injectors at pressures up to 200 MPa (29,000 psi). This type of system allows for more precise control and efficiency.
Unit injector systems combine the fuel pump and injector into a single unit.
The injector in a diesel engine is crucial as it must handle high pressure and heat while distributing fuel evenly in a fine mist. It is the most complex part of the engine. The latest injector technology helps to reduce carbon and other emissions by delivering accurate fueling with optimised air mixing.
