Regan Brown

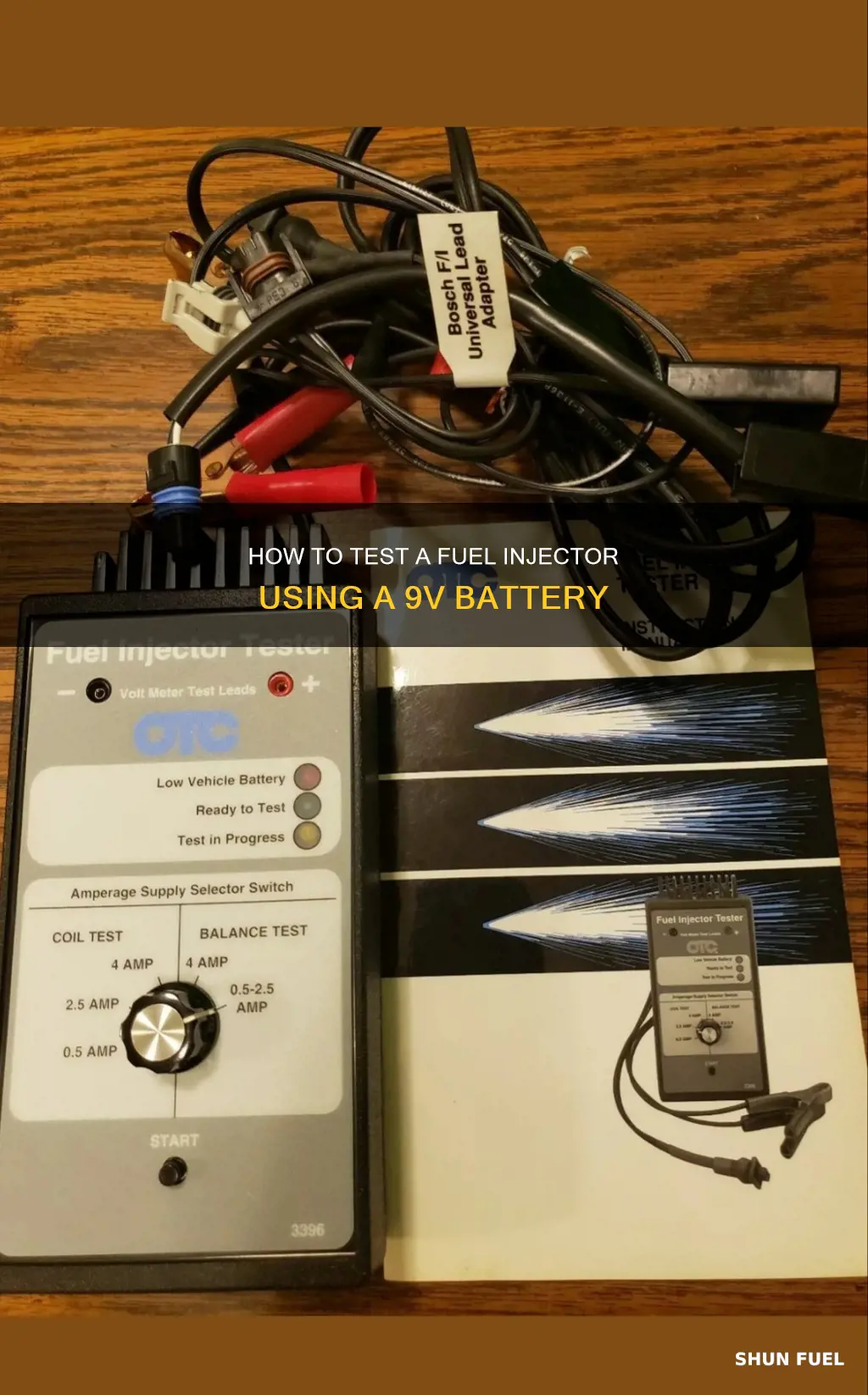

Fuel injectors can be tested with a 9V battery. This can be done by hooking the positive and negative up to the injector to open and close it. However, it is important to be cautious as leaving the injector open for an extended period without fuel running through it can damage it.
| Characteristics | Values |
|---|---|
| Can a 9V battery be used to test a fuel injector? | Yes |
| Other power sources that can be used | 12V 2A slow charger, 12V flashlight battery, car battery |
| Other tools required | Injector pigtail, screwdriver, stethoscope, measuring device (flask with graduations) |
| Precautions | Avoid prolonged connection to prevent burning, avoid holding the injector open for too long without fuel running through it to prevent damage, ensure proper setup to handle high pressure and flammable chemicals |
Explore related products
Injector clicking
Injectors on DI motors are loud, and it is normal to hear clicking or ticking sounds from them. However, if you are experiencing loud clicking that sounds unusual, it could be due to several reasons. Firstly, it could be caused by arcing electricity from broken insulation. This can be diagnosed by checking for any breaks in the wire and ensuring that the battery voltage is sufficient. If the battery voltage is low, a 9V battery can be used to test the injectors.
To test fuel injectors with a 9V battery, you can use an injector pigtail and the battery to listen for a clicking sound. You can also use a screwdriver to help amplify the sound. This method can be used to test whether the injectors are functioning properly. Additionally, you can check the resistance of the injectors with a multimeter to ensure they are within the normal range.
If the clicking sound persists, it could be due to a faulty injector. To identify which injector is causing the issue, you can unplug the injectors one by one and observe any changes in the engine's idle. If there is no change in idle when a specific injector is unplugged, it may be faulty and require further inspection or replacement.
It is important to note that the clicking sound could also be related to other engine components, such as the high-pressure fuel pump, coil pack, or spark plugs. Therefore, a comprehensive diagnosis involving multiple tests and observations is necessary to pinpoint the exact cause of the clicking sound.
Cleaning Fuel Injectors in Hyundai Elantra: DIY Guide
You may want to see also
Explore related products
Screwdriver use
A 9V battery can be used to test fuel injectors, and a screwdriver can be used in the process.
Firstly, you can test an injector by removing the cable going to it. If the engine sound doesn't change, that injector is either not firing or is very dirty. This method won't work if the engine is new enough to have displacement on demand and the injector being tested is one of the ones that shuts down when not needed.
Another method involves using a 9V battery and a screwdriver. You can tag the negative terminal of the 9V battery a couple of times with a screwdriver to try and get it to unstick. You can also stick a screwdriver on the injectors while trying to get them to fire with the 9V battery to see if it helps you hear things.
A third method involves using a digital multimeter set to ohms. Disconnect the suspected injector and test at the injector pins. The proper ohm reading should be ~12.6 ohms +/- 0.5.
It is important to note that a 9V battery is not the only option for testing fuel injectors. A 12V 2A slow charger, a 12V flashlight battery, or a car battery can also be used.
Fuel Injectors in Jeep Liberty: How Many Are There?
You may want to see also
Explore related products
Cleaning injectors
A 9V battery can be used to test a fuel injector. However, it is important to only give short and quick touches to the battery as a prolonged connection can burn something inside.
To clean injectors, you can use an ultrasonic cleaner with diluted water, or a mixture of water and cleaning solutions like Techron, Lubro Moly, or Berrymans Chemdip Cleaner.
First, remove the injectors. Then, get a 9V battery and a spare pigtail that fits your injectors. Hook the 9V battery up to the pigtail to open the injector, and spray carb cleaner into the injector in reverse of its normal flow. Then, do the same with compressed air.
Alternatively, you can use a cheap tester/cleaner from Amazon that provides power to the injector and has an attachment to shoot brake cleaner through.
You can also try using a little WD40 down the pipe, followed by more grounding. Injector cleaning places will usually perform specific preservation steps if you ask, such as puffing a little ATF or Marvel Mystery Oil through clean injectors and vacuum-bagging them.
Fuel Injector Maintenance: Mini Cooper Edition
You may want to see also
Explore related products
Flow rate
A 9V battery can be used to test fuel injectors for basic functionality. However, it is important to note that this method only checks if the injector is stuck and does not provide information about the flow rate. To determine the flow rate, a more comprehensive setup is required.
To accurately test the flow rate of a fuel injector, the following setup is recommended:
- Fuel supply at a known pressure: The injector needs to be connected to a fuel supply, such as a pump, that provides fuel at a controlled pressure. A typical pressure range for testing standard port fuel injectors is 40-60 psi.
- Pulse tool: A pulse tool is used to activate the injector at a known rate, typically measured in hertz (Hz). This simulates the rapid pulses that the injector experiences during normal operation.
- Measuring device: A measuring device, such as a flask with graduated markings, is placed below the injector to collect the fuel. The markings on the flask should be in a known unit of measurement, such as metric or imperial.
Once the setup is in place, the injector is activated using the pulse tool for a set period, such as 5 or 10 seconds. The amount of fuel collected in the measuring device during this time is then used to calculate the flow rate. For example, if the injector is rated for 1 gallon per hour and the measuring device collects 5 gallons during the test period, the flow rate is higher than expected.
It is important to note that the pattern and atomization of the fuel during the test can also provide valuable information. A more atomized fuel pattern indicates better mixing with air, leading to more efficient combustion. Additionally, the flow rate of the injector can be influenced by various factors, including the presence of buildup or the type of fuel used. Regular cleaning and maintenance of the injectors are crucial to ensuring optimal flow rate and engine performance.
Cleaning Your 2010 F150 Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Injector power sources
Fuel injectors can be tested using a 9V battery. This is a common method, with many people reporting that they use a 9V battery to test their injectors. One person even made a rig out of a small section of 3-inch steel pipe, a fuel line, a stock 4-cylinder manifold/fuel rail, and an injector wire harness, and then put 9V into the injectors one at a time and pulsed them until they were clean.
However, it is important to be cautious when using this method. Some people have reported that leaving the injector open for too long without fuel running through it can damage the circuitry of the injectors. This is because fuel acts as a coolant for the injector, and without it, the injector can overheat and leak.
To avoid this, it is recommended to only use short and quick touches when connecting the 9V battery to the injector. If you don't get a click with 9V, you can try using a 12V battery instead.
Another option for a power source is to use a 12V 2A slow charger, a 12V flashlight battery, or a car battery. These options may be safer than using a 9V battery, but they are also less convenient as they require more setup.
In conclusion, while it is possible to test fuel injectors with a 9V battery, it is important to be cautious and only use short bursts of power to avoid damaging the injectors.
Fuel Injectors in Chevy Traverse: How Many Are There?
You may want to see also
Frequently asked questions
Yes, you can test a fuel injector with a 9V battery.
You can hook up the positive and negative terminals of the battery to the injector to open and close it. You can also use an injector pigtail to see if it clicks.
Holding an injector open for an extended period without fuel running through it can damage the injector. Fuel acts as a coolant, so without it, the injector can get too hot.
You can use a 12V 2A slow charger, a 12V flashlight battery, or a car battery.
While the injector is pulsing, you can look at the pattern and atomization to determine its quality. The pattern is important because the more atomized the fuel is, the better it will mix with the air and ignite evenly.
