Rebuilding a Cummins fuel injector is a complex task that requires careful planning and execution. While some people choose to rebuild their injectors at home, others opt for professional services that offer to rebuild, test, and return the injectors. Whether rebuilding at home or sending them out, the goal is to achieve smooth acceleration and fuel efficiency. This process can be done on older cars to improve performance and can be done on a budget.

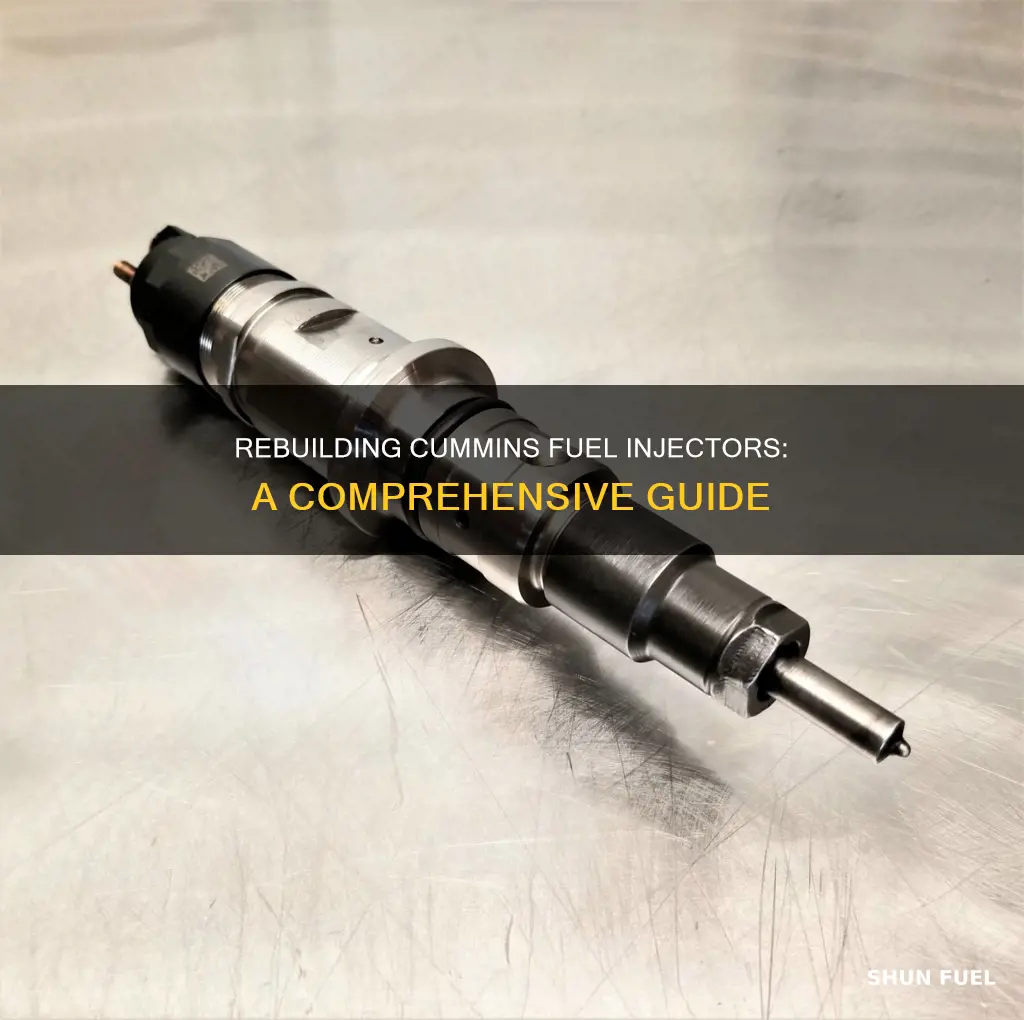

How to rebuild Cummins fuel injectors
| Characteristics | Values |
|---|---|
| Rebuilding process | Send old injectors to a company that will rebuild, test, and return them |
| Cost | Similar to the price of refurbished injectors |
| Warranty | 12-month, unlimited-mile warranty |
| Injector type | Cummins ISX15, ISX, 5.9 |
| Additional parts | O-rings, copper nozzle sleeves, filter screens, copper washers |
| Additional recommendations | Replace fuel tubes to avoid contaminants |
| Homemade options | Build a pop tester with a 4-ton hand pump hydraulic power unit |
Explore related products
What You'll Learn
Rebuilding injectors at home
If you're looking to rebuild your Cummins fuel injectors at home, there are a few things you should keep in mind. Firstly, it's important to have the right tools and parts for the job. You can find shim kits online, and you may need to acquire or build an adapter to fit your specific injector model. It's also possible to make your own pop tester using a 4-ton hand pump hydraulic power unit, which can be purchased online.
When rebuilding Cummins fuel injectors, it's important to follow the correct procedure. This typically involves disassembling the injectors, cleaning them, and then inspecting them for any damage or wear. It's crucial to identify the cause of any issues to ensure they don't recur. You may also need to replace certain parts, such as o-rings and filter screens, which can be purchased from specialist suppliers.
While it is possible to rebuild Cummins fuel injectors at home, it can be a complex process and there are only a limited number of places in the US that can correctly rebuild them. It may be more cost-effective to purchase new injectors or send them to a specialist for rebuilding. The cost of rebuilding can be similar to the cost of buying new injectors, and there is a risk of failure if the job is not done correctly.
However, if you have the necessary skills and resources, rebuilding your Cummins fuel injectors at home can be a rewarding project. It can save you money and provide you with a better understanding of how your injectors work. Just be sure to follow safety procedures and have a plan in place in case of any issues.
Fuel Injector Issues: Code or No Code?
You may want to see also
Explore related products
Rebuild service
We offer a rebuild service for your Cummins fuel injectors, where you send us your injectors, and we rebuild and test them before sending them back to you. This service is available for sets of six Cummins ISX15, ISX, and 5.9 fuel injectors.
Our remanufacturing process involves flow-testing the injectors on a state-of-the-art bench to ensure they meet OEM specifications. This allows us to guarantee smooth acceleration and improved fuel efficiency. The rebuild service also includes a 12-month, unlimited-mile warranty for your injectors.
For Cummins ISX15 injectors, the rebuilding process includes replacing the o-rings and copper nozzle sleeves. Similarly, the ISX injectors are rebuilt with new o-rings and filter screens. As for the 5.9 injectors, we replace the o-rings and copper washers. We recommend replacing the fuel tubes during this process to prevent any contaminants from entering the system.
Our rebuild service provides you with significant cost savings compared to purchasing refurbished injectors. By choosing our service, you can expect to receive remanufactured injectors at a similar price point to refurbished options offered by others. This way, you can enjoy enhanced performance and fuel efficiency without breaking the bank.
Finding the Fuel Injector Flow Rate: A Comprehensive Guide
You may want to see also
Explore related products
Injector options
There are several options available when it comes to rebuilding Cummins fuel injectors. One option is to purchase a set of new fuel injectors. These can be found online through various retailers and can vary in price depending on the specific model and features offered. For example, S&S Diesel Motorsport offers a range of Cummins Common Rail Injectors, with prices starting at $2,332.80 for a set of six 5.9L injectors and going up to $3,399.00 for their more advanced 6.7L injectors.
Another option is to consider remanufactured or rebuilt fuel injectors, which are typically more affordable than brand new injectors. These injectors have been previously used but have been refurbished and tested to ensure they meet original equipment manufacturer (OEM) specifications. Companies like GetInjectors.com offer a rebuild service where customers send in their old injectors, which are then remanufactured, tested, and returned with a 12-month unlimited-mile warranty. This option allows for significant cost savings while still providing reliable and efficient fuel injectors.
Additionally, some companies like Big Bang Injection offer remanufactured and tested aftermarket fuel injectors with a focus on high quality and customer satisfaction. Their injectors are designed for Dodge Ram Cummins diesel engines and come with free worldwide shipping and 24/7 customer support.
For those who prefer a more hands-on approach, rebuilding fuel injectors at home is also an option. This typically involves disassembling, cleaning, and inspecting the injectors, and possibly modifying or adapting them to fit the specific requirements of your vehicle. Online forums and communities dedicated to Cummins Diesel engines can provide valuable information, advice, and support for those interested in this option.
When making a decision, it is important to consider factors such as cost, performance, reliability, and warranty options. Additionally, it is worth researching the specific injector models and retailers to ensure you are getting a product that meets your needs and expectations.
Fuel Injector Efficiency: How Much Fuel Is Used?
You may want to see also
Explore related products
Fuel efficiency
Rebuilding your Cummins fuel injectors can be a great way to improve fuel efficiency and keep your engine running smoothly. While it is possible to rebuild them yourself, many prefer to use a professional service to ensure the job is done correctly and safely. Services are available where you can send your injectors for rebuilding, testing, and then they are returned to you. This option often includes a warranty.
There are several ways to improve the fuel efficiency of your Cummins engine and to extend the life of your injectors. Firstly, it is important to maintain your fuel system. This includes routine fuel filter changes and periodically cleaning the fuel system. Purging the high-pressure pump and injectors can maintain peak performance. It is also beneficial to add a fuel treatment to your tank, such as Sea Foam Motor Treatment, to improve performance and fuel efficiency.
Another way to improve fuel efficiency is to ensure that you are using the correct injectors for your engine. For example, the Cummins HPCR fuel pump and injectors are capable of higher fuel injection pressures than Ford’s HEUI injectors. The HEUI injectors are also more prone to stiction issues, which can be helped by using aftermarket fuel and crankcase additives.
If you are experiencing issues with your injectors, they should be bench-tested. If pilot injection, full load flow, or the volume of return fuel fails during this test, the injector will need to be rebuilt or replaced. Many shops and owners prefer genuine Mopar, Cummins, or Bosch new or remanufactured injectors. It is worth noting that rebuilding your injectors can be about as expensive as buying new ones, so it is important to weigh up the costs and benefits of each option.
Ford Fuel Injectors: Identifying the Right One for Your Car
You may want to see also
Explore related products
Injector testing
Vibration Test
One method to identify faulty injectors is through a vibration test. With the engine running, grab each injector fuel supply line and feel for the one that vibrates the most. This simple test can help you pinpoint the faulty injector, as a faulty injector will often cause increased vibration.
Ohm Meter Test
An ohm meter can be used to check for resistance in the injector wires. First, locate the injector plugs and remove the plug. Then, check the resistance in each of the injector wires. A reading of about 0.4 to 0.5 ohms is normal. If the resistance is above 1 ohm, it indicates a cracked crystal, which means the injector is bad and needs to be replaced.
Pop-off Test
The pop-off test, or injector pop test, is a standard procedure for testing Cummins injectors. This test measures the injector opening pressure, also known as pop-off pressure. Injectors with high mileage may exhibit a significant pressure drop, which can affect efficiency and performance. A typical gauge for mechanical injector testers reads between 0 and 400 bar (0 to 5,800 psi).
Visual Inspection
A visual inspection is a critical step in injector testing. It involves a thorough examination of the injector for any signs of wear, contamination, or leaks. This includes inspecting the control valve ball seat and the nozzle for any damage or issues.
Leak Test
Leak tests are essential to identify any fuel leaks in the injectors. One method is to pull the fuel lines and use a block-off tool to test for leaks. This method is accurate and can help pinpoint any leaky injectors. Another way to test for leaks is to check the fuel return; there should be minimal or no fuel return.
Nozzle Spray Pattern Analysis
Analyzing the nozzle spray pattern is another aspect of injector testing. This analysis ensures that the fuel is being properly atomized and distributed, which is crucial for efficient combustion.
Testing at a Diesel Shop
If you don't have the necessary equipment or feel uncomfortable performing these tests yourself, you can always take your injectors to a certified diesel shop. Any diesel fuel shop certified to work on Bosch products should be able to accommodate injector testing and servicing.
It is important to regularly test and service your Cummins fuel injectors to maintain the performance and longevity of your engine. While some tests can be performed at home, more comprehensive testing may require specialized equipment and professional assistance.
Nikki Fuel Injectors: Remanufacturing Process and Benefits
You may want to see also
Frequently asked questions
You can rebuild your Cummins fuel injector at home by purchasing an adapter and a shim kit. You can also build your own pop tester using a 4-ton hand pump hydraulic power unit.
Rebuilding your Cummins fuel injector can improve power and smoothness, resulting in better acceleration and fuel efficiency. It is also more cost-effective than purchasing new injectors.
Rebuilding your Cummins fuel injector can be a more affordable option, but it may not always be reliable. If you can afford it, purchasing new injectors is generally recommended.
