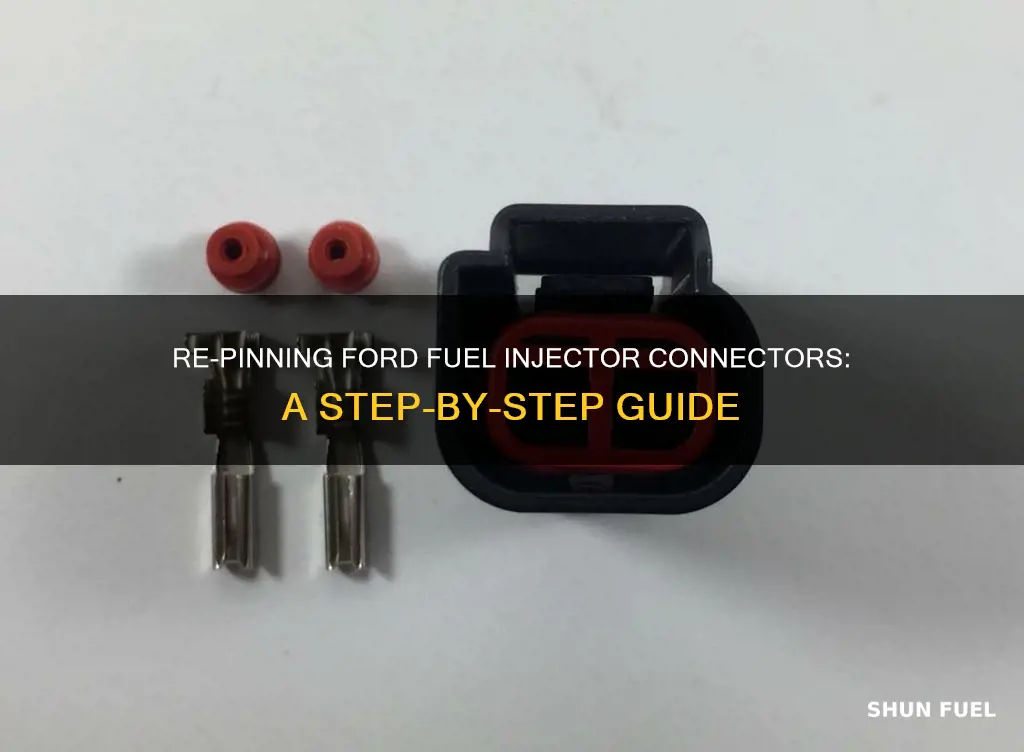

If you're looking to re-pin your Ford's fuel injector connector, you've come to the right place. This process can be tricky, and it's important to be careful not to break the plastic or the retaining clip. The first step is to remove the rail and injectors, giving you ample room to work with. Then, using a thin screwdriver or similar tool, you can remove the pins from the connector. From here, you can install new wires or pins into the connector, being mindful of their orientation. Finally, you can reinstall the lock and seal and plug everything back in. With patience and precision, you'll be able to successfully re-pin your Ford's fuel injector connector.
| Characteristics | Values |
|---|---|
| Removal of fuel injector electrical connectors | Remove the rail and the injectors to have ample room to work and wiggle the clips off |
| Tools required | A thin-tipped flathead screwdriver, nylon pry tool, drill, screw eye |
| New pigtails | Available at Ballenger Motorsports |
| Installation | Cut the old connectors off and solder the new ones on |
Explore related products
![HiSport Fuel Injector Seal Kits Compatible with Ford Mercury Lincoln Jeep V8 5.4L 4.6L Include O-Rings, Pintle Caps, Seal Spacers and Filter Baskets Universal Repair Set Replaces 0280150962 [8 Set]](https://m.media-amazon.com/images/I/71r8hDT8hoS._AC_UY218_.jpg)
What You'll Learn
Removing the rail for more room to work
First, ensure your fuel system is depressurized. Next, remove the two bolts that hold the fuel rail to the Intake Manifold. Once these are out, you can pull the injectors out, which will take some effort. The fuel rail will now be loose in the engine bay.
If you need to completely remove the fuel rail, you must disconnect the fuel line. There is a funky clip that you need to unclip, and then you can start to push it out. It won't come off completely, so you need to push the clip as far out as possible, and then use a screwdriver on the opposite side to finish pulling it out. After this, the fuel line can be removed.
There are a few more electrical connections to remove before the fuel rail is completely free. It can be a tricky process, and you may need to use a pry bar to help remove the rail. Be careful not to damage any other components when doing this.
If you are still unable to remove the rail, you may need to use a hooked seal puller or a specialized slide hammer.
How Diesel Injectors Power Piston Cylinders
You may want to see also
Explore related products
Using a screwdriver to remove the pins
If you are looking to re-pin your Ford fuel injector connector, you will need to remove the harness connector seal and the lock. You can do this with a screwdriver. Here is a step-by-step guide:
Firstly, make sure you have the right tools for the job. You will need a small, thin-tipped flathead screwdriver. A small jeweller's flathead screwdriver will work well. You will also need a new connector, which you can buy online or try finding one in a junkyard.
Now, remove the rail and the injectors. This will give you more room to work with and make it easier to access the connector. With the rail removed, you can now use your screwdriver to remove the pins. Carefully insert the screwdriver under the red lock and gently wedge it between the lock and the connector body to pop it up. You can also try prying from the top. This may require some force as these red clips can be tight.
Once the red lock is released, you can now remove the pins from the connector. Be careful not to bend or damage the pins as you will need to reinstall them into the new connector. It is also important to note the orientation of the wires before removing the pins.
After you have removed the pins, install the old wires/pins into the new connector, ensuring they are in the correct orientation. Finally, reinstall the lock and seal, and plug the new connector back in.
Replacing Fuel Injectors: A Quick Guide to Timing
You may want to see also
Explore related products
Soldering new connectors
Soldering is a fundamental skill in electronics and engineering, and it can be very handy for various applications. It is the process of melting and cooling a lead or tin alloy into solder cups to bond a wire conductor to a contact. It is also the most economical method of wire termination.
Before you begin soldering, make sure you have all the necessary materials and tools, such as a soldering iron, wire, heat shrink tubing or electrical tape for insulation, wire strippers, and the connector with wires to be soldered. It is also important to work in a well-ventilated area since the fumes from the soldering iron can be harmful.
- Prepare the wires that will be soldered to the connector by using wire strippers to remove a small section of insulation from the end of each wire, exposing the bare metal underneath. Be careful not to strip away too much insulation.
- Clean the terminals to ensure they are free from any debris or oxidation.
- Apply a small amount of solder to the exposed metal strands. This process, known as tinning, improves conductivity and makes it easier to solder the wires to the connector later. Hold the soldering iron against the wire and touch the solder to the wire until it flows and coats the strands evenly.
- Carefully insert each tinned wire into its respective terminal on the connector. Ensure the wires are positioned securely and that there is good contact between the wire and the terminal.
- Heat the terminal with the soldering iron and apply solder to the joint where the wire and terminal meet. The solder should melt and flow smoothly, creating a strong bond between the wire and the connector.
- Once all connections have been soldered, insulate them to prevent short circuits or accidental contact. If using heat shrink tubing, slide it over each connection and use a heat gun to shrink it into place.
- Finally, secure the connector in its intended location. If it has screw terminals, tighten them to hold the wires in place. If necessary, use cable ties or adhesive to secure the wires and prevent strain on the connections.
By following these steps, you can create reliable electrical connections and ensure a strong bond between the wires and the connector.
Fuel Injector Replacement Cost: Toyota's Pricing for the Service
You may want to see also
Explore related products
Using a nylon pry tool to remove the lock
To re-pin a Ford fuel injector connector, you will need to remove the lock. This can be done using a nylon pry tool, which is a non-abrasive tool that can be used to safely separate and lift components without causing damage. Nylon pry tools are available in various sizes and shapes, and some are specifically designed for automotive use.
When removing the lock with a nylon pry tool, follow these steps:
First, locate the lock on the fuel injector connector. It is usually a small, plastic piece that secures the connector in place. Gently insert the nylon pry tool between the lock and the connector body. Apply gentle force to create a small gap, being careful not to damage the surrounding components.
Once you have created a small gap, carefully work the nylon pry tool around the lock to loosen it further. The nylon material of the tool will help prevent scratching or damage to the connector. Gently wiggle the tool to work your way around the lock, gradually increasing the gap until you can remove the lock with your fingers or a pair of pliers.
It is important to work slowly and carefully to avoid breaking any other parts of the connector. Ensure that you are using the correct size and shape of the nylon pry tool for the job. Too much force can damage the connector, so take your time and be gentle.
After removing the lock, set it aside safely. You will need to reinstall it later, so ensure you do not misplace it. With the lock removed, you can now access the pins of the connector. Use a small screwdriver or similar tool to carefully remove the pins, taking note of their orientation for reinstallation.
By using a nylon pry tool, you can safely and effectively remove the lock from a Ford fuel injector connector without causing damage to the surrounding components.
Fuel Injectors in a 4-Cylinder: How Many Do You Need?
You may want to see also
Explore related products
Drilling a hole into the lock to remove it
If you are looking to re-pin a Ford fuel injector connector, you will first need to remove the lock. One way to do this is by drilling a hole into the lock. Here is a step-by-step guide:
First, remove the harness connector seal and the lock. This will expose the area you need to work on. Next, you will need to drill a hole into the lock. Make sure the drill bit is the appropriate size for the job; a 1/16" drill bit should be suitable. Carefully drill into the top of the lock, applying gentle pressure to avoid damaging the surrounding components.
Once the hole is drilled, you can insert a screw eye into the hole and twist it to secure it in place. Now, you have something to pull against to remove the lock. Grip the screw eye firmly and pull it up to release the lock. With the lock removed, you can then access the pins inside the connector. Use a small screwdriver or similar tool to carefully remove the pins.
It is important to be cautious when drilling into any lock mechanism, as there is a risk of damaging the surrounding components if the drill bit slips or the hole is drilled too large. Take your time and ensure your work area is well-lit and secure before beginning.
By following these steps, you should be able to successfully drill a hole into the lock of a Ford fuel injector connector and remove it to access the pins inside.
Water and Fuel: Injector Damage from Water Intake
You may want to see also
Frequently asked questions
Remove the rail and the injectors to give yourself ample room to work and wiggle the clips off.
You can use a thin screwdriver or a nylon pry tool to remove the pins.
Use a rather thin-tipped flathead screwdriver to get under the red lock and wedge it between the tab and the connector body to get it to pop up.
You will have to cut the old connectors off and solder the new ones on.
You can buy new pigtails from Ballenger Motorsports.
