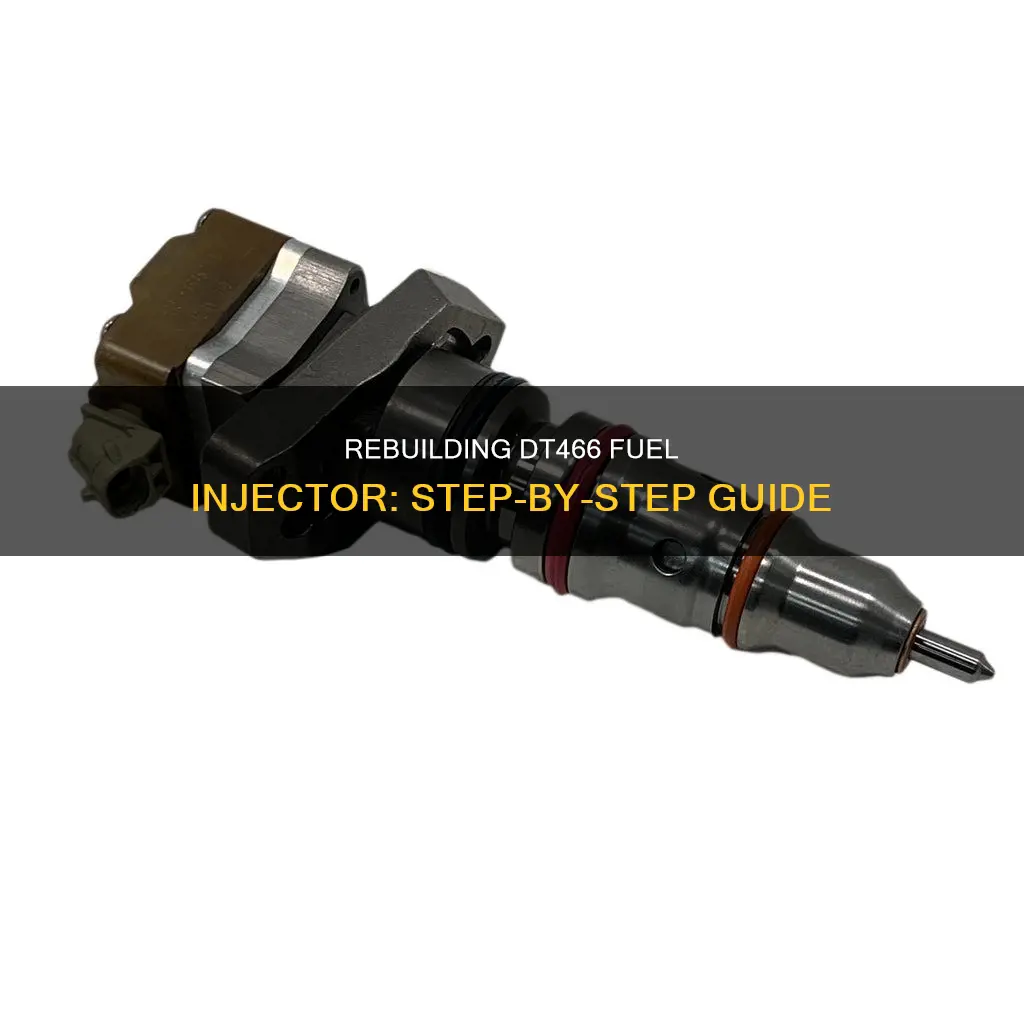

The DT466 fuel injector is a component of diesel engines, and like any machine part, it is subject to wear and tear. Rebuilding a DT466 fuel injector is a complex process that requires careful attention to detail and a good understanding of engine mechanics. While it is possible to rebuild them, it is a meticulous task that requires time and patience. This process involves removing the injector, draining the oil and fuel, and making any necessary repairs or replacements before reinstalling the injector. The process can be made easier with the use of a rebuild kit, which provides all the necessary parts, and some companies offer a rebuild service where users can send in their injectors for repair.
How to rebuild a DT466 fuel injector
| Characteristics | Values |
|---|---|
| What is it used for? | Rebuilding DT466E/I530E DT466/530 fuel injectors |
| What does it contain? | All normal wear items, including o-rings, poppet valve shims, and a rebuild tool |
| Where are the parts sourced from? | USA and Italy |
| What is the benefit? | Saves time and money |
| What is the process? | 1. Remove drain plug from the rear of the oil supply manifold to drain oil. 2. Remove fuel return line and check valve. 3. Remove rocker cover. 4. Remove wiring harness to the injectors. 5. Remove set screw from the injector clamp. 6. Push the clamp towards the rear of the engine. 7. Use a pry bar/hook bar to raise the injector unit and remove from the engine. |
| What are some tips? | 1. Adjust the valve lash before installing the injectors. 2. Apply a thin coat of oil to the injector body and o-rings. 3. Line up the injector with the connector facing the rear. 4. Make sure to purge the motor through the glow plug holes before restarting. |
Explore related products
What You'll Learn
Drain the oil and fuel
To rebuild a DT466 fuel injector, one of the first steps is to drain the oil and fuel. This is important to prevent damage to the engine and to ensure the injectors work correctly.
Firstly, it is important to relieve the pressure in the fuel system to avoid further contamination of oil. This can be done by poking the Schrader valve on the fuel filter head or the one on the back of the cylinder head. It is also recommended to wear eye protection during this step. Next, the fuel filter housing cap should be removed. If the cap is out of the system for an extended period, the O-ring will swell and will need to be replaced.
After this, you need to add 2oz of fuel dye to the fuel filter housing. It is important to use a recommended dye, such as the one manufactured by Balkamp, Inc. Once the dye is added, the fuel filter housing cap can be installed. Place a rag or suitable container under the fuel pressure test valve when bleeding the fuel rail, and dispose of the fuel correctly.
The next step is to connect a fuel pressure gauge with a shut-off valve and a clear hose to the test valve. The clear hose should be routed into a drain pan. Open the shut-off valve and shine a black light at the fuel pressure gauge clear line. The dyed fuel will have a yellow-green fluorescent glow. Using the priming pump, purge the fuel until the dyed fuel begins to flow from the pressure gauge clear hose. Close the shut-off valve and remove the valve cover.
Finally, start and run the engine at a low idle for 3-5 minutes. While the engine is running, use the black light to inspect for yellow-green streams of dye running between the valve spring seats at each injector. This will help identify any leaking injectors or O-rings, which may be causing the oil contamination.
When Do Cars Need Injector Fuel Services?
You may want to see also
Explore related products
Remove the injector
To remove the injector from a DT466 engine, there are several steps to follow. Firstly, it is important to drain the HPOP oil from the head to prevent oil from draining into the cylinder and causing potential engine damage. Alternatively, you can crank the motor with the injectors removed to blow out the oil.
Next, you need to remove the drain plug from the rear of the oil supply manifold to fully drain the oil. Following this, remove the fuel return line and check valve, and then the rocker cover. At this stage, you should also remove the wiring harness to the injectors.
The next step is to remove the set screw from the injector clamp and push the clamp towards the rear of the engine. You can then use a pry bar or hook bar to raise the injector unit and remove it from the engine.
It is important to note that the removal process should be slow and careful, taking pictures along the way for reference. Additionally, it is recommended to replace the injector O-rings and the plug-in injector harness when removing and installing injectors.
A Comprehensive Guide to Adding Lucas Fuel Injector Cleaner
You may want to see also
Explore related products
![HiSport Fuel Injector Seal Kits Rebuild Set Include O-rings, Pintle Caps, Seal Spacers, Filter Baskets with 1pcs Filter Removal Tool [8 Set]](https://m.media-amazon.com/images/I/71D2r04zhLL._AC_UY218_.jpg)
Use a rebuild kit
Rebuilding a DT466 fuel injector can be a complex task, but using a rebuild kit can make the process more manageable and cost-effective. Here are some detailed instructions on how to use a rebuild kit to rebuild your DT466 fuel injector:
Step 1: Purchase the Right Kit
Firstly, you need to source a rebuild kit that is compatible with your DT466 fuel injector. You can find these kits online or through specialist suppliers. Some kits are designed for specific injector models, so ensure you get the right one. For example, the DT466E/I530E DT466/530 Deluxe Injector Rebuild Kit is designed for injectors from 1994 to 2003.
Step 2: Gather Tools and Information
Before you begin, ensure you have the right tools for the job. Standard tools like torque wrenches and injectors cups will be needed, but some jobs may require more specialized equipment, like an automotive stethoscope or a multimeter. It is also important to have the right information. Consult repair manuals or online resources to understand the process and the torque specifications for each part.
Step 3: Prepare the Engine
You will need to remove the valve cover and gasket, and then the HP oil rail. This will give you access to the Torx bolts holding the injectors in place. It is important to be methodical and careful during this process, as it can be time-consuming and intricate work.
Step 4: Test the Injectors
Before removing the injectors, it is a good idea to test them to ensure they are faulty. Use an automotive stethoscope to listen for a clicking sound from the valve inside each injector. If there is no sound, the injector is likely faulty. You can also test by unplugging the electrical connector and using a multimeter to check for the correct reading.
Step 5: Remove and Rebuild the Injectors
With the faulty injectors identified, carefully remove them and begin the rebuild process using your kit. This may involve replacing O-rings, poppet valves, and other components. Ensure you follow any instructions provided with your kit. Take your time and be careful, as fuel injectors have many small, delicate parts.
Step 6: Reinstall and Test
Once your injectors are rebuilt, carefully reverse the removal process to reinstall them. Ensure all components are secure and correctly seated. Finally, take your vehicle to a qualified shop to have the injectors professionally tested.
Using a rebuild kit can be a cost-effective way to extend the life of your DT466 fuel injectors, but for more severe issues, or if you are uncomfortable with the process, it is always best to consult a qualified mechanic.
Fuel Injector Issues: Ticking Noise and Bad Performance
You may want to see also
Explore related products
Check for damage
When rebuilding a DT466 fuel injector, there are several key areas to check for damage. Firstly, it is important to conduct a thorough visual inspection of the injector for any signs of wear, leakage, or clogging. This includes checking for carbon deposits, dirt, and debris that may have built up and affected the injector's performance.
Next, you should inspect the o-rings, as these are common culprits for issues. Check for any damage or wear, as they may need to be replaced. The o-rings can cause oil to mix with the fuel, which can lead to problems with the injector. Additionally, check the poppet valve and poppet valve seat for any signs of wear, as this can be a cause of injector issues.
Another area to inspect is the fuel filter. Ensure it is clean and free of debris, as a clogged filter can affect fuel delivery and pressure. While checking the fuel filter, also inspect the fuel lines for any signs of damage or leaks. It is important to identify and address any leaks promptly to prevent further issues and potential safety hazards.
Finally, check the injector for any physical damage, such as cracks or breaks. If there is significant damage, it may be more cost-effective to replace the injector rather than rebuild it. In some cases, a catastrophic injector failure may require a full replacement.
Cleaning LS Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Reinstall the injector
To reinstall the injector, begin by bringing each cylinder to T.D.C. and checking for fuel and oil in each cylinder. Failure to do so may result in engine damage. You won't be able to remove every last drop, but you want to remove almost all of the raw fuel and oil.
Next, apply a thin coat of marvel or gun oil to the injector body and O-rings. You only want to apply enough so that the O-rings don't snag and tear as you tighten them down. Then, line up the injector with the connector, facing the rear DT466E, or line it up in the direction the originals faced. Line up the bolt holes in the head with the bolt holes in the injector hold-down bracket.
After this, you can torque the injectors down. It is recommended to check with the dealership or injector vendor to confirm the proper torque for your new injectors.
Finally, to avoid hydrostatic lock and engine damage, be sure to drain the HPOP oil from the head. Alternatively, you can crank the motor with the injectors out to blow the oil out of the cylinder.
