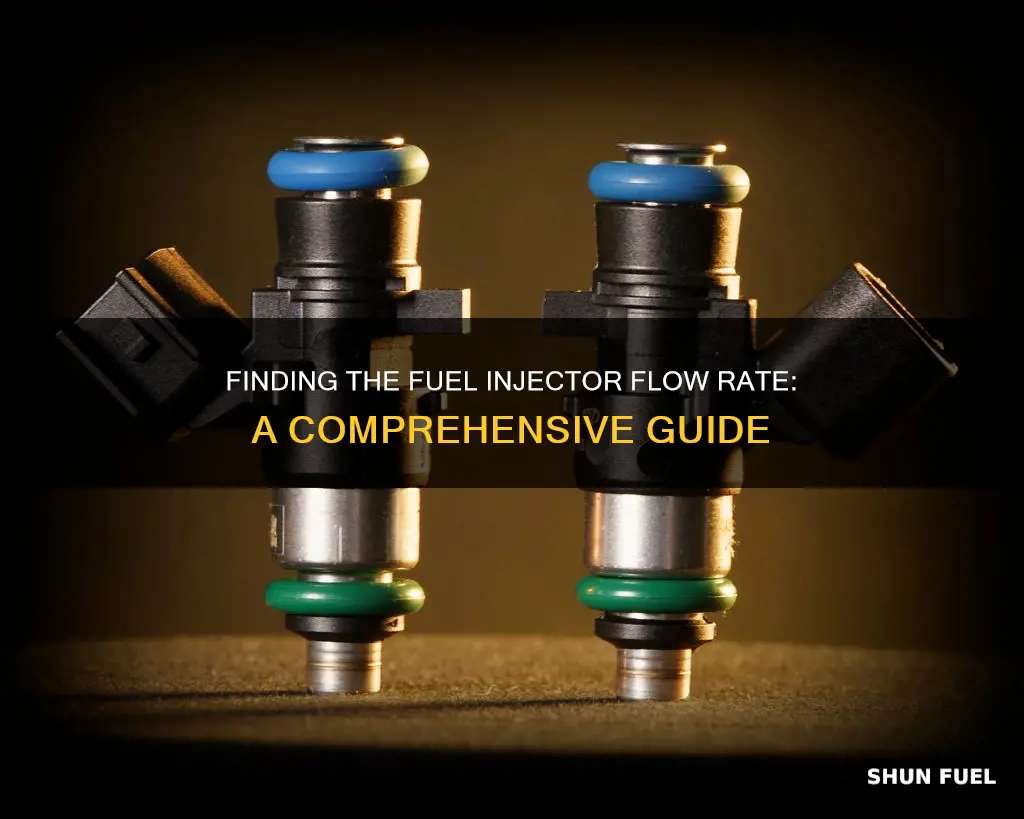

Fuel injector flow rate is an important aspect of engine performance. It is the rate at which fuel is injected into the engine's cylinders, and it affects the engine's performance, fuel consumption, and emissions. The flow rate is influenced by factors such as fuel pressure and injector duty cycle, and it is essential to get the right flow rate to match the engine's power output. Various online calculators and formulas are available to help determine the ideal fuel injector flow rate for a specific engine, taking into account factors such as target horsepower, engine specifications, and fuel consumption.
| Characteristics | Values |
|---|---|
| Calculating the flow rate | Use a flow-rate calculator or a formula |
| Factors considered by the calculator | Engine horsepower, wheel horsepower, power to the crankshaft, base fuel pressure, maximum injector duty cycle |
| Base fuel pressure | 3 Bar (43.5 psi) |
| Maximum injector duty cycle | 80% |
| Formula to calculate the flow rate | injector flow rate = horsepower × BSFC / # cylinders × safe duty cycle |
| Formula to calculate the flow rate at a given pressure | [Advertised Flow Rate] X [The Square Root of (Your Pressure ÷ Rated Pressure)] |
| Fuel injector flow rate changes with | Fuel pressure |
| Fuel system pressure adjustment | Intended to make small changes to the injector flow rate |
Explore related products
What You'll Learn
Fuel injector calculators
One key consideration when using a fuel injector calculator is the number of cylinders in your engine. This impacts the overall fuel injection requirements, as each cylinder must receive an adequate fuel supply. Additionally, the target horsepower influences the flow rate calculations, as higher horsepower typically demands a greater fuel supply to maintain performance.
Fuel pressure is another important factor. Most fuel injector calculators, such as those provided by FiveoMotorsport and BAR-TEK, assume a base fuel pressure of 3 Bar (43.5 psi) and a maximum injector duty cycle (IDC) of 80%. This standard pressure rating and IDC are commonly used in the auto industry, ensuring consistency and compatibility with OEM and upgraded EFI systems.
The injector duty cycle refers to the percentage of time the fuel injector is open. It is important that the duty cycle does not exceed 90% to allow for the injector to close briefly and reduce coil stress due to friction. Selecting a duty cycle between 60% and 70% provides a safer range and allows for potential future engine performance enhancements.
Calculating the flow rate of a fuel injector is essential for ensuring the engine receives the correct fuel supply for optimal performance. By using fuel injector calculators, users can determine the ideal injector size and flow rate, taking into account factors such as horsepower, fuel pressure, and injector duty cycle. This information can then be used to make informed decisions when upgrading or tuning an engine for improved performance and efficiency.
