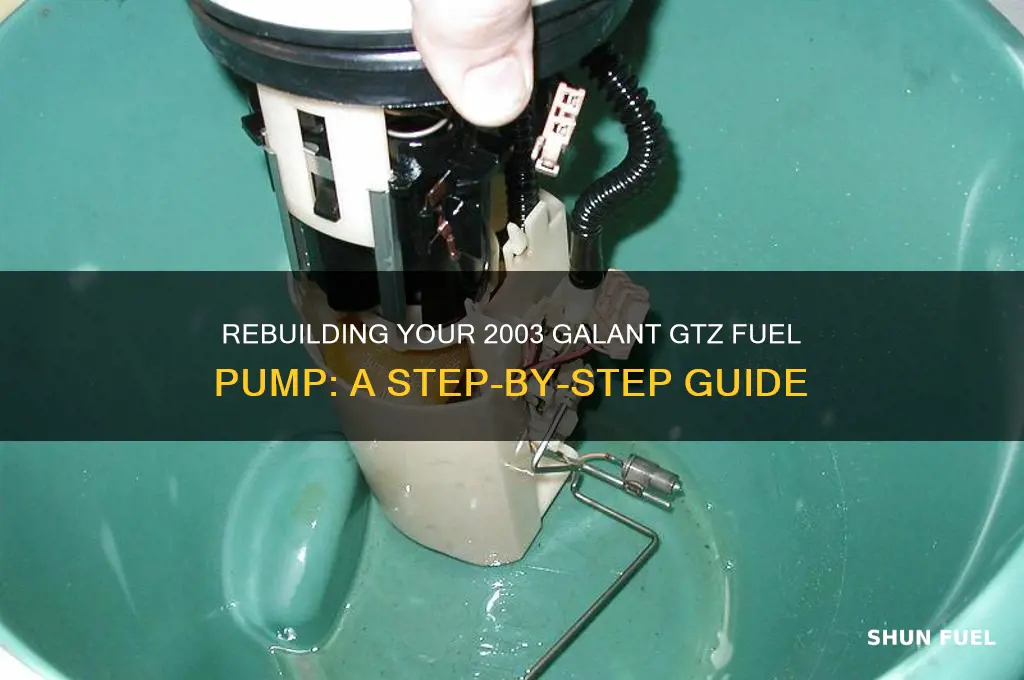

Rebuilding the fuel pump on a 2003 Mitsubishi Galant GTZ requires careful attention to detail and the right tools. The fuel pump is a critical component of the vehicle's fuel system, responsible for delivering fuel from the tank to the engine. Over time, wear and tear can cause the pump to fail, leading to poor performance or a no-start condition. To rebuild the fuel pump, you'll need to start by safely relieving the fuel system pressure and disconnecting the battery. Next, locate the fuel tank and remove it to access the pump assembly. Disassemble the pump carefully, inspecting each component for damage or wear. Replace any worn parts, such as the impeller or check valve, and clean the housing thoroughly. Reassemble the pump, ensuring all seals and gaskets are in good condition, and reinstall it into the fuel tank. Finally, reconnect the fuel lines and electrical connectors, and test the system for proper operation. Following these steps will help restore your Galant GTZ's fuel pump to optimal functionality.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2003 Mitsubishi Galant GTZ |
| Fuel Pump Location | Inside the fuel tank (in-tank fuel pump) |
| Tools Required | Socket set, wrenches, screwdriver, fuel line disconnect tool, safety gear |
| Parts Needed | Fuel pump rebuild kit (if available), new fuel pump (if rebuilding not possible), fuel filter, O-rings, gasket sealant |
| Difficulty Level | Intermediate to Advanced (requires mechanical skills) |
| Time Estimate | 3-5 hours (depending on experience and tools) |
| Safety Precautions | Work in a well-ventilated area, disconnect battery, relieve fuel pressure |
| Steps Overview | 1. Relieve fuel pressure 2. Disconnect battery 3. Remove fuel tank 4. Access and remove fuel pump 5. Disassemble and inspect pump 6. Replace worn components or install new pump 7. Reassemble and reinstall fuel tank |
| Common Issues | Worn impeller, clogged filter, faulty electrical connections |
| Alternative Solution | Replace the entire fuel pump assembly if rebuilding is not feasible |
| Cost Estimate | Rebuilding: $50-$150 (parts) Replacement: $200-$400 (parts + labor) |
| Maintenance Tip | Regularly replace fuel filter to prevent pump damage |
| Compatibility | Ensure parts match 2003 Galant GTZ specifications |
| Diagnostic Symptoms | Engine stalling, difficulty starting, whining noise from fuel tank |
Explore related products
What You'll Learn
Gather Tools and Materials
Before diving into the intricate process of rebuilding a 2003 Galant GTZ fuel pump, it’s critical to assemble the right tools and materials. This step is not merely preparatory; it’s foundational. Without the correct items, even the most skilled technician will face unnecessary delays or errors. Start by gathering a fuel pump module rebuild kit specific to the 2003 Mitsubishi Galant GTZ, as generic kits may lack compatible components. This kit typically includes a new fuel pump, strainer, seals, and gaskets, ensuring a precise fit for your vehicle’s system.
Next, focus on tools. A torque wrench is indispensable for securing bolts to factory specifications, preventing leaks or damage. Pair this with a set of metric sockets and wrenches, as the Galant GTZ uses predominantly metric fasteners. Additionally, a fuel line disconnect tool will simplify the removal of quick-connect fittings without damaging them. For safety, invest in nitrile gloves and safety goggles to protect against fuel spills and debris. A clean, lint-free cloth and a small parts organizer will keep your workspace tidy and prevent losing tiny components like O-rings or clips.
Consider the workspace itself as part of your materials. A well-lit, flat surface is essential for precision work. If working outdoors, a shade canopy can shield you from direct sunlight, reducing glare and heat. For those without a dedicated garage, a portable workbench and a battery-powered LED light can transform any space into a functional repair area. Remember, fuel is flammable, so avoid open flames or sparks, and ensure proper ventilation to disperse fumes.
Finally, don’t overlook the importance of reference materials. A factory service manual for the 2003 Galant GTZ provides torque specifications, diagrams, and step-by-step instructions tailored to your vehicle. If a physical manual isn’t available, online forums or video tutorials specific to this model can offer visual guidance. Combining these resources with your tools and materials ensures you’re not just prepared but confident in tackling the rebuild.
By meticulously gathering these tools and materials, you’ll streamline the fuel pump rebuild process, minimize risks, and maximize efficiency. This proactive approach transforms a daunting task into a manageable project, setting the stage for a successful repair.
Understanding the BMW i135 Fuel Pump System's Operation and Design
You may want to see also
Explore related products
Access Fuel Pump Location
The fuel pump in a 2003 Mitsubishi Galant GTZ is nestled within the fuel tank, a location chosen for optimal cooling and protection. This placement, while advantageous for performance, complicates access for maintenance or rebuilding. Understanding the precise location and the steps required to reach it is crucial for a successful repair.
Locating the Fuel Pump:
Imagine the fuel tank as a horizontal cylinder positioned beneath the rear seat. The fuel pump assembly, a compact unit housing the pump, sender, and filter, resides at the bottom of this tank. To access it, you'll need to remove the rear seat and the fuel tank access panel, typically located in the trunk. This panel, often secured by a few screws, provides a direct view of the top of the fuel tank.
Tools Required:
- Jack and jack stands
- Wrench set (metric)
- Screwdrivers (flathead and Phillips)
- Fuel line disconnect tool
- Safety goggles and gloves
Access Procedure:
- Safety First: Ensure the vehicle is on a level surface, engaged in park or neutral, and the parking brake is applied. Disconnect the negative battery terminal to prevent accidental ignition.
- Raise and Support: Using the jack, raise the rear of the vehicle and securely support it on jack stands. This provides sufficient clearance to work underneath.
- Locate and Remove: Identify the fuel tank access panel in the trunk. Remove the screws securing it and set it aside. You should now see the top of the fuel tank.
- Disconnect Fuel Lines: Carefully disconnect the fuel lines from the fuel pump assembly using the appropriate tool. Be prepared for residual fuel to drain, so have a container ready.
- Remove Pump Assembly: With the lines disconnected, carefully lower the fuel pump assembly from the tank. This may require some maneuvering due to its size and the tank's shape.
Cautions:
- Fuel Fumes: Work in a well-ventilated area and avoid open flames or sparks due to the presence of flammable fuel vapors.
- Spillage: Have rags or absorbent materials ready to catch any fuel that may spill during the process.
- Electrical Connections: Be mindful of electrical connectors attached to the pump assembly. Disconnect them carefully to avoid damage.
Accessing the fuel pump in a 2003 Galant GTZ requires careful planning and execution. By following these steps and exercising caution, you can successfully reach the pump for rebuilding or replacement, ensuring your vehicle's fuel system operates optimally.
Is a Fuel Pump Part of the Powertrain? Explained
You may want to see also
Explore related products
Disconnect Electrical Connections
Before attempting any fuel pump repair, safety must come first. The fuel system operates under pressure and contains flammable materials, so disconnecting the electrical connections is a critical step to prevent accidental ignition or electrical shorts. Locate the fuel pump module, typically found in the fuel tank, and identify the wiring harness connected to it. This harness supplies power to the pump and sends signals to the vehicle's computer.
To disconnect the electrical connections, start by relieving the fuel system pressure. This involves locating the Schrader valve on the fuel rail and attaching a pressure gauge. Slowly depress the valve to release the pressure until the gauge reads zero. Failure to do this can result in fuel spraying when you disconnect the lines, posing a fire hazard. Once the pressure is relieved, carefully disconnect the wiring harness from the fuel pump module. Most connectors have a locking tab or clip that needs to be released before pulling them apart. Use a small screwdriver to gently pry the tab if necessary, but avoid forcing it to prevent damage.
A common mistake during this step is neglecting to label the wires or take a photo of the connection before disconnecting. The wiring harness often contains multiple wires of similar colors, and reconnecting them incorrectly can lead to malfunctions or damage. Label each wire with its corresponding terminal or take a clear photo from multiple angles to ensure accurate reassembly. Additionally, inspect the connector for signs of corrosion, melting, or damage. If the connector is compromised, it may need to be replaced to ensure a reliable connection.
After disconnecting the electrical connections, secure the wiring harness out of the way to prevent accidental contact with moving parts or hot surfaces during the repair. Use zip ties or electrical tape to bundle the wires neatly. This not only keeps the workspace organized but also reduces the risk of damage to the wires. Remember, the goal is to isolate the fuel pump module completely before proceeding with further disassembly or replacement.
In summary, disconnecting the electrical connections is a precise and safety-critical step in rebuilding a 2003 Galant GTZ fuel pump. Relieve fuel system pressure, carefully detach the wiring harness, label or document the connections, inspect for damage, and secure the wires. By following these steps, you minimize risks and set the stage for a successful repair.
Do Manual Cars Have Fuel Pumps? Exploring Automotive Mechanics
You may want to see also
Explore related products
Remove and Install New Pump
The fuel pump in a 2003 Galant GTZ is located inside the fuel tank, which means removing the tank is a necessary first step. Begin by relieving the fuel system pressure to avoid spills or accidents. Locate the pressure relief valve, typically near the engine bay, and attach a fuel pressure gauge to release the pressure. Once relieved, disconnect the negative battery terminal to prevent any electrical mishaps during the process. These initial steps are critical for safety and set the stage for the more intricate work ahead.
With safety measures in place, focus shifts to removing the fuel tank. Start by raising the vehicle securely on jack stands to access the tank from beneath. Disconnect the fuel lines and electrical connectors attached to the tank, taking care not to damage the quick-connect fittings. Use a suitable tool to loosen the tank straps, then carefully lower the tank to the ground. Once removed, the fuel pump module will be accessible. Gently pry the module out of the tank, being mindful of the fuel pump lock ring that secures it in place. A specialized tool may be required to remove the lock ring without causing damage.
Installing a new fuel pump requires precision and attention to detail. Clean the fuel tank thoroughly to remove any debris that could contaminate the new pump. Insert the new pump module into the tank, ensuring it aligns correctly with the lock ring groove. Tighten the lock ring securely but avoid over-tightening, as this can warp the components. Reattach the fuel lines and electrical connectors, double-checking for proper seating. Once the module is installed, reattach the fuel tank to the vehicle, ensuring the straps are tightened to the manufacturer’s specifications.
Before finalizing the installation, perform a thorough inspection to confirm all connections are secure and the tank is properly seated. Reconnect the negative battery terminal and turn the ignition to the "on" position to pressurize the fuel system. Check for leaks around the tank and fuel lines, addressing any issues immediately. A test drive is recommended to ensure the new fuel pump operates smoothly under normal driving conditions. This systematic approach ensures the replacement is both effective and long-lasting.
Testing Fuel Lift Pump DT466: Step-by-Step Guide for Optimal Performance
You may want to see also
Explore related products
Reassemble and Test System
With the fuel pump components cleaned, inspected, and repaired or replaced as necessary, the reassembly process demands precision to ensure optimal functionality. Begin by carefully positioning the pump assembly back into the fuel tank, ensuring the electrical connector aligns seamlessly with its counterpart. Secure the retaining clamp or bolts with a torque wrench, adhering to the manufacturer's specifications (typically 10-15 ft-lbs) to prevent damage from overtightening. Reattach the fuel lines, verifying that the quick-connect fittings click audibly into place, and inspect all connections for signs of leakage.
Testing the system post-reassembly is critical to validate the repair. Start by reconnecting the battery and turning the ignition to the "on" position without starting the engine. Listen for the fuel pump's priming cycle, a brief humming sound that confirms electrical continuity and initial operation. If the pump fails to engage, recheck the electrical connections and ground points for corrosion or loose contacts. Proceed to pressure testing using a gauge attached to the fuel rail; a healthy system should maintain 45-50 psi with minimal fluctuation, reflecting the pump's ability to deliver fuel under load.
A comparative analysis of pre- and post-repair performance can highlight the efficacy of the rebuild. For instance, a pre-repair pressure reading of 30 psi with erratic delivery, contrasted with a stable 48 psi post-repair, underscores the importance of meticulous reassembly and component replacement. Similarly, addressing common pitfalls—such as misaligned fuel lines or insufficient clamp torque—prevents recurring issues like leaks or inadequate fuel supply, which could lead to engine stalling or poor performance.
Persuasively, investing time in thorough reassembly and testing not only extends the fuel pump's lifespan but also safeguards the engine from fuel starvation or contamination. Practical tips include using a catch pan during reassembly to avoid spilling fuel and applying a thin coat of thread sealant on fuel line fittings to enhance leak resistance. By systematically verifying each step, from electrical connections to pressure output, you ensure the 2003 Galant GTZ's fuel system operates reliably, restoring both efficiency and peace of mind.
Understanding the Fuel Pump System in a 1995 Ford F150
You may want to see also
Frequently asked questions
You will need a fuel pump module removal tool, socket set, wrenches, screwdrivers, a torque wrench, and possibly a fuel line disconnect tool. Additionally, safety equipment like gloves and safety goggles is essential.
Start by relieving the fuel system pressure, then remove the rear seat cushion to access the fuel pump module. Disconnect the negative battery terminal and remove the fuel pump module cover to expose the pump.
Rebuilding the fuel pump is possible if the issue is with the internal components like the motor or check valve. However, it’s often more cost-effective and reliable to replace the entire fuel pump assembly, especially if the pump is old or heavily worn.
Symptoms include difficulty starting the engine, sputtering or stalling, loss of power during acceleration, and unusual noises (like whining) from the fuel tank area. A fuel pressure test can confirm if the pump is failing.
