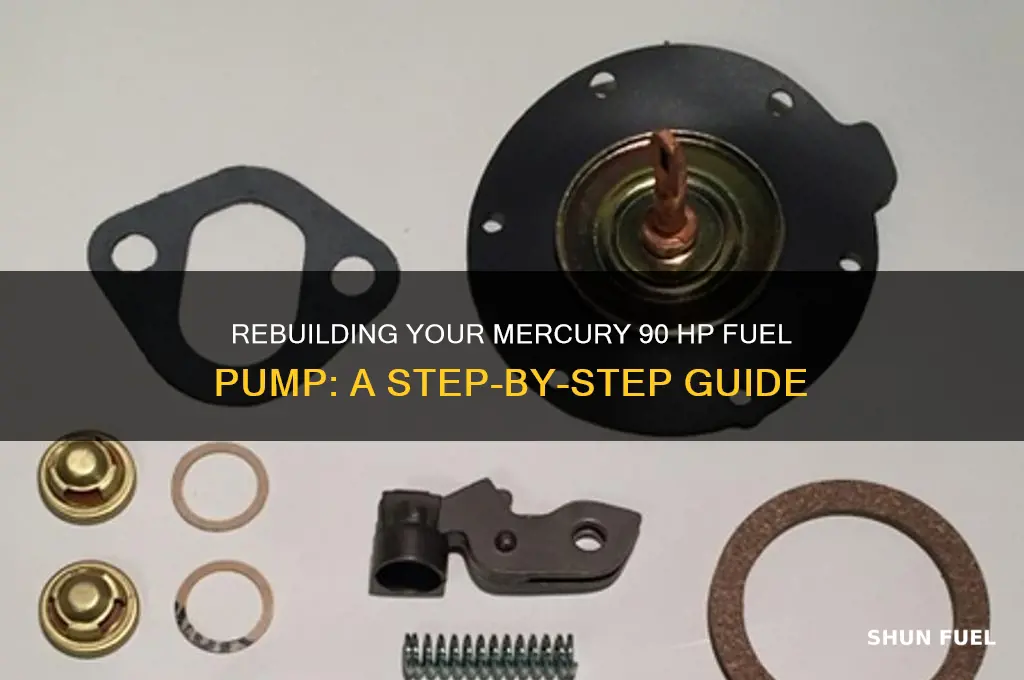

Rebuilding a 90 HP Mercury fuel pump is a critical task for maintaining optimal engine performance and reliability in outboard motors. Over time, fuel pumps can wear out due to debris, corrosion, or normal use, leading to reduced fuel flow and potential engine issues. The process involves disassembling the pump, inspecting components for damage, replacing worn parts such as diaphragms, valves, or gaskets, and reassembling the unit with precision. Proper cleaning, lubrication, and calibration are essential to ensure the pump operates efficiently. This DIY project requires basic mechanical skills, the right tools, and a service manual for specific guidance. Successfully rebuilding the fuel pump not only saves costs but also extends the life of the outboard motor, ensuring smooth operation on the water.
| Characteristics | Values |
|---|---|
| Model Compatibility | Mercury 90 HP Outboard Motor (specific models may vary) |
| Tools Required | Socket set, wrenches, screwdrivers, pliers, gasket scraper, torque wrench |
| Parts Needed | Fuel pump rebuild kit (diaphragm, gaskets, O-rings, seals), lubricant |
| Difficulty Level | Intermediate to Advanced (mechanical skill required) |
| Time Estimate | 2-4 hours (depending on experience) |
| Safety Precautions | Disconnect spark plug wires, work in a well-ventilated area, wear gloves |
| Steps | 1. Remove fuel pump from engine 2. Disassemble pump 3. Inspect parts 4. Replace worn components 5. Reassemble pump 6. Reinstall pump and test |
| Common Issues | Worn diaphragms, cracked gaskets, clogged fuel lines |
| Maintenance Tips | Regularly inspect fuel lines and filters, use ethanol-free fuel |
| Reference Sources | Mercury service manual, online repair forums, YouTube tutorials |
| Cost of Rebuild Kit | $50 - $100 (depending on brand and quality) |
| Alternative Solution | Replace fuel pump assembly (cost: $200 - $400) |
| Performance Impact | Restores proper fuel delivery, improves engine performance |
| Environmental Impact | Reduces fuel leaks and emissions when properly rebuilt |
