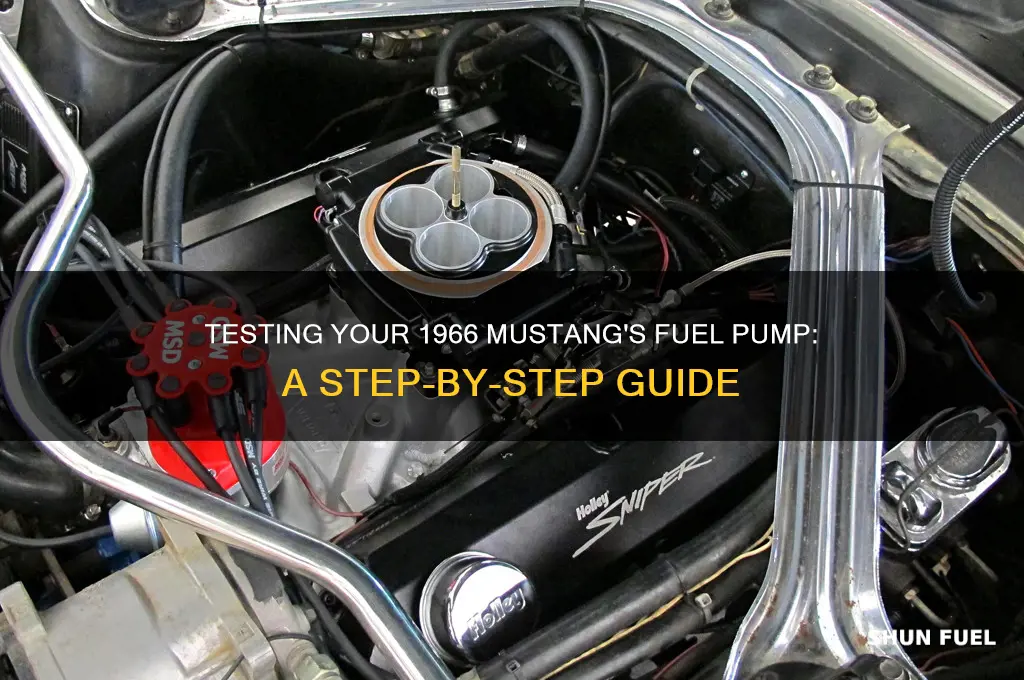

Testing the fuel pump on a 1966 Mustang is a critical step in diagnosing fuel system issues, ensuring your classic car runs smoothly. This mechanical pump, typically located near the engine or fuel tank, operates via a lever and diaphragm mechanism, drawing fuel from the tank and delivering it to the carburetor. To test it, start by checking for proper fuel flow and pressure using a gauge, ensuring the pump is primed and the engine is off. Next, manually activate the pump lever or use a jumper wire to engage the solenoid, listening for a steady humming sound indicating proper operation. If the pump fails to produce consistent pressure or noise, inspect for clogs, leaks, or worn components, and consider rebuilding or replacing the unit to restore optimal performance.
| Characteristics | Values |
|---|---|
| Fuel Pump Type | Mechanical fuel pump (common in 1966 Mustangs) |
| Tools Required | Screwdriver, wrench, fuel pressure gauge, rubber hose, container for fuel, multimeter |
| Safety Precautions | Work in a well-ventilated area, avoid open flames, disconnect battery before testing |
| Testing Method 1: Visual Inspection | Check for leaks, corrosion, or damage to the fuel pump and lines |
| Testing Method 2: Fuel Pressure Test | Connect a fuel pressure gauge to the fuel pump outlet and crank the engine to check pressure |
| Expected Fuel Pressure | Typically 3-5 PSI (pounds per square inch) for a 1966 Mustang |
| Testing Method 3: Fuel Flow Test | Disconnect the fuel line and crank the engine to check for fuel flow into a container |
| Expected Fuel Flow | Steady stream of fuel should be observed |
| Testing Method 4: Electrical Test | Use a multimeter to check for voltage at the fuel pump connector (12V with key in "ON" position) |
| Testing Method 5: Manual Pump Lever | If equipped, manually operate the fuel pump lever to check for proper operation |
| Common Issues | Clogged fuel filter, weak diaphragm, faulty check valve, electrical issues |
| Replacement Considerations | Ensure compatibility with 1966 Mustang carbureted engines |
| Additional Tips | Clean fuel system components, check fuel tank for debris, verify carburetor condition |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, locate fuel pump, relieve fuel pressure
- Visual Inspection: Check for leaks, corrosion, loose connections, damaged wires, or worn components
- Electrical Testing: Use multimeter to test voltage, ground, and resistance at pump terminals
- Fuel Pressure Check: Attach gauge, measure pressure, compare to specs, check for drops or inconsistencies
- Operational Test: Listen for whine, verify fuel flow, test pump run time, check for proper shutdown
Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, locate fuel pump, relieve fuel pressure
Before testing the fuel pump on your 1966 Mustang, proper preparation is crucial to ensure accuracy, safety, and efficiency. Start by gathering the necessary tools: a fuel pressure gauge, wrenches or sockets (typically 1/2-inch or 9/16-inch for the fuel lines), a screwdriver, and a pair of safety gloves. A container to catch any spilled fuel and a clean rag for wiping surfaces are also essential. These tools will enable you to work methodically without interruptions, ensuring you can focus on diagnosing the fuel pump’s condition.
Safety should always be your top priority when working on a vehicle’s fuel system. Park the Mustang on a flat, stable surface and engage the parking brake. Work in a well-ventilated area, away from open flames or sparks, as fuel vapors are highly flammable. Wear safety goggles and gloves to protect against accidental fuel exposure. Additionally, avoid smoking or using any ignition sources nearby. These precautions minimize the risk of accidents and create a safer environment for troubleshooting.
With safety measures in place, disconnect the battery to prevent accidental electrical shorts or starting the engine during testing. Locate the negative terminal (usually marked with a "-" sign) and loosen the nut with a wrench. Carefully remove the cable and secure it away from the battery to ensure it doesn’t accidentally reconnect. This step is critical, as it eliminates the risk of electrical mishaps while working on the fuel system.
Next, locate the fuel pump, which on a 1966 Mustang is typically mounted on the driver’s side of the engine block near the firewall. Familiarize yourself with its position and the routing of the fuel lines. Once identified, relieve the fuel pressure to avoid spills or unexpected fuel spray. To do this, locate the Schrader valve on the fuel rail (similar to a tire valve stem) and press it with the rag to release any residual pressure. This step ensures a safer and cleaner testing process.
By systematically gathering tools, prioritizing safety, disconnecting the battery, locating the fuel pump, and relieving fuel pressure, you set the stage for a successful and safe fuel pump test. Each step builds on the last, creating a foundation for accurate diagnosis and preventing potential hazards. With these preparations complete, you’re ready to proceed with confidence, knowing you’ve taken the necessary precautions to protect yourself and your vehicle.
