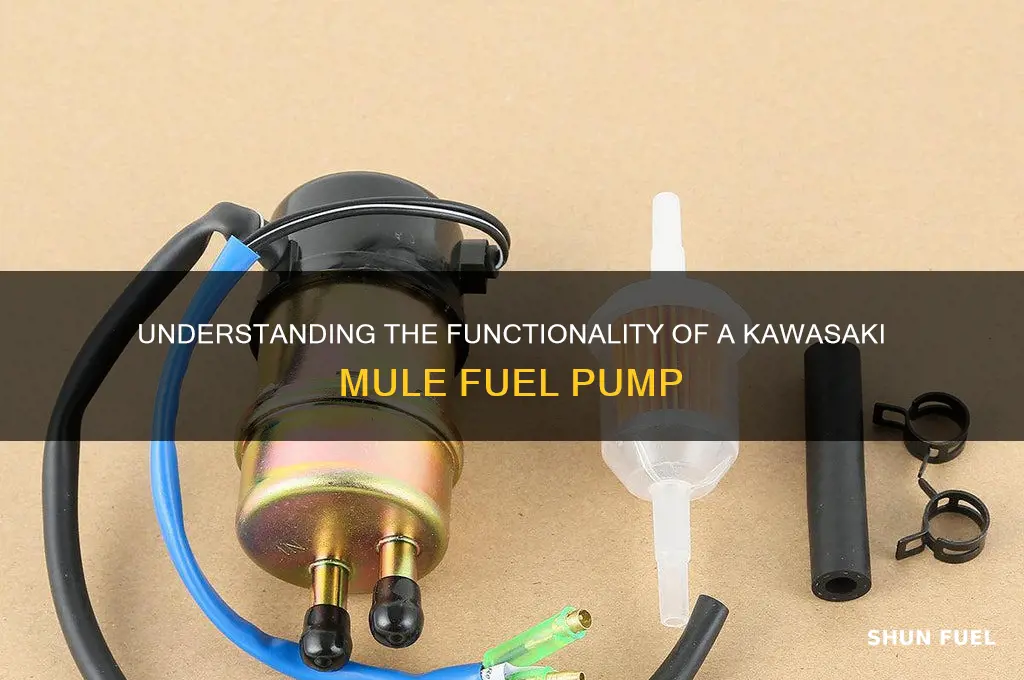

The Kawasaki Mule's fuel pump is a critical component of its fuel system, responsible for delivering fuel from the tank to the engine at the correct pressure and volume. Typically an electric pump, it is often located inside the fuel tank or mounted externally, depending on the model. When the ignition is turned on, the pump is activated by the vehicle's ECU (Engine Control Unit), which sends an electrical signal to start the pumping action. The pump draws fuel from the tank through a strainer to filter out debris, then pressurizes it and sends it through the fuel lines to the engine's injectors. This process ensures a consistent and reliable fuel supply, which is essential for the Mule's performance and efficiency. Understanding how the fuel pump operates can help diagnose issues such as poor starting, stalling, or reduced power, making it a key area of focus for maintenance and troubleshooting.
Explore related products
What You'll Learn
Fuel Pump Location and Access
The Kawasaki Mule's fuel pump is typically located within the fuel tank, a design choice that ensures a consistent fuel supply to the engine while minimizing the risk of contamination. This in-tank placement is a common feature in modern vehicles, including utility vehicles like the Mule, as it helps maintain fuel pressure and reduces the chances of air entering the fuel system. Accessing the fuel pump requires a methodical approach to avoid damage and ensure safety.
To access the fuel pump, start by relieving the fuel system pressure. This is a critical safety step, as it prevents fuel from spraying or leaking during the process. Locate the fuel pressure relief valve or use a specialized tool to depressurize the system. Once the pressure is relieved, disconnect the battery to eliminate any risk of electrical mishaps. These initial steps are essential for both your safety and the integrity of the vehicle’s fuel system.
Next, remove the fuel tank from the Mule. This involves disconnecting the fuel lines and any electrical connectors attached to the tank. Be cautious not to damage the quick-disconnect fittings, as they are crucial for a proper seal. With the tank removed, you’ll find the fuel pump assembly, which is usually secured by a locking ring or screws. Carefully remove the retaining mechanism to extract the pump without causing harm to the tank or its components.
Comparing the Kawasaki Mule’s fuel pump access to other vehicles highlights its straightforward design. Unlike some models that require extensive disassembly of the vehicle’s undercarriage, the Mule’s in-tank pump is relatively easy to reach once the tank is removed. However, the process still demands attention to detail, especially when handling fuel lines and electrical connections. A systematic approach ensures that the task is completed efficiently and safely.
In practice, accessing the fuel pump is often necessary for maintenance, such as replacing a faulty pump or cleaning the fuel tank. For instance, if the Mule exhibits symptoms like difficulty starting or erratic engine performance, the fuel pump may be the culprit. By following these steps, you can diagnose and address issues effectively. Always refer to the vehicle’s manual for specific instructions and torque values to ensure proper reassembly. This hands-on approach not only saves time and money but also enhances your understanding of the Mule’s fuel system.
Does the ECM Control the Fuel Pump in TBI Systems?
You may want to see also
Explore related products
Electrical Connections and Wiring
The Kawasaki Mule's fuel pump relies on a precise electrical system to deliver fuel efficiently. At its core, the fuel pump is an electric motor driven by a dedicated circuit, typically powered by a 12-volt supply from the vehicle’s battery. This circuit includes a fuse, relay, and wiring harness designed to handle the pump’s current draw, which can range from 2 to 5 amps depending on the model. Proper wiring ensures the pump operates only when the ignition is on, preventing unnecessary battery drain and potential overheating.
Analyzing the wiring diagram reveals a straightforward yet critical setup. The fuel pump’s power wire is usually connected to a relay, which is triggered by the ignition switch. This relay acts as a high-current switch, protecting the ignition circuit from overload. Grounding is equally important; a poor ground connection can cause voltage drop, leading to erratic pump operation or failure. Always inspect the ground wire for corrosion or loose connections, especially in off-road vehicles exposed to dirt and moisture.
When troubleshooting electrical issues, start with the basics. Check the fuse first—a blown fuse is a common culprit for pump failure. Next, test the relay by swapping it with a known-good one or using a multimeter to verify continuity. If the relay is functional, inspect the wiring harness for damage, such as frayed wires or disconnected terminals. A voltage drop test at the pump’s connector can pinpoint issues like high resistance in the circuit.
Comparatively, the Kawasaki Mule’s fuel pump wiring is simpler than that of more complex vehicles, but it demands attention to detail. Unlike mechanical pumps driven by the engine, electric pumps require a robust electrical connection to maintain consistent fuel pressure. Upgrading to a thicker gauge wire can improve reliability, especially in high-demand applications like towing or hauling. However, ensure the new wire is compatible with the pump’s current draw and the relay’s specifications.
In practice, preventive maintenance is key. Regularly clean and inspect all electrical connections, applying dielectric grease to terminals to prevent corrosion. When installing aftermarket accessories, avoid tapping into the fuel pump’s circuit, as this can overload the system. Instead, use a dedicated power source or install a secondary relay. By understanding and maintaining the electrical connections and wiring, you ensure the Kawasaki Mule’s fuel pump operates reliably, keeping your vehicle running smoothly in any terrain.
Optimal Fuel Pump Replacement Frequency: A Comprehensive Maintenance Guide
You may want to see also
Explore related products
Pump Operation and Pressure Regulation
The Kawasaki Mule's fuel pump is a critical component in its fuel delivery system, ensuring a consistent and regulated flow of fuel to the engine. At the heart of its operation is the pump's ability to maintain optimal pressure, which is crucial for efficient combustion. The pump typically operates within a pressure range of 30 to 60 PSI (pounds per square inch), depending on the engine's demands and the specific model of the Mule. This pressure is regulated by a built-in pressure regulator, which ensures that excess fuel is returned to the tank, preventing over-pressurization and potential damage to the system.
Understanding the pump's operation begins with its activation. The fuel pump is usually electric and is activated by the ignition system when the key is turned on. Once activated, it draws fuel from the tank through a filter, which removes contaminants before the fuel enters the pump. The pump then pressurizes the fuel and sends it through the fuel lines to the injectors or carburetor, depending on the Mule's fuel system. This process is continuous as long as the engine is running, ensuring a steady supply of fuel.
Pressure regulation is a key aspect of the fuel pump's function, and it is achieved through a combination of mechanical and electronic controls. The pressure regulator monitors the fuel pressure and adjusts it by opening or closing a valve that returns excess fuel to the tank. This feedback loop ensures that the pressure remains within the optimal range, regardless of engine load or speed. For example, during acceleration, the engine demands more fuel, and the pump increases pressure to meet this demand. Conversely, during idle or deceleration, the pressure is reduced to conserve fuel and prevent wastage.
One practical tip for maintaining the fuel pump's efficiency is to regularly inspect and replace the fuel filter. A clogged filter can restrict fuel flow, causing the pump to work harder and potentially leading to premature failure. Additionally, using high-quality fuel and avoiding contaminants in the tank can prevent internal damage to the pump and regulator. For older Kawasaki Mule models, it’s advisable to check the fuel pump’s electrical connections periodically, as corrosion or loose connections can disrupt its operation.
In comparison to other fuel systems, the Kawasaki Mule’s design prioritizes reliability and simplicity. Unlike some high-performance vehicles that use multi-stage pumps or complex electronic controls, the Mule’s system is straightforward, making it easier to diagnose and repair. However, this simplicity does not compromise its effectiveness, as the pump and regulator work seamlessly to deliver fuel under the right conditions. By understanding these mechanics, owners can better maintain their Mule and ensure it operates efficiently for years to come.
Ignition Switch and Fuel Pump: Understanding Their Interconnected Functionality
You may want to see also
Explore related products
Fuel Filter Integration and Maintenance
The Kawasaki Mule's fuel pump system is a critical component, ensuring a steady supply of fuel to the engine. One often overlooked yet vital aspect of this system is the fuel filter, which plays a pivotal role in maintaining engine performance and longevity. Integrated seamlessly into the fuel pump assembly, the fuel filter's primary function is to trap contaminants, ensuring only clean fuel reaches the engine. This integration is not just a design choice but a strategic move to optimize fuel flow and filtration efficiency.
The Science Behind Integration
By embedding the fuel filter within the fuel pump module, Kawasaki engineers have minimized pressure drop across the system. This design ensures that fuel is filtered effectively without compromising the pump’s ability to deliver the required volume at varying engine demands. The filter’s placement also reduces the risk of air pockets forming in the fuel lines, a common issue in external filter setups. This integrated approach is particularly beneficial in the Mule’s rugged operating environment, where dust, debris, and water contamination are frequent concerns.
Maintenance Protocols for Longevity
Regular maintenance of the integrated fuel filter is non-negotiable for optimal performance. Kawasaki recommends replacing the fuel filter every 100 to 150 hours of operation, depending on usage conditions. For heavy-duty applications or in dusty environments, more frequent inspections and replacements may be necessary. To replace the filter, start by relieving fuel system pressure, then disconnect the fuel lines and remove the pump assembly. The filter is typically housed within the pump module, accessible after disassembling the unit. Always use OEM filters to ensure compatibility and performance.
Troubleshooting Common Issues
A clogged or failing fuel filter can manifest as engine hesitation, reduced power, or difficulty starting. If these symptoms arise, inspect the filter for visible debris or discoloration. In extreme cases, a severely clogged filter can cause the fuel pump to overwork, leading to premature failure. To prevent this, adhere to the maintenance schedule and consider using fuel additives to mitigate contamination. However, additives should not replace regular filter changes but rather complement them.
Comparative Advantage Over External Filters
Compared to external fuel filter setups, the integrated design in the Kawasaki Mule offers several advantages. It reduces the number of potential leak points, enhances fuel system reliability, and simplifies maintenance by consolidating components. While external filters may be easier to access, they often introduce inefficiencies in fuel flow and are more susceptible to damage in off-road conditions. The integrated filter’s proximity to the pump also ensures that any contamination is captured before it can affect the pump’s internal components, prolonging its lifespan.
In summary, the fuel filter’s integration into the Kawasaki Mule’s fuel pump is a testament to thoughtful engineering. Proper maintenance of this component is essential to safeguard engine health and ensure uninterrupted operation. By understanding its role and adhering to recommended practices, users can maximize the Mule’s performance and reliability in even the most demanding environments.
Accessing the Fuel Pump on a Sterling 827: Step-by-Step Guide
You may want to see also
Explore related products
Troubleshooting Common Pump Issues
A fuel pump is the heart of your Kawasaki Mule's fuel system, and like any vital organ, it can experience issues that affect performance. Understanding common problems and their symptoms is the first step in troubleshooting. One frequent issue is a weak or failing pump, which may manifest as difficulty starting, sputtering during acceleration, or a complete loss of power. These symptoms often indicate reduced fuel pressure, a critical factor for efficient engine operation.
Diagnosing the Problem: Start by checking the fuel pump's electrical connections for corrosion or loose wires, as these can disrupt power supply. Ensure the pump is receiving the correct voltage; a multimeter can verify this. If the connections are secure and power is adequate, the issue may lie within the pump itself. Over time, internal components can wear, leading to decreased performance. For instance, a worn-out pump diaphragm might not create sufficient pressure, resulting in inadequate fuel delivery.
Practical Troubleshooting Steps: Begin with a simple fuel pressure test using a gauge to measure the pump's output. Compare the reading to the manufacturer's specifications; a significant deviation suggests a problem. If pressure is low, inspect the fuel filter for clogs, as this can restrict flow and strain the pump. Replacing the filter is a straightforward task and should be part of regular maintenance, especially in dusty environments. Another potential culprit is the fuel pump relay, which controls power to the pump. A faulty relay may cause intermittent power supply, leading to erratic pump behavior.
When addressing fuel pump issues, it's crucial to consider the age and usage of your Kawasaki Mule. Older vehicles might require more frequent maintenance, and certain environments can accelerate wear. For instance, operating in muddy conditions may lead to increased debris in the fuel system, necessitating more regular filter changes. Additionally, extreme temperatures can affect pump performance, with cold weather potentially causing fuel line restrictions and hot conditions leading to vapor lock.
Preventive Measures: Regular maintenance is key to avoiding pump-related problems. This includes routine inspections, cleaning, and replacing filters and relays as recommended by Kawasaki. Keeping the fuel system clean and well-maintained ensures optimal pump performance and prolongs its lifespan. For users in demanding environments, consider upgrading to a higher-capacity fuel filter or installing a pre-filter to capture larger particles before they reach the pump. These proactive steps can save time and money by reducing the likelihood of unexpected breakdowns.
How Gas Station Fuel Pumps Work: A Comprehensive Guide
You may want to see also
Frequently asked questions
The Kawasaki Mule fuel pump is an electric pump that draws fuel from the tank and delivers it to the engine under the correct pressure. It is typically controlled by the vehicle's ECU (Engine Control Unit) and operates only when the ignition is on to conserve energy.
Common signs include difficulty starting the engine, sputtering or stalling during operation, reduced engine performance, and unusual noises coming from the fuel tank area. A fuel pressure test can confirm if the pump is malfunctioning.
Replacing the fuel pump in a Kawasaki Mule can be done by a skilled DIYer with the right tools and knowledge. However, it involves working with the fuel system, so if you're unsure, it’s best to consult a professional mechanic to ensure safety and proper installation.
