Opening the fuel pump on a Toyota Yaris requires careful attention to safety and proper procedure. Begin by ensuring the vehicle is parked on a flat surface, the engine is turned off, and the ignition is in the Off position to prevent accidental starts. Next, locate the fuel pump, which is typically situated within the fuel tank, accessible from the underside of the vehicle. Before proceeding, relieve the fuel system pressure by disconnecting the fuel pump fuse or relay and starting the engine until it stalls. Once pressure is released, disconnect the negative battery terminal to avoid electrical hazards. Then, safely raise the vehicle using a jack and secure it on stands. Locate the fuel tank and carefully remove the fuel pump access panel or the tank itself, depending on the model. Finally, disconnect the electrical connectors and fuel lines from the pump, taking care not to damage any components, before removing the pump for inspection or replacement. Always refer to the vehicle’s manual for model-specific instructions and safety guidelines.
| Characteristics | Values |
|---|---|
| Vehicle Model | Toyota Yaris |
| Fuel Pump Location | Inside the fuel tank |
| Tools Required | Jack, Jack Stands, Wrenches (10mm, 12mm), Screwdriver, Pliers, New Fuel Pump (if replacing), Safety Gloves, Safety Goggles |
| Steps to Access Fuel Pump | 1. Ensure vehicle is on a flat surface and engage parking brake. 2. Jack up the vehicle and secure on jack stands. 3. Locate the fuel tank (usually under the rear seat or trunk). 4. Relieve fuel system pressure by locating the Schrader valve on the fuel rail and releasing pressure. 5. Disconnect the negative battery terminal. 6. Remove the rear seat or trunk lining to access the fuel pump assembly. 7. Disconnect electrical connectors and fuel lines from the pump. 8. Remove the retaining bolts securing the fuel pump to the tank. |
| Safety Precautions | Work in a well-ventilated area, avoid open flames or sparks, wear safety gloves and goggles, ensure vehicle is stable on jack stands. |
| Replacement Considerations | If replacing the fuel pump, ensure compatibility with the Yaris model year and engine type. |
| Reassembly | Follow disassembly steps in reverse order, ensuring all connections are secure and fuel lines are properly attached. |
| Post-Installation | Check for leaks, reconnect the battery, and test the fuel pump operation before driving. |
| Professional Assistance | If unsure, consult a professional mechanic to avoid damage or safety risks. |
Explore related products
What You'll Learn
- Locate Fuel Pump: Identify Yaris fuel pump location under rear seat for easy access
- Remove Rear Seat: Lift and detach rear seat to expose fuel pump assembly
- Disconnect Battery: Ensure safety by disconnecting car battery before working on fuel pump
- Release Fuel Pressure: Relieve system pressure using the fuel pressure relief valve
- Access Fuel Pump: Remove access panel and disconnect electrical and fuel lines
Locate Fuel Pump: Identify Yaris fuel pump location under rear seat for easy access
The Toyota Yaris fuel pump is strategically located under the rear seat, a design choice that balances accessibility with safety. This placement ensures the fuel pump is shielded from external elements while remaining reachable for maintenance. Unlike models where the fuel pump is buried deep within the fuel tank, the Yaris’s configuration allows for quicker diagnostics and repairs, saving both time and labor costs. This section will guide you through identifying and accessing this critical component efficiently.
To locate the Yaris fuel pump, start by folding down the rear seat to expose the access panel. This panel is typically secured with a few screws or clips, which can be removed using a standard screwdriver or trim tool. Once the panel is off, you’ll find the fuel pump assembly nestled within a protective housing. It’s important to note that the fuel pump is part of a module that includes the sending unit and float, so handle the assembly with care to avoid damage. If you’re unsure about any step, consult the vehicle’s manual for model-specific details.
One of the advantages of the Yaris’s fuel pump location is the ease of access for troubleshooting. For instance, if you suspect a faulty fuel pump, you can directly test the component without removing the fuel tank. Use a multimeter to check for power at the pump’s electrical connector, ensuring the ignition is on during the test. If power is present but the pump isn’t functioning, it’s likely time for a replacement. Always disconnect the battery before proceeding with any electrical work to prevent accidents.
Comparatively, vehicles with fuel pumps inside the tank require more extensive disassembly, often involving draining the fuel and removing the tank itself. The Yaris’s design eliminates these steps, making it a more DIY-friendly vehicle for fuel system maintenance. However, this accessibility doesn’t compromise safety; the pump is still well-protected within the vehicle’s structure. For those new to car repairs, this setup provides a practical starting point to build confidence in handling automotive tasks.
In conclusion, identifying the Yaris fuel pump under the rear seat is a straightforward process that maximizes convenience. By understanding its location and the steps to access it, you can tackle fuel pump-related issues with greater ease. Whether you’re performing routine checks or addressing specific problems, this knowledge empowers you to maintain your vehicle efficiently. Always prioritize safety and refer to reliable resources when working on your car’s fuel system.
Step-by-Step Guide: Installing a Fuel Pump in a 2010 Nissan Murano
You may want to see also
Explore related products
Remove Rear Seat: Lift and detach rear seat to expose fuel pump assembly
Accessing the fuel pump assembly in a Toyota Yaris requires removing the rear seat, a task that is straightforward but demands attention to detail. Begin by locating the rear seat release mechanisms, typically found at the front edge of the seat cushion. Press these levers or buttons simultaneously, and then lift the seat cushion upward to detach it from the floor. This action exposes the bolts securing the seatback. Use a socket wrench with the appropriate size socket to remove these bolts, ensuring you keep track of the hardware for reassembly. Once the bolts are removed, lift the seatback upward and out of the vehicle, revealing the fuel pump assembly beneath.
The process of removing the rear seat not only provides access to the fuel pump but also offers an opportunity to inspect the seat’s condition and the underlying area for any signs of wear or damage. For instance, check for frayed wiring, moisture accumulation, or debris that could affect the fuel pump’s operation. This step is particularly important if you suspect a fuel pump issue, as it allows for a comprehensive assessment of the surrounding environment. Additionally, removing the seat carefully minimizes the risk of damaging interior components, which can be costly to repair or replace.
While the task appears simple, there are a few cautions to consider. Avoid using excessive force when lifting the seat cushion or seatback, as this can damage the release mechanisms or the seat frame. If the seat feels stuck, double-check that all release levers are fully engaged. For models with side airbags integrated into the seat, consult the vehicle’s manual to ensure you follow any specific safety procedures. Wearing gloves during this process is also advisable to protect your hands from sharp edges or dirt.
In comparison to other vehicles, the Toyota Yaris’s rear seat removal process is notably user-friendly, requiring minimal tools and technical expertise. This design reflects Toyota’s emphasis on accessibility for DIY maintenance tasks. However, it’s worth noting that the fuel pump assembly itself may still require specialized knowledge or tools to service or replace. Therefore, while removing the seat is a manageable step, proceed with caution when addressing the fuel pump to avoid complications.
Practically, this procedure is ideal for troubleshooting fuel system issues, such as a failing fuel pump, or for routine inspections. For example, if your Yaris exhibits symptoms like stalling, sputtering, or difficulty starting, accessing the fuel pump assembly is a critical diagnostic step. By following these instructions, you can efficiently expose the assembly, saving time and potentially reducing the need for professional intervention. Always ensure the vehicle is on a level surface, the ignition is off, and the fuel tank is as empty as possible to minimize hazards during the process.
Snowmobile Fuel Pump Testing: A Step-by-Step Troubleshooting Guide
You may want to see also
Explore related products
Disconnect Battery: Ensure safety by disconnecting car battery before working on fuel pump
Before diving into the intricacies of accessing the fuel pump in a Toyota Yaris, it's crucial to address a fundamental safety measure: disconnecting the car battery. This step is not merely a precautionary tale but a critical action that can prevent accidents, injuries, and potential damage to your vehicle. The electrical system in modern cars, including the Yaris, is designed to be highly efficient, but it also means that even a small mistake can have significant consequences when working on components like the fuel pump.
From an analytical perspective, the fuel pump operates within a high-pressure fuel system, which is inherently dangerous due to the flammable nature of gasoline. By disconnecting the battery, you eliminate the risk of accidental ignition caused by electrical sparks. This is particularly important in the Yaris, where the fuel pump is often located near the fuel tank, an area prone to fuel vapors. A single spark can lead to a fire or explosion, making this step non-negotiable. For instance, a 12-volt electrical system, standard in most vehicles, can generate enough energy to ignite fuel vapors under the right conditions.
Instructively, disconnecting the battery is a straightforward process. Start by locating the battery, typically found in the engine bay of the Yaris. Use a wrench to loosen the nut on the negative terminal (marked with a "-" sign) and carefully remove the cable. Ensure the cable does not come into contact with any metal surfaces while you work. If your Yaris has a battery disconnect switch, engage it as an additional safety measure. This process should take no more than 5 minutes, but its impact on safety is immeasurable.
Comparatively, skipping this step might seem like a time-saver, but it pales in comparison to the risks involved. Consider the scenario of working on the fuel pump without disconnecting the battery: a slipped tool or an unintended connection could send an electrical current through the fuel system. In contrast, taking the time to disconnect the battery ensures a controlled environment, allowing you to focus on the task at hand without the looming threat of electrical mishaps.
Descriptively, imagine the peace of mind that comes with knowing you’ve taken every precaution. The battery is disconnected, and the electrical system is dormant. You can now proceed to access the fuel pump, whether it’s located under the rear seat or near the fuel tank, with confidence. This simple yet vital step transforms a potentially hazardous task into a manageable one, highlighting its importance in the overall process of opening the Yaris fuel pump. Always prioritize safety, as it is the foundation upon which all successful repairs are built.
Changing Fuel Pump on a 1995 Harley Dresser: Timeframe Guide
You may want to see also
Explore related products
Release Fuel Pressure: Relieve system pressure using the fuel pressure relief valve
Before attempting any work on your Yaris' fuel pump, safety must come first. Fuel systems operate under pressure, and releasing that pressure is a critical step to prevent accidents. The fuel pressure relief valve is your key to achieving this, and understanding its function is essential for a safe and successful fuel pump access.
This valve, typically located near the fuel rail, allows you to depressurize the system, minimizing the risk of fuel spray or leaks during maintenance.
Locating the fuel pressure relief valve on your Yaris is the first step. Consult your vehicle's manual for its exact location, as it can vary depending on the model year. Once identified, the process is straightforward. With the engine off and cool, simply depress the valve's plunger or turn its knob, depending on the design. This action releases the pressure built up in the fuel lines, allowing for safer access to the fuel pump.
Remember, this step is crucial, as residual pressure can lead to dangerous fuel spray when the pump is opened.
The importance of this pressure relief step cannot be overstated. Fuel under pressure can cause serious injuries if released unexpectedly. By taking the time to properly depressurize the system, you significantly reduce the risk of accidents. This simple precaution is a fundamental aspect of responsible vehicle maintenance and should never be skipped.
In summary, releasing fuel pressure through the relief valve is a vital safety measure when working on your Yaris' fuel pump. It's a quick and easy process that ensures a safer environment for your maintenance tasks. Always prioritize safety by following this step before attempting any fuel system repairs or inspections.
Step-by-Step Guide to Hard Wiring Your Fuel Pump Safely
You may want to see also
Explore related products

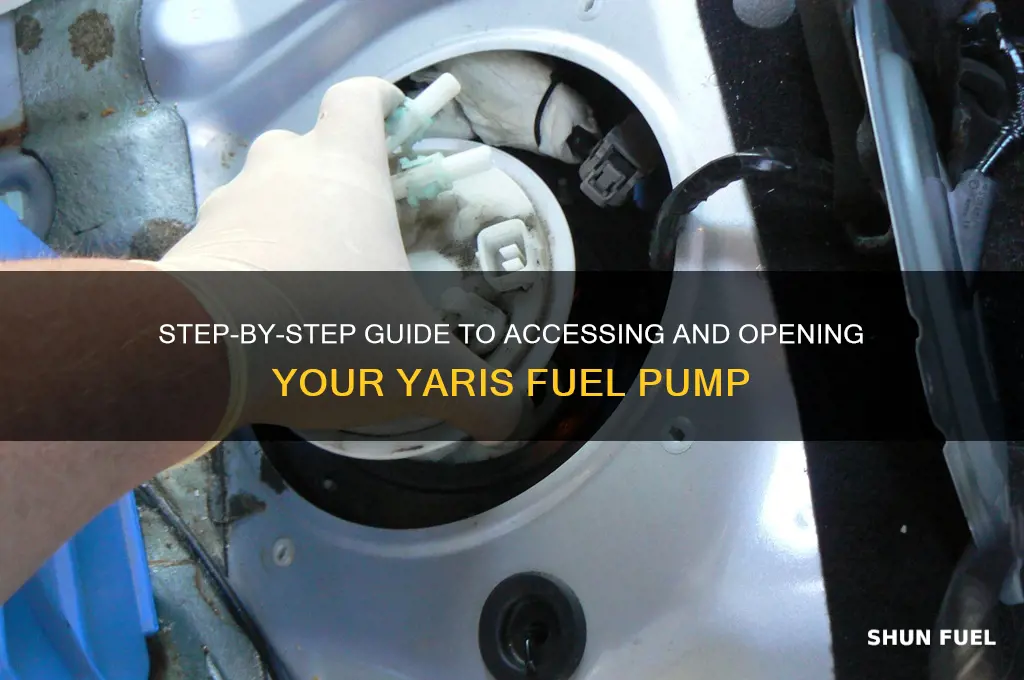

Access Fuel Pump: Remove access panel and disconnect electrical and fuel lines
The Toyota Yaris fuel pump is nestled within the fuel tank, requiring precise steps to access and service. Begin by locating the access panel, typically situated beneath the rear seat or trunk area, depending on your Yaris model year. This panel serves as the gateway to the fuel pump assembly, shielding it from debris and accidental damage. Removing it demands a blend of caution and precision to avoid compromising the vehicle’s fuel system integrity.
Once the access panel is exposed, disconnecting the electrical and fuel lines becomes the critical next step. Start with the electrical connector, which supplies power to the fuel pump. Gently release the locking tab and pull the connector apart, ensuring no wires are strained or damaged. Next, address the fuel lines, which transport gasoline to and from the pump. Use appropriate tools, such as fuel line disconnect tools, to avoid spills or kinking. Always work in a well-ventilated area and have a catch pan ready to contain any residual fuel.
A comparative analysis reveals that newer Yaris models often feature quick-disconnect fittings for the fuel lines, simplifying the process compared to older versions. However, regardless of the model, patience is paramount. Rushing this step risks damaging components or creating leaks, which can lead to costly repairs or safety hazards. For instance, forcing a fuel line disconnect can cause O-ring failure, necessitating replacement parts.
Persuasively, investing in a fuel line disconnect tool kit is a practical tip for DIY enthusiasts. These kits, typically priced between $20 and $50, include specialized tools designed to safely separate fuel lines without damage. Additionally, applying a small amount of silicone grease to O-rings during reassembly can enhance longevity and ensure a leak-free connection.
In conclusion, accessing the Yaris fuel pump by removing the access panel and disconnecting electrical and fuel lines is a task that blends technical precision with practical caution. By following these steps methodically and equipping yourself with the right tools, you can efficiently service the fuel pump while minimizing risks. Always prioritize safety, especially when dealing with flammable materials, and consult your vehicle’s manual for model-specific guidance.
Understanding External Fuel Pumps: Functionality, Benefits, and Maintenance Tips
You may want to see also
Frequently asked questions
To access the fuel pump, you'll need to remove the rear seat cushion. Lift the seat and locate the fuel pump access panel, then remove the screws or bolts holding it in place.
You'll typically need a screwdriver (Phillips or flathead, depending on the screws), a wrench or socket set, and possibly a trim removal tool to safely pry off any panels.
Yes, it's crucial to relieve fuel pressure to avoid fuel spray or potential hazards. You can do this by disconnecting the fuel pump fuse or relay and running the engine until it stalls.
In most cases, the fuel pump is located inside the fuel tank, so you'll need to remove the tank to access and replace the pump. However, some models may have an access panel that allows for pump replacement without tank removal.
Always work in a well-ventilated area, avoid open flames or sparks, and ensure the vehicle is on a level surface with the engine turned off. Additionally, wear safety goggles and gloves to protect yourself from fuel exposure.
