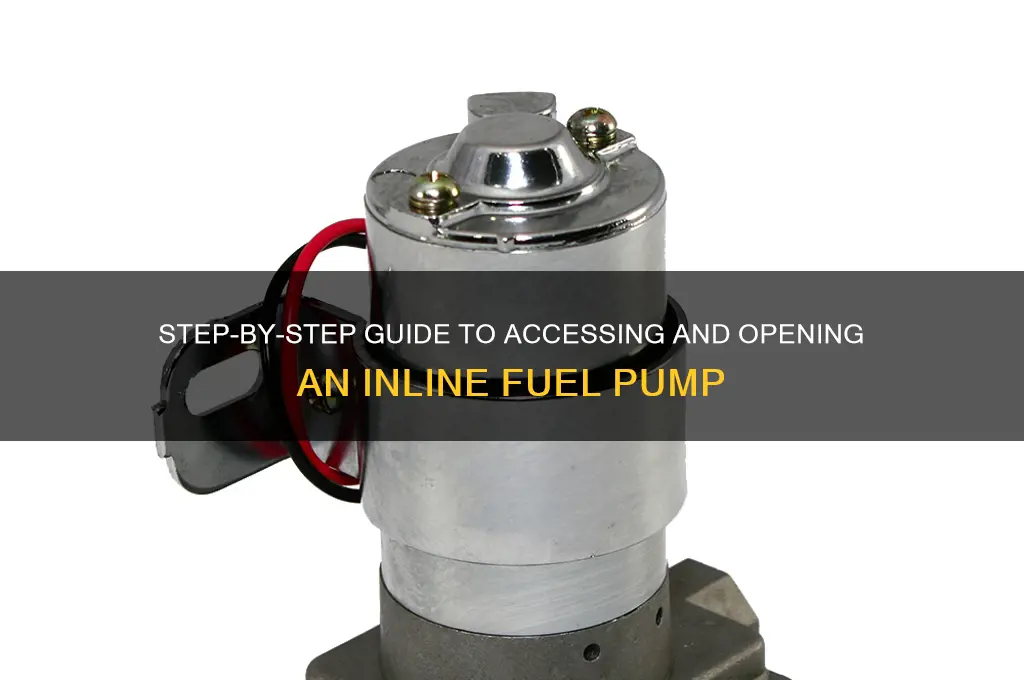

Opening up an inline fuel pump requires careful preparation and attention to detail to ensure safety and prevent damage. Before starting, disconnect the vehicle’s battery and relieve fuel system pressure to avoid accidents. Locate the pump, typically found along the fuel line between the tank and engine, and inspect it for any signs of damage or leaks. Using appropriate tools, carefully disconnect the fuel lines and electrical connectors, taking note of their positions for reassembly. Once disconnected, remove the mounting brackets or clamps securing the pump and gently extract it from its housing. With the pump exposed, you can proceed to disassemble it further for inspection, cleaning, or replacement of internal components, ensuring all steps are performed methodically to maintain the integrity of the fuel system.
| Characteristics | Values |
|---|---|
| Safety Precautions | Wear safety goggles, gloves, and work in a well-ventilated area. Ensure the vehicle is on a level surface, engine is off, and fuel system is depressurized. |
| Tools Required | Screwdrivers (flat and Phillips), pliers, wrenches, fuel line disconnect tools, new O-rings/seals, and a drain pan. |
| Fuel System Depressurization | Locate the fuel pump relay or fuse, remove it, and start the engine until it stalls. Alternatively, use a scan tool to relieve fuel pressure. |
| Fuel Line Disconnection | Use fuel line disconnect tools to separate the lines from the pump. Place a drain pan underneath to catch any residual fuel. |
| Pump Mounting | Identify how the pump is mounted (clamps, brackets, or bolts) and remove the securing hardware to free the pump. |
| Pump Disassembly | Carefully pry or unscrew the pump casing, depending on the design. Inspect internal components like the motor, impeller, and filter. |
| Cleaning/Inspection | Clean the pump internals with carburetor cleaner and inspect for wear, debris, or damage. Replace faulty components as needed. |
| Reassembly | Reassemble the pump with new O-rings/seals, ensuring proper alignment and tightness. Reattach fuel lines and secure the pump in place. |
| Post-Installation | Reconnect the fuel pump relay/fuse, check for leaks, and test the fuel system for proper operation. |
| Common Issues | Clogged filters, worn brushes, or faulty motors are typical problems. Always refer to the vehicle’s service manual for specific instructions. |
Explore related products
What You'll Learn
- Safety Precautions: Wear gloves, goggles, ensure vehicle is off, and relieve fuel pressure before starting
- Locate the Pump: Identify the fuel pump location, typically inside the fuel tank or near the engine
- Disconnect Battery: Remove the negative battery terminal to prevent electrical accidents during the process
- Access the Pump: Lower the fuel tank or remove access panels to expose the inline fuel pump
- Remove and Replace: Disconnect fuel lines and electrical connectors, then carefully remove and install the new pump
Safety Precautions: Wear gloves, goggles, ensure vehicle is off, and relieve fuel pressure before starting
Fuel systems operate under pressure and contain highly flammable substances, making safety precautions non-negotiable. Before attempting to open an inline fuel pump, wear nitrile gloves to protect your skin from gasoline, which can cause irritation and absorb harmful chemicals. Pair these with ANSI Z87.1-rated safety goggles to shield your eyes from fuel splashes or debris. These simple measures significantly reduce the risk of chemical burns and eye injuries, ensuring you can focus on the task without unnecessary hazards.
With personal protective equipment in place, the next critical step is to ensure the vehicle is completely turned off. This means not just the ignition but also the engine’s electrical systems, which can still energize the fuel pump even when idling. Disconnect the battery terminals to eliminate any chance of accidental activation. Fuel pumps rely on electricity to operate, and a live current during disassembly can lead to sparks, potentially igniting fuel vapors. This precaution is as much about preventing fires as it is about protecting the pump’s internal components from damage.
Relieving fuel pressure is the final, indispensable safety step before opening the inline pump. Modern vehicles often have a Schrader valve on the fuel rail, allowing you to depressurize the system safely. Attach a pressure gauge, open the valve, and monitor until the reading drops to zero. For older systems without a valve, remove the fuel pump fuse or relay and crank the engine for a few seconds to bleed pressure. Skipping this step can result in fuel spraying forcefully when the pump is opened, creating a hazardous environment and complicating the repair process.
These precautions—gloves, goggles, disabling power, and relieving pressure—form a safety net that transforms a potentially dangerous task into a manageable one. Each step addresses a specific risk: chemical exposure, electrical hazards, and pressurized fuel. By adhering to this protocol, you not only protect yourself but also ensure the integrity of the repair, allowing you to focus on the technical aspects of opening the inline fuel pump without unnecessary risks. Safety here isn’t just a recommendation; it’s the foundation of a successful and secure repair.
Mastering Fuel Pump RPM Calculation: A Step-by-Step Guide
You may want to see also
Explore related products
Locate the Pump: Identify the fuel pump location, typically inside the fuel tank or near the engine
The first step in opening up an inline fuel pump is pinpointing its exact location, a task that hinges on understanding your vehicle’s design. Most inline fuel pumps are situated either inside the fuel tank or along the fuel line near the engine. For vehicles with in-tank pumps, you’ll need to access the fuel tank, often requiring the removal of the rear seat or a dedicated access panel. If the pump is near the engine, it’s typically mounted on the chassis or firewall, identifiable by its cylindrical shape and fuel lines connected to both ends. Knowing your vehicle’s make and model can streamline this process, as manufacturer diagrams often highlight the pump’s position.
Analyzing the placement of the fuel pump reveals strategic engineering decisions. In-tank pumps are common in modern vehicles because they’re submerged in fuel, which helps dissipate heat and reduces the risk of vapor lock. Conversely, pumps located near the engine are often found in older or performance-oriented vehicles, where accessibility for maintenance or upgrades is prioritized. Understanding this distinction not only aids in locating the pump but also provides insight into its function and potential vulnerabilities. For instance, in-tank pumps may require tank removal for service, while external pumps are generally easier to access but more exposed to environmental factors.
To locate the pump efficiently, start by consulting your vehicle’s service manual or online resources specific to your make and model. If the pump is in-tank, identify the fuel tank’s position beneath the vehicle—typically under the rear seat or trunk area. For external pumps, trace the fuel lines from the tank to the engine, looking for a cylindrical component with electrical connectors and fuel hoses. Practical tips include using a flashlight for better visibility and wearing safety gear, as working near fuel systems carries inherent risks. Once located, mark the area with tape or a tool to avoid confusion during the disassembly process.
A comparative approach highlights the trade-offs between in-tank and external fuel pump locations. In-tank pumps offer better cooling and reduced noise but are more labor-intensive to replace. External pumps, while easier to access, may suffer from heat exposure and are more prone to contamination if fuel lines are compromised. For DIY enthusiasts, external pumps are generally more beginner-friendly to service, whereas in-tank pumps often require specialized tools and a higher skill level. Weighing these factors can help you anticipate the complexity of the task and prepare accordingly, whether you’re performing routine maintenance or troubleshooting issues.
Finally, a descriptive walkthrough can demystify the process of identifying the fuel pump’s location. Imagine lifting your vehicle on jacks or ramps to access the underside. For an in-tank pump, you’ll see the fuel tank, often a large metal or plastic container, with a pump module attached to its top. This module includes the pump, sender unit, and sometimes a filter. For external pumps, follow the fuel lines from the tank toward the engine bay. The pump will appear as a small, cylindrical unit, usually secured with brackets and connected to the fuel system via hoses and electrical wiring. Visualizing these details ensures you’re prepared to proceed with confidence, turning a potentially daunting task into a manageable one.
Could Your Fuel Pump Be Failing? Signs and Symptoms to Check
You may want to see also
Explore related products
Disconnect Battery: Remove the negative battery terminal to prevent electrical accidents during the process
Before attempting to open an inline fuel pump, it's crucial to prioritize safety by disconnecting the battery. This step is often overlooked but is essential to prevent electrical accidents that can occur when working on a vehicle's fuel system. The process is straightforward: locate the negative battery terminal, typically marked with a minus (-) sign, and use a wrench or socket to loosen the nut securing the cable. Once loosened, carefully pull the cable away from the battery terminal, ensuring it doesn't come into contact with any metal surfaces that could create a short circuit.
From an analytical perspective, disconnecting the battery serves a dual purpose. Firstly, it eliminates the risk of electrical arcing, which can ignite fuel vapors and cause a fire. Secondly, it prevents unintended activation of the fuel pump, which could lead to fuel spillage or pressure buildup in the system. This precautionary measure is particularly vital when working on older vehicles or those with corroded electrical connections, where the likelihood of shorts or malfunctions is higher.
Instructively, the process should take no more than 2-3 minutes, provided you have the correct tools. A 10mm or 13mm wrench is typically sufficient for most vehicles, though some may require a socket set. After removing the negative terminal, it’s a good practice to secure the cable with electrical tape or a zip tie to ensure it doesn’t accidentally reconnect. Additionally, if your vehicle has a battery with a built-in cover or guard, remove it carefully to access the terminal without damaging any components.
Persuasively, consider this: the few minutes spent disconnecting the battery could save you from a potentially catastrophic accident. Fuel systems are inherently dangerous due to the flammable nature of gasoline, and even a small spark can have severe consequences. By taking this simple step, you not only protect yourself but also ensure the longevity of your vehicle’s electrical system, as accidental shorts can damage sensitive components like the ECU or fuel pump relay.
Comparatively, while some may argue that modern vehicles have safeguards to prevent electrical accidents, these systems are not foolproof. For instance, a faulty sensor or a malfunctioning relay could still activate the fuel pump unexpectedly. In contrast, disconnecting the battery provides an absolute guarantee of safety, making it a universally recommended practice regardless of the vehicle’s age or condition. This step is as fundamental as wearing gloves when handling chemicals—a small action with significant protective benefits.
Does Ford PATS System Shut Down Fuel Pump? Explained
You may want to see also
Explore related products
Access the Pump: Lower the fuel tank or remove access panels to expose the inline fuel pump
Accessing an inline fuel pump often requires a strategic approach to vehicle disassembly, as the pump is typically nestled within the fuel tank or concealed behind access panels. The first step is to determine the pump’s location, which varies by make and model. Consult your vehicle’s service manual or online resources specific to your car to identify whether the pump is inside the tank or mounted externally along the fuel line. This initial research saves time and prevents unnecessary disassembly of components.
If the inline fuel pump is located within the fuel tank, lowering the tank becomes the primary method of access. Begin by relieving fuel system pressure to avoid spills or hazards. Disconnect the negative battery terminal to prevent accidental ignition. Then, locate and remove the fuel tank retaining straps or bolts, ensuring the tank is supported as you lower it. Use a jack or a secure stand to control the tank’s descent, as fuel tanks can be heavy and awkward to handle. Once lowered, the pump assembly should be visible, allowing you to proceed with inspection or replacement.
Alternatively, some vehicles house the inline fuel pump behind access panels, often found beneath the rear seat or in the trunk. In these cases, remove the panels by unsnapping plastic retainers or unscrewing bolts. Be cautious not to damage trim pieces or wiring harnesses during removal. Once the panel is off, the pump should be exposed, though it may still require disconnecting electrical connectors or fuel lines for full access. This method is less labor-intensive than lowering the fuel tank but requires precision to avoid collateral damage.
Regardless of the method, safety is paramount. Work in a well-ventilated area, avoid open flames or sparks, and wear protective gloves to handle fuel and components. If you’re unsure about any step, consider seeking assistance from a professional mechanic. Proper access to the inline fuel pump ensures efficient troubleshooting, repair, or replacement, ultimately restoring your vehicle’s fuel system to optimal performance.
Checking Your Fuel Pump Float: A Step-by-Step Guide for DIY Mechanics
You may want to see also
Explore related products
Remove and Replace: Disconnect fuel lines and electrical connectors, then carefully remove and install the new pump
Before tackling the removal and replacement of an inline fuel pump, it's crucial to understand the precision required. Fuel systems operate under pressure, and mishandling components can lead to leaks, fires, or system damage. Start by disconnecting the battery to eliminate any risk of electrical sparks. Next, relieve the fuel system pressure using the vehicle’s designated Schrader valve, typically located near the fuel rail. This step is non-negotiable, as residual pressure can cause fuel to spray dangerously when lines are disconnected. Always work in a well-ventilated area and avoid open flames or sparks.
Once safety measures are in place, focus on the fuel lines and electrical connectors. Most inline fuel pumps have two fuel lines: an inlet and an outlet. Use appropriate tools, such as fuel line disconnect tools, to release the clips securing the lines. Avoid forcing them, as this can damage the quick-connect fittings. Label the lines (e.g., "inlet" and "outlet") or take a photo for reference during reinstallation. Electrical connectors are usually secured with clips or screws; gently pry or unscrew them, ensuring not to pull on the wires themselves. Inspect the connectors for corrosion or damage—if found, consider replacing them to ensure a reliable connection.
With the lines and connectors detached, carefully remove the fuel pump from its mounting location. Depending on the vehicle, this may involve loosening clamps or unscrewing brackets. Take note of the pump’s orientation and any spacers or gaskets in place, as these must be replicated during installation. Clean the mounting area to remove debris or old sealant, ensuring a secure fit for the new pump. If the pump is part of a module (e.g., in-tank assemblies), additional steps like lowering the fuel tank may be necessary, though this guide focuses on inline pumps.
Installing the new pump requires mirroring the removal process in reverse. Align the pump in its original orientation, securing it with the appropriate clamps or brackets. Reattach the fuel lines, ensuring they click into place securely. Double-check electrical connections, making sure they are firmly seated and free from debris. Once everything is connected, restore the fuel system pressure by cycling the ignition key (without starting the engine) and inspect for leaks using a spray bottle of soapy water. If no leaks are detected, reconnect the battery and test the system by starting the vehicle.
This remove-and-replace process demands attention to detail and adherence to safety protocols. While it’s a task many DIY enthusiasts can handle, inexperience or haste can lead to costly mistakes. If unsure, consult a professional or refer to vehicle-specific manuals for additional guidance. Proper execution ensures not only the functionality of the fuel system but also the safety of the vehicle and its operator.
Mastering the Art of Jumping a Fuel Injection Pump Safely
You may want to see also
Frequently asked questions
You will typically need a flathead or Phillips screwdriver, pliers, a wrench or socket set, and possibly a fuel line disconnect tool, depending on the pump design.
No, it is not safe. Always relieve fuel pressure by disconnecting the fuel pump fuse or relay and running the engine until it stalls to avoid fuel spraying or potential hazards.
Locate the pump along the fuel line, often near the fuel tank or under the vehicle. You may need to remove protective covers, underbody panels, or fuel lines to access it.
If the pump is being opened for inspection or minor repairs, it may be reusable if undamaged. However, if internal components are worn or faulty, it’s best to replace the entire pump for reliability.
