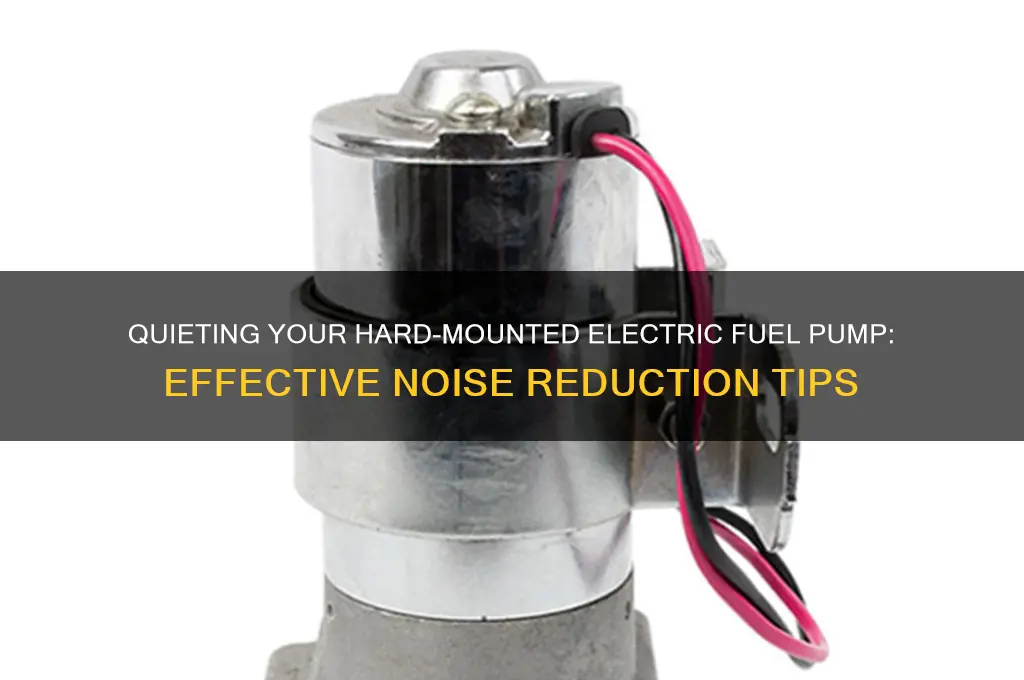

Reducing the noise from a hard-mounted electric fuel pump can significantly improve the overall driving experience, especially in vehicles where the pump’s operation is audible. The primary source of noise is often vibrations transmitted through the mounting system, as the pump’s motor and internal components generate mechanical and electrical vibrations. To make a hard-mounted electric fuel pump quieter, several strategies can be employed. These include using vibration-dampening materials, such as rubber or foam pads, between the pump and its mounting surface to absorb and isolate vibrations. Additionally, relocating the pump to a less resonant area of the vehicle or using a softer mounting bracket can help minimize noise transmission. Ensuring the pump is securely fastened without overtightening can also prevent unnecessary stress and vibration. Finally, upgrading to a higher-quality, quieter fuel pump or adding a sound-deadening wrap around the pump can further reduce operational noise, creating a smoother and more enjoyable driving environment.
| Characteristics | Values |
|---|---|
| Mounting Method | Use rubber or polyurethane mounts to isolate vibrations. |
| Sound Dampening Material | Apply foam, soundproofing mats, or mass-loaded vinyl around the pump. |
| Pump Location | Relocate the pump to an area with more natural sound insulation (e.g., away from the cabin). |
| Vibration Isolation | Install anti-vibration pads or mounts between the pump and the chassis. |
| Fuel Line Insulation | Wrap fuel lines with foam or rubber to reduce noise transmission. |
| Electric Pump Quality | Upgrade to a quieter, higher-quality electric fuel pump. |
| Secure Installation | Ensure all bolts and fittings are tight to minimize loose parts causing noise. |
| Heat Shielding | Use heat shields to reduce noise from thermal expansion and contraction. |
| Pump Bracket Design | Modify or replace the pump bracket with a design that minimizes vibration transfer. |
| Regular Maintenance | Check for worn or damaged components that may contribute to noise. |
| Noise-Canceling Enclosure | Build a custom enclosure with sound-absorbing materials around the pump. |
| Electrical Grounding | Ensure proper grounding to reduce electrical interference and associated noise. |
| Fuel Pressure Regulator | Use a quieter fuel pressure regulator if the current one contributes to noise. |
| Pump Orientation | Adjust the pump's orientation to minimize airflow noise if applicable. |
| Thermal Management | Keep the pump cool to reduce noise from overheating components. |
Explore related products
What You'll Learn
- Use rubber isolators to dampen vibrations between the pump and mounting surface
- Install a sound-deadening wrap or foam around the pump housing
- Ensure proper grounding to reduce electrical noise and interference
- Position the pump away from resonant surfaces like the firewall or floor
- Upgrade to a quieter, high-quality electric fuel pump model
Use rubber isolators to dampen vibrations between the pump and mounting surface
Rubber isolators are a simple yet effective solution to reduce the noise generated by a hard-mounted electric fuel pump. The principle is straightforward: by placing a layer of rubber between the pump and its mounting surface, you create a barrier that absorbs and dissipates vibrations, preventing them from traveling through the vehicle’s chassis. This method is particularly useful for pumps that operate at high speeds or produce significant mechanical noise, as vibrations are a primary source of unwanted sound.
To implement this solution, start by selecting the appropriate rubber isolators. Look for high-quality, automotive-grade rubber that can withstand fuel exposure and temperature fluctuations. Common options include neoprene or EPDM rubber, which offer excellent durability and vibration-damping properties. Ensure the isolators are compatible with the size and weight of your fuel pump—typically, thicker isolators provide better damping but may require additional clearance. Measure the mounting points and choose isolators that fit snugly without compromising the pump’s stability.
Installation involves replacing the rigid mounting hardware with the rubber isolators. Begin by removing the existing bolts or brackets that secure the pump to its surface. Position the isolators between the pump’s mounting feet and the chassis, ensuring they are centered and aligned. Reattach the pump using bolts with lock nuts or washers to secure it firmly. Avoid overtightening, as excessive pressure can compress the rubber too much, reducing its effectiveness. Test the setup by running the pump and listening for any remaining vibrations or noise.
While rubber isolators are highly effective, they are not a one-size-fits-all solution. For instance, if the pump is mounted in an area with limited space, thicker isolators may not be feasible. In such cases, consider using thinner isolators with higher durometer ratings, which provide stiffness while still damping vibrations. Additionally, combining rubber isolators with other noise-reduction techniques, such as wrapping the pump in sound-deadening material, can yield even better results. Regularly inspect the isolators for wear or degradation, especially in harsh environments, and replace them as needed to maintain optimal performance.
The takeaway is clear: rubber isolators are a cost-effective and practical way to quiet a hard-mounted electric fuel pump. By interrupting the path of vibrations, they significantly reduce noise without requiring complex modifications. Whether you’re a DIY enthusiast or a professional mechanic, this method offers a tangible improvement in both sound quality and driving comfort. With the right materials and careful installation, you can enjoy a quieter fuel system that enhances your overall vehicle experience.
Accelerate Fuel Pump Failure: Quick Tips for Rapid Burnout
You may want to see also
Explore related products
Install a sound-deadening wrap or foam around the pump housing
One effective way to reduce the noise from a hard-mounted electric fuel pump is to install a sound-deadening wrap or foam around the pump housing. This method works by absorbing and dampening the vibrations that the pump generates, which are often the primary source of unwanted noise. Sound-deadening materials are designed to convert vibrational energy into heat, minimizing the transmission of sound waves through the pump’s mounting surface and into the vehicle’s cabin. Commonly used materials include mass-loaded vinyl, closed-cell foam, or specialized automotive sound-deadening wraps like Noico or Dynamat. These materials are lightweight, easy to apply, and can significantly reduce both mechanical and resonant noise without affecting the pump’s performance.
To apply a sound-deadening wrap or foam, start by cleaning the pump housing and surrounding area to ensure proper adhesion. Measure the dimensions of the pump and cut the material to fit snugly around it, leaving no gaps where noise can escape. For wraps like mass-loaded vinyl, use an adhesive backing or spray adhesive to secure it in place. Closed-cell foam can be wrapped around the pump and held with zip ties or tape, ensuring it doesn’t interfere with the pump’s operation. Be cautious not to cover any vents or heat dissipation points on the pump, as overheating can damage the unit. This method is particularly effective for pumps mounted directly to the chassis or firewall, where vibrations travel easily into the vehicle’s structure.
Comparing this approach to others, such as using rubber isolation mounts, sound-deadening wraps offer a more targeted solution for noise reduction. While isolation mounts address vibrations at the mounting point, wraps directly combat noise at its source. This dual approach—combining isolation mounts with a wrap—can yield even better results, especially in high-noise environments. However, wraps alone are often sufficient for moderate noise levels and are less invasive to install. They are also cost-effective, with materials typically ranging from $20 to $50, depending on the brand and quantity needed.
A practical tip for maximizing the effectiveness of sound-deadening wraps is to layer the material. Applying two layers of foam or combining a wrap with a thin layer of foam can enhance noise absorption, particularly for pumps with higher operating decibels. Additionally, consider extending the wrap slightly beyond the pump housing to cover adjacent surfaces that may resonate with the pump’s vibrations. For DIY enthusiasts, this method is straightforward and requires minimal tools—scissors, a cleaner, and adhesive are usually all that’s needed. The entire process can be completed in under an hour, making it a quick and impactful upgrade for reducing fuel pump noise.
Accessing the Fuel Pump on a 1997 Ford Escort: A Step-by-Step Guide
You may want to see also
Explore related products
Ensure proper grounding to reduce electrical noise and interference
Electrical noise can turn a quiet fuel pump into a buzzing nuisance, often stemming from poor grounding. When the pump’s ground connection is inadequate, it acts as an antenna, amplifying interference from the vehicle’s electrical system. This interference manifests as humming or whining, particularly noticeable at idle or low RPMs. Diagnosing this issue involves checking the ground path for corrosion, loose connections, or insufficient gauge wiring. A multimeter can verify continuity between the pump’s ground terminal and the chassis, ensuring resistance is minimal—ideally below 0.1 ohms. If the ground is faulty, the pump’s motor struggles to operate smoothly, translating to audible disturbances.
To rectify grounding issues, start by inspecting the ground wire for damage or corrosion. Clean the connection point on the chassis with a wire brush and sandpaper to remove rust or paint, ensuring bare metal contact. Use a star washer or dielectric grease to enhance conductivity and prevent future corrosion. If the existing ground wire is too thin, upgrade to a heavier gauge (e.g., 10 AWG) to handle the pump’s current draw more efficiently. Secure the ground with a torque-controlled bolt to avoid over-tightening, which can strip threads or damage the terminal. For hard-mounted pumps, consider adding a secondary ground directly to the engine block, bypassing potential weak points in the chassis.
A comparative analysis reveals that proper grounding not only reduces noise but also improves pump efficiency and longevity. Without a solid ground, voltage drops occur, forcing the motor to work harder and generate more heat. This inefficiency can lead to premature wear or failure, especially in high-demand systems like turbocharged or high-performance engines. In contrast, a robust ground ensures consistent power delivery, minimizing electrical noise and allowing the pump to operate silently. For example, a fuel pump drawing 10 amps with a 0.5-ohm ground resistance experiences a 5-volt drop, whereas a 0.1-ohm ground reduces this to 1 volt, significantly lowering stress on the system.
Persuasively, investing time in grounding optimization is a cost-effective solution with immediate returns. Compared to sound-dampening materials or relocating the pump, improving the ground is straightforward and often free if done with existing tools. It’s a preventative measure that addresses the root cause rather than masking symptoms. For DIY enthusiasts, this step is a testament to the principle that simplicity often yields the best results. Even in professional installations, overlooking grounding is a common oversight, making it a critical area to scrutinize when troubleshooting noise issues. By prioritizing this aspect, you not only silence the pump but also enhance the overall reliability of your fuel system.
Do I Need a Fuel Pump Relay? Understanding Its Role and Importance
You may want to see also
Explore related products
Position the pump away from resonant surfaces like the firewall or floor
Sound travels through solids more efficiently than through air, amplifying vibrations from your fuel pump. Mounting the pump directly to the firewall or floor creates a direct pathway for these vibrations, turning your cabin into a resonating chamber. Even high-quality pumps generate noise, and this structural coupling magnifies it significantly.
Think of it like a drum: the tighter the skin (your firewall), the louder the sound when struck (your pump's vibrations).
Strategic Relocation: Breaking the Sound Bridge
The solution is deceptively simple: physically decouple the pump from these resonant surfaces. Aim for a location where the pump can be mounted securely, but with minimal contact to large, flat metal panels. Consider areas like:
- Inner fender wells: Often have more space and less direct connection to the cabin.
- Frame rails: Provide a sturdy mounting point away from the firewall.
- Custom brackets: Fabricate brackets that position the pump in open air, suspended away from major body panels.
Material Matters: Dampening the Buzz
Even with optimal positioning, some vibration will still travel. Combat this by incorporating vibration-dampening materials:
- Rubber mounts: Use thick, dense rubber pads between the pump and its mounting surface. Aim for a durometer rating of 60-70 Shore A for a balance of stiffness and dampening.
- Anti-vibration hoses: Replace rigid fuel lines with flexible, reinforced hoses to absorb vibrations before they reach the tank or engine.
- Sound-deadening mats: Apply these to the underside of the hood or firewall to further reduce noise transmission into the cabin.
Fine-Tuning for Silence:
Experiment with different mounting locations and dampening materials. Sometimes, small adjustments yield significant results. Remember, the goal is to break the direct connection between the pump and resonant surfaces, not just move the noise elsewhere. By strategically positioning your pump and using the right materials, you can achieve a noticeable reduction in fuel pump noise, creating a quieter and more enjoyable driving experience.
Does Your Fuel Pump Make Noise Before Starting? Here's Why
You may want to see also
Explore related products
Upgrade to a quieter, high-quality electric fuel pump model
Upgrading to a quieter, high-quality electric fuel pump is one of the most effective ways to reduce noise from a hard-mounted system. Lower-quality pumps often produce excessive vibration and whine due to subpar internal components and inadequate damping. Premium models, on the other hand, incorporate features like precision-balanced rotors, high-grade bearings, and integrated noise-reducing housings. For example, brands like Walbro, Aeromotive, and Bosch offer pumps with decibel ratings significantly lower than generic alternatives, often operating below 60 dB under load. When selecting a replacement, prioritize models designed for your vehicle’s fuel system requirements, ensuring compatibility with flow rate, pressure, and voltage specifications.
The installation process for a quieter fuel pump requires careful planning to maximize noise reduction. Start by choosing a pump with a mounting system that minimizes vibration transfer to the chassis. Some high-end pumps come with rubber isolators or vibration-damping brackets, which can be further enhanced by using additional insulating materials like closed-cell foam or neoprene pads. Ensure the pump is securely fastened but not over-tightened, as excessive clamping force can negate the benefits of vibration isolation. Additionally, routing fuel lines away from sensitive areas like the cabin or firewall can prevent noise transmission through the vehicle’s structure.
While upgrading the pump itself is critical, addressing ancillary components can further enhance quiet operation. For instance, installing a fuel pressure regulator with a quieter design or adding a fuel filter with sound-absorbing properties can contribute to overall noise reduction. It’s also worth inspecting the fuel tank for resonance issues, as tanks with inadequate baffling can amplify pump noise. In some cases, adding a foam insert or baffle to the tank can mitigate this effect. These complementary upgrades, combined with a high-quality pump, create a synergistic solution for a quieter fuel system.
Cost is often a consideration when upgrading to a quieter electric fuel pump, but the investment is justified by long-term benefits. Premium pumps not only reduce noise but also offer improved reliability and performance, which can extend the life of your fuel system. For example, a high-quality pump like the Walbro GSL392 can cost between $150 and $200, but its durability and noise-reducing features make it a cost-effective choice compared to repeatedly replacing cheaper, noisier alternatives. When budgeting, factor in installation costs and any additional components needed for optimal noise reduction. Ultimately, upgrading to a quieter, high-quality fuel pump is a practical and effective solution for those seeking a smoother, more enjoyable driving experience.
Testing Your S197 Mustang's Fuel Pump Without Special Tools
You may want to see also
Frequently asked questions
Excessive noise from an electric fuel pump can be caused by improper mounting, lack of vibration dampening, low-quality pump construction, or resonance within the fuel system.
Use rubber or silicone mounting pads, install anti-vibration isolators, or wrap the pump in sound-dampening material to minimize vibrations and noise.
Yes, relocating the pump away from the cabin or mounting it in a less resonant area of the vehicle can reduce the noise transmitted to the interior.
Yes, products like vibration isolators, sound-deadening wraps, and rubber mounting bushings are specifically designed to reduce noise from hard-mounted fuel pumps.
Yes, higher-quality fuel pumps with better internal components and balanced rotors tend to operate more quietly than cheaper, less refined models.
