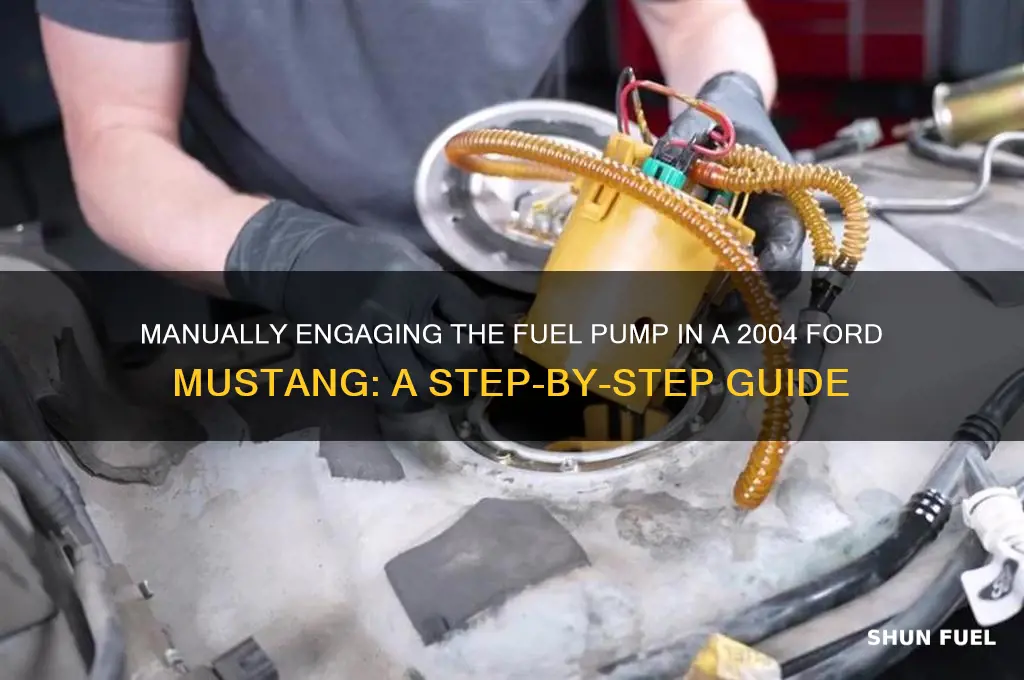

Manually engaging the fuel pump on a 2004 Ford Mustang can be a useful troubleshooting step if you suspect the pump is not functioning properly or if you need to test its operation. This process typically involves locating the fuel pump inertia switch, often found in the trunk or rear passenger area, and pressing the reset button if it has been tripped. Additionally, you can access the fuel pump relay in the under-hood fuse box and use a jumper wire to bypass the relay, directly powering the pump for testing purposes. Always ensure the vehicle is in a safe, well-ventilated area and disconnect the battery before attempting any electrical work to prevent accidents. Understanding these steps can help diagnose fuel delivery issues and ensure your Mustang’s fuel system is operating correctly.
| Characteristics | Values |
|---|---|
| Vehicle Model | Ford Mustang |
| Year | 2004 |
| Fuel Pump Location | Inside the fuel tank |
| Access Method | Remove rear seat or access panel (depending on model) |
| Tools Required | Screwdriver, socket set, safety goggles, gloves |
| Safety Precautions | Work in well-ventilated area, disconnect battery, relieve fuel pressure |
| Manual Engagement Method | Access fuel pump relay, jumper wire across relay terminals to activate |
| Relay Location | Under hood in fuse/relay box (specific location varies by model) |
| Relay Identification | Consult manual or diagram for correct fuel pump relay |
| Testing Procedure | Listen for fuel pump hum when ignition is turned to "ON" |
| Duration of Manual Engagement | Temporary (for diagnostic purposes only) |
| Warning | Do not manually engage for extended periods; risk of damage or fire |
| Alternative Method | Use an inertia switch (if equipped) to reset fuel pump |
| Professional Assistance | Recommended if unsure or for permanent repairs |
