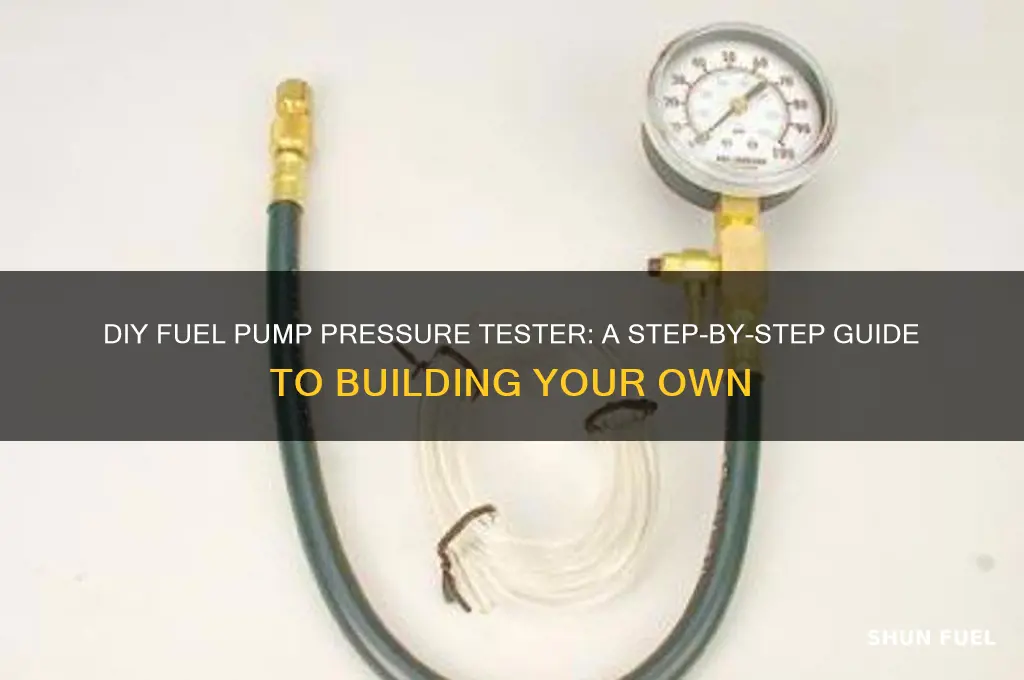

Creating a fuel pump pressure tester is a practical DIY project that allows you to diagnose and troubleshoot fuel system issues in vehicles. This tool measures the pressure generated by the fuel pump, ensuring it operates within the manufacturer’s specifications. To build one, you’ll need basic components such as a pressure gauge, a fuel line adapter, a Schrader valve, and a sturdy container to hold fuel. The process involves connecting the tester to the fuel system, typically at the fuel rail or fuel line, and then starting the engine to observe the pressure readings. By following safety precautions and using the right materials, you can construct an effective and reliable tester to maintain your vehicle’s fuel system efficiently.
Explore related products
What You'll Learn
- Gather Tools and Materials: Collect gauge, hose, adapter, pressure regulator, and fuel line disconnect tool
- Disconnect Fuel Line: Safely detach the fuel line from the pump using the disconnect tool
- Attach Tester Components: Connect the gauge, hose, and adapter to the fuel line securely
- Apply Pressure and Test: Use the regulator to apply pressure and check the pump’s output on the gauge
- Interpret Results: Compare readings to specifications to diagnose pump performance or issues accurately
Gather Tools and Materials: Collect gauge, hose, adapter, pressure regulator, and fuel line disconnect tool
To construct a functional fuel pump pressure tester, precision in tool selection is paramount. Begin by sourcing a 0-100 PSI gauge, as this range accommodates most fuel systems without risking gauge damage from excessive pressure. Pair this with a high-pressure hose rated for fuel compatibility—rubber or nylon hoses are common, but ensure they’re reinforced to withstand the fuel’s corrosive properties. An adapter is critical for connecting the gauge to the fuel line; choose one that matches your vehicle’s fuel line threading (typically 1/8” NPT or M6). A pressure regulator is optional but recommended for fine-tuning pressure during testing, especially in systems with variable fuel demands. Lastly, a fuel line disconnect tool ensures safe disconnection without damaging the quick-connect fittings, which are prone to cracking if forced apart manually.
The choice of materials directly impacts the tester’s reliability and safety. For instance, using a gauge with a glycerin-filled dial minimizes needle flutter, providing more accurate readings during engine operation. When selecting a hose, opt for one with a stainless steel braid to prevent fuel permeation and ensure longevity. Adapters should be brass or aluminum to resist corrosion, while the pressure regulator, if used, must be calibrated to handle fuel-specific pressures (typically 30-60 PSI for gasoline systems). The fuel line disconnect tool should have a flat, even edge to avoid stressing the plastic fittings, which can lead to leaks post-testing.
A comparative analysis of tool quality reveals that investing in OEM-grade components significantly reduces the risk of failure. For example, a $20 brass adapter outperforms a $5 aluminum one in durability, while a $50 glycerin-filled gauge offers smoother readings than a $15 dry gauge. Similarly, a $15 fuel line disconnect tool with a precision fit reduces the risk of damaging $100+ fuel lines. While budget options may suffice for occasional use, professionals or frequent testers should prioritize longevity and accuracy.
In practice, assembling these tools requires a methodical approach. Start by verifying the fuel line size using a caliper or ruler, as mismatched adapters can lead to leaks. Attach the adapter to the gauge, ensuring threads are wrapped with Teflon tape to create a secure seal. Connect the hose to the adapter, then secure the pressure regulator (if used) inline to modulate pressure during testing. Finally, use the fuel line disconnect tool to safely separate the fuel line, attaching the tester to the exposed port. Always perform a leak test with the ignition off before starting the engine to avoid fuel spills or fires.
The takeaway is clear: gathering the right tools isn’t just about functionality—it’s about safety and precision. A well-assembled tester not only diagnoses fuel pump issues accurately but also prevents costly damage to the vehicle’s fuel system. By prioritizing quality materials and following a structured assembly process, even a novice can create a reliable tool that rivals commercial testers.
