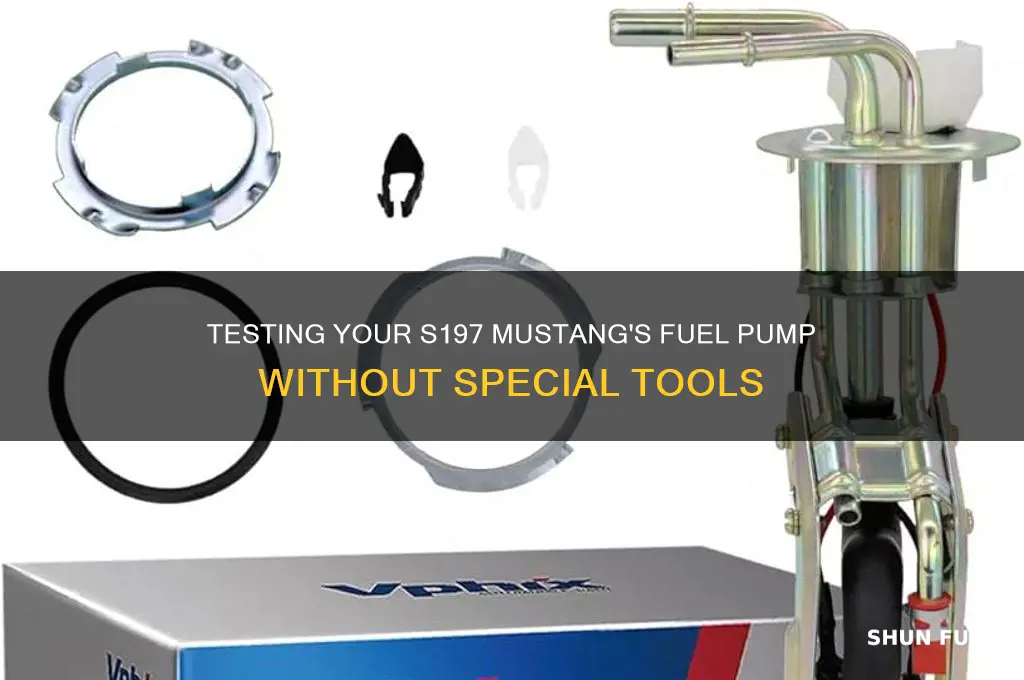

Testing the fuel pump in an S197 Mustang without specialized tools can be done through a few straightforward methods. Start by listening for the pump’s hum when turning the ignition to the on position, as it should activate for a few seconds. If no sound is heard, check the fuel pump fuse and relay for damage or corrosion. Another method is to measure voltage at the fuel pump connector using a multimeter; if power is present but the pump isn’t running, it may be faulty. Additionally, spraying starter fluid into the intake and observing if the engine briefly starts can indicate a fuel delivery issue, pointing to a potential pump failure. These steps provide a basic diagnostic approach without advanced equipment.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, fuel pressure gauge, screwdriver, safety gloves, safety goggles |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, avoid sparks |
| Testing Method 1: Listen for Operation | Turn the ignition to the "ON" position (without starting) and listen for the fuel pump hum (lasts ~2-3 seconds) |
| Testing Method 2: Check Fuel Pressure | Connect a fuel pressure gauge to the Schrader valve on the fuel rail and check for pressure (S197 Mustang typically 40-60 PSI) |
| Testing Method 3: Multimeter Voltage Test | Measure voltage at the fuel pump connector (should read 12V with ignition on) |
| Testing Method 4: Fuel Pump Relay Test | Swap the fuel pump relay with a similar relay (e.g., A/C compressor relay) to check if the pump activates |
| Testing Method 5: Inertia Switch Reset | Locate and reset the inertia switch (usually in the trunk or passenger compartment) if tripped |
| Common Symptoms of Fuel Pump Failure | Engine cranks but won’t start, loss of power, sputtering, no hum during ignition |
| Applicable Models | S197 Mustang (2005-2014) |
| Fuel Pump Location | Driver side, rear of the vehicle, under the trunk floor |
| Estimated Time for Testing | 15-30 minutes depending on method |
Explore related products
What You'll Learn
Using a Multimeter to Check Voltage
A multimeter is an indispensable tool for diagnosing fuel pump issues in an S197 Mustang, especially when you're working without a dedicated scanner or specialized equipment. By measuring voltage, you can verify if the fuel pump is receiving the necessary electrical signal to operate. Start by locating the fuel pump relay, typically found in the under-hood fuse box. With the ignition in the "on" position but the engine off, use the multimeter to test for voltage at the relay’s power input terminal (usually pin 85 or 86). A reading of 12 volts indicates the system is supplying power correctly. If no voltage is present, the issue may lie in the fuse, relay, or wiring harness.
Next, move to the fuel pump connector, often accessible through the rear seat or trunk. Disconnect the connector and set your multimeter to the DC voltage setting. With the ignition on, probe the wire leading to the fuel pump’s positive terminal. A healthy system should show a voltage reading close to battery voltage (around 11.5 to 12.5 volts). If voltage is absent or significantly lower, suspect a faulty fuel pump driver module, damaged wiring, or a failed pump. Always ensure the multimeter leads are securely connected to avoid inaccurate readings.
While testing voltage is straightforward, interpreting the results requires context. For instance, a voltage drop between the relay and the fuel pump could indicate high resistance in the wiring. To isolate this, measure voltage at multiple points along the circuit. If voltage drops sharply between two points, focus your inspection on that section of wiring. Additionally, compare your findings to the vehicle’s wiring diagram for accuracy. This methodical approach ensures you’re not just identifying symptoms but pinpointing the root cause.
One common mistake is overlooking the ground side of the circuit. A poor ground connection can mimic a lack of voltage, leading to misdiagnosis. Use the multimeter to check continuity between the fuel pump’s ground terminal and the vehicle chassis. A reading of near zero ohms confirms a good ground; anything higher suggests corrosion or a loose connection. Cleaning or repairing the ground point can often resolve voltage-related issues without replacing expensive components.
In conclusion, using a multimeter to check voltage is a precise and cost-effective way to diagnose fuel pump problems in an S197 Mustang. By systematically testing power supply, ground integrity, and voltage drops, you can narrow down the issue with confidence. Remember, accurate diagnosis saves time and money, ensuring you address the actual problem rather than replacing parts unnecessarily. With patience and attention to detail, even a novice can master this essential troubleshooting technique.
How to Identify an Upgraded Fuel Pump in Speed 3 Vehicles
You may want to see also
Explore related products
Listening for Pump Noise in Fuel Tank
One of the simplest ways to test a fuel pump in an S197 Mustang without specialized tools is by listening for the pump's noise in the fuel tank. This method relies on your ears to detect whether the pump is functioning when the ignition is turned on. Start by ensuring the vehicle is in a quiet environment to minimize external noise interference. Have an assistant turn the ignition to the "on" position—not starting the engine—while you listen near the fuel tank. A healthy fuel pump should produce a faint humming or whirring sound for about 2-3 seconds, indicating it’s priming the fuel system. If you hear nothing, the pump may be faulty or the issue could lie elsewhere in the fuel delivery system.
Analyzing the sound quality can provide additional insights. A normal humming noise suggests the pump is operating correctly, but a grinding, whining, or unusually loud sound could indicate internal damage or wear. For instance, a high-pitched whine might point to a failing bearing, while a grinding noise could signal debris in the pump. These abnormal sounds often precede complete failure, making this diagnostic step crucial for preventive maintenance. If you suspect an issue based on the noise, further testing with a fuel pressure gauge or multimeter is recommended to confirm the diagnosis.
To maximize the effectiveness of this method, position yourself near the rear driver’s side of the vehicle, where the fuel tank is located. Use a mechanic’s stethoscope or a length of rubber hose pressed against the tank to amplify the sound, making it easier to discern subtle noises. If you’re unsure about the sound, compare it to online audio clips of functioning and failing fuel pumps for reference. This technique is particularly useful for older S197 Mustangs (2005–2009 models) where fuel pump issues are more common due to age and mileage.
A critical caution: avoid smoking, open flames, or sparks near the fuel tank during this test, as fuel vapors are highly flammable. Additionally, if the vehicle has been running recently, allow the engine to cool for at least 30 minutes before attempting this test to prevent burns or fuel vapor ignition. While listening for pump noise is a quick and cost-effective method, it’s not definitive. Always follow up with additional tests if you suspect a problem, as a failing fuel pump can lead to stalling, poor performance, or even engine damage if left unaddressed.
In conclusion, listening for pump noise in the fuel tank is a practical first step in diagnosing fuel pump issues in an S197 Mustang. It’s non-invasive, requires no special tools, and can provide immediate clues about the pump’s condition. However, it’s just one piece of the diagnostic puzzle. Combine this method with other tests, such as checking fuel pressure or inspecting the fuel pump relay, for a comprehensive assessment. By staying vigilant and addressing potential issues early, you can keep your Mustang’s fuel system running smoothly and avoid costly repairs down the road.
Honda Goldwing 1200 Fuel Pump Solenoid: Function and Compatibility Explained
You may want to see also
Explore related products
Testing Fuel Pressure with Gauge
Fuel pressure testing is a critical diagnostic step when troubleshooting a potentially faulty fuel pump in an S197 Mustang. Unlike electrical tests, which verify the pump’s operation, a fuel pressure gauge directly measures the pump’s output, ensuring it meets the engine’s demands. This method is particularly useful when symptoms like hard starts or stalling suggest inadequate fuel delivery, but the pump itself appears functional. By isolating the pressure issue, you can determine whether the pump, regulator, or lines are at fault.
To test fuel pressure, you’ll need a fuel pressure gauge compatible with your Mustang’s Schrader valve (typically located on the fuel rail). Start by relieving fuel system pressure via the pressure relief valve, usually found near the fuel tank. Disconnect the negative battery terminal for safety, then attach the gauge to the Schrader valve. Turn the ignition to the "ON" position (without starting the engine) to activate the pump and record the initial pressure reading. It should match the manufacturer’s specifications for your S197 model, typically around 30–60 PSI depending on the engine. If the pressure is low, the pump may be weak or failing.
Next, perform a pressure drop test to assess the pump’s ability to maintain pressure. Turn the ignition off and observe the gauge. A significant drop (more than 5 PSI) within 5 minutes indicates a leak in the system or a check valve failure within the pump. If pressure holds but is still below spec, inspect the fuel filter, regulator, and lines for restrictions or damage. This step-by-step approach isolates the issue, ensuring you don’t replace parts unnecessarily.
While testing, consider environmental factors like fuel temperature, which can affect pressure readings. Warmer fuel expands, slightly increasing pressure, while colder fuel may yield lower readings. Always compare your results to the Mustang’s service manual for accurate interpretation. Additionally, if you’re working on a post-2010 S197 with a returnless fuel system, ensure the gauge is rated for higher pressures, as these systems operate at 50–70 PSI.
In conclusion, testing fuel pressure with a gauge is a precise way to diagnose fuel pump issues in an S197 Mustang. By following these steps and accounting for variables, you can pinpoint whether the pump, regulator, or another component is causing the problem. This method not only saves time but also prevents costly misdiagnoses, making it an essential skill for any Mustang owner or mechanic.
Mercruiser Engine: Electric Fuel Pump Presence Explained
You may want to see also
Explore related products
Inspecting Fuel Pump Relay Function
The fuel pump relay is a critical component in your S197 Mustang's fuel system, acting as a switch that controls power to the fuel pump. A faulty relay can lead to a no-start condition, leaving you stranded. Fortunately, inspecting its function doesn't require specialized tools or advanced mechanical skills.
Understanding the Relay's Role:
The fuel pump relay bridges the gap between the ignition system and the fuel pump. When you turn the key, the relay energizes, allowing current to flow to the pump. If the relay fails, the pump won’t receive power, even if the pump itself is functional. Symptoms of a bad relay include a silent fuel pump (no whirring sound during startup) or intermittent starting issues.
Steps to Inspect the Relay:
- Locate the Relay: In most S197 Mustangs, the fuel pump relay is found in the under-hood fuse/relay box. Consult your owner’s manual for the exact location.
- Swap Relays: Identify a relay with the same part number (often the A/C or horn relay) and swap it with the fuel pump relay. Attempt to start the vehicle. If it starts, the original fuel pump relay is likely faulty.
- Test with a Multimeter: If a swap isn’t possible, use a multimeter to check for continuity across the relay’s terminals. With the key in the "on" position, the relay’s primary circuit should show 12 volts at the input and output terminals. If not, the relay is defective.
Cautions and Practical Tips:
Avoid testing the relay while the engine is running, as this can damage the component. Always ensure the vehicle is in "park" or "neutral" with the parking brake engaged during testing. If you’re unsure about relay compatibility, consult a repair manual or a professional to avoid misdiagnosis.
Inspecting the fuel pump relay is a straightforward yet often overlooked step in diagnosing fuel system issues in your S197 Mustang. By understanding its function and following these steps, you can quickly determine if the relay is the culprit, saving time and potentially costly repairs.
Are GPI Fuel Pumps American-Made? Uncovering Their Manufacturing Origin
You may want to see also
Explore related products
Checking Fuel Pump Fuse Integrity
A faulty fuel pump fuse can cripple your S197 Mustang's performance, leaving you stranded. Before diving into complex diagnostics, start with the simplest and most accessible component: the fuse. Located in the under-hood fuse box, the fuel pump fuse is your first line of defense against electrical issues. Identifying and inspecting this fuse is a straightforward process that requires minimal tools and can save you from unnecessary repairs.
To check the fuel pump fuse, begin by locating the fuse box, typically situated near the battery. Consult your Mustang’s manual for the exact position of the fuel pump fuse, as it varies by model year. Once identified, use a fuse puller or a pair of needle-nose pliers to carefully remove the fuse. Inspect it for visible signs of damage, such as a broken filament or discoloration. A blown fuse will often be obvious, but subtle cracks or burns can also indicate a problem. If the fuse appears intact, proceed to test its continuity using a multimeter.
Testing the fuse’s integrity with a multimeter is a precise way to confirm its functionality. Set the multimeter to the continuity or resistance setting and touch the probes to the fuse terminals. A functional fuse will show low resistance (typically less than 1 ohm), while a blown fuse will display infinite resistance or no reading. If the fuse fails this test, replace it with one of the same amperage rating, usually 20 amps for S197 Mustangs. Avoid using a fuse with a higher rating, as it can lead to electrical hazards.
While replacing a blown fuse is a quick fix, recurring issues may signal a deeper problem. A fuse blows to protect the circuit from excessive current, often caused by a short or an overloaded fuel pump. If the new fuse blows immediately or shortly after replacement, investigate further. Check the fuel pump wiring harness for damage, corrosion, or loose connections. Persistent fuse failures could also indicate a failing fuel pump drawing too much power, requiring professional diagnosis and repair.
In summary, checking the fuel pump fuse integrity is a critical and accessible step in diagnosing fuel pump issues in your S197 Mustang. It’s a simple task that can save time and money, but it’s equally important to recognize when the problem goes beyond a blown fuse. Armed with a multimeter and basic knowledge, you can tackle this initial inspection with confidence and determine whether further investigation is needed.
Choosing the Right Fuel Pump for Your 2001 Chevy Silverado
You may want to see also
Frequently asked questions
You can listen for the fuel pump's priming cycle when you turn the ignition to the "on" position (without starting the engine). A humming noise from the fuel tank area indicates the pump is functioning.
Yes, you can check for power and ground at the fuel pump connector using a multimeter. If both are present, the issue may be the pump itself.
Swap the fuel pump relay with a relay of the same type (e.g., A/C or horn relay) and see if the pump primes. If it does, the original relay is likely faulty.
Yes, turn the ignition to the "on" position and listen for the fuel pump priming cycle. You can also check for voltage at the pump connector with a multimeter.
Check for proper voltage and ground at the fuel pump connector. If both are present, spray starter fluid into the intake and try starting the engine. If it starts briefly, the fuel pump is likely the issue.
