Installing aftermarket fuel injectors in a Mitsubishi Evo X can be a straightforward task, but it can be nerve-wracking if you're a novice. The process can be completed with basic mechanical tools, but some specialized tools will make the job easier. Before beginning, it is important to note that there is still gasoline in the fuel rail, so it is recommended to let it slowly drip out of the feed line or carefully remove one injector to allow the fuel to pour out. The next steps involve removing the retaining clip from each injector, pulling the injectors out of the intake manifold, lubricating the injector lower o-rings with Sil Glide or Vaseline, aligning the injectors with the ports, and pressing them into place.

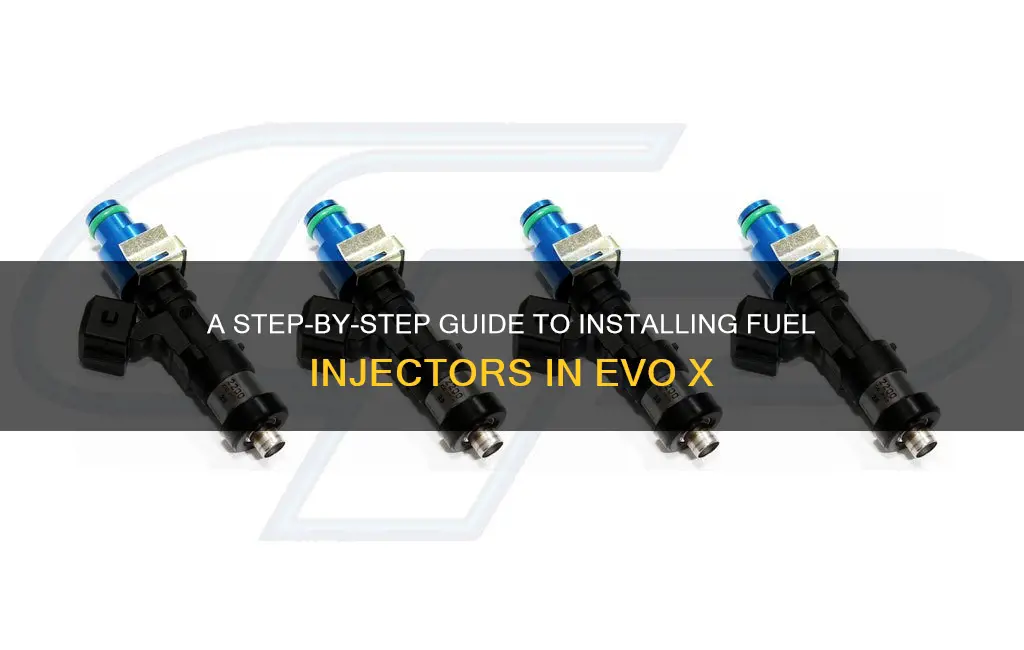

Installing Fuel Injectors for Evo X
| Characteristics | Values |
|---|---|
| Tools Required | Basic mechanical tools, specialised tools (optional) |
| Steps | 1. Open the in-car fuse panel. 2. Locate and unplug the connector with a single blue wire (fuel pump). 3. Crank the car to ensure no pressure in the fuel system. 4. Pull out the fuel rail. 5. Remove the retaining clip from each injector. 6. Pull injectors out of the intake manifold. 7. Apply lubrication to the injector o-rings. 8. Align and press the injectors and rail into place. 9. Reconnect the fuel inlet line and lock the connector. 10. Install and tighten the fuel rail bolts. 11. Re-attach the fuel return hard line and tighten fasteners. 12. Reconnect the wiring harness. 13. Connect plug-and-play adapters or solder-in connectors for the injectors. |
Explore related products
What You'll Learn
Removing the harness from the injectors
When removing the harness, it is crucial to avoid bending or damaging the retaining clips. These clips need to be gently pried with a screwdriver to remove them from the injectors. It is also important to note that there may still be gasoline in the fuel rail when removing the injectors. Allow it to slowly drip out of the feed line or carefully remove one injector at a time to prevent fuel from spilling out.
Before pulling the injectors straight out of the intake manifold, be sure to apply a small amount of penetrating oil to the o-ring area to make the process smoother. Once the injectors are removed, check the o-rings and remove any that may have remained in the fuel rail with a small screwdriver or pick, being careful not to scratch the surface.
To ensure a proper seal and protect the components, apply a suitable lubricant, such as Sil Glide or Vaseline, to the lower and top o-rings of the injectors. This step is important for maintaining the integrity of the fuel system and preventing leaks. After lubricating the o-rings, carefully insert the injectors into the fuel rail with a gentle twisting motion, ensuring proper alignment with the ports in the intake manifold.
