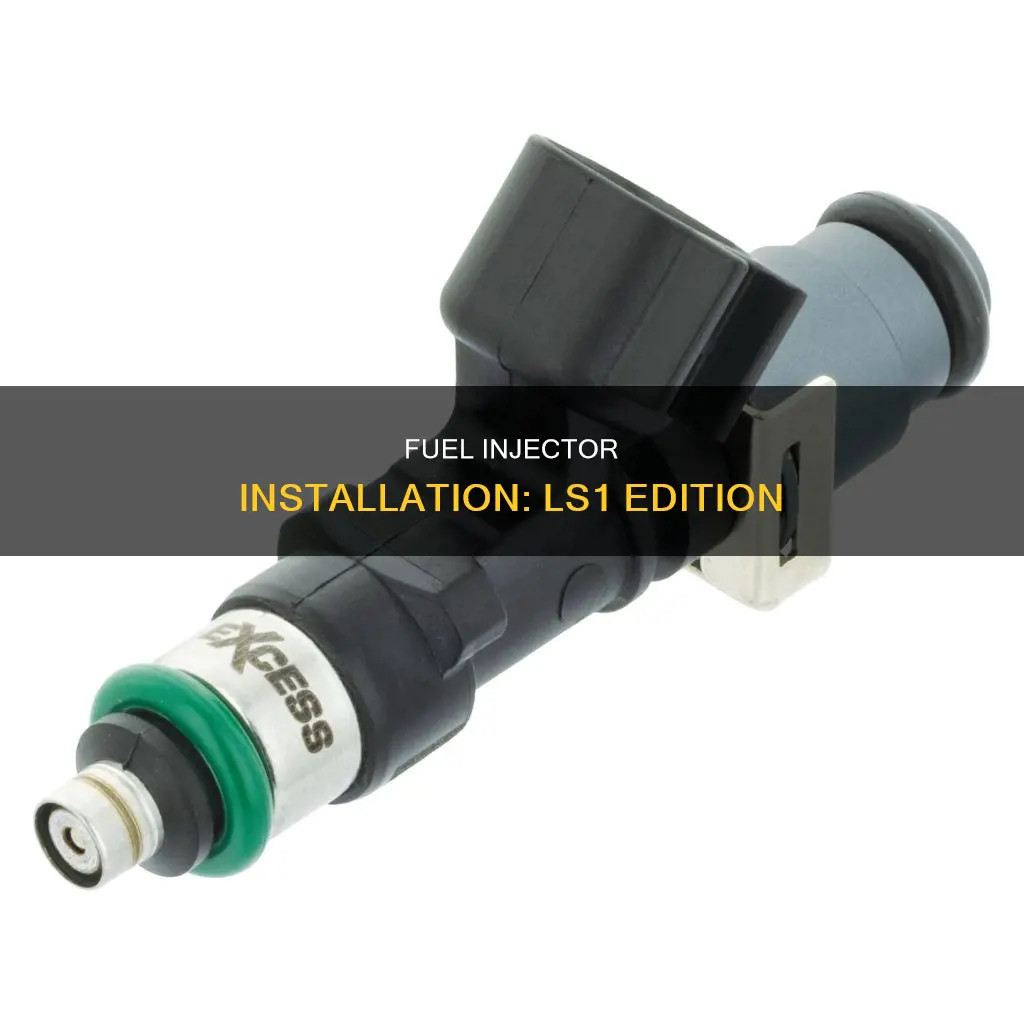

Installing LS1 fuel injectors is a complex process with many steps. The LS1 fuel system consists of eight injectors, a stainless steel fuel rail, and an in-tank fuel pump. The LS1 operates at 4 bar of fuel pressure or 58.02 psi, which is important to keep in mind when shopping for injectors. Before beginning the installation, it is crucial to disconnect the battery and ensure the car is in a safe area to work on. The process involves disconnecting the fuel rail, unplugging sensors, removing the fuel injectors, and properly disposing of any leaked fuel. It is important to grease the O-rings to prevent damage and leaks. When installing the new injectors, it is necessary to ensure they are inserted at the appropriate angle and clamped securely. The process may vary depending on the year and make of the LS engine, and some vehicles may require injector adapter clips.
Explore related products
$14.99
What You'll Learn
Disconnect the battery and fuel rail
Disconnecting the battery and fuel rail is a crucial first step when installing LS1 fuel injectors. It is imperative that you work in a safe area and that your battery is disconnected before you begin.
To disconnect the fuel rail, start by releasing the pressure in the tank by removing the gas cap. Then, use a fuel disconnect tool to release the fuel line from the rail. You can also use this tool to remove the fuel rail at the LS1 fuel line quick connect. Be sure to catch any fuel that may splash when the fuel rail is released.
Once the fuel rail is disconnected, gently lift it out of the engine by grabbing both ends and pulling gently. Ensure that the injectors and rail come up together and take care not to drop any O-rings or debris into the motor. As soon as the rail is removed, plug or cover the intake manifold to prevent anything from falling into the combustion chambers.
The next step is to remove the injectors. To do this, first, drain the fuel from the rail and injectors by holding the end into a container. Then, release the injector clamp and carefully pull the injector out, being mindful of any fuel splash. You can now proceed with installing the new fuel injectors.
Ford Diesel Injectors: How Often Do They Fire?
You may want to see also
Explore related products
Remove the injectors and undo the fuel connector
To remove the injectors and undo the fuel connector, start by unplugging your injectors. You can do this by pushing in on the wire clip as far as it will go, instead of trying to remove the clip. When it's pushed in, the plug will release. Next, undo the fuel connector. You can do this by using a fuel disconnect tool to release the fuel line from the rail. Your fuel rail should leak a little from the disconnected port, so make sure to clean this up promptly and refrain from smoking.
Now, you will need to remove your sensors. Unplug the TPS (throttle position sensor), AIT (air intake temperature) and MAP (manifold absolute pressure) sensor and disconnect your throttle cables or your drive by wire. Then, undo the EGR tube that goes into the front of your intake manifold and push it out of the way. Disconnect your brake booster vacuum hose and also push that out of the way.
Now, undo each of your fuel injectors by unplugging the fuel injector harnesses. Next, undo the bolts that hold the fuel rail to your intake manifold. Carefully and gently lift the fuel rail up and out of your engine, grabbing both ends and pulling gently. Make sure the injectors and rail all come up without dropping any o-rings or debris into the motor. As soon as you have your rail out, make sure to plug or cover the intake manifold so that nothing falls into your combustion chambers.
Clogged Fuel Injectors: Gasoline Contaminants and Their Effects
You may want to see also
Explore related products
Disconnect the sensors and throttle cables
Disconnecting the sensors and throttle cables is a crucial step in installing LS1 fuel injectors. It is important to work in a safe area and ensure that your battery is disconnected before beginning.
First, unplug the throttle position sensor (TPS), air intake temperature (AIT) sensor, and manifold absolute pressure (MAP) sensor. These sensors provide crucial data for the fuel injection system, and their proper functioning is essential for optimal performance.
Next, disconnect the throttle cables or the drive-by-wire system. This step will vary depending on the specific make and model of your vehicle, but it typically involves unplugging the throttle cable from the throttle body or unhooking it from the pedal assembly. Ensure that you keep these components organized and safely set aside to avoid any confusion during reassembly.
Additionally, it is important to unplug the fuel injectors themselves. This can be one of the most challenging parts of the job, and it is crucial to be careful not to damage any components or connections. One helpful tip is to push in on the wire clip as far as it will go, instead of trying to remove it entirely. This will release the plug, allowing you to unplug the injectors more easily.
Finally, ensure that all sensors, cables, and connectors are properly disconnected and set aside before proceeding to the next steps of the installation process. Remember to refer to vehicle-specific repair manuals or seek guidance from a certified mechanic if you have any doubts or concerns during the process.
Fuel Injector Cleaners: Smoothing Idling, Boosting Performance
You may want to see also
Explore related products
Remove the fuel rail
To remove the fuel rail, you must first bleed off the fuel pressure at the Schrader valve located by the FPR. Use a flat screwdriver to gently release the pressure. Once the pressure is released, you can then start to remove the rail.
If you have left your fuel lines connected, place your fingernail on the Schrader valve and it should spray gas. If it doesn't, then there may be an issue with the pump. After confirming that the pressure has been released, gently wedge the rail up and out, wiggling a little under the front and then under the back. The rail will lift up and twist towards the driver's side of the car, and you can lay it back.
If you have a fuel clip disconnect tool, you can pull the rail completely off the car. Alternatively, you can use a fuel rail disconnect tool to simply swing the rail out of the way. If you are removing the injectors, you will see metal clips around the outside of the injector and the bung it goes into. Pull these off, and the injector will come out. Inspect the O-rings for any damage and replace if necessary.
Finally, if you are removing the fuel rail from the car, you will need to disconnect the lines on the back of the intake.
Fuel Injector Replacement: Nissan Dealership Cost Analysis
You may want to see also
Explore related products
Insert the new injector at the appropriate angle
Inserting the new injector at the appropriate angle is a crucial step in the installation process. Before inserting the new injector, it is important to ensure that the injector clamp has been released and the old injector has been carefully pulled out. Once the old injector is removed, it is time to prepare the new injector. Lubricate the O-rings of the new injector with a suitable lubricant such as oil, KY, or vaseline. This step is important to prevent the O-ring from tearing during the insertion process.
When inserting the new injector, pay close attention to the angle and position. Gently insert the injector into the rail at the correct angle, being careful not to force it in a way that could damage the O-ring. Ensure that the wire connector of the new injector is facing outward. Once the injector is in place, secure it with a clamp.
At this stage, it is important to re-lubricate the O-rings to ensure a proper seal when mating with the intake. Place the rail and injectors back onto the intake, gently wiggling them into the correct position. Tighten the bolts securely, but be careful not to over-tighten them. It is recommended to tighten the bolts to 8 ft-lbs to ensure a secure connection without causing any damage.
After the new injector is securely clamped and bolted down, it is time to reconnect the various components. Reconnect the injector harness and all the other connections that were previously removed. This includes reconnecting the fuel line by pushing it back onto the rail until a positive "click" is heard. Finally, reconnect the battery and turn the key to the "run" position. Check for any leaks, and if no leaks are detected, start the engine and test the new injector.
Troubleshooting Fuel Injectors in a Honda CBR600RR
You may want to see also
Frequently asked questions
The major components of the LS1 fuel system are the eight injectors, the stainless steel fuel rail, and the in-tank fuel pump.
The LS1 operates at 4 bar of fuel pressure or 58.02 psi.
Before installing the LS1 fuel injectors, make sure your battery is disconnected and that the car is in a safe area to work on.
The first step is to disconnect the fuel rail at the LS1 fuel line quick connect. You can also use a tool to remove it.
If you cut any o-rings, you can purchase replacements at Home Depot, Lowes, or similar hardware stores.
