If you're looking to install a fuel injector clip on your 04 Jeep Wrangler, you've come to the right place. This process can be done at home with some common garage tools and will take approximately 2 hours. Before starting, ensure that you have the correct fuel injector clip for your Wrangler model. Once you have the necessary parts and tools, you can begin by removing the fuel tank filler tube cap and disconnecting the negative battery cable from the battery. From there, follow these steps: ...
Explore related products
What You'll Learn
Removing the fuel tank filler tube cap
To remove the fuel tank filler tube cap from your 2004 Jeep Wrangler, you will need to follow a few steps. Firstly, relieve the fuel system pressure by removing the air duct at the throttle body or air cleaner assembly if necessary. Disconnect the negative battery cable from the battery.
Next, remove the air tube at the top of the throttle body. Some Wrangler models may require the removal of air cleaner ducts at the throttle body, so check your specific model. Disconnect the electrical connectors at all fuel injectors. The factory fuel injection wiring harness should be numerically tagged for injector position identification. If it is not tagged, make sure to note the wiring location before removal.
Now, you can remove the fuel tank filler tube cap. After this, you can continue with the remaining steps to replace the fuel injectors, which include disconnecting the vent line at the fuel damper (if equipped) and removing the fuel supply line latch clip and fuel line at the fuel rail.
It is important to note that, for certain emissions packages, you may also need to remove the oxygen sensor wiring clip nuts at the fuel rail mounting studs. Additionally, you may need to disconnect or remove cables such as the automatic transmission cable, speed control cable, or throttle cable to allow for the removal of the fuel rail.
How Do Diesel Engines Use Fuel Injectors?
You may want to see also
Explore related products
Disconnecting the negative battery cable
Step 1: Locate the Negative Battery Terminal
Before you begin, it is important to identify the negative battery terminal. It is usually indicated by a "-" sign or a black cover on the terminal clamp. The negative terminal is often located on the right side of the battery, but this may vary depending on your car's make and model.
Step 2: Prepare the Work Area
Park your car on a level surface and engage the parking brake. Make sure the engine is turned off, and the keys are removed from the ignition. Wear protective gear, such as gloves and eye protection, to safeguard against any accidental spills or sparks. Place a suitable container nearby to hold the battery cable and any loose hardware.
Step 3: Disconnect the Negative Battery Cable
Using an appropriate-sized wrench or socket, loosen the clamp that secures the negative battery cable to the battery terminal. Do not allow the wrench to come into contact with any other metal parts of the car to avoid creating a short circuit. Once the clamp is loose, carefully remove the cable from the terminal. Ensure that the cable does not touch any metal parts of the car, including the battery terminal.
Step 4: Secure the Cable
After disconnecting the negative battery cable, it is important to secure it properly. Place the cable in the designated container or tie it safely away from the battery to prevent accidental contact. Make sure the cable does not dangle or touch any metal components.
It is worth noting that disconnecting the negative battery cable will reset the car's computer and cause the clock and radio presets to be lost. You may need to reprogram certain electronic features after reconnecting the battery.
Additionally, always exercise caution when working with car batteries as they contain sulfuric acid, which can cause severe burns and damage if handled improperly.
Cleaning Jet Ski Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Disconnecting electrical connectors
To disconnect the electrical connectors of a 2004 Jeep Wrangler's fuel injectors, follow these steps:
Firstly, relieve the fuel system pressure. This can be done by removing the fuel fill cap and the fuel pump relay from the Power Distribution Center (PDC). Then, start and run the engine until it stalls. Attempt to restart the engine until it no longer runs, and turn the ignition key to the OFF position.
Next, disconnect the electrical connectors at all fuel injectors. The factory fuel injection wiring harness should have numerical tags (INJ 1, INJ 2, etc.) for injector position identification. If the wiring harness is not tagged, make sure to note the wiring location before removal.
Additionally, remove the oxygen sensor wiring clip nuts at the fuel rail mounting studs (on certain emissions packages only). Disconnect the fuel supply line latch clip and the fuel line at the fuel rail. Refer to Quick-Connect Fittings for the correct procedures.
It is important to note that some engine/vehicle variations may require the removal of air cleaner ducts at the throttle body. Before disconnecting the injector harness electrical connectors at each injector, identify each connector or refer to the numerical tags attached.
Finally, place a rag or towel below the fuel line quick-connect fitting at the fuel rail, and disconnect the quick-connect fitting.
STP Fuel Injector Cleaner: How Much to Use?
You may want to see also
Explore related products
Removing the fuel rail mounting bolts
To remove the fuel rail mounting bolts, you must first relieve the fuel system pressure. This can be done by removing the fuel fill cap, removing the fuel pump relay from the Power Distribution Center (PDC), and then running the engine until it stalls. Attempt to restart the engine until it no longer runs, and then turn the ignition key to the OFF position.
Next, disconnect the electrical connectors at all fuel injectors. The factory fuel injection wiring harness is numerically tagged (e.g. INJ 1, INJ 2) for injector position identification. If the wiring harness is not tagged, note the wiring location before removal.
Remove the fuel line latch clip and the fuel line at the fuel rail. It may be necessary to disconnect or remove the automatic transmission cable, speed control cable, or throttle cable to allow removal of the fuel rail.
Now, remove the four fuel rail mounting bolts. Gently rock and pull the left side of the fuel rail until the fuel injectors start to clear the machined holes in the cylinder head. Repeat this procedure on the right side of the rail. Continue rocking and pulling on both sides of the rail until all injectors have cleared the cylinder head holes.
BP Gas: Cleaning Fuel Injectors?
You may want to see also
Explore related products
$8.99 $9.59
Installing the fuel injector clip

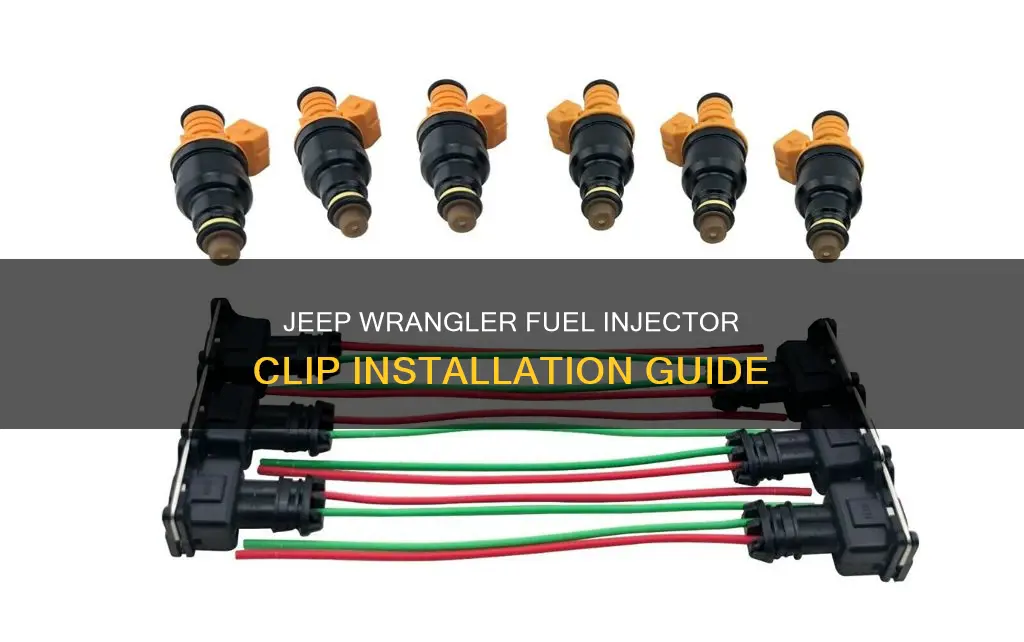

Installing a fuel injector clip on your 04 Jeep Wrangler is a process that requires careful attention to detail. Here is a step-by-step guide to help you through the installation process:
Step 1: Disconnect the Battery
Begin by disconnecting the negative battery cable from the battery terminal. This is an essential safety precaution to prevent any accidental electrical discharge during the installation process.
Step 2: Remove Air Tube and Disengage Electrical Components
Remove the air tube or duct at the top of the throttle body. Depending on your Wrangler's specific model, you may also need to remove air cleaner ducts at the throttle body. Disconnect all necessary electrical connectors at the fuel injectors. The factory fuel injection wiring harness should have numerical tags (INJ 1, INJ 2, etc.) to help you identify the correct injector positions.
Step 3: Release Fuel System Pressure
Follow the standard procedure to safely release the fuel system pressure. This typically involves removing the fuel fill cap, removing the fuel pump relay from the Power Distribution Center (PDC), running the engine until it stalls, attempting to restart, and then turning the ignition key to the OFF position.
Step 4: Disconnect Fuel Supply Line
Disconnect the fuel supply line latch clip and the fuel line at the fuel rail. Refer to Quick-Connect Fittings instructions for your specific Wrangler model to ensure you're using the correct procedure.
Step 5: Remove Fuel Rail Mounting Bolts
Remove the fuel rail mounting bolts to access the fuel injectors. Depending on your Wrangler's configuration, you may need to disconnect or remove cables such as the automatic transmission cable, speed control cable, or throttle cable to facilitate the removal of the fuel rail.
Step 6: Clean and Prepare Fuel Injectors
With the fuel rail removed, you can now access the fuel injectors. Clean any dirt or debris from the injectors and ensure they are properly seated in the intake manifold. Lubricate each injector "0" ring with a small amount of clean engine oil.
Step 7: Install Fuel Injector Clip
Now, carefully install the new fuel injector clip, ensuring it is securely fastened and the injectors are held tightly in place. Refer to the manufacturer's instructions for the specific torque specifications for the mounting bolts.
Step 8: Reassemble Components
Follow the previous steps in reverse order to reassemble the components. Reattach the fuel rail, reconnect electrical connectors, and ensure all cables are properly connected and secured.
Step 9: Final Checks
Reconnect the negative battery cable to the battery terminal. Start the engine and carefully check for any fuel leaks. Ensure that all components are securely connected and functioning properly.
Please note that this guide provides a general overview of the process. Depending on your Wrangler's specific model and year, there may be slight variations in the steps or additional considerations. Always refer to your Wrangler's service manual or seek advice from a qualified mechanic if you're unsure about any aspect of the installation process.
Fixing Dirty Fuel Injectors: Repair or Replace?
You may want to see also
Frequently asked questions
The first step is to remove the fuel tank filler tube cap.
Disconnect the negative battery cable from the battery.
Remove the air tube at the top of the throttle body.
Remove the injector harness electrical connectors at each injector.
Disconnect the vent line at the fuel damper.
