Fuel injectors are a critical component of modern vehicles, ensuring the right amount of fuel is delivered to the engine at the right time. They are prone to wear and tear, and their failure can lead to a range of engine performance issues. Testing fuel injectors can save you from costly repairs and keep your vehicle running smoothly. A multimeter can be used to measure resistance and continuity in the injector circuit to identify electrical issues. The spray pattern an injector makes can also indicate whether a cylinder is operating as it should. A basic fuel injector will have a single hole at the tip to spray fuel, and a good injector will have a spread-out spray pattern.
| Characteristics | Values |
|---|---|
| Fuel Injector Function | Supply fuel into the cylinders |
| Fuel Injector Location | One per cylinder, typically a black plastic housing installed directly above the cylinder |
| Fuel Injector Testing Tools | Multimeter, screwdriver, injector cleaner machine, fuel pressure gauge, pulse tester, voltmeter, oscilloscope |
| Fuel Injector Testing Methods | Measuring resistance and voltage, checking spray pattern, listening for clicking sounds, inspecting connectors for corrosion or damage, ensuring wiring is intact |
| Fuel Injector Problems | Clogged injectors, leaking injectors, injectors that do not open properly, dirty injectors, gunk or carbon buildup, weak splice |
| Fuel Injector Consequences | Engine misfires, rough idle, stalling, decrease in power, increase in fuel consumption, additional wear and tear on the engine |
Explore related products
What You'll Learn
Checking for engine misfires
A fuel injector is a major component in modern cars and trucks that supplies fuel into the cylinders. An engine needs the correct air/fuel ratio to be supplied to each cylinder to operate with a fuel injector injecting the gas. A fuel pump starts the cycle by pumping gas up to a fuel rail that the injectors sit on. The pump keeps the fuel rail pressurized with gas, so when an injector opens, fuel is sprayed into a cylinder.
An engine misfire can be caused by a variety of faults, but the primary suspects are simple – spark or fuel – usually manifesting in spark plugs, plug wires, the coil(s) or the fuel-delivery system. If you’re experiencing any of these symptoms and the check engine light comes on, you know it’s time to go see your mechanic. The check engine light will go on and off as your engine misfires. It’s one of the few engine problems that will do this as others cause the light to turn on and stay on. If you watch, this will tell you when you're suffering misfires and help you better diagnose them.
If your spark plugs are old, worn, corroded, dirty, or not installed correctly, you may be more prone to misfires. The spark may not happen to ignite the fuel mixture, or it may be sluggish and happen at the wrong time, throwing the precision of the whole engine off. Bad plug wires could also be the cause of the spark not happening at the correct time. Fortunately, both of these are relatively cheap fixes. A bad ignition coil may also be to blame when the spark isn’t working and depending on your vehicle you may have a separate ignition coil for each plug or just one connected to all of them.
When there’s not enough gas in the fuel/air mix it's called a “lean” misfire and it affects all cylinders, not just one like you’d get with a bad spark plug. An intake manifold gasket leak or broken vacuum hose might also be to blame when your engine is misfiring. Additionally, things like a broken fuel pressure regulator or fuel pump can lead to lower fuel pressure, which in turn makes the fuel system as a whole fail. As you can see, the issues relating to fuel system misfires can be extensive and wide-reaching.
If the plugs are not the case, or you're not comfortable buying and replacing them on your own, then going to a mechanic is the best choice. A mechanic can use an OBD2 scanner to help pinpoint the exact cause of the misfire. They can also do a much more thorough check of your valves and gaskets, the fuel injection system, and more to see which part of the entire engine is at fault.
When to Use Liqui Moly Fuel Injector Cleaner
You may want to see also
Explore related products
Using a multimeter to measure resistance
Step 1: Prepare the Multimeter
First, ensure your vehicle is turned off. Set the multimeter to measure resistance, typically by turning the dial to the Ω (ohm) symbol. This sets the multimeter to resistance mode. The Ω symbol is usually found on the selector switch area of the multimeter.
Step 2: Locate and Access the Fuel Injectors
Open the hood of your vehicle to locate the fuel injectors. They are typically black plastic housings installed directly above each cylinder. Once located, you may need to remove plastic panels or loosen bolts to access the injectors.
Step 3: Disconnect the Fuel Injector Plug
Disconnect the electrical connector for the fuel injector you want to test. This is usually done by pressing down on tabs or moving a slide lock to remove the wiring harness.
Step 4: Measure Resistance with the Multimeter
Place the leads of the multimeter on each pin of the fuel injector plug. Polarity does not matter, so you can place the black lead in either position. Take note of the ohm value displayed on the multimeter. A typical range for fuel injectors is between 10 and 18 ohms, but check your vehicle's service manual or the manufacturer's specifications for the correct value.
Step 5: Repeat for All Injectors
Repeat the process for all fuel injectors in your vehicle. All readings should be within the range specified by the manufacturer, and they should all be similar to each other. If any resistance readings are off, the faulty injector may need to be repaired or replaced.
By following these steps and using a multimeter to measure resistance, you can accurately test your fuel injectors and identify any that may be causing issues.
When to Use Fuel Injector Cleaner: A Guide
You may want to see also
Explore related products
Testing the spray pattern
Firstly, remove the fuel rail while keeping the injector attached. This will give you access to the injector and allow you to observe its spray pattern. Make sure to have a working knowledge of the different types of spray patterns and the specific system you are working with. For example, older injectors from the 1970s to 1980s often had a single hole, resulting in a very narrow spray pattern, while newer injectors may have multiple holes to create a wider spray.
Next, turn on the fuel pump to build pressure in the fuel rail. This will ensure that when you activate the injector, it sprays fuel. You can activate the injector by applying voltage. A 9-volt battery is commonly used for this purpose. Be sure to measure the voltage going to the injector to ensure it is receiving power. The positive side should have a constant voltage while the ground is switched on and off to control the injector's function.
With the fuel pump on and the injector activated, observe the spray pattern. It should be a fine, light mist with an even spread. Any deviations from this may indicate a problem with the injector. A common cause of spray pattern distortion is a dirty or clogged injector, which can be addressed through cleaning.
If the spray pattern appears abnormal, further diagnostics may be required to identify the root cause. This could involve checking the resistance of the injector's electromagnetic coil using a meter or consulting with a professional mechanic or injector cleaning service. Remember, the spray pattern is crucial in ensuring proper fuel atomization and directing the spray into the combustion chamber at the correct angle.
Backhoe Maintenance: Replacing Fuel Injectors for Optimal Performance
You may want to see also
Explore related products

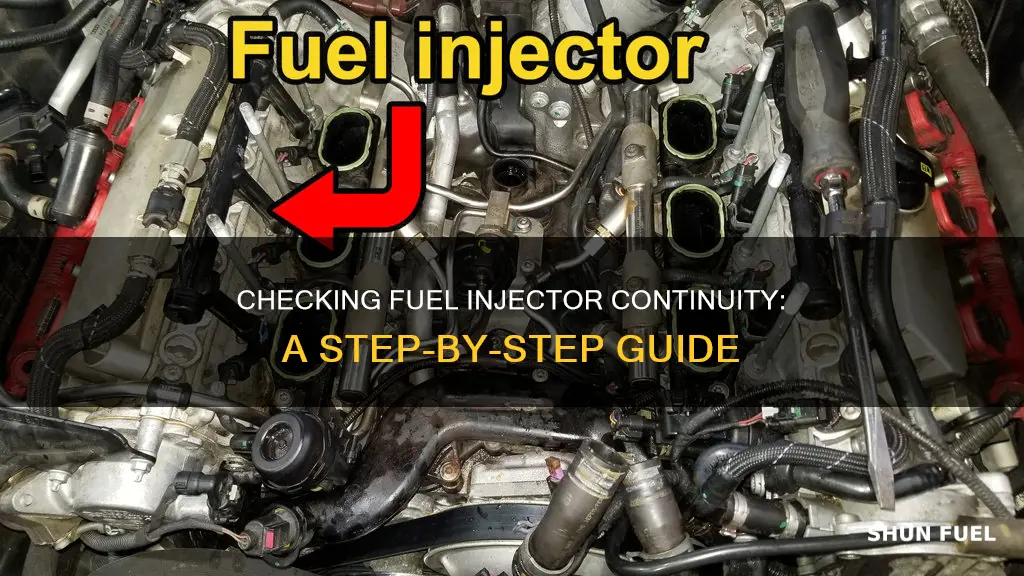

Identifying the location of fuel injectors
The location of fuel injectors varies across different vehicle models. For example, in a 2012 Ford Ranger 3.2L, the fuel injectors are located in the fuel rail next to the intake manifold. In a 1993 Ford Taurus 6-cylinder, the injectors are under the upper intake manifold.
To identify the location of the fuel injectors in your specific vehicle, you can refer to the vehicle's repair manual or seek assistance from a professional mechanic. Online forums and communities, such as Reddit's r/AskAMechanic and JustAnswer, are also valuable resources where experienced individuals can provide guidance based on your vehicle's make, model, and year.
Additionally, some fuel injectors have a part number stamped on their side, which can be used to search for the correct injector and its location for your particular engine. If you are unable to locate the part number, sending a clear picture of the injector to a specialist service or dealership can help identify the correct one and its placement.
It is important to accurately identify the location of the fuel injectors before attempting any repairs or replacements to ensure the job is done correctly and safely.
Testing Voltage to Fuel Injectors in a '95 YJ
You may want to see also
Explore related products
Checking for dirt, gunk or carbon buildup
Fuel injectors are a critical component of modern cars and trucks, supplying fuel into the cylinders. They are computer-controlled to deliver the precise amount of gasoline to the combustion chamber. Over time, poor-quality gasoline can cause deposit buildup, misfires, and hotspots in the combustion chamber, leading to a loss of power.
Checking for dirt, gunk, or carbon buildup is essential to ensure the optimal functioning of fuel injectors. Here are the steps to follow:
Firstly, understand the spray pattern of the injector. A basic fuel injector will have a single hole at the tip to spray fuel into the engine, while some more advanced injectors have multiple holes to achieve a better spray pattern. A good injector will have a spread-out spray pattern. To test this, you will need to remove the fuel rail with the injector still attached, turn on the fuel pump, and apply voltage. A 9-volt battery is commonly used to activate the injector.
Secondly, measure the voltage going to the injector to ensure it is receiving power. Remove the 2-pin connector and place the positive red meter lead on the positive pin to measure the voltage. The voltage on the positive side should remain constant while the ground is switched on and off for the injector to function properly.
Thirdly, check the resistance of the electromagnetic coil within the injector. The coil's resistance can be measured using ohms on a meter and compared to the injectors' rated resistance. For example, if your vehicle's fuel injectors have a rated resistance of 16.5, the measured resistance should be between 16-17 Ohms. Set the meter to 200 Ohms, remove the Fuel Injector Plug, and place the meter leads on each pin to measure the resistance.
Finally, if your vehicle has a port fuel-injected engine, you can use a detergent called polyisobutylene amine (PIBA) to clean the injectors. However, for direct-injected engines, a stronger additive called polyether amine (PEA) is required to withstand the heat of the combustion chamber. Using fuel additives with PEA can help improve engine performance and fuel efficiency. Alternatively, a process called walnut blasting can be used to directly clean the intake valves and remove carbon buildup.
Adjusting Fuel Injectors: Running Richer, the How-to Guide
You may want to see also
Frequently asked questions
Engine misfires are a common symptom of fuel injector problems. This can be caused by clogged injectors, which restrict fuel flow, or from injectors that leak or do not open properly, leading to an improper mixture of fuel and air. A sudden rise in fuel consumption can also indicate a faulty fuel injector.
You can use a screwdriver to listen to the injector cycling on and off. You should hear a regular clicking sound. Compare this sound to the other injectors and note any differences. Alternatively, you can use a multimeter to measure resistance and continuity in the injector circuit to identify electrical issues.
You will need a multimeter or a voltmeter, and potentially a pulse tester. You may also need a fuel pressure gauge and an injector cleaner machine.
If your fuel injectors are faulty due to dirt, gunk, or carbon buildup, you can use a fuel system product to clean them. If the resistance readings are off, the faulty injector will need to be repaired or replaced.
