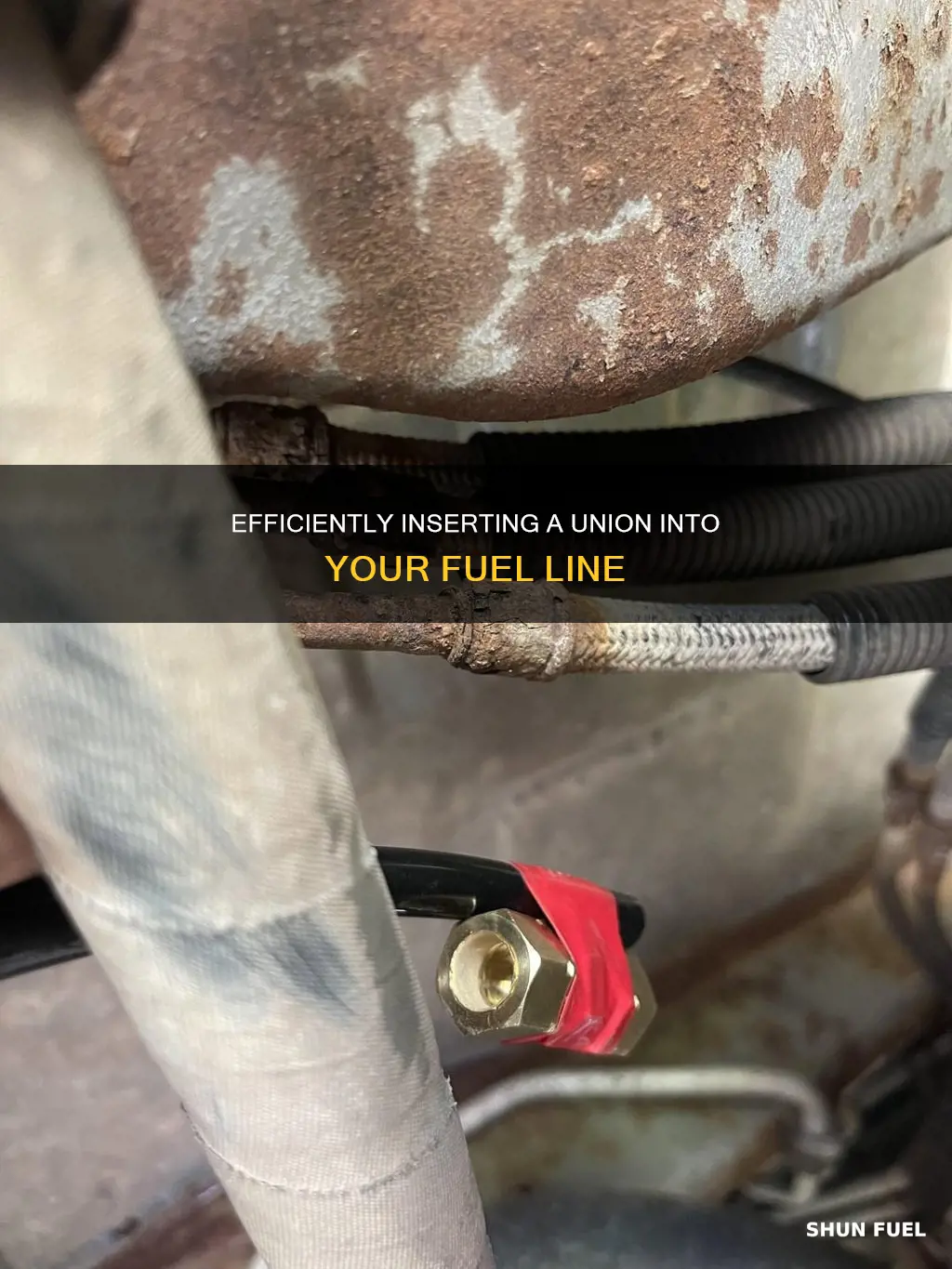

Mastering Fuel Line Union Insertion: A Comprehensive Guide

Inserting a union into a fuel line is a common procedure in automotive maintenance, allowing for easy access to the fuel system for repairs or modifications. This process involves connecting a new section of pipe or fitting to the existing fuel line, ensuring a secure and leak-free connection. The union provides a flexible and reliable way to join fuel lines, making it an essential skill for mechanics and DIY enthusiasts working on fuel-related projects. Understanding the proper techniques and tools for this task is crucial to ensure the safety and efficiency of the fuel system.

Fuel Line Inspection: Check for damage, kinks, or blockages before inserting a union

Before attempting to insert a union into a fuel line, it is crucial to conduct a thorough inspection to ensure the process is carried out safely and effectively. This initial step is often overlooked but is essential to prevent potential issues and costly repairs. Here's a comprehensive guide to inspecting the fuel line:

Visual Inspection: Begin by visually examining the fuel line for any visible signs of damage. Look for cracks, punctures, or any discolouration, as these could indicate previous damage or potential weaknesses. Check for any kinks or bends in the line, especially if the fuel line has been subjected to vibrations or movement. Even minor kinks can restrict fuel flow and lead to performance issues. Ensure that the fuel line is not pinched or caught between other components, as this can cause blockages.

Pressure Testing: If possible, perform a pressure test to check the integrity of the fuel line. This can be done by temporarily sealing the fuel tank and applying pressure to the line. Listen for any leaks or hissing sounds, which may indicate damage or weak points. This test is particularly important if the fuel line is older or has been previously repaired.

Blockage Check: Inspect the fuel line for any blockages or clogs. This can be done by using a fuel line cleaner or a thin wire to carefully probe the line. Blockages can be caused by contaminants, such as water or fuel system debris, and can significantly impact engine performance. If you encounter any blockages, ensure they are cleared before proceeding.

Union Compatibility: Verify that the union (a type of quick-connect coupling) is compatible with the fuel line and the fuel system as a whole. Different fuel systems may require specific types of unions. Ensure that the union's size and thread type match the fuel line's specifications. Using an incompatible union can lead to leaks or improper sealing.

By following these inspection steps, you can ensure that the fuel line is in optimal condition before inserting the union. This process is vital for maintaining the health of your vehicle's engine and preventing potential fuel-related issues. Remember, proper preparation and inspection are key to a successful and safe fuel line union installation.

Union Preparation: Ensure the union is clean, dry, and free of debris

When preparing to insert a union into a fuel line, it is crucial to ensure that the union is in optimal condition to facilitate a secure and leak-free connection. The first step in this process is meticulous cleaning. Start by removing any existing fuel lines or components that might obstruct access to the union. Use a fuel line cleaner or a suitable solvent to thoroughly clean the union and the surrounding areas. This step is essential to eliminate any dirt, grime, or old fuel residue that could interfere with the union's functionality. Pay close attention to the threads and surfaces of the union, ensuring they are free from any contaminants.

After cleaning, the union must be thoroughly dried. Moisture can lead to corrosion and compromise the integrity of the connection. Use a clean cloth or a soft brush to remove any remaining solvent or water droplets. Ensure that the union is completely dry before proceeding, as even a small amount of moisture can cause issues during the installation process.

Additionally, inspect the union for any signs of damage or wear. Look for cracks, chips, or any other imperfections that might affect its performance. If any damage is detected, it is advisable to replace the union to ensure a safe and reliable fuel line connection. This step is critical to prevent potential fuel leaks and maintain the overall health of the fuel system.

By following these preparation steps, you create a clean and dry environment for the union installation, reducing the risk of contamination and ensuring a proper fit. This attention to detail is fundamental in the process of inserting a union into a fuel line, contributing to the overall success and safety of the fuel system. Remember, a well-prepared union is a key component in establishing a robust and leak-resistant fuel line connection.

Fuel Line Alignment: Align the fuel line and union properly for a secure fit

When it comes to working on your vehicle's fuel system, ensuring a proper alignment and secure fit of the fuel line and union is crucial for optimal performance and safety. Here's a step-by-step guide to help you achieve this:

Step 1: Preparation

Before you begin, make sure you have the necessary tools and materials. You'll need a fuel line, an appropriate union (usually a barbed union with an O-ring), and a fuel line connector kit. Ensure you have the correct sizes and types of connectors for your specific application. It's also a good idea to wear protective gear, such as gloves and safety goggles, to avoid any potential hazards.

Step 2: Locate the Fuel Line and Union

Locate the existing fuel line on your vehicle that needs to be replaced or repaired. Identify the point where the fuel line connects to the engine or fuel tank. Carefully remove any old fuel line or debris from the connection area. Clean the surface to ensure a proper seal.

Step 3: Prepare the Fuel Line and Union

Take the new fuel line and align it with the union. Ensure that the fuel line's end is clean and free of any debris. Slide the fuel line onto the union, making sure the threads are aligned correctly. You might need to use a small amount of thread sealant or fuel line tape to ensure a tight seal.

Step 4: Tighten the Union

Using a wrench, tighten the union onto the fuel line. Start with a light torque and gradually increase it until the union is secure. Over-tightening can damage the fuel line, so be cautious. The goal is to achieve a snug fit without forcing the union onto the fuel line.

Step 5: Test the Connection

After tightening the union, inspect the connection for any leaks. You can use a small amount of diesel fuel or a non-toxic dye to test for leaks. If any leaks are detected, carefully tighten the union further or reapply thread sealant. Ensure that the fuel line is not kinked or pinched, as this can cause pressure buildup and potential leaks.

Step 6: Final Adjustments

Once the connection is secure and leak-free, make any necessary adjustments to the fuel line's position to ensure it is routed correctly and not under excessive strain. Use fuel line brackets or ties to secure the line in place, following the manufacturer's recommendations.

By following these steps, you can ensure a proper alignment and secure fit of the fuel line and union, contributing to a reliable and safe fuel system in your vehicle. Remember, if you're unsure or uncomfortable with any step, it's best to consult a professional mechanic for assistance.

Torque Specifications: Apply the correct torque to the union to avoid over-tightening

When working with fuel lines and unions, it's crucial to understand the importance of torque specifications to ensure a secure and reliable connection without causing damage. Over-tightening can lead to several issues, including stripped threads, cracked unions, and even fuel leaks, which can be costly and dangerous. Therefore, it's essential to follow the manufacturer's guidelines for the correct torque value.

The torque specification for tightening a union onto a fuel line is typically provided in pound-force per square inch (psi) or Newton-meters (Nm). This value is often found in the vehicle's service manual or the union's manufacturer's documentation. It is a critical piece of information that ensures the union is tightened enough to create a secure seal but not so much that it exceeds the material's yield strength.

To apply the correct torque, you'll need a torque wrench, a tool specifically designed to measure the force applied during tightening. Start by positioning the union onto the fuel line, ensuring it is aligned correctly. Then, begin tightening the union by hand, using the specified torque value as a guide. It's important to tighten the union in a controlled manner, applying the torque gradually and evenly. Avoid using excessive force or tightening too quickly, as this can lead to over-tightening.

As you tighten the union, you should feel a resistance that indicates the torque is being applied. Once you reach the specified torque value, stop tightening and make sure the union is secure. Check for any play or movement in the connection to ensure it is tight enough. If there is any movement, you may need to re-tighten the union, being careful not to exceed the recommended torque.

Remember, the goal is to achieve a secure and leak-free connection without causing any damage. Over-tightening can be just as problematic as under-tightening, so always refer to the torque specifications and use the appropriate tools to ensure a proper installation. By following these guidelines, you can ensure the longevity and reliability of your fuel line connections.

Leak Testing: Use a fuel leak detector to verify the union is leak-free

Leak testing is a crucial step in ensuring the integrity of your fuel system after inserting a union. It provides an effective method to verify that the union is leak-free, preventing potential fuel leaks and associated issues. Here's a detailed guide on how to perform this test:

Fuel Leak Detector Preparation: Begin by acquiring a fuel leak detector, which is a specialized tool designed for this purpose. These detectors typically come in the form of a spray or a gel, both of which are easy to use. Ensure you have the necessary equipment, including the leak detector, a clean cloth, and possibly a small container for any collected samples.

Application Process: Start by cleaning the union and the surrounding area. Remove any dirt, grease, or debris to ensure accurate testing. Then, apply the fuel leak detector according to the manufacturer's instructions. This process usually involves spraying or applying a small amount of the detector onto the union and its adjacent surfaces. Allow the detector to dry or activate it as per the product's guidelines.

Visual Inspection: After the specified time, visually inspect the treated area. The fuel leak detector will typically change color or exhibit a visible reaction if a fuel leak is present. Look for any discolored areas, bubbles, or other indicators that suggest a potential leak. Pay close attention to the threads and any connections where the union is inserted into the fuel line.

Positive and Negative Results: If you detect no visible changes or reactions, it indicates that the union is likely leak-free. However, if you observe any signs of leakage, such as a change in color or the formation of bubbles, it's crucial to address the issue promptly. In such cases, you may need to disassemble the union, clean it thoroughly, and potentially replace any damaged components before retesting.

Safety and Maintenance: Remember that fuel leaks can be dangerous and should never be ignored. Always follow safety protocols and consider this leak test as a regular maintenance procedure for your fuel system. Regularly inspecting and testing the union will help ensure the longevity and reliability of your vehicle's fuel supply.
