Heat wrapping your fuel lines is essential to prevent damage and maintain their integrity. There are several ways to do this, including using fuel line insulation sleeves, wraps, or heat-reflective tapes. These products are typically made of heat-resistant materials such as fiberglass, silicone, reflective foil, or thermal-resistant fabrics. They provide a protective barrier against heat by redirecting it away from the lines, ensuring optimal fuel performance and safety. Basic insulation sleeves and wraps are generally more affordable, while premium or high-temperature-resistant options may be more expensive. Additionally, it is recommended to route fuel lines away from high-temperature components, such as exhaust systems or engine parts, whenever possible.

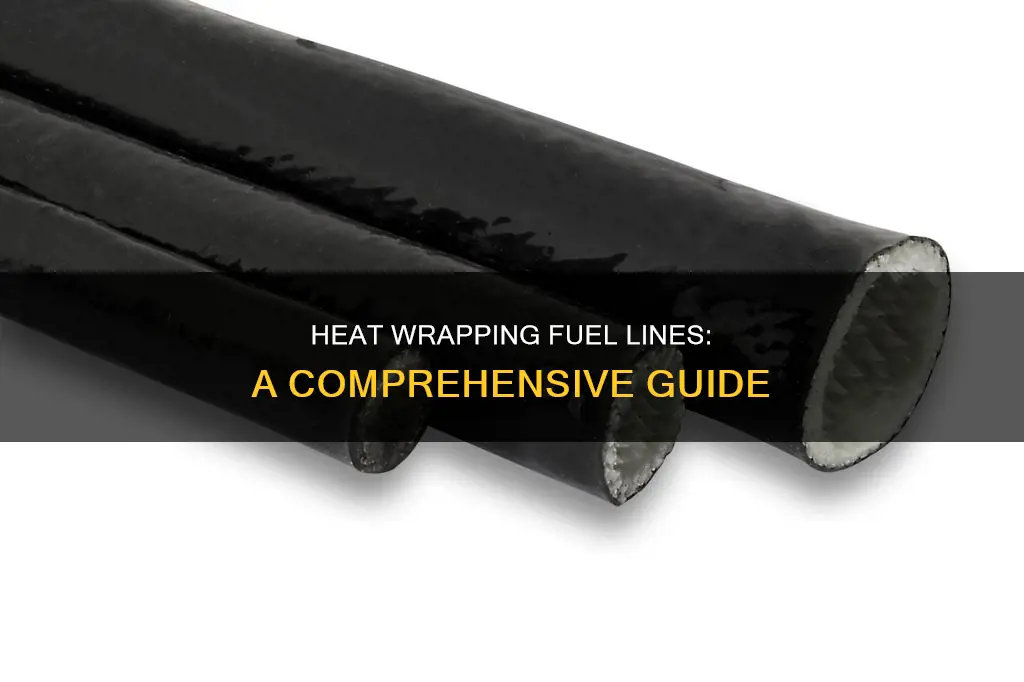

How to heat wrap fuel lines
| Characteristics | Values |
|---|---|
| Reason | To prevent vapor lock and maintain fuel flow |
| Fuel line insulation sleeves | Made of heat-resistant materials such as fiberglass, silicone, or thermal-resistant fabrics |
| Fuel line insulation wraps | Flexible and made of fiberglass, reflective foil, or thermal-resistant fabrics |
| Heat-reflective tapes | Specialized tapes with heat-reflective properties that redirect heat away from the lines |
| Fuel line type | Applicable to steel, rubber, or braided fuel lines |
| Cost | Basic insulation sleeves and wraps are more affordable, while premium or high-temperature-resistant options are more expensive |
Explore related products
What You'll Learn
Fuel line insulation sleeves
The process of installing fuel line insulation sleeves is straightforward. The sleeves are often designed with a split structure and an adhesive flap, allowing for easy installation without the need to disconnect the fuel line. You simply wrap the sleeve around the line, remove the adhesive liner, and secure the sleeve in place by pressing the adhesive flap onto the fuel line. This installation method ensures that your fuel lines remain intact and undisturbed during the process.
The cost of fuel line insulation sleeves can vary depending on factors such as type, material, and length. Basic sleeves are usually more affordable, while premium or high-temperature-resistant options may be priced higher. It is important to choose an option that aligns with your specific requirements and the level of protection needed for your fuel lines. On average, you can expect to spend between $20 and $100 for insulation products.
In addition to fuel line insulation sleeves, there are also other methods to protect your fuel lines from heat. These include fuel line insulation wraps, which are flexible and can be wrapped around the lines, and heat-reflective tapes, specifically designed to redirect heat away from the lines. Both of these alternatives come in various materials, such as fiberglass, reflective foil, and thermal-resistant fabrics, offering you a range of choices to suit your needs and preferences.
Unscrewing Fuel Lines: 2010 F150 Gas Tank Maintenance
You may want to see also
Explore related products
Insulation wraps
The choice of insulation wrap depends on your specific needs and preferences. Basic insulation wraps are generally more affordable, while premium or high-temperature-resistant options may be more expensive. It's important to consider the level of protection required for your fuel lines when making your choice.
Another option for insulation wraps is reflective foil. These wraps also provide a heat-resistant barrier and can be wrapped around your fuel lines. They are effective in redirecting heat away from the lines, keeping the fuel inside cooler and your vehicle running smoothly. Reflective foil wraps are a good choice for those who want a flexible and affordable option for heat protection.
In addition to fiberglass and reflective foil, there are thermal-resistant fabric wraps available. These wraps are designed to provide a protective layer against heat for your fuel lines. They are flexible and can be easily wrapped around the lines, offering optimal fuel performance and safety. Thermal-resistant fabric wraps are a great choice for those who want a simple and effective solution to maintain the integrity of their fuel lines.
Fuel Line Sizes for Poulan 5020: Why the Difference?
You may want to see also
Explore related products
Heat-resistant materials
Insulating your fuel lines is a smart move, especially in applications where heat management is critical. Fuel line insulation sleeves are available to safeguard your fuel lines from heat sources. These sleeves, which are constructed of heat-resistant materials such as fibreglass or silicone, are slipped over the fuel lines to provide a protective barrier against heat.
Fuel line insulation wraps are another option for heat-resistant materials. These wraps are flexible and can be wrapped around your fuel lines. They are made of fibreglass, reflective foil, or thermal-resistant fabrics. Heat reflective tapes, which have specialised heat-reflective characteristics, are another option for redirecting heat away from the lines.
The type of insulation you choose depends on your specific needs and preferences. Each option provides excellent heat protection for your fuel lines, ensuring optimal fuel performance and safety. It is critical to safeguard rubber fuel lines to avoid damage and maintain their integrity.
Another option for a heat-resistant material is copper-nickel tubing, which is frequently used for brake lines. It is simple to bend and does not work-harden or crack like copper. Stainless steel is still the best option for hardlines.
Outboard Fuel Line Slack: How Much is Enough?
You may want to see also
Explore related products
Heat reflective tapes
Heat-reflective tapes are a great way to protect your fuel lines from heat damage. They are a type of specialised tape with heat-reflective properties that can be wrapped around fuel lines to redirect heat away, ensuring optimal fuel performance and safety.
There are several options available for heat-reflective tapes, with some of the most popular options being gold in colour and made from advanced polymer laminated glass cloth. This type of tape can handle continuous operating temperatures of up to 450 degrees Celsius and reflect up to 80% of radiant heat. This exceptional heat reflection capability helps maintain lower temperatures within your vehicle and offers weight savings compared to other heat-reflecting materials.
When choosing a heat-reflective tape, it is important to consider the specific needs and preferences of your vehicle. The cost of fuel line insulation can vary depending on the type, material, and length required. Basic insulation sleeves and wraps are generally more affordable, while premium or high-temperature-resistant options may be more expensive.
To install heat-reflective tape, simply wrap the tape around your fuel lines, ensuring that they are securely mounted and well-protected along their path. Additionally, try to route your fuel lines away from high-temperature components like exhaust systems or engine parts to further protect them from heat damage.
By using heat-reflective tapes and taking protective measures, you can effectively prevent damage to your fuel lines, maintain their integrity, and ensure safe fuel delivery in your vehicle.
Removing Ford Fuel Lines: A Step-by-Step Guide
You may want to see also
Explore related products
Preventing vapor lock
Vapor lock is a phenomenon that can bring a vehicle to a standstill, causing hours of frustration. It occurs when the temperature of the fuel gets high enough to transform it from a liquid to vapour. Since fuel pumps are designed to pump liquid, the vapour state causes fuel starvation and the engine runs rough or stalls. This typically happens during the summer months when high ambient temperatures, combined with the heat of the vehicle's engine and exhaust, are transferred to the fuel lines.
To prevent vapor lock, you need to protect your fuel lines from getting too hot. One of the easiest solutions is to use a thermal-barrier sleeve on the lines, such as a Thermaflect Sleeve from Heatshield Products. These sleeves have a built-in, high-temperature hook-and-loop fastener system, which makes installation easy as you don't need to remove the fuel lines. The sleeve can also be cut to various lengths to protect different sections of the fuel lines.
Another option is to use a heat shield or heat sleeve, which acts as a thermal barrier to block heat and resist damage from solvents and fluids. The Lava Tube from Heatshield Products is an example of this, made from volcanic rock-based material. It is easy to install and can be cut to the required length.
Additionally, you can try insulating the fuel lines with reflective material, such as reflective heat tape, or by using rubber around the lines. This will help to keep the heat out and prevent vapor lock.
Finally, some other methods to prevent vapor lock include installing an electric fuel pump, using cool cans to get fuel cold before it gets into the carburettor, and keeping the fuel lines away from sources of heat such as the exhaust pipe.
Fuel Line Retaining Clips: What Are They and Why Are They Important?
You may want to see also
Frequently asked questions
Heat wrapping your fuel lines is essential to prevent damage and maintain their integrity. It also helps to prevent vapor lock, which is when the fuel in your vehicle gets too hot and starts to turn from liquid to vapour inside the lines, causing issues with fuel flow.
Fuel line heat wraps are typically made of heat-resistant materials such as fibreglass, silicone, reflective foil, or thermal-resistant fabrics.
The cost of fuel line heat wraps can vary depending on the type, material, and length required. Basic insulation sleeves and wraps are generally more affordable, while premium or high-temperature-resistant options may be more expensive. On average, you can expect to spend between $20 and $100 for insulation products.
