Regan Brown
If your Ford F-150 won't start, the fuel lines may need to be replaced. This can be due to clogging, faulty fittings, or a malfunctioning fuel pump. To unhook the fuel lines from the gas tank, you will need to remove the fuel filter from both ends. You can use special disconnect clips or a piece of plastic tubing to disengage the safety clips. Then, locate and remove the bolt holding the fuel rail bracket using a ratchet. If the bolt is stuck, use a lubricant to break it free. Finally, insert a fuel line disconnect tool into the female portion of the fuel line connector, squeeze, and push down until the connection breaks off. Alternatively, you can cut the end portion of the fuel hose with a pipe cutter.

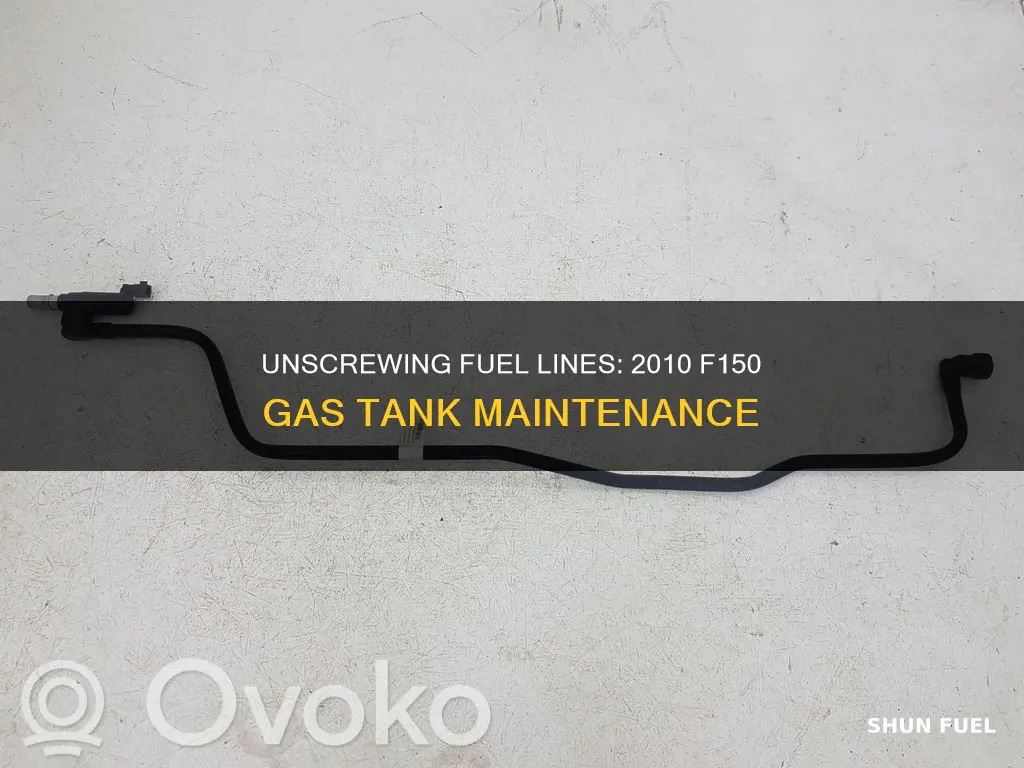

Removing fuel lines from the gas tank of a 2010 Ford F150
| Characteristics | Values |
|---|---|
| Required tools | Fuel line disconnect tool, ratchet, pipe cutter, disconnect clips, lubricant |
| Hose material | Metal or plastic |
| Hose connection type | Push style fitting, push & lock style fitting |
| Common issues | Clogged fuel lines, faulty fuel pump, fuel transfer to rear tank, leaky rear tank |
| Procedure | Remove fuel filter, locate and remove bolt holding fuel rail bracket, use tool to break fuel line connection |
Explore related products
What You'll Learn
Using a fuel line disconnect tool
To disconnect the fuel lines from the gas tank of a 2010 Ford F150, you will need a fuel line disconnect tool. This tool is designed to help you safely and easily separate the fuel lines from the gas tank, without causing any damage to the lines or the tank.
There are a variety of fuel line disconnect tools available on the market, and it is important to choose the correct size and type for your specific vehicle. Some popular options include the Lisle LIS37000 Fuel Line & Air Conditioning Disconnect Tool Set, which can be purchased at Walmart, and the Performance Tool fuel line disconnect, which can be found at Pep Boys. In addition, some Ford F150 owners have reported success with using a 3/8" plastic disconnect tool, which can be purchased at AutoZone for a relatively low price.
When using a fuel line disconnect tool, it is important to follow the correct procedure to ensure a safe and effective disconnection. First, locate the fuel line connector and insert the open end of the tool into the female portion of the connector. Next, squeeze the tool to open its jaws and push down firmly until the fuel line connection breaks off. You may need to apply some force, but be careful not to over-tighten the tool, as this can damage the fuel line.
In some cases, you may need to use a lubricant to help break free the fuel line connector. This is especially true if the connector is difficult to remove or if it has been in place for a long time. Applying a small amount of lubricant to the connector before attempting to disconnect the fuel line can make the process easier and help prevent damage to the fuel line or the tool.
Additionally, it is important to note that fuel lines should be replaced every 50,000 to 75,000 miles to ensure the optimal functioning of your vehicle. Therefore, if you are experiencing issues with your fuel lines, it may be more cost-effective and efficient to simply replace them with new ones, rather than attempting to repair or reuse old or damaged lines.
Fuel Line Sizing for 1999 F250 Super Duty Trucks
You may want to see also
Explore related products
Removing the fuel filter
To remove the fuel filter on a 2010 F150, you will need to wear an apron, safety goggles, and latex gloves to ensure your safety. It is also important to disconnect the negative terminal of your car's battery before you begin.
Firstly, you will need to unhook the metal retaining clip and position a line compression removal tool so that it rests on the front end of the filter. You can spray some lubricant or WD-40 where the tool goes in to aid the process. Then, apply a small amount of pressure, sliding the tool into the line fitting until the fuel line slides off. You will need to repeat this process at the rear of the filter, applying as little pressure as possible.
At this stage, fuel will tend to gush out, so it is important to have some towels handy. Once both ends of the line fitting have been removed, use a flat-blade screwdriver to disconnect the dirty filter. You can then install a new filter, ensuring that the flow arrow is pointing towards the front end of your F-150. Finally, reconnect the front line and hook the retaining clip back into position, and repeat this for the rear line.
Suzuki DR650 Fuel Line: Will 5/8 Inch Fit?
You may want to see also
Explore related products
Removing the bolt holding the fuel rail bracket
To remove the bolt holding the fuel rail bracket, you will first need to locate it. The bolt should be easy to spot as it is connected to the fuel rail bracket and the intake, right behind the two lines at the front.
Once you have located the bolt, you can use a ratchet to remove it. If the bolt is too tight, you can use a lubricant to help break it free. If the bolt is extremely tight, you can try using a small chisel to make a notch and then tap it around until you can grip it with some needle-nose pliers.
If the bolt is stuck, you may need to drill a small hole and use an easy out. However, it is recommended that you let a professional handle this step if you are not experienced in drilling and removing bolts.
After removing the bolt, you can proceed to the next steps of removing the fuel rail and fuel lines. It is important to note that there may be some minor resistance from the lower fuel injector seals, but you should be able to get some flex by hand. Do not force anything if it feels like it is not coming out.
Additionally, before removing any fuel lines, it is crucial to depressurize the system by taking off the fuel cap and pulling the fuel pump fuse. This will help prevent any built-up pressure in the fuel tank from causing fuel to gush out.
A Quick Fix: Temporary Fuel Line Solutions
You may want to see also
Explore related products
Using a lubricant to ease the process
To unhook the fuel lines from your 2010 Ford F150's gas tank, you will need to collect the necessary tools, remove the fuel filter and rail bracket, and then remove the fuel lines.
One of the steps in this process that may benefit from the use of a lubricant is the removal of the bolt holding the fuel rail bracket. If you find it difficult to remove this bolt, a lubricant can be applied to break it free more easily and reduce your overall workload.
It is important to note that, while lubricant can be helpful in this specific step, applying a lubricant to the fuel lines themselves is not recommended. This is because any substance that makes it easier to remove the fuel lines could also cause them to slip off during normal operation, leading to potential fuel leaks. Therefore, it is generally advised to simply twist the hose back and forth to release a stuck hose, rather than applying a lubricant.
When choosing a lubricant for the bolt, you can consider options such as Earls hose lubricant, which has a consistency similar to heavy oil and is intended for assembling AN fittings onto braided hose. However, keep in mind that the longevity of such lubricants is uncertain, and they may not remain effective after extended periods.
Brake and Fuel Lines: Understanding Their Distinct Functions
You may want to see also
Explore related products
Identifying the type of push fitting
There are several types of push fittings that can be found in Ford F150 models, and the specific type required may vary depending on the year and model of the vehicle. Some common types of push fittings found in Ford F150 fuel lines include:
- Hairpin clip type fitting: This type of fitting involves pushing the legs of the retainer clip together, pushing the clip down, and then pulling the fuel line off the pipe.
- Spring-lock coupling: This type of fitting requires removing the safety cover, installing a coupling release tool, and then closing the tool around the coupling before pulling the two lines apart.
- Lock tabs: To release this type of fitting, rotate the lock tab to the fully open position, squeeze the two smaller lock tabs, push out the retainer, and then pull the fuel line off the pipe.
- Barbed fittings: These fittings can be difficult to insert into nylon tubing. Some instructions recommend soaking the tubing in hot water for 10 minutes before inserting the fitting, while others suggest using a heat gun.
- Quick-connect fittings: These fittings may require a special tool to disconnect, which is inserted into the fitting and then popped off.
It is important to note that when working with fuel lines, safety precautions must be taken due to the highly flammable nature of gasoline. Always relieve the fuel pressure and disconnect the cable from the negative battery terminal before servicing fuel lines or fittings. Additionally, always inspect fuel lines for leaks, kinks, dents, or other damage, and replace any damaged lines immediately.
Torquing Fuel Lines: Mini Cooper's Essential Guide
You may want to see also
Frequently asked questions
Your F150's fuel lines are likely manufactured to last for 50,000 to 75,000 miles. After that, you should replace them to keep your car functional. Other signs that you need to replace your fuel lines include engine sputtering at high speeds, low fuel pressure, engine overheating, and decreased mileage.
You will need a fuel line disconnect tool, a pipe cutter, and a lubricant. You can also use some plastic tubing or purchase disconnect clips to remove the fuel filter.
First, remove the fuel filter from both ends, either by using disconnect clips or plastic tubing to disengage the safety clips. Next, locate and remove the bolt holding the fuel rail bracket using a ratchet and lubricant if necessary. Then, insert the open end of the fuel line disconnect tool into the female portion of the fuel line connector and squeeze to open its jaws. Keep pushing down firmly until the fuel line connection breaks off. Alternatively, you can use a pipe cutter to cut off the end portion of the fuel hose.
