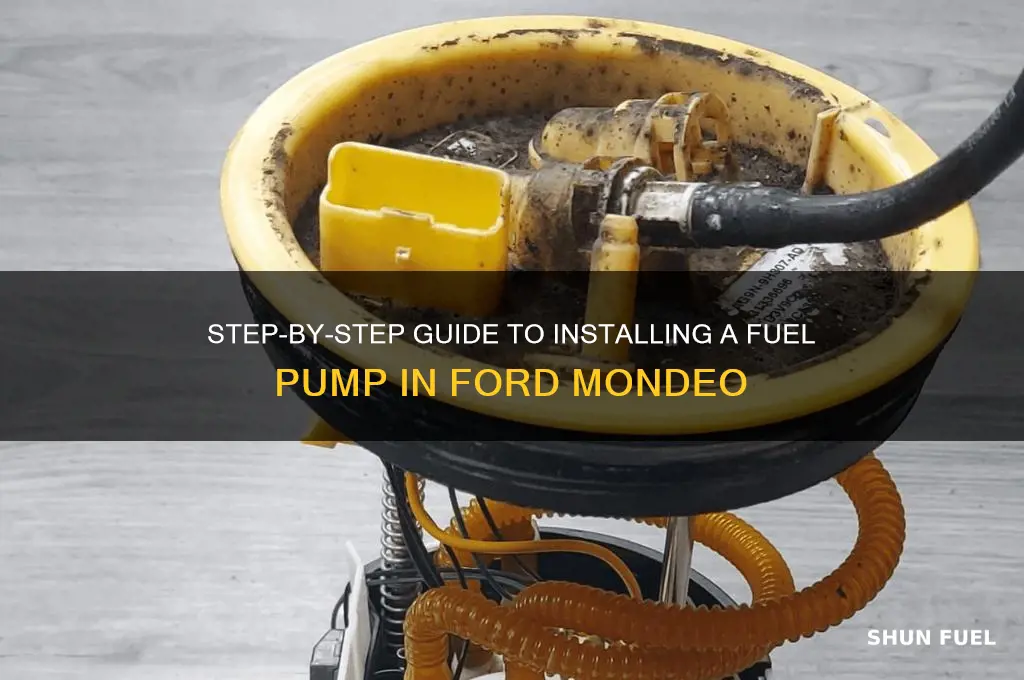

Fitting a fuel pump in a Ford Mondeo requires careful preparation and attention to detail to ensure safety and proper functionality. Begin by disconnecting the battery to prevent electrical hazards, then locate the fuel tank, typically found beneath the rear seats or trunk area. Relieve the fuel system pressure by removing the fuel pump fuse or relay and running the engine until it stalls. Safely raise the vehicle and support it on stands to access the fuel tank. Remove the fuel tank shield and disconnect the fuel lines, electrical connectors, and tank straps before lowering the tank. Extract the old fuel pump assembly, install the new one, and reassemble the components in reverse order, ensuring all connections are secure. Finally, reconnect the battery, check for leaks, and test the system to confirm the fuel pump operates correctly. Always refer to the Ford Mondeo service manual for model-specific instructions and safety guidelines.
| Characteristics | Values |
|---|---|
| Vehicle Model | Ford Mondeo |
| Fuel Pump Type | In-tank electric fuel pump |
| Tools Required | Socket set, wrenches, screwdriver, fuel line disconnect tool, safety gear |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Location of Fuel Pump | Inside the fuel tank, accessed from the rear seat or trunk area |
| Steps to Access Fuel Pump | 1. Remove rear seat or trunk lining 2. Disconnect fuel lines and wiring 3. Lower fuel tank if necessary |
| Fuel Pump Replacement | Replace with OEM or compatible fuel pump, ensure proper sealing |
| Reassembly | Reconnect fuel lines and wiring, reinstall fuel tank and interior panels |
| Post-Installation Check | Check for leaks, ensure proper fuel pressure, test drive vehicle |
| Estimated Time | 2-4 hours depending on experience and tools |
| Difficulty Level | Intermediate to advanced DIY |
| Common Issues | Fuel pump failure, clogged fuel filter, faulty wiring |
| Recommended Parts | OEM fuel pump, fuel filter, fuel line disconnect tool |
| Safety Gear | Safety goggles, gloves, non-flammable work clothes |
| Additional Tips | Use a fuel pump module if replacing the entire assembly, check fuel tank for debris |
Explore related products
What You'll Learn
Tools Required for Fuel Pump Replacement
Replacing the fuel pump in a Ford Mondeo demands a precise set of tools to ensure efficiency and safety. The job requires both common hand tools and specialized equipment tailored to the vehicle’s design. A 10mm and 13mm socket wrench, along with a ratchet and extension bar, are essential for removing bolts and accessing the fuel tank. Additionally, a flathead and Phillips screwdriver will be needed for prying and adjusting components. These tools form the foundation of your toolkit, enabling you to tackle the mechanical aspects of the replacement with confidence.
Beyond the basics, specialized tools are critical for handling the fuel system safely. A fuel line disconnect tool is indispensable for releasing the high-pressure fuel lines without causing damage or leaks. This tool is designed to fit the specific connectors on the Ford Mondeo, ensuring a secure release. A fuel pump module removal tool may also be required, depending on the model year, to extract the pump assembly from the tank. Investing in these specialized tools not only simplifies the process but also minimizes the risk of errors that could lead to costly repairs.
Safety should always be a priority when working on a fuel system. A pair of nitrile gloves and safety goggles are non-negotiable to protect against fuel spills and debris. A fuel system cleaning solvent and absorbent pads should be on hand to manage any accidental spills. For added precaution, a battery disconnect tool or wrench can be used to remove the negative terminal, reducing the risk of sparks near the fuel tank. These safety measures are not optional—they are essential to prevent accidents and ensure a smooth replacement process.
Finally, diagnostic tools can streamline the job and confirm the success of the replacement. A multimeter is useful for testing the electrical connections to the fuel pump before reassembly, ensuring proper functionality. A fuel pressure gauge can verify that the new pump is delivering the correct pressure to the engine. While these tools are not strictly required, they provide peace of mind and help diagnose any issues before they escalate. By equipping yourself with the right tools, you transform a daunting task into a manageable, step-by-step process.
Can Accidents Damage Your Fuel Pump? Understanding the Risks
You may want to see also
Explore related products
Locating the Fuel Pump in Ford Mondeo
The fuel pump in a Ford Mondeo is nestled within the fuel tank, a design choice that enhances safety and efficiency by reducing the risk of fuel line leaks. This location, while secure, complicates access, requiring careful planning and execution during replacement. Understanding this placement is the first step in a successful fuel pump fitting process, as it dictates the tools, precautions, and sequence of actions needed.
To locate the fuel pump, start by identifying the fuel tank’s position beneath the vehicle. On most Ford Mondeo models, the tank sits under the rear seats, protected by the underbody panel. Accessing it involves removing the rear seat cushions and the fuel tank access panel, typically secured by a series of bolts or clips. A flashlight and a basic socket set are essential tools for this stage, as visibility and space are limited.
Once the access panel is removed, the fuel pump module becomes visible. It’s crucial to relieve fuel system pressure before proceeding, a step often overlooked but vital for safety. Disconnect the negative battery terminal and locate the fuel pressure relief valve, usually near the fuel rail. Depressurize the system by slowly loosening the valve until no hissing sound is heard. This precaution minimizes the risk of fuel spillage or ignition during the removal process.
Comparing the Ford Mondeo’s fuel pump location to other vehicles highlights its integrated design. Unlike external pumps found in older models, the in-tank setup demands precision and patience. For instance, while a Toyota Corolla’s pump may be accessed via a dedicated service panel, the Mondeo requires more disassembly, emphasizing the need for a methodical approach. This comparison underscores the importance of model-specific knowledge in automotive repairs.
In conclusion, locating the fuel pump in a Ford Mondeo involves understanding its in-tank placement, accessing it through the rear seat area, and taking safety precautions like depressurizing the fuel system. This process, while detailed, ensures a smooth transition to the next steps of fitting a new pump. By focusing on these specifics, even novice mechanics can approach the task with confidence and accuracy.
Rebuilding Your Johnson Outboard Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Steps to Safely Remove the Fuel Pump
Removing the fuel pump from a Ford Mondeo requires precision and caution to avoid hazards like fuel spills or electrical shorts. Begin by disconnecting the battery to eliminate the risk of sparks, which could ignite fuel vapors. Next, relieve the fuel system pressure using the Schrader valve located near the fuel rail. This step is critical, as residual pressure can cause fuel to spray during disassembly. Always wear safety goggles and work in a well-ventilated area to minimize exposure to flammable fumes.
Once the system is depressurized, locate the fuel tank access panel, typically found beneath the rear seat. Remove the panel to expose the fuel pump module. Before proceeding, disconnect the electrical connector and fuel lines, taking care not to damage the quick-disconnect fittings. A fuel line disconnect tool can simplify this process, ensuring a clean separation without kinking or breaking the lines. Labeling the connections beforehand can prevent confusion during reassembly.
With the electrical and fuel connections detached, focus on removing the fuel pump module. This involves unscrewing the retaining ring or bolts that secure the module to the tank. Use a suitable wrench or socket to avoid stripping the fasteners. Once loosened, carefully lower the module out of the tank, being mindful of any residual fuel that may spill. Have a drain pan ready to catch any drips and dispose of the fuel safely in accordance with local regulations.
Inspect the fuel pump and sender assembly for wear or damage before proceeding with replacement. If the pump is being reused, clean it thoroughly to ensure optimal performance. Conversely, if installing a new pump, compare it to the old one to confirm compatibility. Reinstallation follows the removal steps in reverse, but always apply thread sealant or a new gasket to prevent leaks. Test the system for leaks and functionality before driving the vehicle, ensuring a safe and reliable repair.
Easy Guide to Installing a Fuel Pump on Your Lawn Mower
You may want to see also
Explore related products
Installing the New Fuel Pump Correctly
Before installing a new fuel pump in your Ford Mondeo, ensure the vehicle is on a level surface, the ignition is off, and the fuel system is depressurized. Failure to depressurize can lead to fuel spray, increasing the risk of fire or injury. Use a fuel pressure gauge or follow the manufacturer’s instructions to safely release pressure from the system. This step is non-negotiable—skipping it compromises safety and can damage the new pump.
Once depressurized, locate the fuel tank and remove it carefully, as it may still contain residual fuel. Place a drain pan beneath the tank to catch any spillage. Disconnect the electrical connector and fuel lines, taking note of their orientation for reassembly. Clean the tank’s interior and inspect it for debris or corrosion, as contaminants can prematurely wear the new pump. If the tank is excessively dirty, consider using a fuel tank cleaning agent or replacing it entirely.
When installing the new fuel pump, align it precisely with the tank’s mounting points and secure it with the provided hardware. Torque the bolts to the manufacturer’s specifications—overtightening can crack the tank, while undertightening may cause leaks. Reconnect the electrical connector and fuel lines, ensuring all seals are intact. Double-check connections for tightness and proper seating to prevent fuel leaks or electrical faults.
After installation, refill the tank with fresh fuel and turn the ignition to the "on" position (without starting the engine) to prime the pump. Listen for the whirring sound, which confirms the pump is operational. Inspect for leaks around the tank and connections. If no leaks are detected, start the engine and monitor for unusual noises or performance issues. A correctly installed fuel pump should restore smooth operation, ensuring your Ford Mondeo runs efficiently and reliably.
Step-by-Step Guide to Removing a 2005 Trailblazer Fuel Pump
You may want to see also
Explore related products
Testing the Fuel Pump After Installation
Once the fuel pump is installed in your Ford Mondeo, the critical next step is to ensure it functions correctly. Testing the fuel pump after installation is not just a formality—it’s a safety and performance check that can prevent future issues. Start by reconnecting the battery and turning the ignition to the "on" position without starting the engine. Listen carefully for the fuel pump’s priming cycle, a brief humming sound that indicates the pump is pressurizing the fuel system. If you hear nothing, check the fuse and relay for the fuel pump, as a blown fuse or faulty relay is a common culprit.
Next, measure the fuel pressure using a gauge connected to the fuel rail. Consult your Ford Mondeo’s service manual for the specified pressure range, typically between 30 and 60 psi depending on the engine model. If the pressure is too low, the pump may be faulty or there could be a restriction in the fuel lines. Conversely, excessive pressure can damage injectors and other components. Ensure the gauge is compatible with your vehicle’s fuel system to avoid inaccurate readings or damage.
A less technical but equally important test is to start the engine and observe its behavior. A properly functioning fuel pump should allow the engine to start smoothly without hesitation or stalling. If the engine cranks but doesn’t start, or if it runs rough, the pump may not be delivering fuel consistently. Pay attention to unusual noises, such as whining or grinding, which could indicate internal pump damage.
For a more comprehensive assessment, use a multimeter to check the pump’s electrical current draw. With the engine running, connect the multimeter in series with the pump’s power wire and compare the reading to the manufacturer’s specifications. Excessive current draw suggests the pump is overworking, often due to internal wear or a clogged fuel filter. Replace the pump if the current exceeds the recommended limit by more than 10%.
Finally, perform a road test to evaluate the pump under real-world conditions. Drive the vehicle at varying speeds and observe how it accelerates and maintains power. Any loss of power, especially during high-demand situations like overtaking or climbing hills, could indicate a fuel delivery issue. Combine these tests to ensure the fuel pump is not only installed correctly but also performs reliably, safeguarding your Ford Mondeo’s longevity and your peace of mind.
Revive Your Classic: Rebuilding a VW Beetle Fuel Pump Step-by-Step
You may want to see also
Frequently asked questions
You will need a jack and jack stands, a wrench or socket set, a screwdriver, pliers, a fuel line disconnect tool, and a new fuel pump assembly.
First, relieve the fuel system pressure, then remove the rear seat cushion to access the fuel pump module located in the fuel tank.
No, the fuel pump is located inside the fuel tank, so the tank must be removed to access and replace the pump.
Ensure the vehicle is on a level surface, disconnect the battery, relieve fuel pressure, and work in a well-ventilated area to avoid fuel fumes and fire hazards.
