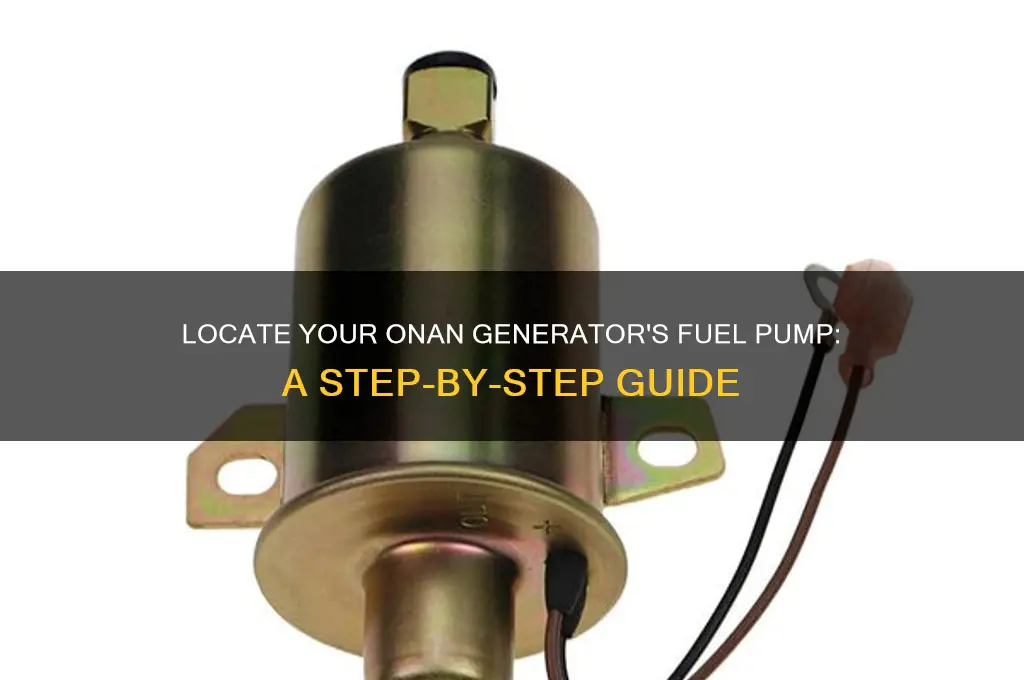

Finding the fuel pump for an Onan generator is a crucial step in maintaining or repairing your generator’s fuel system. The fuel pump is typically located near the generator’s engine, often mounted on or adjacent to the fuel tank, and is responsible for delivering fuel from the tank to the carburetor or fuel injectors. To locate it, start by consulting your Onan generator’s manual, which provides specific diagrams and instructions for your model. If the manual is unavailable, carefully inspect the generator’s engine compartment, looking for a small, electric or mechanical pump connected to fuel lines. Ensure the generator is turned off and cooled down before attempting to access the pump to avoid any safety hazards. Identifying the fuel pump correctly is essential for troubleshooting issues like fuel delivery problems or replacing a faulty unit.
| Characteristics | Values |
|---|---|
| Location of Fuel Pump | Typically located near the carburetor or fuel tank on Onan generators. |
| Identification | Look for a small, diaphragm-type pump with fuel lines connected. |
| Access | May require removing the generator's side panel or cover for access. |
| Testing | Disconnect fuel lines and crank the engine to check for fuel flow. |
| Replacement Parts | Available at authorized Cummins Onan dealers or online retailers. |
| Common Models | Onan Microlite, Kyaro, and other portable generator models. |
| Maintenance Tips | Regularly inspect for leaks, clogs, or damage to ensure proper operation. |
| Compatibility | Ensure replacement pump matches the generator's model and specifications. |
| Tools Required | Basic hand tools (screwdrivers, wrenches) for removal and installation. |
| Safety Precautions | Disconnect power and relieve fuel pressure before working on the pump. |
