Regan Brown

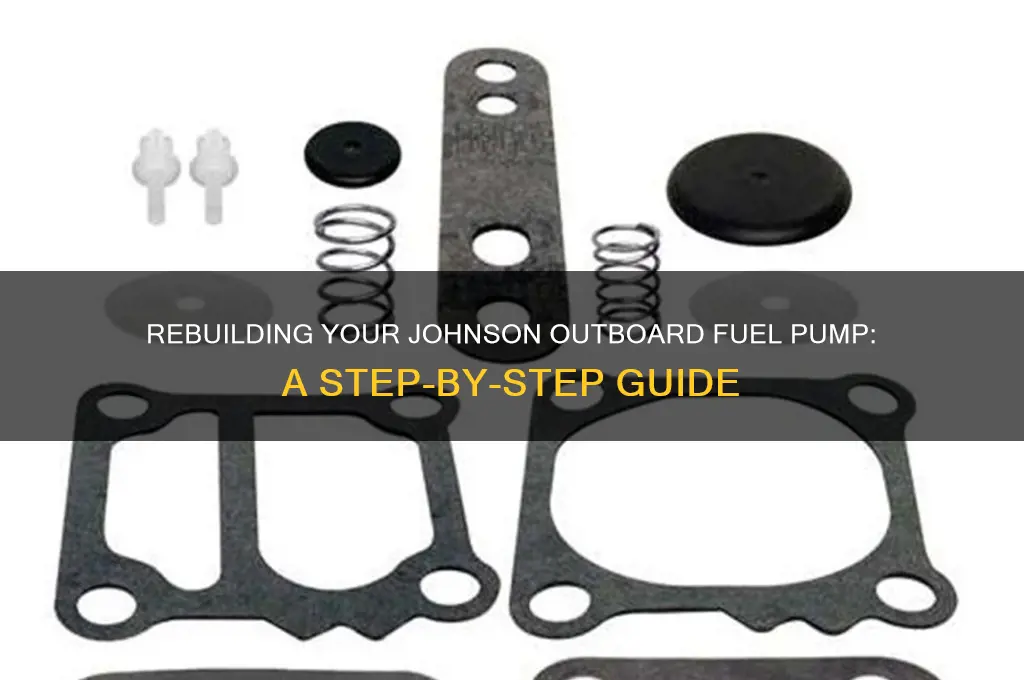

Rebuilding a fuel pump on a Johnson outboard motor is a task that requires attention to detail and the right tools. The fuel pump is a critical component of the engine’s fuel delivery system, ensuring a consistent flow of fuel to the carburetor or fuel injectors. Over time, wear and tear, debris, or corrosion can compromise its performance, leading to issues like hard starting, rough idling, or engine stalling. To rebuild the fuel pump, you’ll need to disassemble it carefully, inspect all components for damage or wear, replace any faulty parts such as diaphragms, valves, or gaskets, and reassemble it following the manufacturer’s specifications. Proper cleaning, lubrication, and testing are essential to ensure the pump operates efficiently once reinstalled. This process not only saves money compared to replacing the entire unit but also extends the life of your Johnson outboard motor.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdrivers, wrenches, pliers, gasket scraper, new gaskets, fuel pump rebuild kit |
| Safety Precautions | Disconnect spark plug wires, work in a well-ventilated area, avoid open flames |
| Fuel Pump Location | Typically mounted on the engine block near the carburetor |
| Disassembly Steps | 1. Remove fuel lines and mounting bolts 2. Separate pump housing 3. Remove diaphragm, valves, and springs |
| Cleaning Process | Use carburetor cleaner to remove debris and varnish from components |
| Inspection Points | Check diaphragm for tears, valves for wear, and springs for fatigue |
| Replacement Parts | Diaphragm, valves, springs, gaskets (from rebuild kit) |
| Reassembly Steps | 1. Install new gaskets 2. Reassemble diaphragm, valves, and springs 3. Secure housing with bolts |
| Testing Procedure | Reconnect fuel lines, prime the pump, and check for leaks or proper operation |
| Common Issues | Leaks, weak fuel delivery, diaphragm failure |
| Maintenance Tips | Regularly inspect fuel lines and pump for wear, use clean fuel |
| Compatibility | Specific to Johnson outboard models (check model number for exact kit) |
| Difficulty Level | Moderate (requires mechanical skills and patience) |
| Estimated Time | 1-2 hours depending on experience and condition of the pump |
| Cost of Rebuild Kit | $20-$50 (varies by model and supplier) |
Explore related products
What You'll Learn
- Gather necessary tools and replacement parts for the fuel pump rebuild
- Disassemble the fuel pump carefully, noting component placement and condition
- Clean all parts thoroughly, inspecting for wear or damage during cleaning
- Replace worn components and reassemble the fuel pump following the correct sequence
- Test the rebuilt fuel pump for proper function before reinstallation
Gather necessary tools and replacement parts for the fuel pump rebuild
Before diving into the fuel pump rebuild for your Johnson outboard, ensure you have the right tools and replacement parts. Start by consulting the Johnson outboard service manual specific to your model, as it will detail the exact components and tools required. Common tools include a socket set, screwdrivers, pliers, and a torque wrench. Replacement parts typically consist of gaskets, O-rings, diaphragms, and possibly a new fuel pump kit if the existing one is severely worn. Always opt for OEM (Original Equipment Manufacturer) parts to guarantee compatibility and durability.
Analyzing the fuel pump’s condition before disassembly can save time and effort. Inspect the pump for cracks, leaks, or worn diaphragms, as these are telltale signs of failure. If the pump housing is damaged, consider replacing the entire unit rather than attempting a rebuild. For minor wear, a rebuild kit with new diaphragms and seals is often sufficient. Keep in mind that fuel pumps on older Johnson outboards may require parts that are harder to source, so plan ahead and order components in advance to avoid delays.
When gathering tools, prioritize precision and organization. Lay out all tools and parts in a clean, well-lit workspace to prevent losing small components like screws or O-rings. A magnetic parts tray can be invaluable for keeping track of fasteners. Additionally, clean all tools and your hands thoroughly before starting to avoid contaminating the fuel system with dirt or debris. Contamination can lead to poor engine performance or even damage, so this step is non-negotiable.
For a successful rebuild, consider the following practical tips. If the fuel pump has been exposed to ethanol-blended fuel, inspect all rubber components for degradation, as ethanol can accelerate wear. Replace these parts proactively to prevent future issues. When reassembling, apply a thin coat of marine grease to O-rings and gaskets to ensure a proper seal without compromising flexibility. Finally, test the pump for leaks and proper operation before reinstalling it on the outboard to avoid troubleshooting later.
In conclusion, gathering the necessary tools and replacement parts is a critical step in rebuilding a Johnson outboard fuel pump. By being thorough, organized, and proactive, you can ensure a smooth and effective rebuild. Always refer to the service manual, use OEM parts, and maintain a clean workspace to achieve professional results. With the right preparation, you’ll restore your fuel pump’s reliability and keep your outboard running smoothly.
Locate Fuel Pump Relay in Your 2001 Toyota Tundra Easily
You may want to see also
Explore related products
Disassemble the fuel pump carefully, noting component placement and condition
Disassembling a Johnson outboard fuel pump requires precision and attention to detail to ensure a successful rebuild. Begin by securing the pump in a well-lit workspace, preferably on a clean, flat surface. Use a set of fine-tipped pliers or a small screwdriver to carefully remove any screws or fasteners holding the pump housing together. Work methodically, as forcing components apart can damage delicate internal parts. Keep a tray or organizer nearby to place screws and small parts in the order they are removed, which aids in reassembly.
As you separate the housing, observe the placement of diaphragms, valves, and springs. These components are critical to the pump’s operation and must be handled with care. Inspect the diaphragm for cracks, tears, or hardening, as these defects can compromise fuel delivery. Similarly, examine the valves and springs for wear, corrosion, or debris buildup. Document the condition of each part using notes or photographs, as this information will guide replacement decisions and reassembly.
A comparative approach can help you identify issues. Compare the condition of your pump’s components to manufacturer specifications or examples from service manuals. For instance, a healthy diaphragm should be flexible and free of deformities, while springs should retain their tension without visible fatigue. If you notice discrepancies, such as a warped diaphragm or weakened spring, mark these parts for replacement. This analytical step ensures the rebuilt pump operates efficiently and reliably.
Persuasive caution is necessary when handling small components like O-rings and gaskets. These parts often degrade over time and should be replaced, even if they appear intact. Reusing old seals can lead to leaks or improper sealing, undermining the rebuild. Invest in a quality rebuild kit specific to your Johnson outboard model, as it typically includes all necessary gaskets, O-rings, and other consumables. This small investment saves time and prevents future issues.
Conclude the disassembly by cleaning all components thoroughly. Use a mild solvent or carburetor cleaner to remove fuel residue, varnish, and debris. Avoid harsh chemicals that could damage rubber or plastic parts. Once cleaned, lay out the components in their original arrangement, referencing your notes or photos. This organized approach ensures a smooth reassembly process, setting the stage for a successful fuel pump rebuild.
Testing Your 1995 Geo Metro's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Clean all parts thoroughly, inspecting for wear or damage during cleaning
Disassembly reveals a labyrinth of components, each critical to the fuel pump’s function. Before reassembly, cleaning isn’t optional—it’s diagnostic. Use a solvent like mineral spirits or carburetor cleaner to dissolve varnish, gum, and debris. Avoid harsh chemicals like acetone, which can degrade rubber components. Employ soft-bristle brushes for intricate areas and compressed air to expel residue from passages. As you clean, scrutinize each part for cracks, corrosion, or deformation. A worn diaphragm, for instance, may appear brittle or discolored, while a damaged check valve could show warping or misalignment. This process isn’t merely about aesthetics; it’s about identifying failures before they recur.
The inspection phase demands precision. Hold components under bright light to detect hairline fractures or pitting. Measure critical parts like springs and diaphragms against OEM specifications—a spring losing 10% of its tension, for example, compromises pump efficiency. Compare worn parts to new ones for visual reference. Pay particular attention to O-rings and seals, as even minor degradation leads to leaks. A magnifying glass can reveal micro-tears in rubber components, often invisible to the naked eye. This dual focus on cleaning and inspection transforms a routine task into a proactive maintenance strategy.
Consider the fuel pump’s environment: constant exposure to ethanol-blended fuels accelerates material breakdown. Ethanol acts as a solvent, weakening rubber and plastic over time. During cleaning, note any swelling or softening in these materials—signs of ethanol damage. Replace affected parts with ethanol-resistant alternatives, such as Viton seals, to extend longevity. Similarly, inspect metal components for galvanic corrosion, common in saltwater environments. A wire brush can remove surface rust, but deep corrosion warrants replacement. This contextual awareness ensures the rebuild addresses both immediate issues and long-term durability.
Practical tips streamline the process. Organize parts in labeled trays to maintain assembly order. Use a parts diagram for reference, as Johnson outboard pumps vary by model year. For stubborn deposits, ultrasonic cleaners offer thorough cleaning without dislodging delicate components. After cleaning, air-dry parts completely to prevent solvent residue from contaminating fuel. Document findings—photograph damaged parts or note their condition—to justify replacements and track wear patterns over time. This methodical approach turns cleaning into a diagnostic tool, ensuring the rebuilt pump operates reliably.
The takeaway is clear: cleaning isn’t a preliminary step but a critical diagnostic phase. It reveals hidden issues, from material degradation to mechanical wear, that visual inspection alone might miss. By combining thorough cleaning with meticulous inspection, you not only restore function but also preempt future failures. This dual focus transforms a reactive repair into a proactive overhaul, ensuring the Johnson outboard fuel pump delivers consistent performance under demanding conditions.
Rebuilding a Hooley Blue Fuel Pump: Step-by-Step Guide for DIY Enthusiasts
You may want to see also
Explore related products
Replace worn components and reassemble the fuel pump following the correct sequence
After disassembling your Johnson outboard's fuel pump, the next critical step is identifying and replacing worn components. This isn't just a cosmetic fix; worn parts like diaphragms, valves, or gaskets compromise fuel delivery, leading to poor engine performance or even failure. Inspect each component meticulously, comparing it to manufacturer specifications or a service manual. Look for cracks, tears, warping, or excessive wear. Diaphragms, for instance, should be supple and free of punctures, while valves need to seal tightly.
Testing Your 2002 Suburban 1500 Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Test the rebuilt fuel pump for proper function before reinstallation
Before reinstalling your freshly rebuilt Johnson outboard fuel pump, a thorough functionality test is crucial. Skipping this step risks engine performance issues or even damage down the line. Think of it as a final quality check, ensuring your hard work pays off with reliable operation.
Simulate Real-World Conditions: Connect the pump to a fuel source and a pressure gauge. Mimic engine demand by applying varying levels of vacuum to the pump's inlet. Observe the pressure gauge readings against the manufacturer's specifications for your specific Johnson outboard model. This test reveals potential weaknesses like leaks, inadequate pressure delivery, or inconsistent performance under load.
Listen for the Tell-Tale Signs: With the pump running, pay close attention to its operation. A healthy pump should produce a smooth, consistent humming sound. Any grinding, whining, or irregular noises indicate internal issues that need addressing before reinstallation. Remember, your ears can often detect problems before they become visually apparent.
Visual Inspection Under Pressure: While the pump is operating, carefully inspect all connections and seals for leaks. Even the smallest fuel seepage can lead to performance problems and safety hazards. Use a spray bottle with soapy water to highlight leaks – bubbles will form at the leak point. This simple yet effective method ensures your rebuilt pump is not only functional but also leak-proof.
The Final Verdict: If the pump maintains consistent pressure, operates silently, and shows no signs of leakage, it's ready for reinstallation. This pre-installation test is a small investment of time that can save you from future headaches and costly repairs. Remember, a properly functioning fuel pump is essential for optimal engine performance and longevity of your Johnson outboard.
CP4 Fuel Pump Update: What's Changed and Why It Matters
You may want to see also
Frequently asked questions
You will need basic tools such as screwdrivers, wrenches, pliers, a socket set, and possibly a fuel pump rebuild kit specific to your Johnson outboard model.
Signs include engine sputtering, difficulty starting, loss of power, or fuel leaks. Inspect the pump for wear, cracks, or debris in the diaphragm and valves.
Rebuilding a fuel pump is a moderate DIY task. If you’re comfortable with mechanical work and have the right tools, you can do it yourself. Otherwise, consult a professional.
Rebuild kits are available at marine parts stores, online retailers, or directly from Johnson/Evinrude dealers. Ensure the kit matches your specific outboard model.
Steps include disconnecting fuel lines, removing the pump cover, replacing the diaphragm, valves, and gaskets, reassembling the pump, and testing for leaks and proper operation.
