Removing the fuel pump from a 2005 Chevrolet Trailblazer requires careful preparation and attention to detail due to the pump's location within the fuel tank. Begin by ensuring the vehicle is on a level surface, the engine is cool, and the fuel system pressure is relieved to prevent accidents. Disconnect the negative battery terminal to avoid electrical hazards, then locate and remove the fuel tank access panel, typically found beneath the rear seat. Next, disconnect the electrical connector and fuel lines from the pump assembly, using appropriate tools to avoid damage. With the tank partially drained, lower it slightly or use a specialized tool to access and remove the pump retaining ring, carefully extracting the pump without spilling residual fuel. Always refer to the vehicle’s service manual for specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2005 Chevrolet Trailblazer |
| Fuel Pump Location | Inside the fuel tank, accessed from the top of the tank |
| Tools Required | Socket set, wrenches, screwdriver, trim panel removal tool, fuel line disconnect tool |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in a well-ventilated area |
| Steps to Remove Fuel Pump | 1. Relieve fuel pressure 2. Disconnect battery 3. Remove rear seat or cargo area trim 4. Access fuel pump module 5. Disconnect electrical connectors and fuel lines 6. Remove fuel pump retaining ring and lift out module |
| Difficulty Level | Moderate to Difficult (requires mechanical skill and proper tools) |
| Estimated Time | 2-4 hours depending on experience |
| Common Issues | Fuel line leaks, electrical connector damage, difficulty accessing fuel tank |
| Replacement Parts | Fuel pump module, fuel filter, fuel lines (if damaged) |
| Post-Installation Steps | Reinstall components, reconnect battery, check for leaks, test fuel pump operation |
| Safety Note | Gasoline is flammable; avoid sparks or open flames during the process |
Explore related products
What You'll Learn
- Gather Tools and Materials: Socket set, jack, wrench, fuel pump module, gloves, safety goggles
- Relieve Fuel Pressure: Locate Schrader valve, attach gauge, depress valve to release pressure
- Access Fuel Pump: Lower tank, disconnect lines, remove retaining ring, extract pump assembly
- Install New Pump: Insert new module, secure with ring, reconnect lines, ensure tight fit
- Test and Verify: Reinstall tank, start vehicle, check for leaks, confirm proper operation
Gather Tools and Materials: Socket set, jack, wrench, fuel pump module, gloves, safety goggles
Before diving into the removal of a 2005 Trailblazer fuel pump, it's essential to assemble the necessary tools and materials to ensure a smooth and safe process. A socket set, preferably with a variety of sizes, will be required to loosen and tighten bolts and nuts during the removal and installation process. The specific socket sizes needed may vary, but typically, a set ranging from 8mm to 19mm should suffice for most fuel pump-related tasks.
In addition to the socket set, a reliable jack and jack stands are crucial for safely raising and supporting the vehicle. It's imperative to follow the manufacturer's recommendations for jack placement and weight capacity to prevent accidents or damage to the vehicle. A wrench, particularly an adjustable one, will also come in handy for tightening or loosening hose clamps, fuel lines, and other components that may require more torque than a socket set can provide. When selecting a wrench, consider the size and type of fasteners used in the fuel pump assembly to ensure compatibility.

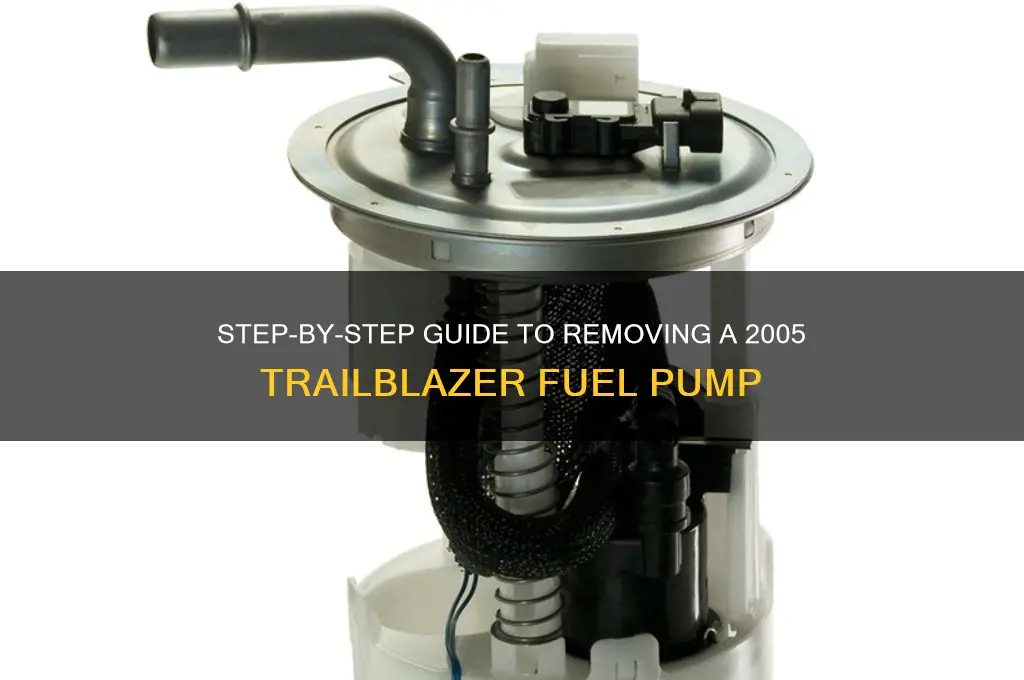

The fuel pump module itself is a critical component in this process, as it houses the fuel pump, sending unit, and other essential parts. When purchasing a replacement fuel pump module, ensure it is compatible with the 2005 Trailblazer's make, model, and engine type. It's also advisable to opt for a high-quality, OEM (Original Equipment Manufacturer) or equivalent part to guarantee reliability and performance. Before starting the removal process, inspect the new fuel pump module for any defects or damage, and verify that all necessary components, such as seals and gaskets, are included.
Personal protective equipment (PPE) is often overlooked but is vital for ensuring safety during the fuel pump removal process. Gloves, preferably made of a durable, fuel-resistant material like nitrile or latex, will protect your hands from fuel, dirt, and sharp edges. Safety goggles are equally important, as they shield your eyes from fuel splashes, debris, and other potential hazards. When selecting safety goggles, choose a pair that meets ANSI (American National Standards Institute) standards and provides a comfortable, secure fit to minimize distractions and maximize protection.
As you gather the necessary tools and materials, consider creating a checklist to ensure nothing is overlooked. This checklist should include not only the socket set, jack, wrench, fuel pump module, gloves, and safety goggles but also additional items like a drain pan, rags, and a fuel line disconnect tool. By taking the time to assemble and verify the required tools and materials, you'll be well-prepared to tackle the fuel pump removal process with confidence and efficiency. Remember, a well-prepared approach can save time, reduce frustration, and minimize the risk of errors or accidents during the repair.
Do Honda Lawn Mower Engines Require Fuel Pumps? Explained
You may want to see also
Explore related products
Relieve Fuel Pressure: Locate Schrader valve, attach gauge, depress valve to release pressure
Before attempting to remove the fuel pump on a 2005 Trailblazer, it's crucial to relieve the fuel system pressure to ensure safety and prevent potential hazards. This process involves locating the Schrader valve, a component often overlooked but essential for this task. The Schrader valve, typically found near the fuel rail, resembles a tire valve stem and serves as the access point for releasing fuel pressure.
To begin, gather the necessary tools: a fuel pressure gauge compatible with the Schrader valve and safety gear, including gloves and safety goggles. Attach the gauge securely to the Schrader valve, ensuring a tight connection to avoid leaks. Once attached, depress the valve by pressing the center pin. This action releases the pressurized fuel from the system, allowing it to flow back into the tank. Hold the valve open for at least 30 seconds to ensure complete depressurization, and monitor the gauge to confirm the pressure drops to zero.
While this step may seem straightforward, it’s critical to approach it with caution. Fuel under pressure can spray unexpectedly, posing a fire risk or causing skin irritation. Always work in a well-ventilated area, away from open flames or sparks. Additionally, inspect the Schrader valve for signs of wear or damage before proceeding, as a faulty valve could compromise the depressurization process.
In comparison to other fuel system tasks, relieving pressure via the Schrader valve is a relatively quick and cost-effective method. It eliminates the need for specialized tools or complex procedures, making it accessible even for DIY enthusiasts. However, it’s a step that should never be skipped, as working on a pressurized fuel system can lead to dangerous consequences. By prioritizing safety and following these precise steps, you’ll create a secure environment for the subsequent fuel pump removal process.
Step-by-Step Guide to Safely Removing a Fuel Pump Relay
You may want to see also
Explore related products
Access Fuel Pump: Lower tank, disconnect lines, remove retaining ring, extract pump assembly
Lowering the fuel tank is the first critical step in accessing the fuel pump of a 2005 Trailblazer. Position the vehicle on a secure lift or jack stands to ensure safe and unobstructed access to the underside. Use a floor jack to support the tank while loosening the retaining straps, then gently lower it until it rests on a sturdy platform. This process requires precision to avoid damaging fuel lines or the tank itself. Always verify the tank is empty or nearly empty to minimize weight and potential spill risks.
Once the tank is lowered, disconnecting the fuel lines becomes the next priority. Identify the quick-connect fittings attached to the pump assembly and use a specialized fuel line disconnect tool to release them. Avoid forcing the lines apart, as this can damage the fittings or cause fuel leakage. Apply steady, even pressure while pulling the tool to ensure a clean separation. Keep a drain pan nearby to catch any residual fuel that may escape during this step.
Removing the retaining ring that secures the pump assembly is a delicate task. Use a flathead screwdriver or a retaining ring removal tool to carefully pry the ring free from its groove. Work methodically around the circumference, ensuring the ring doesn’t snap back unexpectedly. Once removed, set the ring aside in a clean area to prevent loss or contamination. This step requires patience and a steady hand to avoid damaging the tank or pump components.
With the retaining ring removed, extracting the pump assembly is straightforward but requires caution. Grip the assembly firmly and pull it straight upward, taking care not to twist or tilt it excessively. Inspect the assembly for any signs of wear or damage, such as cracked seals or corroded electrical connections. If replacing the pump, ensure the new unit is compatible with the Trailblazer’s fuel system and includes all necessary components, such as the sending unit and float. Reinstallation follows the reverse order, with careful attention to securing the retaining ring and reconnecting fuel lines properly.
Testing Your 2001 VW Jetta GLX Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Install New Pump: Insert new module, secure with ring, reconnect lines, ensure tight fit
With the old fuel pump removed, it's time to install the new module. This process requires precision and attention to detail to ensure a secure and leak-free connection. Begin by carefully inserting the new fuel pump module into the fuel tank, making sure the electrical connector and fuel lines are properly aligned. The module should fit snugly, but avoid forcing it to prevent damage to the tank or the pump itself.
Securing the module is the next critical step. Use the provided retaining ring or locking mechanism to hold the pump in place. This ring is typically designed to snap or screw into position, creating a tight seal. Ensure the ring is fully engaged and seated correctly, as a loose connection can lead to fuel leaks or pump failure. Refer to the manufacturer's instructions for the specific torque specifications or tightening procedure to avoid over-tightening, which could damage the module or the tank.
Reconnecting the fuel lines is a delicate task. Attach the fuel supply and return lines to the corresponding ports on the new pump, ensuring the connections are tight and secure. Use new seals or O-rings if provided with the replacement pump to guarantee a leak-free fit. It’s essential to check for any signs of damage or wear on the lines themselves, as compromised fuel lines can lead to leaks or reduced system performance.
Finally, double-check all connections to ensure a tight fit. Inspect the electrical connector, ensuring it is firmly attached and free from corrosion. Gently tug on the fuel lines to confirm they are securely fastened. A proper installation not only ensures the fuel system operates efficiently but also prevents potential safety hazards associated with fuel leaks. Taking the time to verify each step will contribute to a successful and long-lasting repair.
Fuel Pump Installation Time: Factors Affecting Replacement Duration and Efficiency
You may want to see also
Explore related products
Test and Verify: Reinstall tank, start vehicle, check for leaks, confirm proper operation
After removing and replacing the fuel pump in a 2005 Trailblazer, the final and most critical phase is testing and verification. This step ensures that the new fuel pump functions correctly and that there are no leaks in the system, which could lead to safety hazards or further mechanical issues. Begin by carefully reinstalling the fuel tank, ensuring all connections are secure and aligned properly. Torque the bolts to the manufacturer’s specifications—typically 15 to 20 foot-pounds for the tank straps—to avoid over-tightening, which can damage the tank or its mounting points.
Once the tank is reinstalled, reconnect the battery to restore power to the vehicle. Before starting the engine, turn the ignition to the "on" position for a few seconds to allow the fuel pump to prime the system. Listen for the characteristic hum of the pump, which should last 2 to 3 seconds. If the pump fails to prime, double-check the electrical connections and fuel lines for any disconnections or damage. After priming, start the vehicle and let it idle for 5 to 10 minutes. Observe the engine’s performance for any irregularities, such as rough idling or stalling, which could indicate a faulty pump or improper installation.
While the vehicle is running, inspect the fuel tank and lines for leaks. Use a clean rag to wipe down the area around the tank and connections, then monitor for any signs of fuel seepage. Even a small leak can escalate quickly, so address any issues immediately. If a leak is detected, shut off the engine and investigate the source. Common culprits include loose fittings, damaged O-rings, or a cracked fuel line. Tighten connections as needed, but avoid over-tightening, which can cause further damage.
Finally, confirm proper operation by taking the vehicle for a short test drive. Pay attention to acceleration, power delivery, and any unusual noises. A properly functioning fuel pump should provide consistent fuel pressure, ensuring smooth engine performance. If the vehicle hesitates, loses power, or stalls during the drive, revisit the installation process and verify that all components are functioning correctly. This comprehensive testing and verification process not only ensures the fuel pump is working as intended but also safeguards against potential issues down the road.
1987 Ford Ranger Fuel System: Dual Pumps or Single Pump Setup?
You may want to see also
Frequently asked questions
You will need a fuel line disconnect tool, a socket set (typically 10mm and 13mm), a flathead screwdriver, a trim panel removal tool, and a new fuel pump module if you plan to replace it.
Yes, it is crucial to relieve the fuel pressure to avoid fuel spray or injury. You can do this by disconnecting the negative battery terminal and running the engine until it stalls, or by using a fuel pressure gauge if available.
First, remove the rear seat cushion by pulling it upward. Then, remove the fuel pump access cover by unscrewing the retaining bolts. Disconnect the electrical connector and fuel lines, and then remove the fuel pump module by turning the locking ring counterclockwise.
